Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4899LDBDEVAL BOARD FOR LM4899 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.4W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4899 | Board(s) |
|
|
LM4902LDBDEVAL BOARD FOR LM4902 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 675mW x 1 @ 8Ohm | 2V ~ 5.5V | LM4902 | Board(s) |
|
|
LM4912MMBDEVAL BOARD FOR LM4912 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 145mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4912 | Board(s) |
|
|
LM4982TLBDEVAL BOARD FOR LM4982 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 51mW x 2 @ 32Ohm | 1.6V ~ 4V | LM4982 | Board(s) |
|
LM48555TLBDEVAL BOARD FOR LM48555 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | - | 2.7V ~ 9V | LM48555 | Board(s) |
|

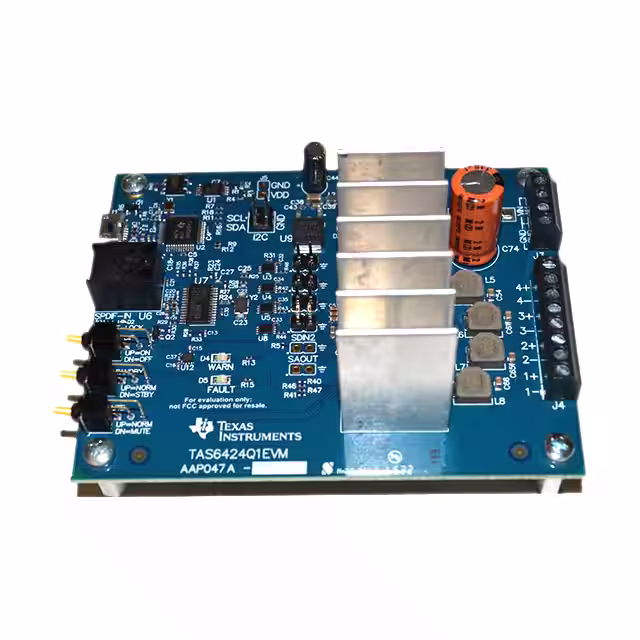

TAS6424Q1EVMEVAL BOARD FOR TAS6424-Q1 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 4-Channel (Quad) | 75W x 4 @ 4Ohm | 4.5V ~ 26V | TAS6424-Q1 | Board(s) |
|
|
TAS5001-5122C2EVMEVAL BOARD FOR TAS5001 TAS5122 |
0 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 37W x 2 @ 6Ohm | 16V ~ 25.5V | TAS5001, TAS5122 | Board(s), Cable(s) |
|
|
LM4733TABDEVAL BOARD FOR LM4733 |
0 |
|
- |
- | Box | Discontinued at Digi-Key | Class AB | 3-Channel | 30W x 3 @ 8Ohm | 20V ~ 64V, ±10V ~ 32V | LM4733 | Board(s) |
|
|
LM4809LQBDEVAL BOARD FOR LM4809 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 105mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4809 | Board(s) |
|
|
LM4908LQBDEVAL BOARD FOR LM4908 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 157mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4908 | Board(s) |
|
|
TAS5704EVMEVAL BOARD FOR TAS5704 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) or 4-Channel (Quad) | 20.6W x 2 @ 8Ohm | 10V ~ 26V | TAS5704 | Board(s) |
|

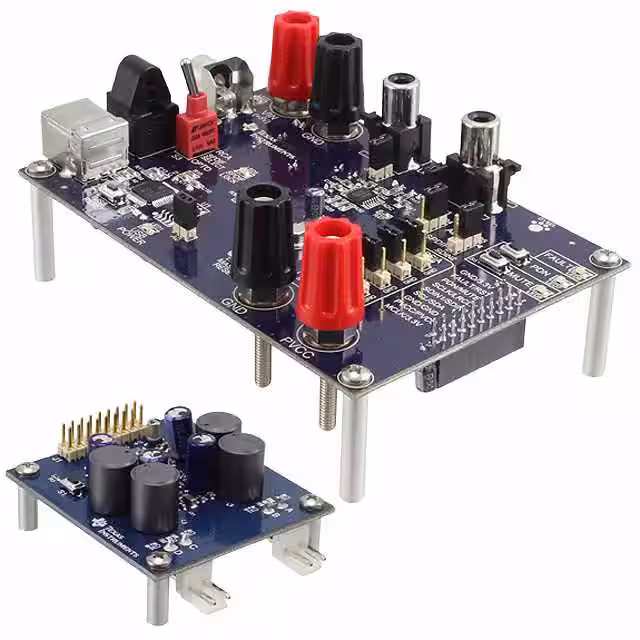

TAS5710EVMEVAL BOARD FOR TAS5710 |
0 |
|
- |
- | Box | Obsolete | Class D | 2-Channel (Stereo) | 20.2W x 2 @ 8Ohm | 10V ~ 26V | TAS5710 | Board(s) |
|
|
TAS5705EVM2EVAL BOARD FOR TAS5705 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones and Subwoofer | 20W x 2 @ 8Ohm | 8V ~ 24V | TAS5705 | Board(s) |
|
|
TAS5709EVMEVAL BOARD FOR TAS5709 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 20.6W x 2 @ 8Ohm | 8V ~ 24V | TAS5709 | Board(s) |
|

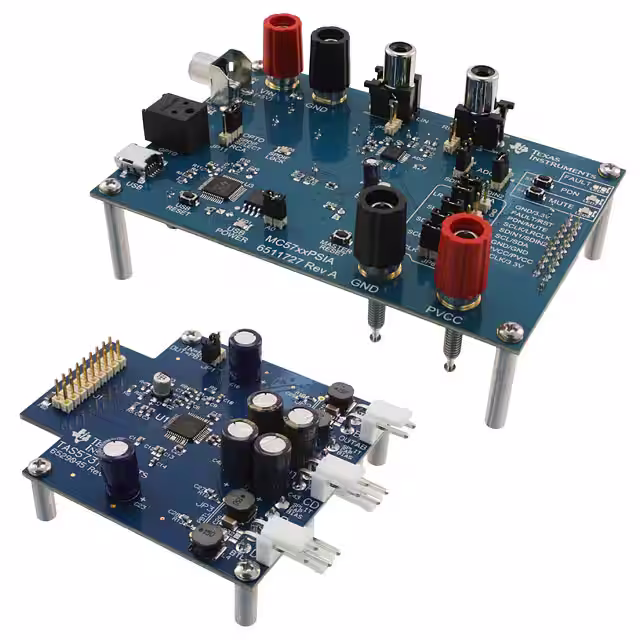

TAS5731EVMEVAL BOARD FOR TAS5731 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) with Subwoofer | 41.5W x 1 @ 4Ohm; 20.9W x 2 @ 8Ohm | 8V ~ 26V | TAS5731 | Board(s) |
|

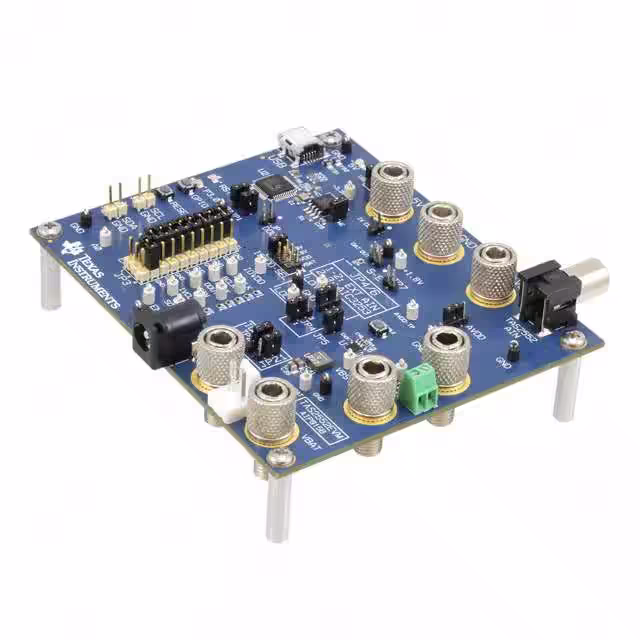

TAS2552EVMEVAL BOARD FOR TAS2552 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 3.5W x 2 @ 8Ohm | 2.7V ~ 5.5V | TAS2552 | Board(s) |
|
|
LM4809LDBDEVAL BOARD FOR LM4809 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 105mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4809 | Board(s) |
|
LM48511SQBDEVAL BOARD FOR LM48511 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 6.7W x 1 @ 4Ohm | 3V ~ 5.5V | LM48511 | Board(s) |
|

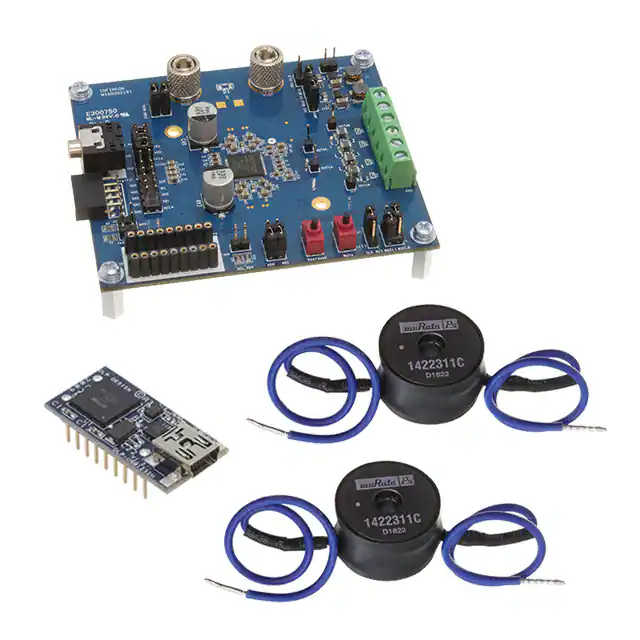

EVALAUDIOMA12070TOBO1EVAL BOARD FOR MA12070 |
0 |
|
Datasheet | MERUS™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | - | 4V ~ 26V | MA12070 | Board(s) |
|
|
EVALAUDIOMA2304PNSTOBO1EVAL BOARD FOR MA2304PNS |
0 |
|
Datasheet | MERUS™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 37W x 2 @ 4Ohm | 10V ~ 20V | MA2304PNS | Board(s) |
