Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4928TLBDEVAL BOARD FOR LM4928 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 2.2W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4928 | Board(s) |
|

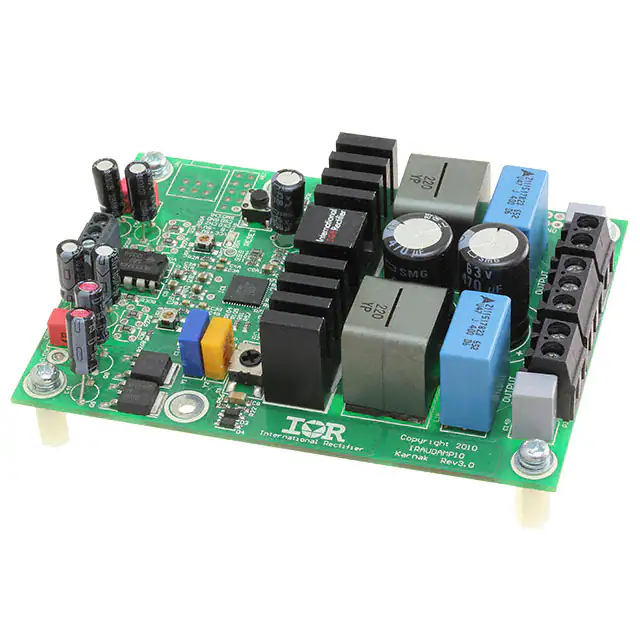

IRAUDAMP10EVAL BOARD FOR IRF6775 IRS2052M |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 370W x 2 @ 4Ohm | ±25V ~ 50V | IRF6775, IRS2052M | Board(s) |
|

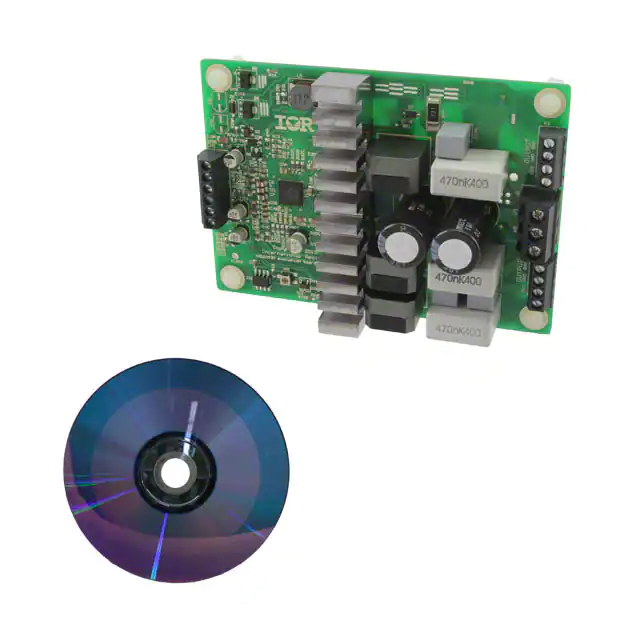

IRAUDAMP11EVAL BOARD FOR IRF6665 IRS2053M |
1 |
|
Datasheet | - | Box | Obsolete | Class D | 3-Channel | 170W x 3 @ 4Ohm | ±25V ~ 35V | IRF6665, IRS2053M | Board(s) |
|

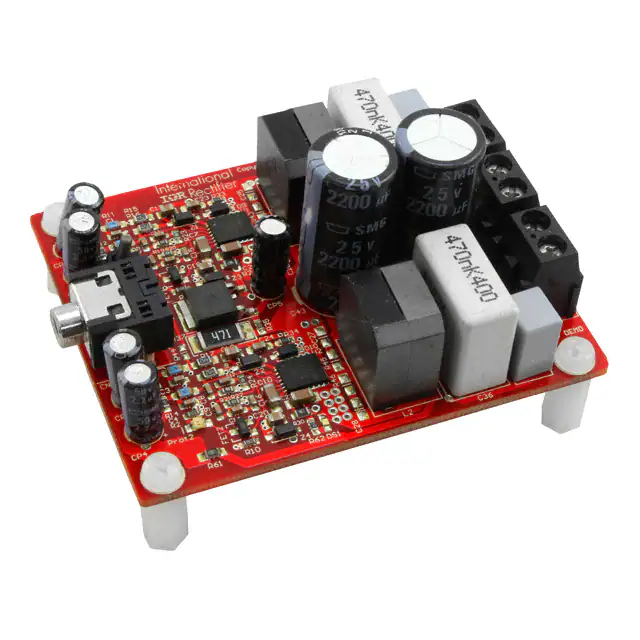

IRAUDAMP15EVAL BOARD FOR IR4311 |
1 |
|
Datasheet | PowIRaudio™ | Bulk | Not For New Designs | Class D | 2-Channel (Stereo) | 35W x 2 @ 4Ohm | 18V ~ 31V | IR4311 | Board(s) |
|
|
TAS5010-5112F2EVMEVAL BOARD FOR TAS5010 TAS5112 |
0 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 62W x 2 @ 6Ohm | 16V ~ 25.5V | TAS5010, TAS5112 | Board(s), Cable(s) |
|
|
TAS5601EVM4EVAL BOARD FOR TAS5601 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) or 4-Channel (Quad) | 20W x 2 @ 8Ohm; 19W x 4 @ 4Ohm | 10V ~ 26V | TAS5601 | Board(s) |
|
|
LM48824TMEVALEVAL BOARD FOR LM48824 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class G | Headphones, 2-Channel (Stereo) | 37mW x 2 @ 16Ohm | 2.4V ~ 5.5V | LM48824 | Board(s) |
|
|
LM4666SDBDEVAL BOARD FOR LM4666 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 1.2W x 2 @ 8Ohm | 2.8V ~ 5.5V | LM4666 | Board(s) |
|
|
EVAL-SSM2517ZEVAL BOARD FOR SSM2517 |
0 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 2.4W x 1 @ 4Ohm | 2.5V ~ 5.5V | SSM2517 | Board(s) |
|

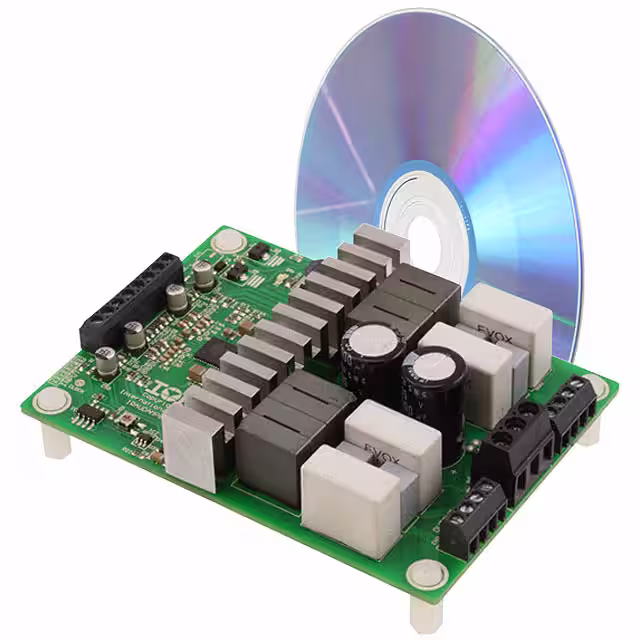

IRAUDAMP8EVAL BOARD FOR IRF6665 IRS2093M |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 4-Channel (Quad) | 170W x 4 @ 4Ohm | ±25V ~ 35V | IRF6665, IRS2093M | Board(s) |
|
TAS5132DDV6EVMEVAL BOARD FOR TAS5086 TAS5132 |
1 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | 26W x 2 @ 6Ohm | 10.8V ~ 13.2V | TAS5086, TAS5132 | Board(s), Cable(s) |
|

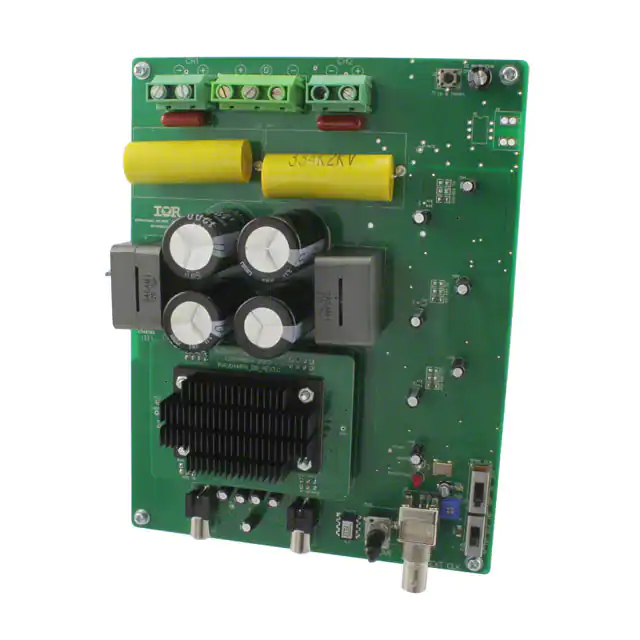

IRAUDAMP6EVAL BOARD IRF6785 IRS20957S |
1 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 410W x 2 @ 8Ohm | ±38V ~ 75V | IRF6785, IRS20957S | Board(s) |
|
|
EVALAUDAMP25TOBO1EVAL BOARD FOR MA5332 |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 200W x 2 @ 4Ohm | ±22V ~ 40V | MA5332 | Board(s) |
|

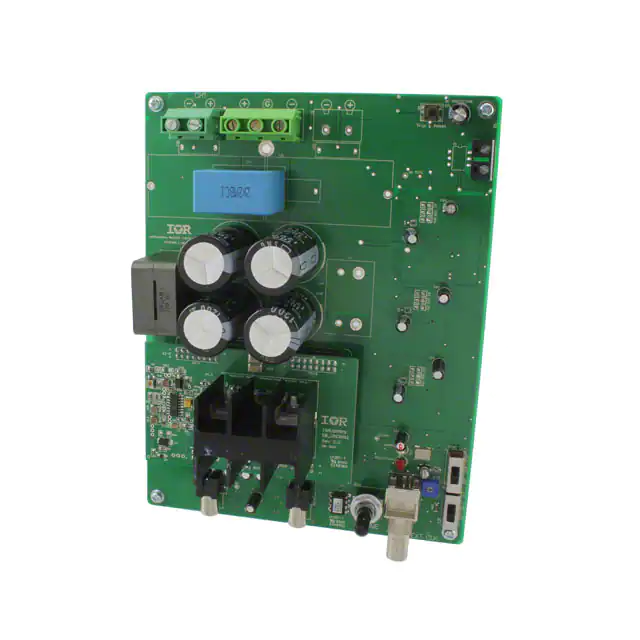

IRAUDAMP9EVAL BOARD IRFB4227 IRS2092S |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 1-Channel (Mono) | 1.7kW x 1 @ 2Ohm | ±48V ~ 80V | IRFB4227, IRS2092S | Board(s) |
|
|
LM4702TABDEVAL BOARD FOR LM4702 |
0 |
|
Datasheet | - | Box | Obsolete | Class AB | 2-Channel (Stereo) | 300W x 2 @ 8Ohm | ±20V ~ 100V | LM4702 | Board(s) |
|
|
TAS6584Q1EVMEVAL BOARD FOR TAS6584-Q1 |
0 |
|
- |
- | Box | Active | Class D | 4-Channel (Quad) | 200W x 4 @ 4Ohm | 4.5V ~ 45V | TAS6584-Q1 | Board(s) |
|
|
LM4682SQBDEVAL BOARD FOR LM4682 |
0 |
|
- |
Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 10W x 2 @ 8Ohm; 80mW x 2 @ 32Ohm | 8.5V ~ 15V | LM4682 | Board(s) |
|
LM48560TLEVAL/NOPBEVAL BOARD FOR LM48560 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class H | 1-Channel (Mono) | - | 2.7V ~ 5.5V | LM48560 | Board(s) |
|
|
TAS5086-5142V6EVMEVAL BOARD FOR TAS5086 TAS5142 |
0 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 10.8V ~ 13.2V | TAS5086, TAS5142 | Board(s), Cable(s) |
|
|
TAS5508-5122C6EVMEVAL BOARD FOR TAS5122 TAS5508B |
0 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 37W x 2 @ 6Ohm | 16V ~ 25.5V | TAS5122, TAS5508B | Board(s), Cable(s) |
