Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

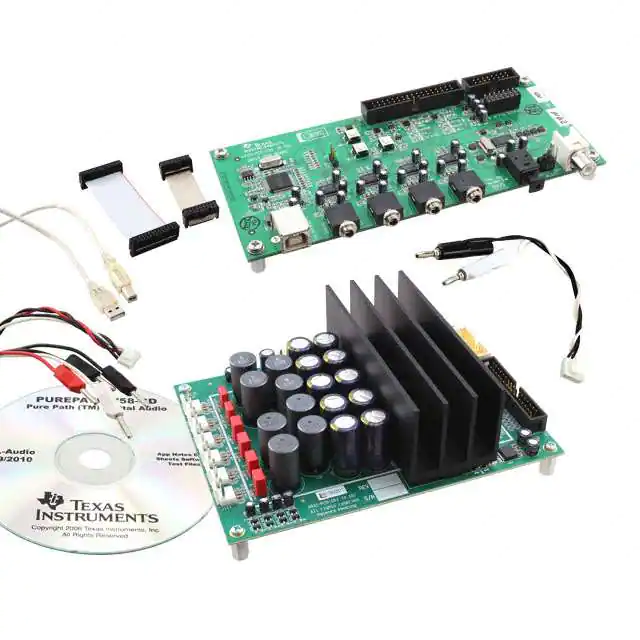

TAS5162DDV6EVMEVAL BOARD FOR TAS5086 TAS5162 |
0 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | 210W x 2 @ 6Ohm | 10.8V ~ 13.2V | TAS5086, TAS5162 | Board(s), Cable(s) |
|

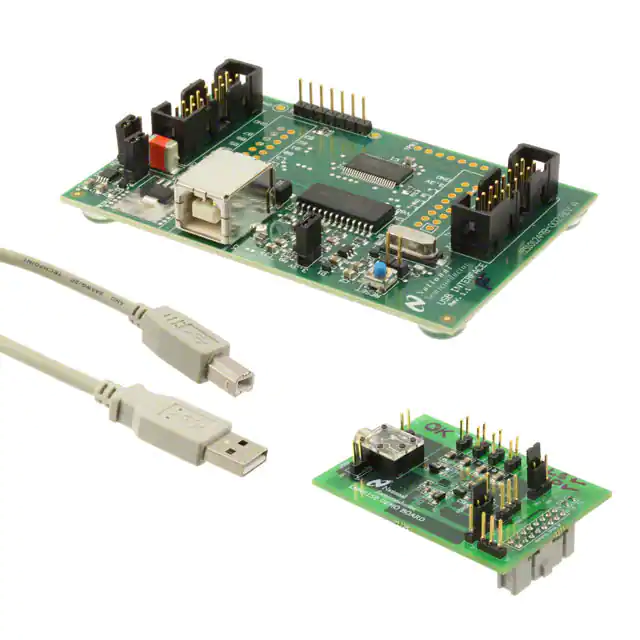

LM49150TLEVALEVAL BOARD FOR LM49150 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) with Stereo Headphones | 2.1W x 1 @ 4Ohm; 42mW x 2 @ 32Ohm | 2.7V ~ 5.5V | LM49150 | Board(s), Cable(s) |
|
TAS5615DKD2EVMEVAL BOARD FOR TAS5615 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm | 25V ~ 50V | TAS5615 | Board(s) |
|

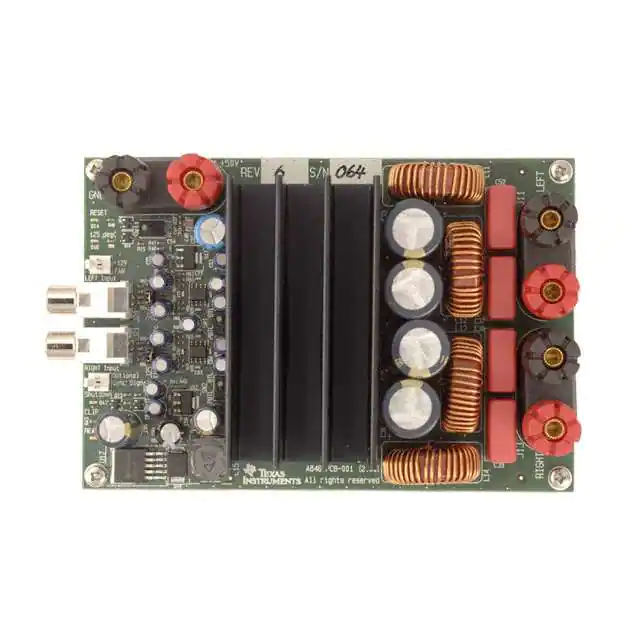

TAS5630DKD2EVMEVAL BOARD FOR TAS5630 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 2-Channel (Stereo) | 310W x 2 @ 4Ohm | 25V ~ 50V | TAS5630 | Board(s) |
|
|
TAS5615PHD2EVMEVAL BOARD FOR TAS5615 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm | 25V ~ 50V | TAS5615 | Board(s) |
|
|
TAS5616DKD2EVMEVAL BOARD FOR TAS5616 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm | 25V ~ 50V | TAS5616 | Board(s), Cable(s), Power Supply |
|

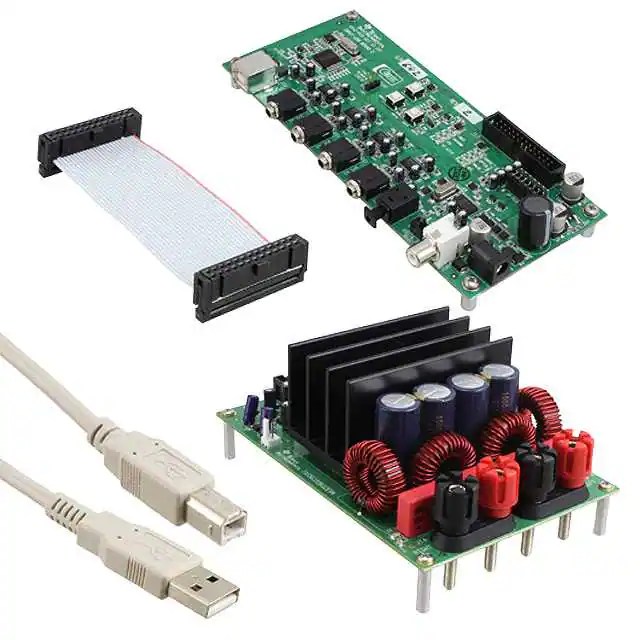

TAS5631DKD2EVMEVAL BOARD FOR TAS5631 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 600W x 1 @ 2Ohm; 300W x 2 @ 4Ohm | 25V ~ 52.5V | TAS5631 | Board(s), Cable(s), Power Supply |
|
TAS5611PHD2EVMEVAL BOARD FOR TAS5611PHD |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 250W x 1 @ 2Ohm; 125W x 2 @ 4Ohm | 16V ~ 32.5V | TAS5611PHD | Board(s) |
|
|
TAS5612PHD2EVMEVAL BOARD FOR TAS5612PHD |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 250W x 1 @ 2Ohm; 125W x 2 @ 4Ohm | 16V ~ 32.5V | TAS5612PHD | Board(s), Cable(s), Power Supply |
|

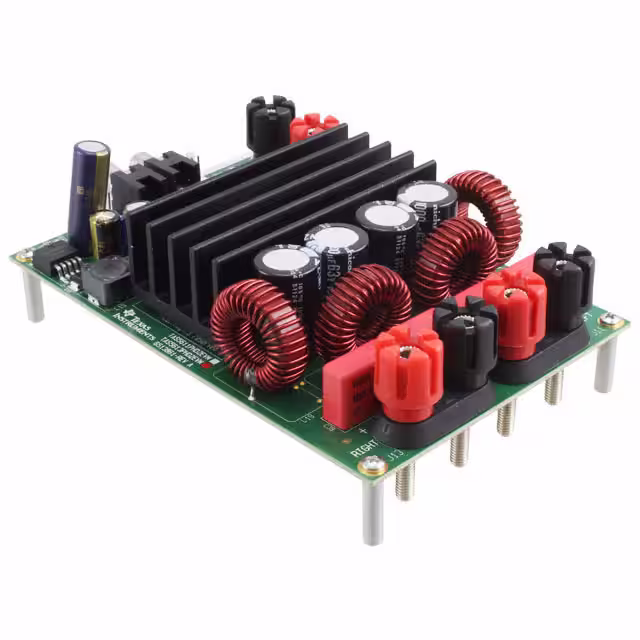

TAS5613PHD2EVMEVAL BOARD FOR TAS5613PHD |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 2Ohm; 150W x 2 @ 4Ohm | 18V ~ 36V | TAS5613 | Board(s) |
|

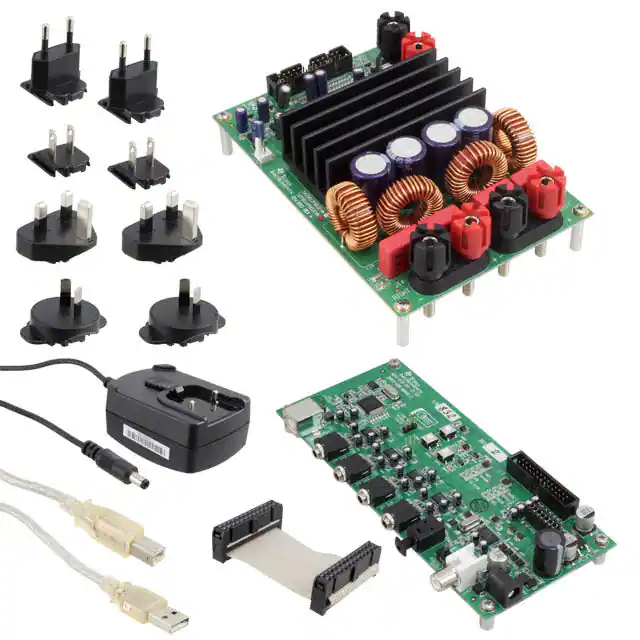

TAS5614PHD2EVMEVAL BOARD FOR TAS5614PHD |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 2Ohm; 150W x 2 @ 4Ohm | 18V ~ 36V | TAS5614PHD | Board(s), Cable(s), Power Supply |
|
|
TAS5631PHD2EVMEVAL BOARD FOR TAS5631 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 600W x 1 @ 2Ohm; 300W x 2 @ 4Ohm | 25V ~ 52.5V | TAS5631 | Board(s), Cable(s), Power Supply |
|
TAS5614LADDVEVMEVAL BOARD FOR TAS5614LA |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 300W x 1 @ 2Ohm; 150W x 2 @ 4Ohm | 12V ~ 38V | TAS5614LA | Board(s), Cable(s) |
|
|
TAS5632EVMEVAL BOARD FOR TAS5632 |
0 |
|
Datasheet | PurePath™ HD | Box | Obsolete | Class D | 2-Channel (Stereo) | 250W x 2 @ 6Ohm | - | TAS5632 | Board(s) |
|
IRAUDAMP4EVAL BOARD FOR IRF6645 IRS20955 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 170W x 2 @ 4Ohm | ±25V ~ 35V | IRF6645, IRS20955 | Board(s) |
|
|
LM49270SQEVALEVAL BOARD FOR LM49270 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 2.2W x 2 @ 4Ohm; 177mW x 2 @ 16Ohm | 2.4V ~ 5.5V | LM49270 | Board(s) |
|

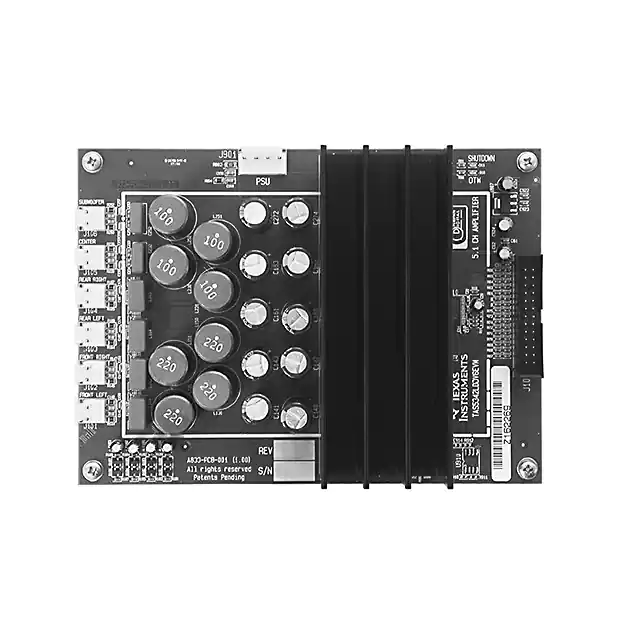

TAS5342LDDV6EVMEVAL BOARD FOR TAS5086 TAS5342L |
1 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | - | - | TAS5086, TAS5342L | Board(s), Cable(s), Power Supply |
|

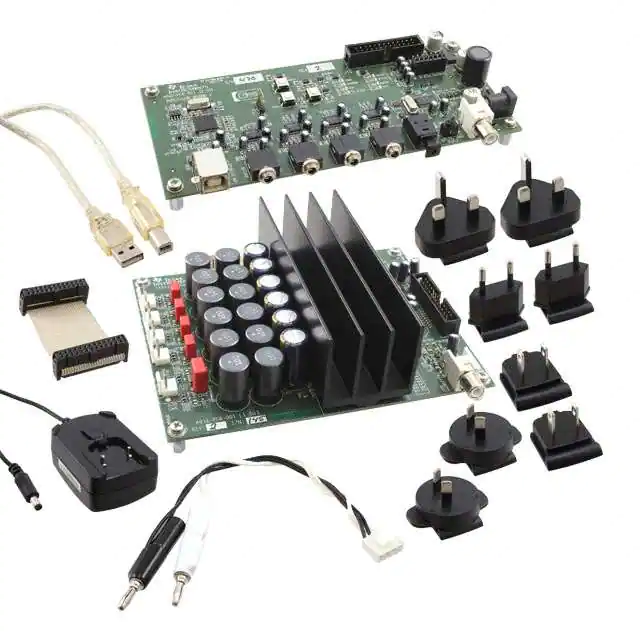

TAS5352DDV6EVMEVAL BOARD FOR TAS5352 TAS5518 |
1 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | 268W x 1 @ 2Ohm; 140W x 2 @ 4Ohm | - | TAS5352, TAS5518 | Board(s), Cable(s), Power Supply |
|

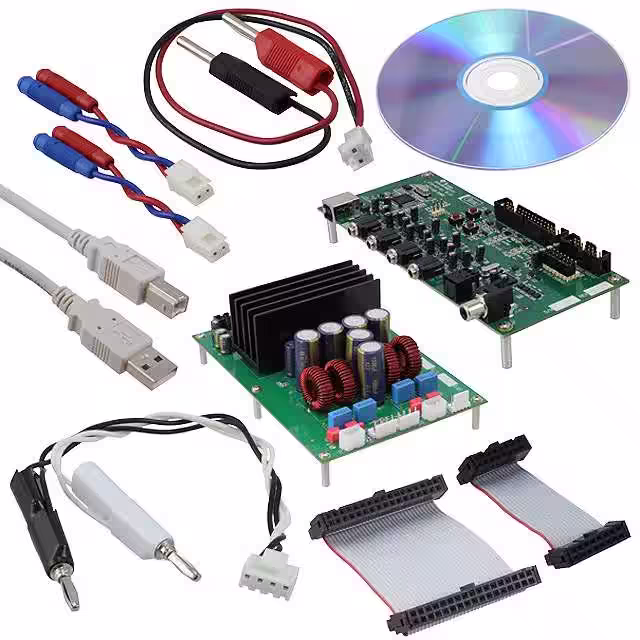

TAS5518-5261K2EVMEVAL BOARD FOR TAS5261 TAS5518 |
0 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 1-Channel (Mono) | 400W x 1 @ 3Ohm | 10.8V ~ 13.2V | TAS5261, TAS5518 | Board(s), Cable(s) |
|
|
LM49153TMEVALEVAL BOARD FOR LM49153 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D, Class G | 1-Channel (Mono) with Mono and Stereo Headphones | 1.35W x 1 @ 8Ohm; 25mW x 2 @ 32Ohm | 2.7V ~ 5.5V | LM49153 | Board(s) |
