Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4990ITLBDEVAL BOARD FOR LM4990 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 2W x 1 @ 4Ohm | 2.2V ~ 5.5V | LM4990 | Board(s) |
|
LM48413TLBDEVAL BOARD FOR LM48413 |
1 |
|
Datasheet | Boomer® | Box | Active | Class D | 2-Channel (Stereo) | 1.5W x 2 @ 8Ohm | 2.4V ~ 5.5V | LM48413 | Board(s) |
|
|
LM4781TABDEVAL BOARD FOR LM4781 |
0 |
|
Datasheet | Overture™ | Box | Obsolete | Class AB | 3-Channel | 35W x 3 @ 8Ohm | 20V ~ 70V, ±10V ~ 35V | LM4781 | Board(s) |
|
|
LM4782TABDEVAL BOARD FOR LM4782 |
0 |
|
Datasheet | Overture™ | Box | Obsolete | Class AB | 3-Channel | 25W x 3 @ 8Ohm | 20V ~ 64V, ±10V ~ 32V | LM4782 | Board(s) |
|

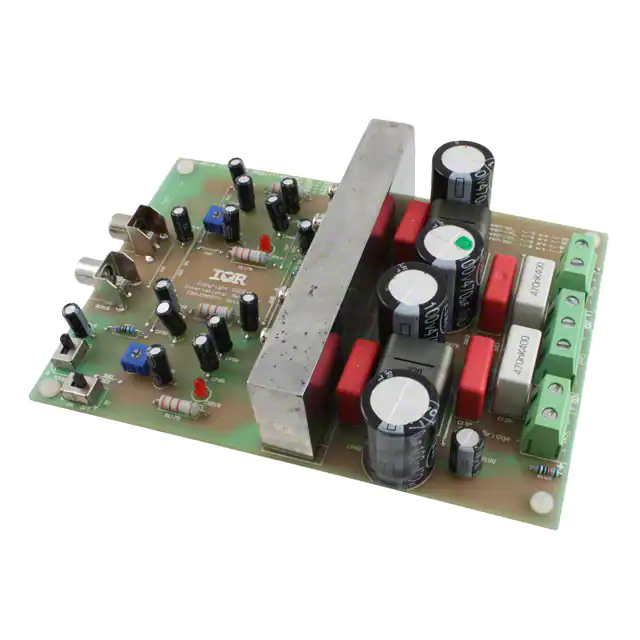

IRAUDAMP7SEVAL BOARD IRFI4019H IRS2092 |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 500W x 1 @ 8Ohm; 250W x 2 @ 4Ohm | ±45V ~ 60V | IRFI4019H, IRS2092 | Board(s) |
|
|
LM4906LDBDEVAL BOARD FOR LM4906 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.6V ~ 5.5V | LM4906 | Board(s) |
|
|
LM48860TLBDEVAL BOARD FOR LM48860 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 50mW x 2 @ 32Ohm | 2V ~ 5.5V | LM48860 | Board(s) |
|
|
LM4890MBDEVAL BOARD FOR LM4890 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4890 | Board(s) |
|

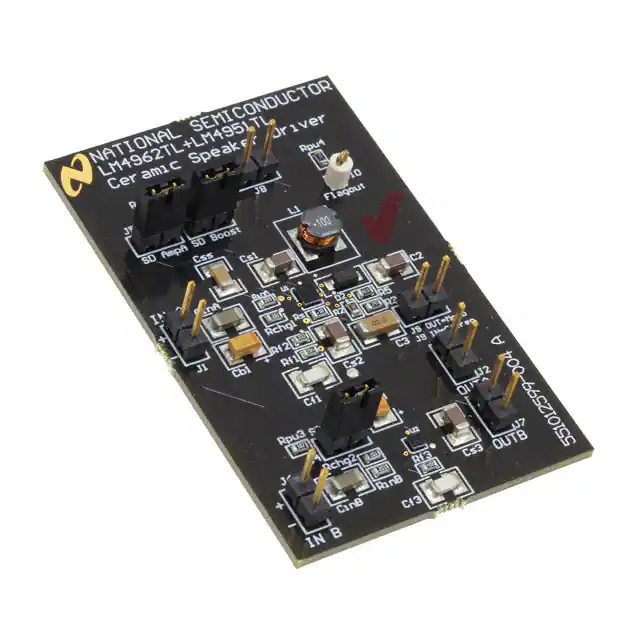

LM4962TLBDEVAL BOARD FOR LM4962 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | - | 2.7V ~ 9V | LM4962 | Board(s) |
|

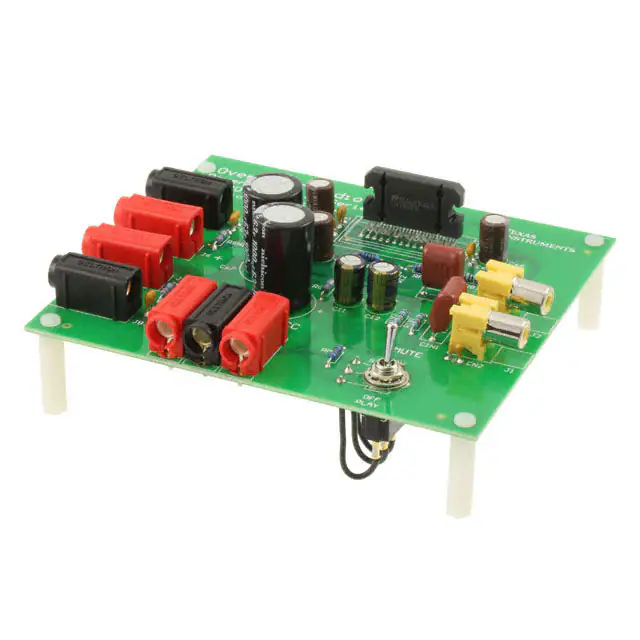

LM4780TABD/NOPBEVAL BOARD FOR LM4780 |
0 |
|
Datasheet | Overture™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | 60W x 2 @ 8Ohm | 20V ~ 84V, ±10V ~ 42V | LM4780 | Board(s) |
|
|
LM4781TABD/NOPBEVAL BOARD FOR LM4781 |
0 |
|
Datasheet | Overture™ | Box | Obsolete | Class AB | 3-Channel | 35W x 3 @ 8Ohm | 20V ~ 70V, ±10V ~ 35V | LM4781 | Board(s) |
|
LM4782TABD/NOPBEVAL BOARD FOR LM4782 |
0 |
|
- |
Overture™ | Box | Obsolete | Class AB | 3-Channel | 25W x 3 @ 8Ohm | 20V ~ 64V, ±10V ~ 32V | LM4782 | Board(s) |
|
|
LM4980SDBDEVAL BOARD FOR LM4980 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 42mW x 2 @ 16Ohm | 1.5V ~ 3.3V | LM4980 | Board(s) |
|
|
LM4674SQBDEVAL BOARD FOR LM4674 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.5W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4674 | Board(s) |
|
|
LM4811MMBDEVAL BOARD FOR LM4811 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 105mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4811 | Board(s) |
|
|
LM4839MTBDEVAL BOARD FOR LM4839 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2.2W x 2 @ 3Ohm; 95mW x 2 @ 32Ohm | 2.7V ~ 5.5V | LM4839 | Board(s) |
|
|
LM4893ITLBDEVAL BOARD FOR LM4893 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4893 | Board(s) |
|
|
LM4893MABDEVAL BOARD FOR LM4893 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4893 | Board(s) |
|
|
LM4893MMBDEVAL BOARD FOR LM4893 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4893 | Board(s) |
|
|
LM4898LDBDEVAL BOARD FOR LM4898 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.4W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4898 | Board(s) |
