Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4667MMBDEVAL BOARD FOR LM4667 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.7V ~ 5.5V | LM4667 | Board(s) |
|
LM4940TSBDEVAL BOARD FOR LM4940 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 6W x 2 @ 4Ohm | 10V ~ 16V | LM4940 | Board(s) |
|

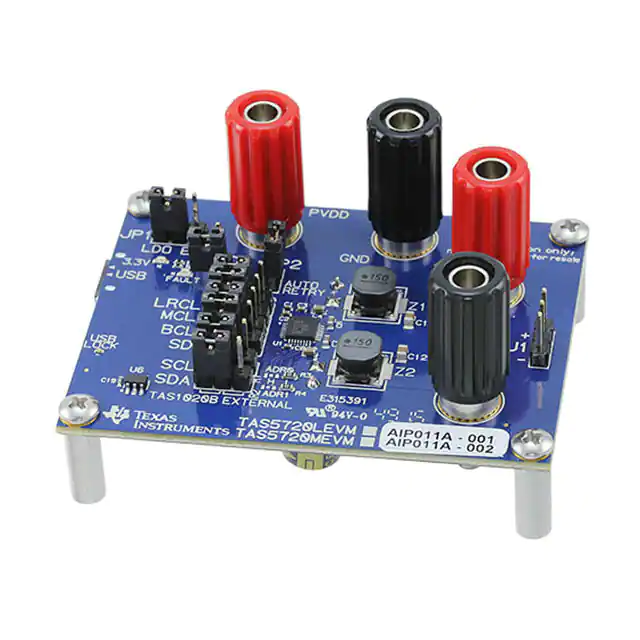

TAS5720MEVMEVAL BOARD FOR TAS5720M |
1 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) | 15W x 1 @ 4Ohm | 4.5V ~ 26.4V | TAS5720M | Board(s) |
|
DRV601EVMEVAL BOARD FOR DRV601 |
0 |
|
Datasheet | DirectPath™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | - | 1.8V ~ 4.5V | DRV601 | Board(s) |
|

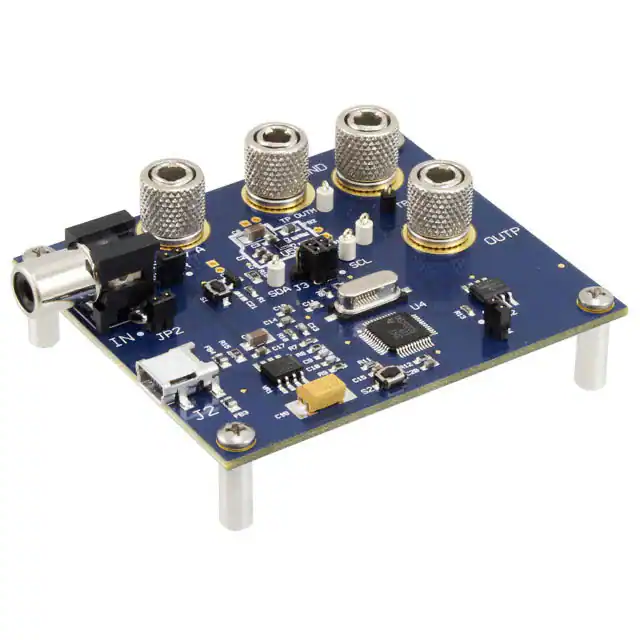

TPA2018D1YZFEVMEVAL BOARD FOR TPA2018D1 |
0 |
|
Datasheet | SmartGain™ | Box | Obsolete | Class D | 1-Channel (Mono) | 3W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2018D1 | Board(s) |
|

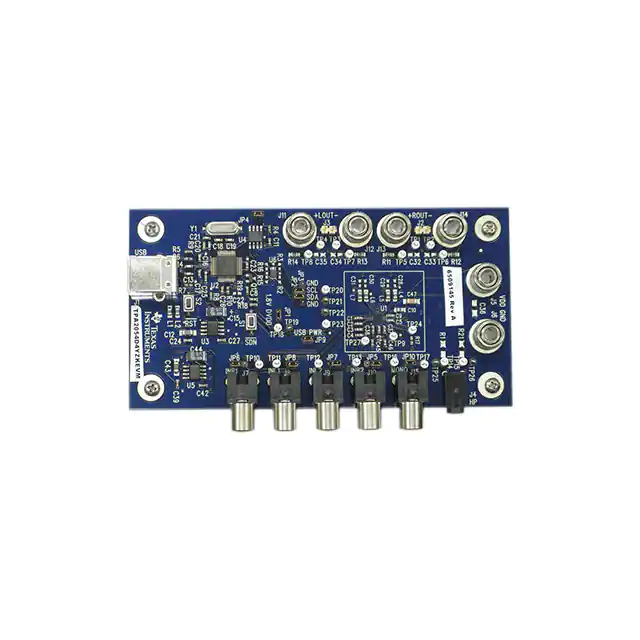

TPA2054D4YZKEVMEVAL BOARD FOR TPA2054D4 |
0 |
|
- |
DirectPath™ | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 1.4W x 2 @ 8Ohm; 150mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA2054D4 | Board(s) |
|

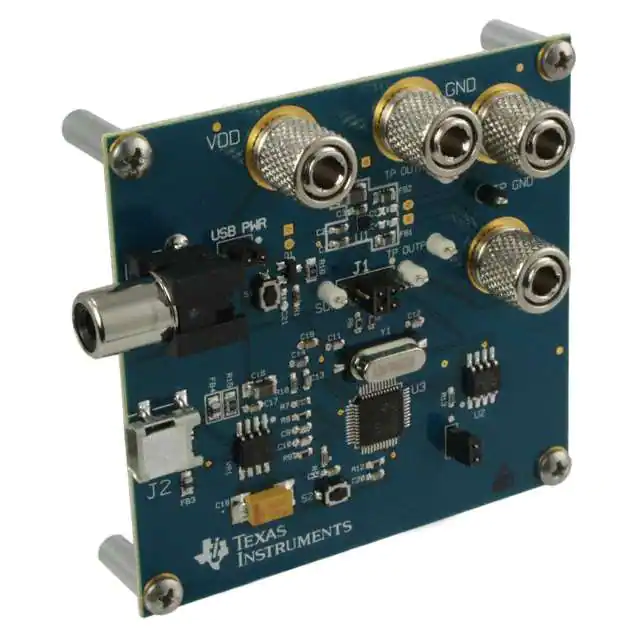

TPA2028D1YZFEVMEVAL BOARD FOR TPA2028 |
0 |
|
- |
SmartGain™ | Box | Obsolete | Class D | 1-Channel (Mono) | 1.7W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA2028 | Board(s) |
|

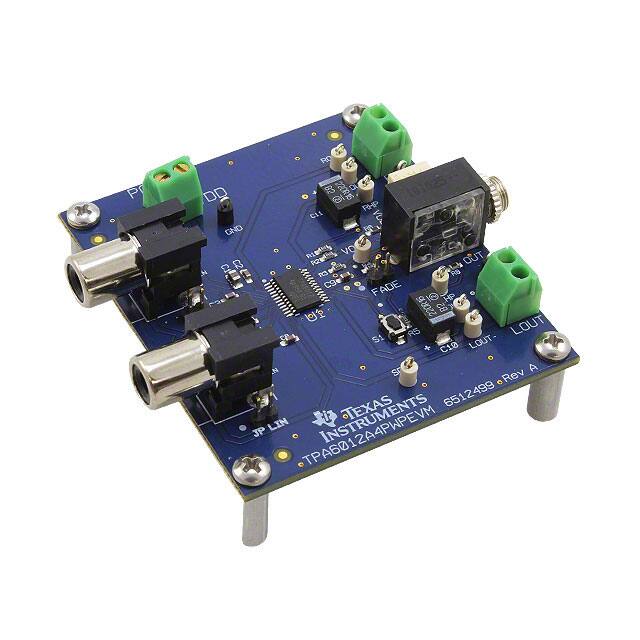

TPA6012A4PWPEVMEVAL BOARD FOR TPA6012A4 |
0 |
|
Datasheet | - | Box | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 235mW x 2 @ 16Ohm | 4V ~ 5.5V | TPA6012A4 | Board(s) |
|

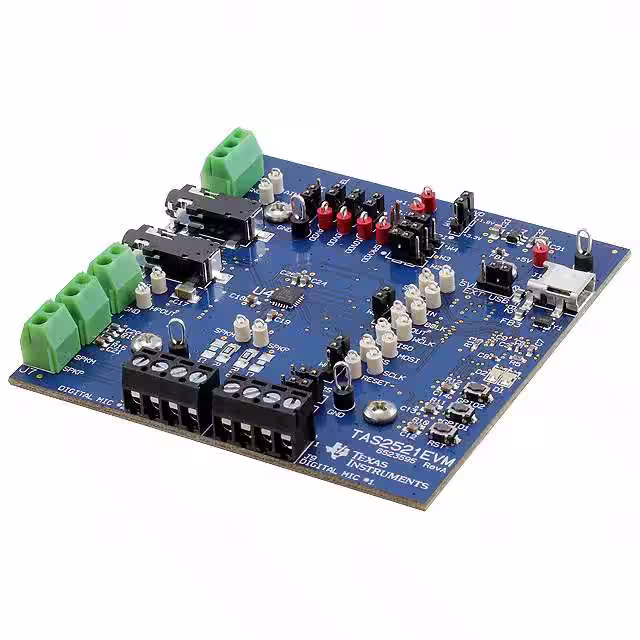

TAS2521EVMEVAL BOARD FOR TAS2521 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) with Mono Headphones | 2W x 1 @ 4Ohm | 1.5V ~ 1.95V | TAS2521 | Board(s) |
|

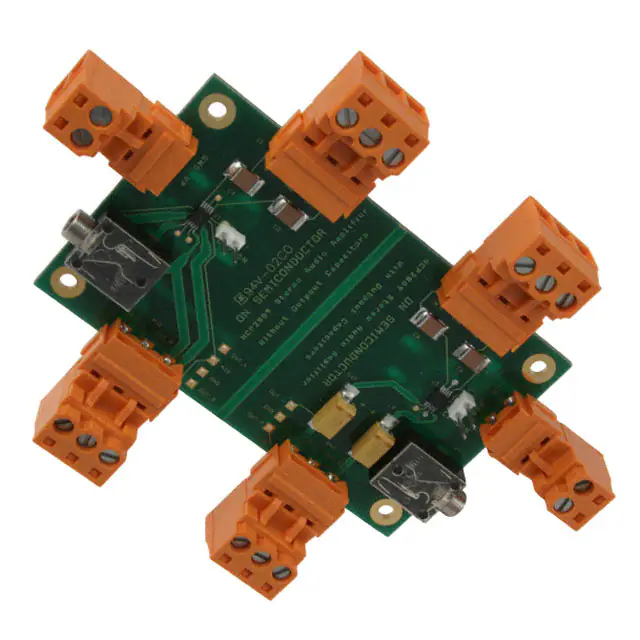

NCP2809AEVBEVAL BOARD FOR NCP2809 |
0 |
|
Datasheet | NOCAP™ | Active | Class AB | Headphones, 2-Channel (Stereo) | 135mW x 2 @ 16Ohm | 2.2V ~ 5.5V | NCP2809 | Board(s) | |
|
LM4680SDBDEVAL BOARD FOR LM4680 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 10W x 1 @ 8Ohm | 9V ~ 14V | LM4680 | Board(s) |
|
|
LM4811LDBDEVAL BOARD FOR LM4811 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 105mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4811 | Board(s) |
|
|
LM4924MMBDEVAL BOARD FOR LM4924 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 40mW x 2 @ 16Ohm | 1.5V ~ 3.6V | LM4924 | Board(s) |
|
|
LM4924SDBDEVAL BOARD FOR LM4924 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 40mW x 2 @ 16Ohm | 1.5V ~ 3.6V | LM4924 | Board(s) |
|
|
LM4931ITLBDEVAL BOARD FOR LM4931 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) with Stereo Headphones | 1.1W x 1 @ 8Ohm; 26mW x 2 @ 32Ohm | 2.7V ~ 5V | LM4931 | Board(s), Cable(s) |
|
|
LM4951SDBDEVAL BOARD FOR LM4951 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.7V ~ 9V | LM4951 | Board(s) |
|
|
LM4952TSBDEVAL BOARD FOR LM4952 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 3.8W x 2 @ 4Ohm | 9.6V ~ 16V | LM4952 | Board(s) |
|

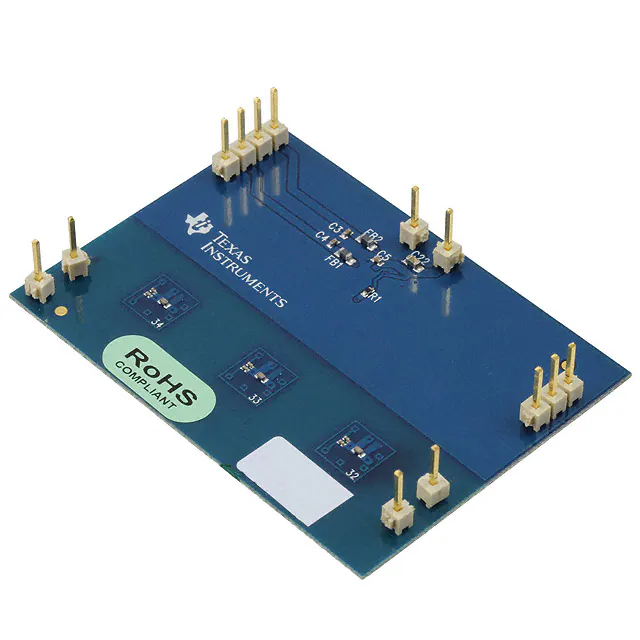

TPA203XD1EVMEVAL BOARD TPA2032D1 TPA2033D1 |
1 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) | 2.75W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2032D1, TPA2033D1, TPA2034D1 | Board(s) |
|
TPA2036D1YZFEVMEVAL BOARD FOR TPA2036D1 |
1 |
|
Datasheet | NanoFree™ | Box | Obsolete | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2036D1 | Board(s) |
|

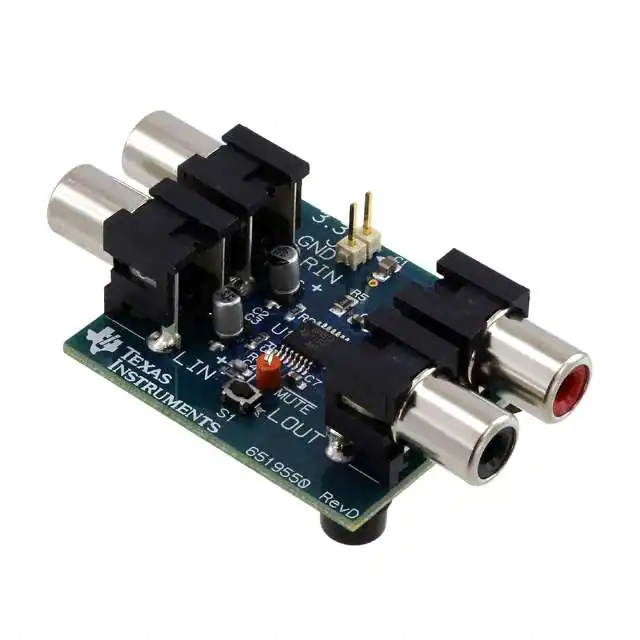

DRV612EVMEVAL BOARD FOR DRV612 |
1 |
|
Datasheet | DirectPath™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | - | 3V ~ 3.6V | DRV612 | Board(s) |
