Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4917SDBDEVAL BOARD FOR LM4917 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 95mW x 2 @ 16Ohm | 1.4V ~ 3.6V | LM4917 | Board(s) |
|

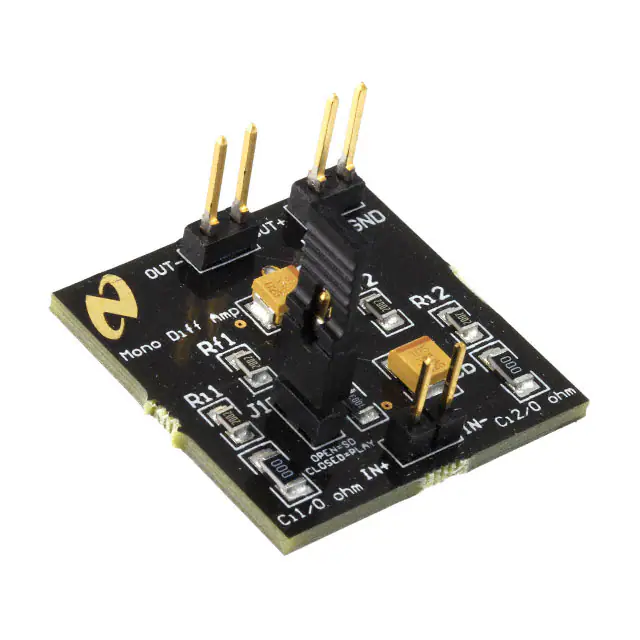

LM4941TMBDEVAL BOARD FOR LM4941 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.54W x 1 @ 8Ohm | 2.4V ~ 5.5V | LM4941 | Board(s) |
|
|
LM4954TLBDEVAL BOARD FOR LM4954 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 3W x 1 @ 8Ohm | 2.7V ~ 9V | LM4954 | Board(s) |
|
|
TAS5602EVM2EVAL BOARD FOR TAS5602 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) or 4-Channel (Quad) | 20W x 2 @ 8Ohm; 19W x 4 @ 4Ohm | 10V ~ 26V | TAS5602 | Board(s) |
|
|
LM48557TLEVALEVAL BOARD FOR LM48557 |
0 |
|
Datasheet | Boomer® | Box | Discontinued at Digi-Key | Class AB | 1-Channel (Mono) | - | 2.7V ~ 4.5V | LM48557 | Board(s) |
|

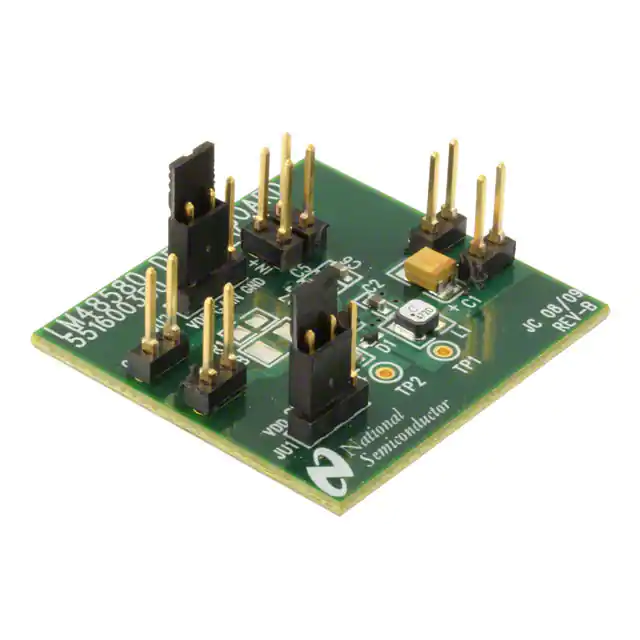

LM48580TLBD/NOPBEVAL BOARD FOR LM48580 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class H | 1-Channel (Mono) | - | 2.5V ~ 5.5V | LM48580 | Board(s) |
|

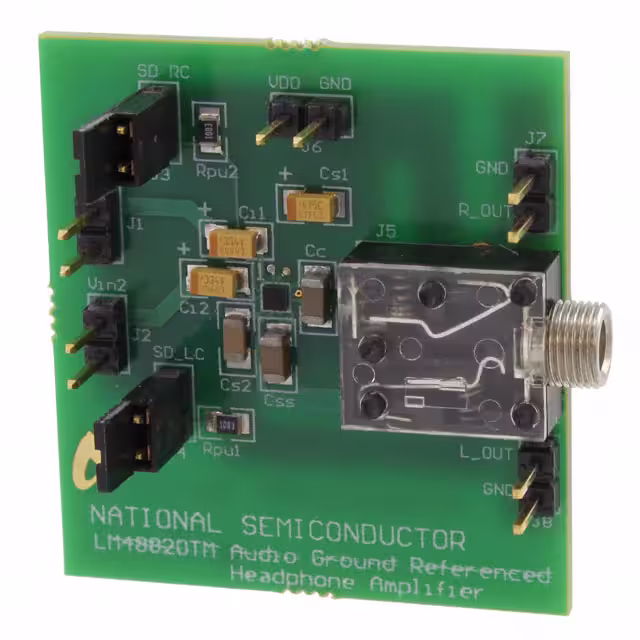

LM48820TMBD/NOPBEVAL BOARD FOR LM48820 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 95mW x 2 @ 16Ohm | 1.6V ~ 4.5V | LM48820 | Board(s) |
|

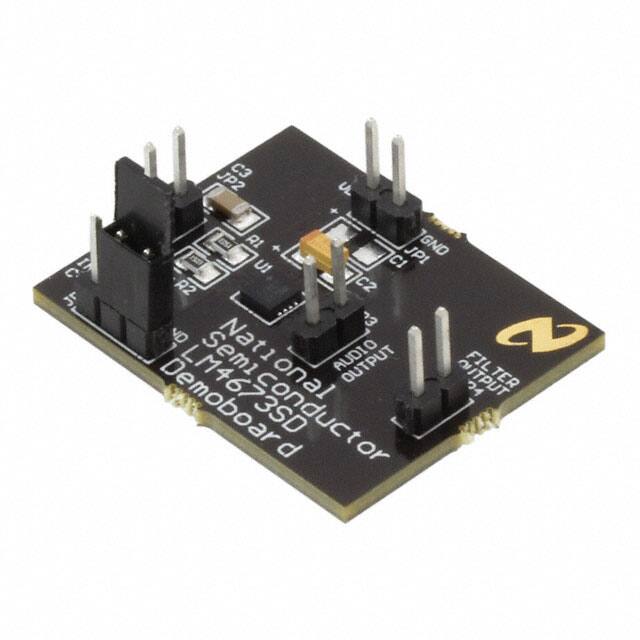

LM4673SDBD/NOPBEVAL BOARD FOR LM4673 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 2.65W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4673 | Board(s) |
|

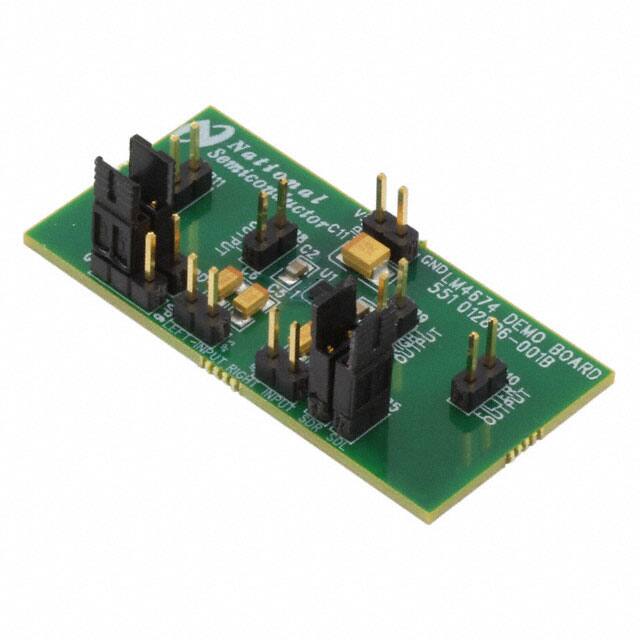

LM4674ATLBD/NOPBEVAL BOARD FOR LM4674A |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.5W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4674A | Board(s) |
|
|
LM4673SDBDEVAL BOARD FOR LM4673 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 2.65W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4673 | Board(s) |
|

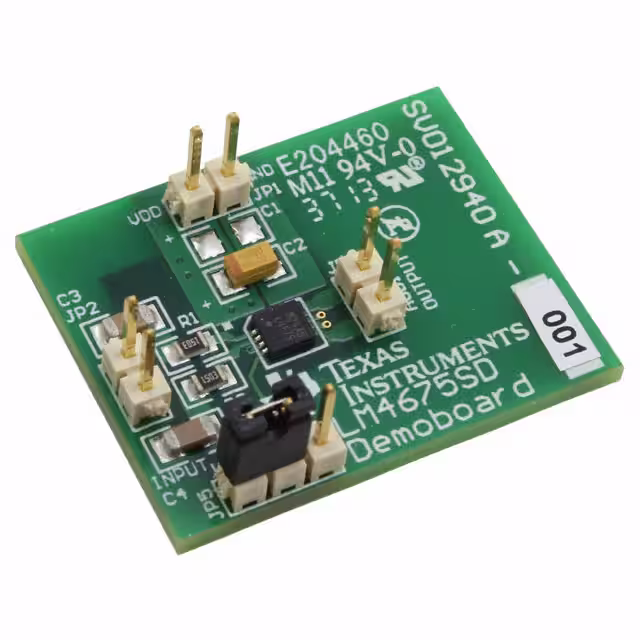

LM4675SDBDEVAL BOARD FOR LM4675 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 2.7W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4675 | Board(s) |
|
|
LM4780TABDEVAL BOARD FOR LM4780 |
0 |
|
Datasheet | Overture™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | 60W x 2 @ 8Ohm | 20V ~ 84V, ±10V ~ 42V | LM4780 | Board(s) |
|

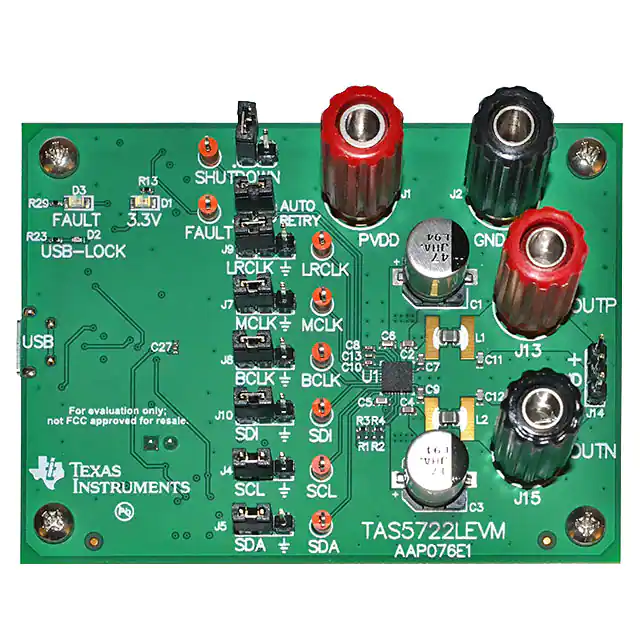

TAS5722LEVMEVAL BOARD FOR TAS5722L |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) | 16W x 1 @ 4Ohm | 4.5V ~ 17V | TAS5722L | Board(s) |
|

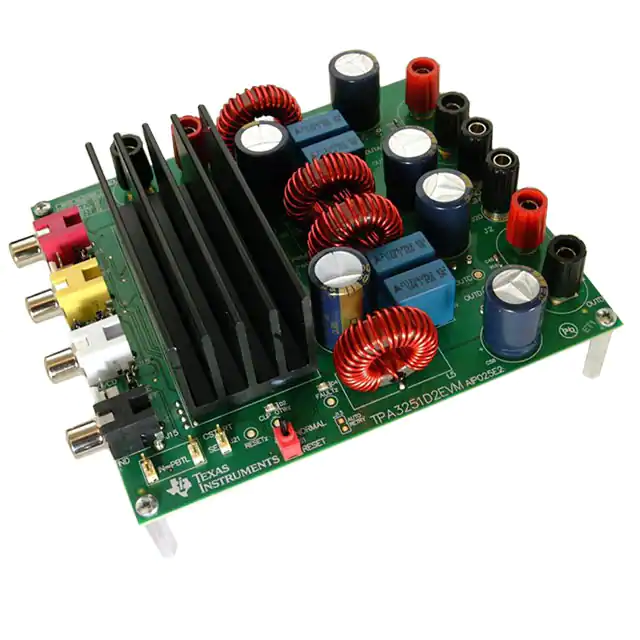

TPA3251D2EVMEVAL BOARD FOR TPA3251D2 |
0 |
|
Datasheet | PurePath™ | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 350W x 1 @ 2Ohm; 175W x 2 @ 3Ohm | 12V ~ 36V | TPA3251D2 | Board(s) |
|
|
LM4808LDBDEVAL BOARD FOR LM4808 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 150mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4808 | Board(s) |
|
|
LM4816MTBDEVAL BOARD FOR LM4816 |
0 |
|
- |
Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 1.5W x 2 @ 8Ohm | 3V ~ 5.5V | LM4816 | Board(s) |
|
|
LM4866LQBDEVAL BOARD FOR LM4866 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 3.2W x 2 @ 3Ohm | 2V ~ 5.5V | LM4866 | Board(s) |
|
|
LM4890MMBDEVAL BOARD FOR LM4890 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4890 | Board(s) |
|
|
LM4891MBDEVAL BOARD FOR LM4891 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.2V ~ 5.5V | LM4891 | Board(s) |
|
|
LM4950TSBDEVAL BOARD FOR LM4950 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) or 2-Channel (Stereo) | 7.5W x 1 @ 8Ohm; 3.1W x 2 @ 4Ohm | 9.6V ~ 16V | LM4950 | Board(s) |
