Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4809MBDEVAL BOARD FOR LM4809 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 105mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4809 | Board(s) |
|
ZXCD50STEVALEVAL BOARD FOR ZXCD1000 |
0 |
|
Datasheet | Acoustar™ | - | Obsolete | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 13V ~ 25V | ZXCD1000 | Board(s) |
|
LM4908MABDEVAL BOARD FOR LM4908 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 157mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4908 | Board(s) |
|

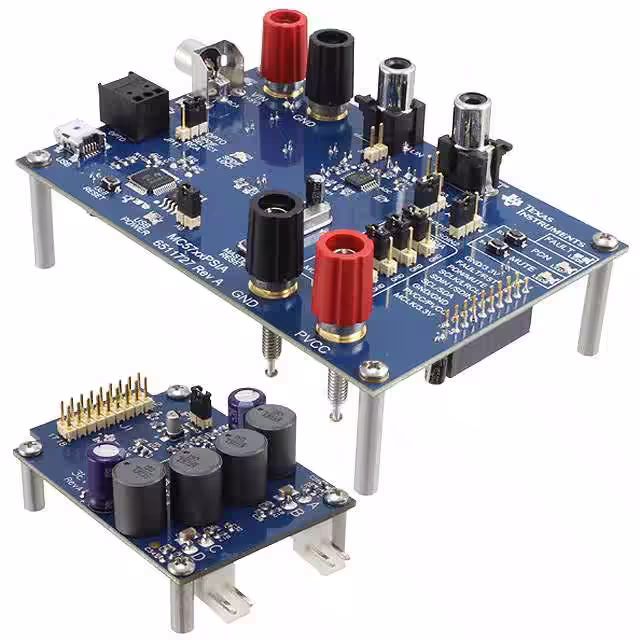

TAS5713PHPEVMEVAL BOARD FOR TAS5713PHP |
1 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 25W x 2 @ 8Ohm | 8V ~ 26V | TAS5713PHP | Board(s) |
|

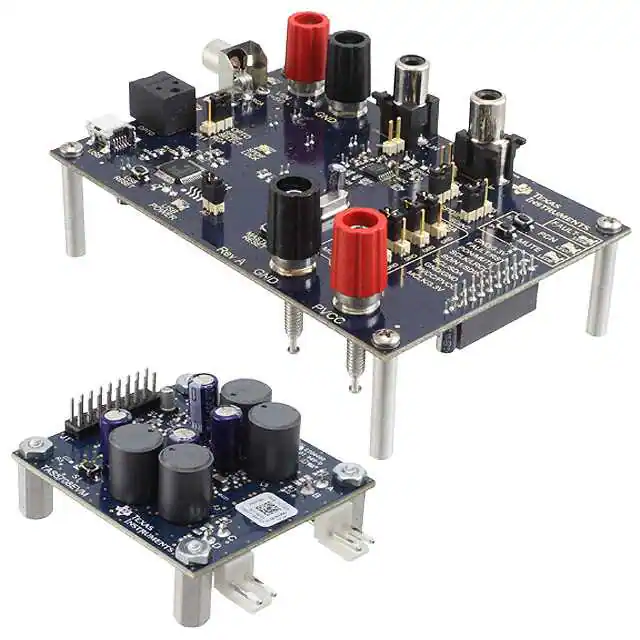

TAS5708EVMEVAL BOARD FOR TAS5708 |
0 |
|
- |
- | Box | Obsolete | Class D | 2-Channel (Stereo) | 20.2W x 2 @ 8Ohm | 10V ~ 26V | TAS5708 | Board(s) |
|

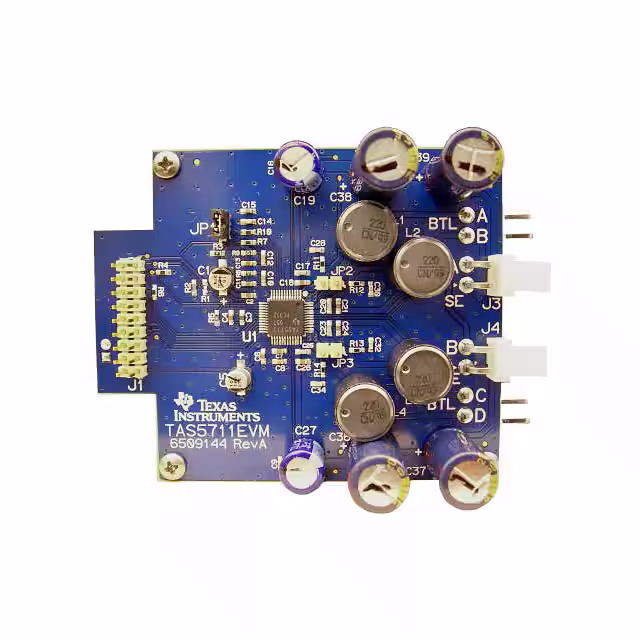

TAS5711PHPEVMEVAL BOARD FOR TAS5711PHP |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo, 2.1) or 4-Channel (Quad) | 21W x 2 @ 8Ohm | 8V ~ 26V | TAS5711PHP | Board(s) |
|

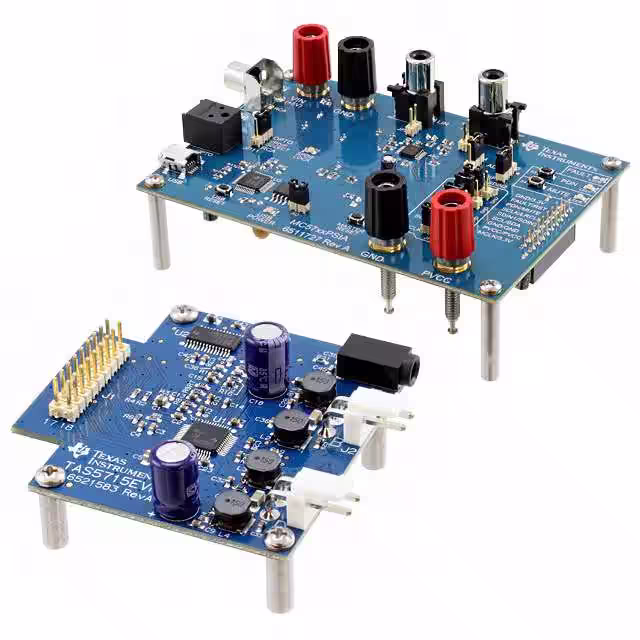

TAS5715EVMEVAL BOARD FOR TAS5715 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 41.5W x 2 @ 4Ohm | 8V ~ 26V | TAS5715 | Board(s) |
|

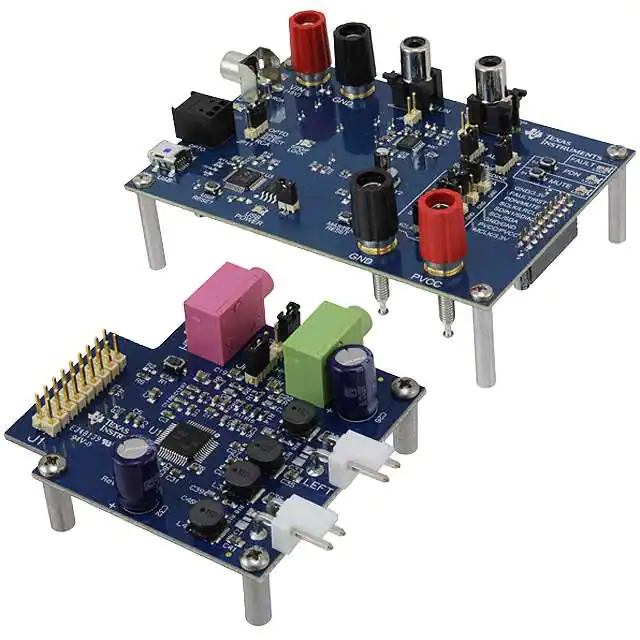

TAS5717EVMEVAL BOARD FOR TAS5717 |
0 |
|
- |
- | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 10W x 2 @ 8Ohm | 3V ~ 3.6V | TAS5717 | Board(s) |
|

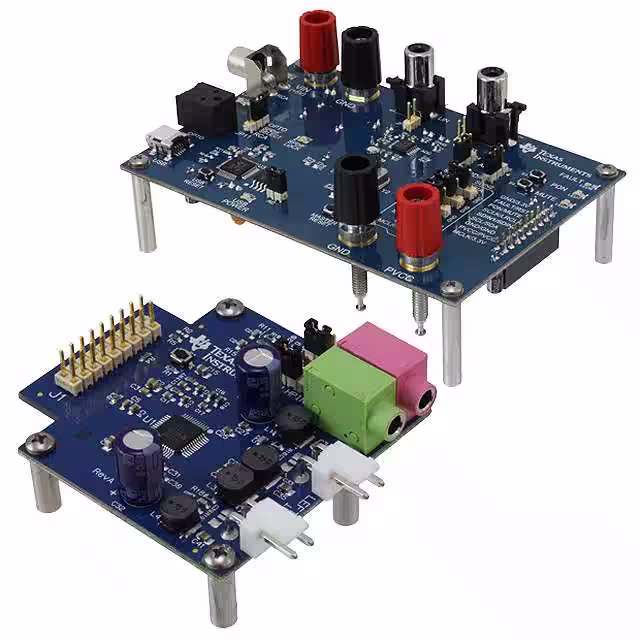

TAS5719EVMEVAL BOARD FOR TAS5719 |
0 |
|
- |
- | Box | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 15W x 2 @ 8Ohm | 3V ~ 3.6V | TAS5719 | Board(s) |
|

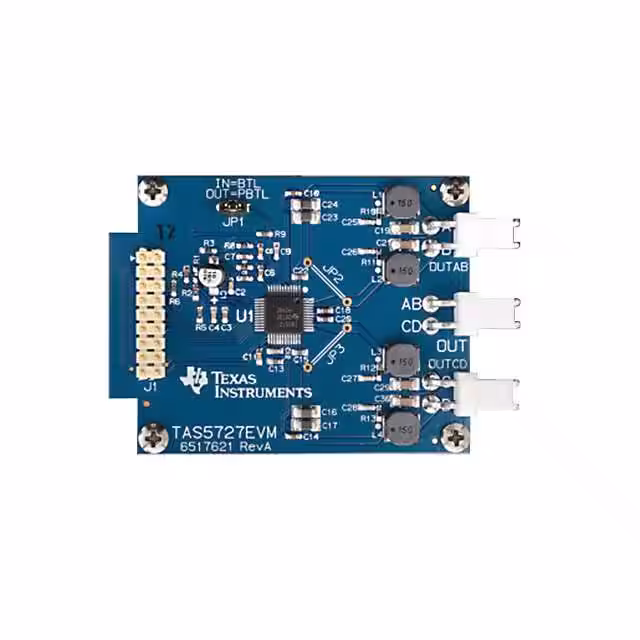

TAS5727EVMEVAL BOARD FOR TAS5727 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 41.5W x 2 @ 4Ohm | 8V ~ 26V | TAS5727 | Board(s) |
|
LM48520TLBDEVAL BOARD FOR LM48520 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 1.3W x 2 @ 8Ohm | 2.4V ~ 5.5V | LM48520 | Board(s) |
|
LM4962TLBD/NOPBEVAL BOARD FOR LM4962 |
1 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | - | 2.7V ~ 9V | LM4962 | Board(s) |
|

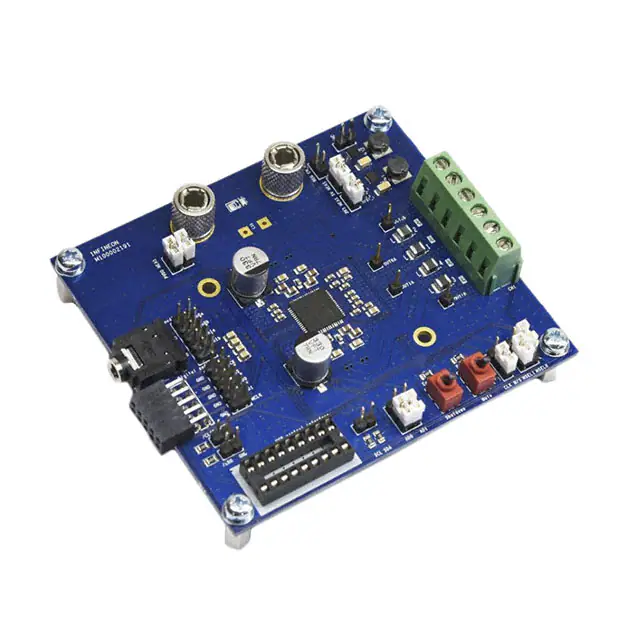

EVALAUDIOMA12040TOBO1EVAL BOARD FOR MA12040 |
1 |
|
Datasheet | MERUS™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5V ~ 18V | MA12040 | Board(s) |
|

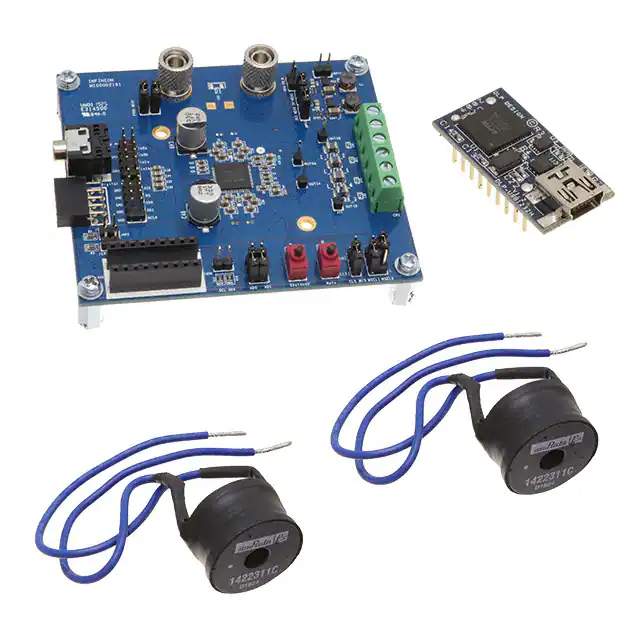

EVALAUDIOMA12040PTOBO1EVAL BOARD FOR MA12040P |
1 |
|
Datasheet | MERUS™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5.5V ~ 18V | MA12040P | Board(s) |
|
TPA2080D1YZGEVMEVAL BOARD FOR TPA2080D1 |
1 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 2.28W x 1 @ 4Ohm | 2.5V ~ 5.2V | TPA2080D1 | Board(s) |
|
TPA6166A2YFFEVMEVAL BOARD FOR TPA6166A2 |
1 |
|
Datasheet | - | Box | Obsolete | Class G | Headphones, 2-Channel (Stereo) | 30mW x 2 @ 16Ohm | 1.7V ~ 1.9V | TPA6166A2 | Board(s) |
|
LM4674TLBDEVAL BOARD FOR LM4674 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.5W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4674 | Board(s) |
|
|
LM48410SQBDEVAL BOARD FOR LM48410 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.3W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM48410 | Board(s) |
|
SI824XCLASSD-KITEVAL BOARD FOR SI824X |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 120W x 2 @ 8Ohm | - | Si824x | Board(s) |
|

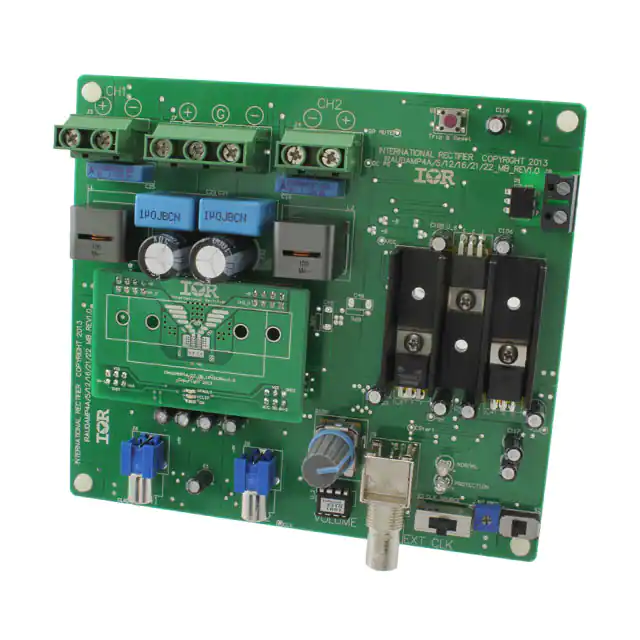

IRAUDAMP22EVAL BOARD FOR IR4322 |
0 |
|
Datasheet | PowIRaudio™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 80W x 2 @ 4Ohm | ±12V ~ 13.5V | IR4322 | Board(s) |
