Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

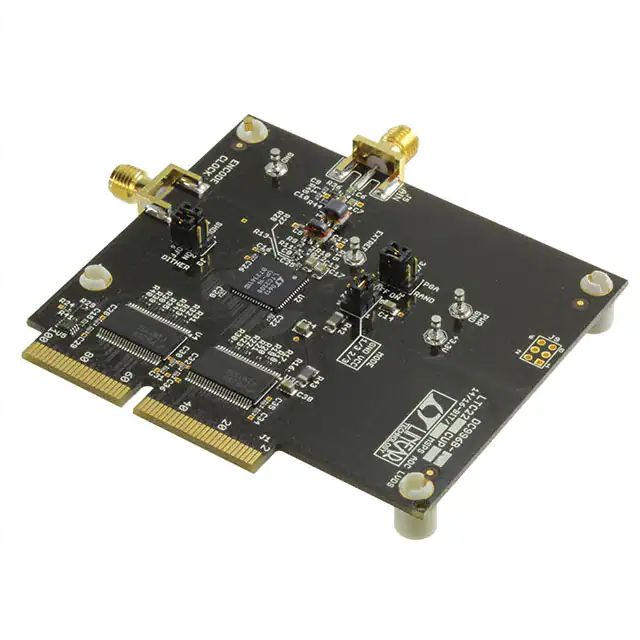

DC996B-CEVAL BOARD FOR LTC2208-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208-14 | Board(s) |
|

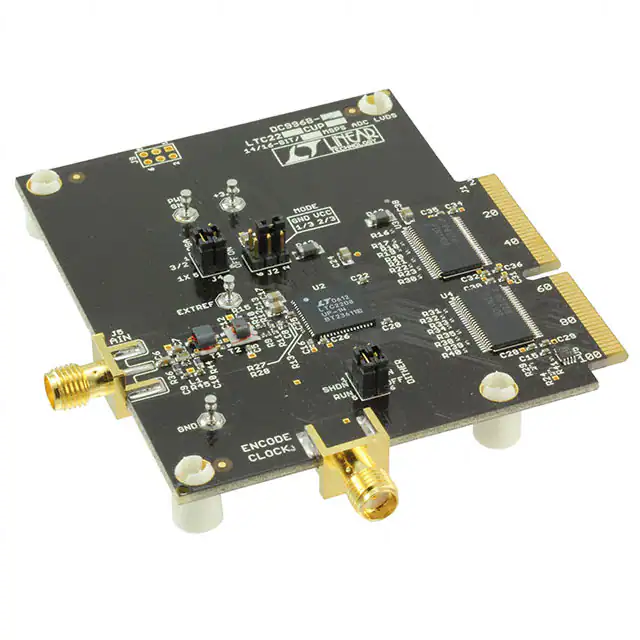

DC996B-DEVAL BOARD FOR LTC2208-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208-14 | Board(s) |
|

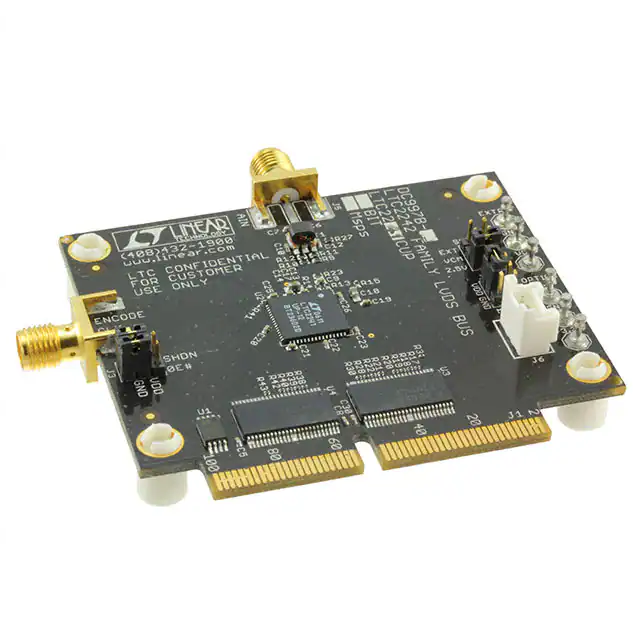

DC997B-BEVAL BOARD FOR LTC2241-12 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 210M | CMOS, LVDS, Parallel | 2Vpp | 710mW @ 210MSPS | LTC2241-12 | Board(s) |
|

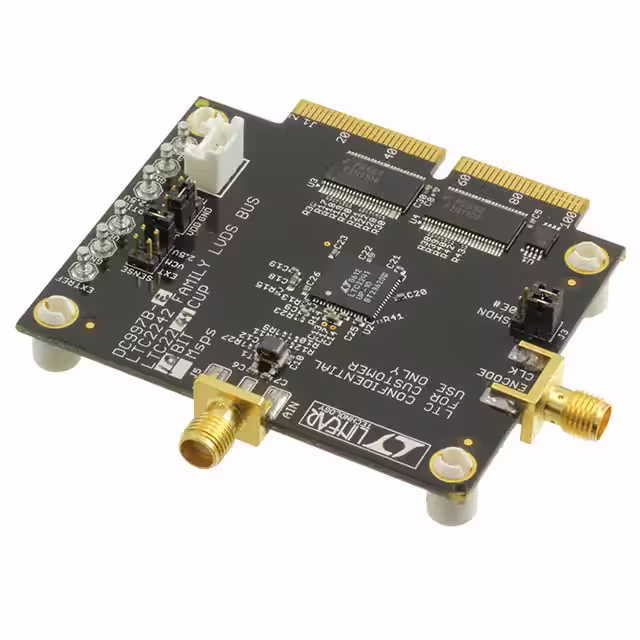

DC997B-FEVAL BOARD FOR LTC2240-10 |
1 |
|
Datasheet | - | Box | Active | 1 | 10 | 170M | CMOS, LVDS, Parallel | 2Vpp | 570mW @ 170MSPS | LTC2240-10 | Board(s) |
|

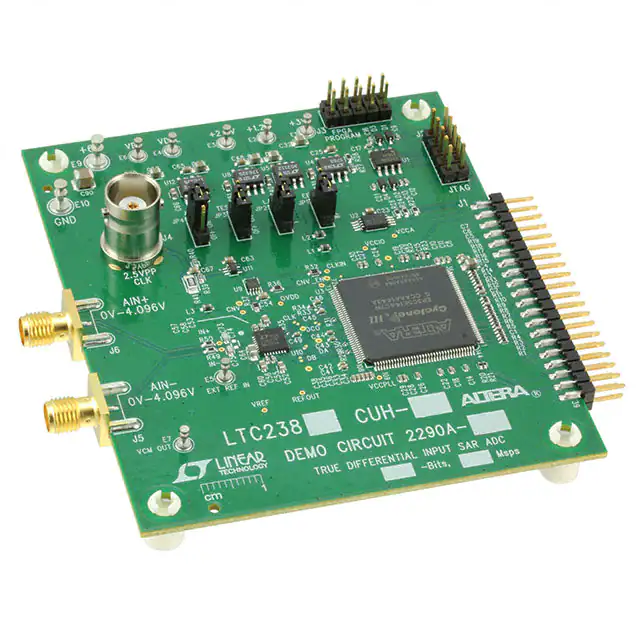

DC2290A-BEVAL BOARD FOR LTC2387-16 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 15M | LVDS - Serial | - | 125mW @ 15MSPS | LTC2387-16 | Board(s) |
|

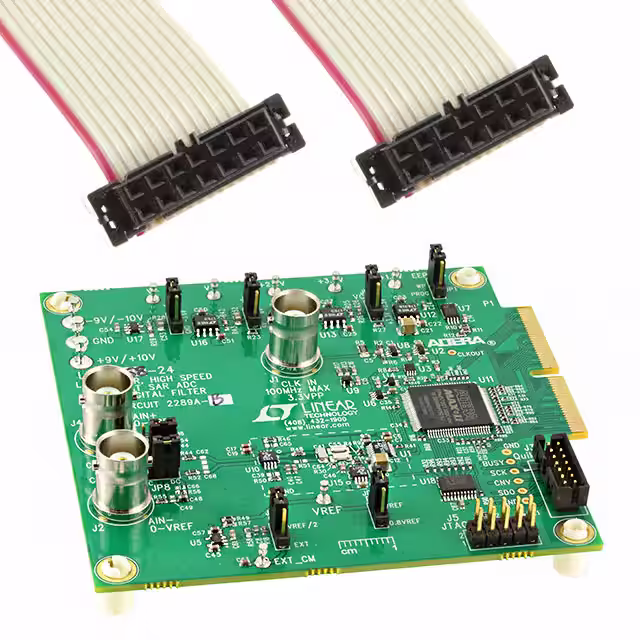

DC2289A-BEVAL BOARD FOR LTC2368-24 |
1 |
|
Datasheet | - | Box | Active | 1 | 24 | 1M | Serial, SPI | 0 ~ VREF | 21mW @ 1MSPS | LTC2368-24 | Board(s), Cable(s) |
|

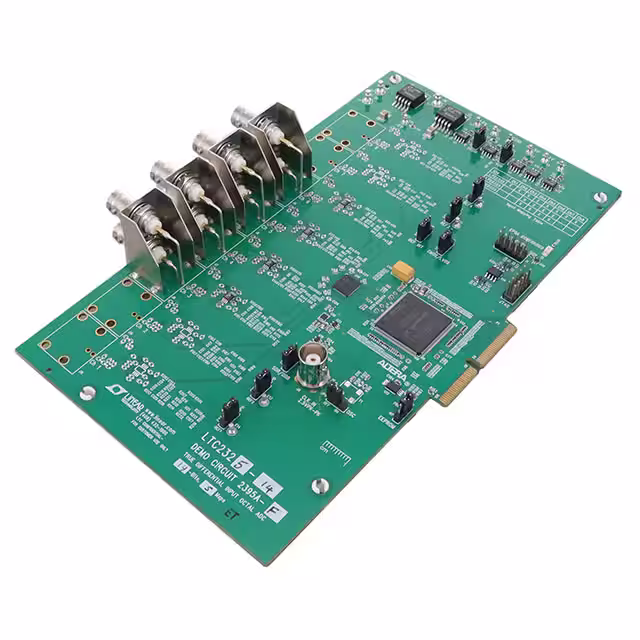

DC2395A-FDEMO BOARD FOR LTC2325-14 |
1 |
|
Datasheet | - | Bulk | Active | 4 and 8 | 12, 14, 16 | 5M, 2M, 1.5M | Serial | - | - | LTC2325, LTC2324, LTC2320 | Board(s) |
|

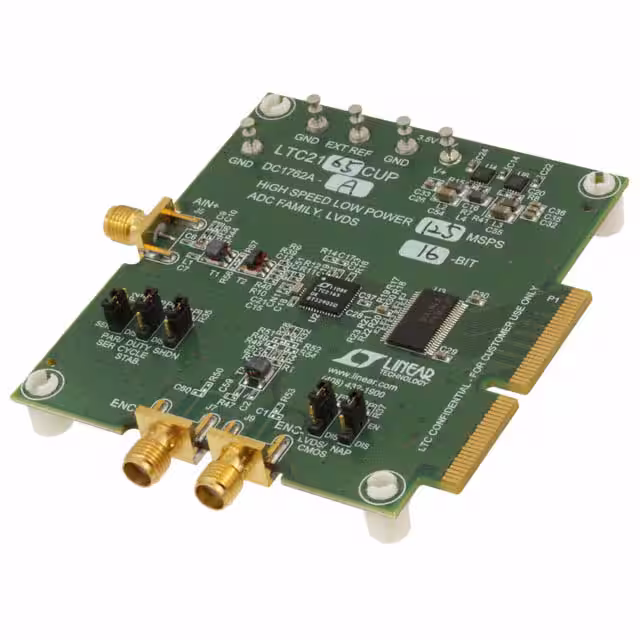

DC1762A-ABOARD DEMO 16BIT 125MSPS LTC2165 |
0 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 125M | Parallel | 1 ~ 2Vpp | 204mW @ 125MSPS | LTC2165 | Board(s) |
|

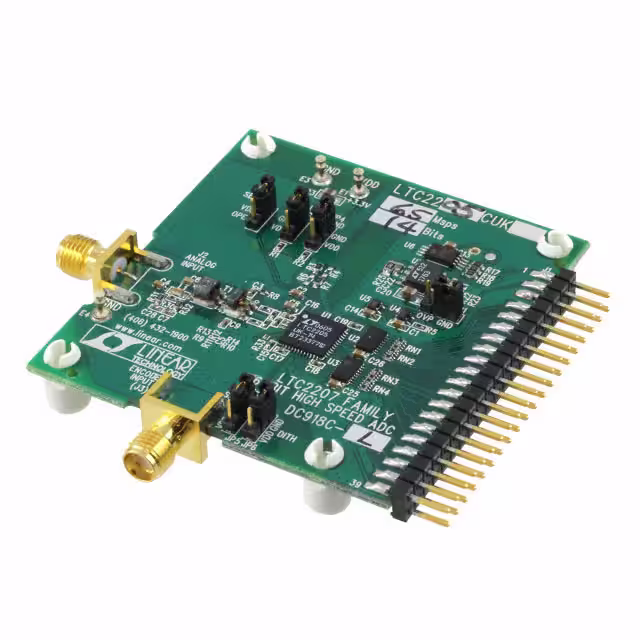

DC918C-LBOARD EVAL LTC2205-14 |
0 |
|
Datasheet | - | Box | Active | 1 | 14 | 65M | Parallel | 1.5 ~ 2.25Vpp | 597mW @ 65MSPS | LTC2205-14 | Board(s) |
|

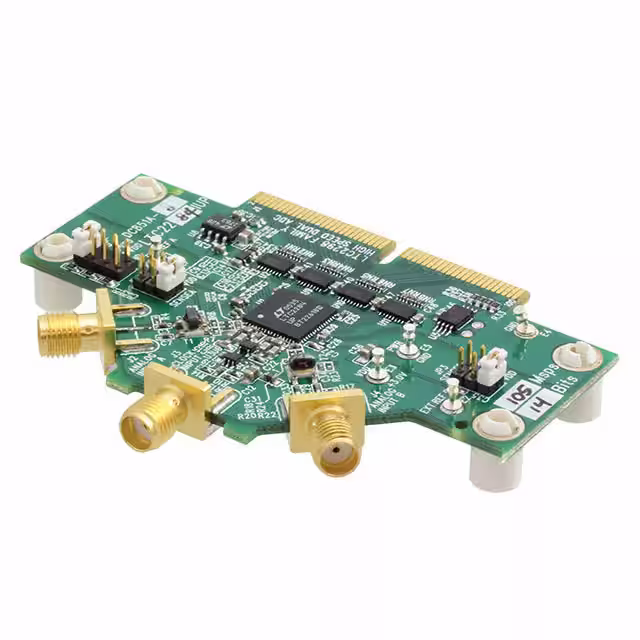

DC851A-SBOARD EVAL LTC2284IUP |
9 |
|
Datasheet | - | Box | Active | 2 | 14 | 105M | Parallel | 1 ~ 2Vpp | 540mW @ 105MSPS | LTC2284 | Board(s) |
|

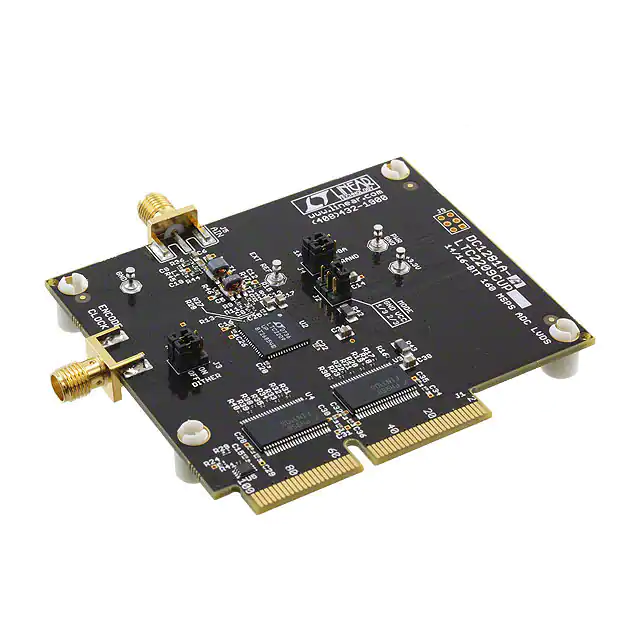

DC1281A-ABOARD DEMO 16BIT 160MSPS LTC2209 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 160M | Parallel | 1.5 ~ 2.25Vpp | 1.785W @ 160MSPS | LTC2209 | Board(s) |
|

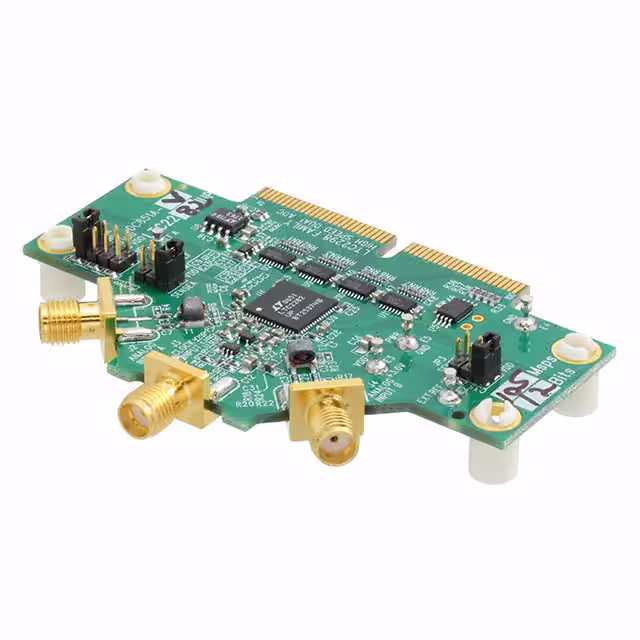

DC851A-VBOARD EVAL LTC2282IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 105M | Parallel | 1 ~ 2Vpp | 540mW @ 105MSPS | LTC2282 | Board(s) |
|

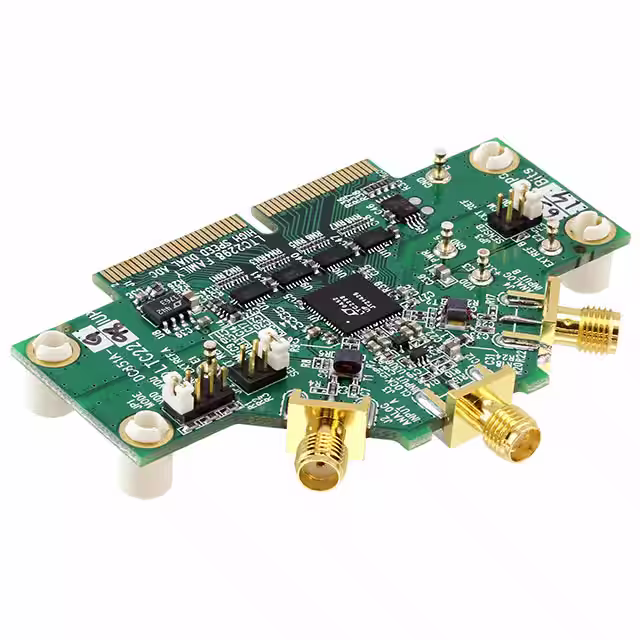

DC851A-GBOARD EVAL LTC2298IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2298 | Board(s) |
|
ADS8412EVMEVALUATION MODULE FOR ADS8412 |
2 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 2M | Parallel | 0 ~ 4.096V | 175mW @ 2MSPS | ADS8412 | Board(s) |
|
TLV2553EVM-PDKEVAL PLATFORM TLV2553 |
2 |
|
Datasheet | - | Box | Active | 1 | 12 | 200k | SPI | 0 ~ VREF | - | TLV2553 | Board(s) |
|

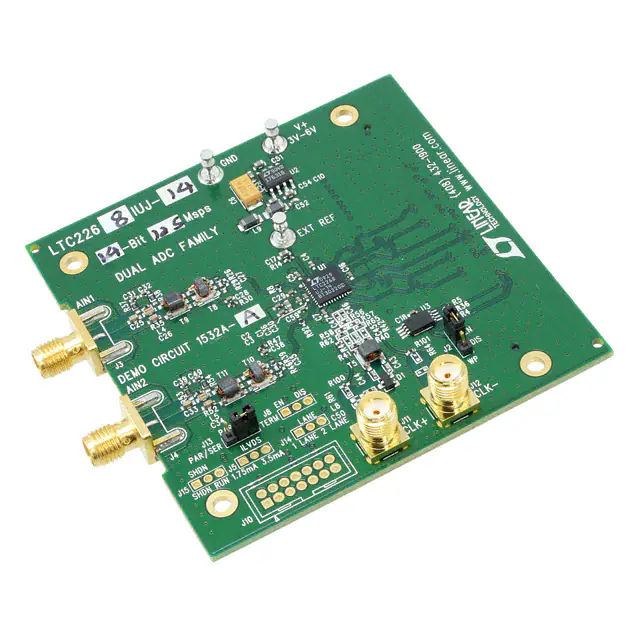

DC1532A-ABOARD DEMO 125MSPS LTC2268-14 |
2 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 125M | Serial LVDS | 1 ~ 2Vpp | 324mW @ 125MSPS | LTC2268-14 | Board(s) |
|

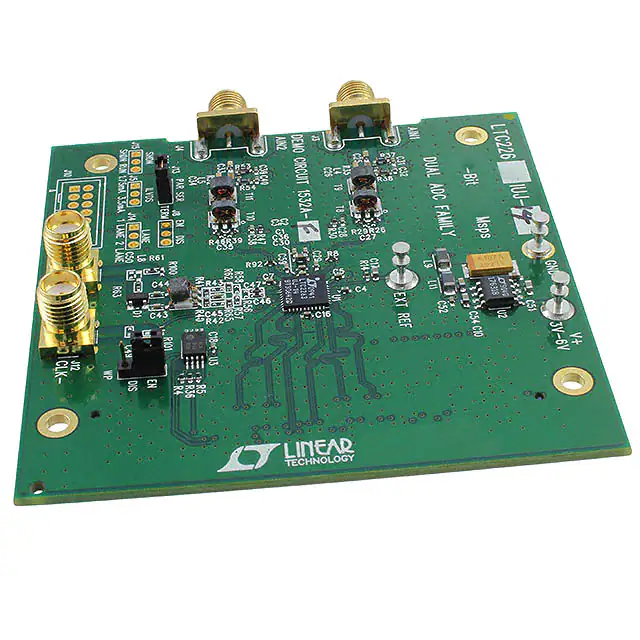

DC1532A-FBOARD DEMO 25MSPS LTC2263-14 |
2 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 25M | Serial LVDS | 1 ~ 2Vpp | 124mW @ 25MSPS | LTC2263-14 | Board(s) |
|

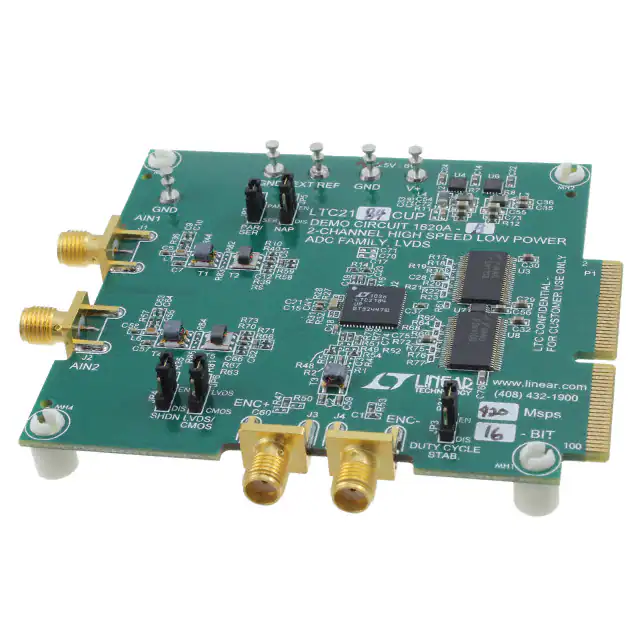

DC1620A-BBOARD DEMO 16BIT 105MSPS LTC2184 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 105M | Parallel | 1 ~ 2Vpp | 454mW @ 105MSPS | LTC2184 | Board(s) |
|

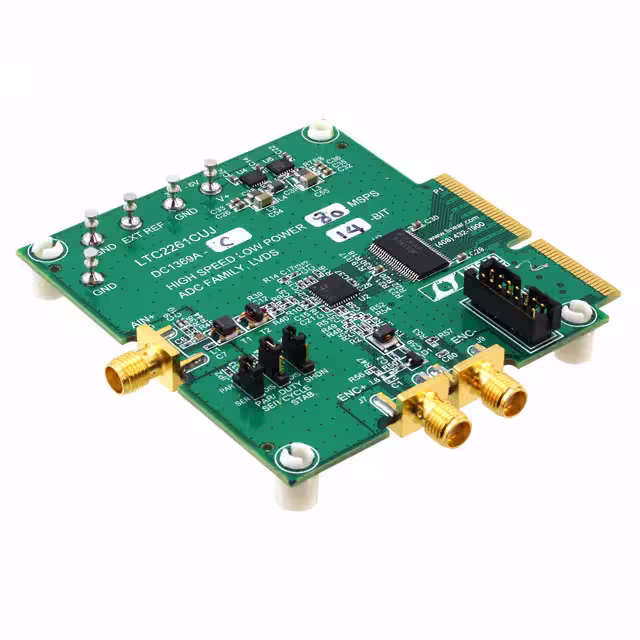

DC1369A-CBOARD DEMO 80MSPS LTC2259-14 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 14 | 80M | Parallel | 1 ~ 2Vpp | 170mW @ 80MSPS | LTC2259-14 | Board(s) |
|

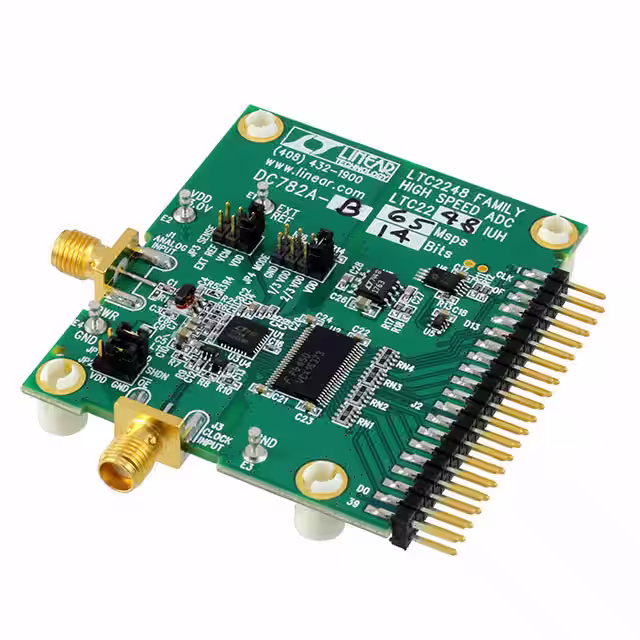

DC782A-BBOARD EVAL LTC2248IUH |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 65M | Parallel | 1 ~ 2Vpp | 205mW @ 65MSPS | LTC2248 | Board(s) |
