Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

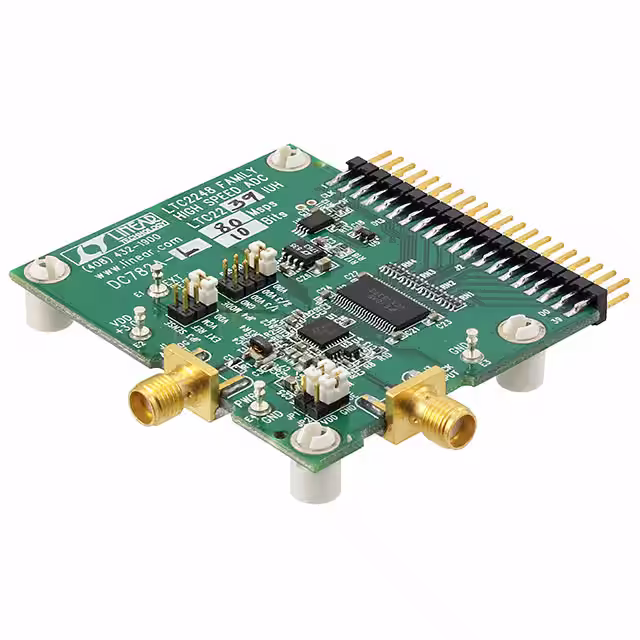

DC782A-LBOARD EVAL LTC2239IUH |
1 |
|
Datasheet | - | Box | Active | 1 | 10 | 80M | Parallel | 1 ~ 2Vpp | 211mW @ 80MSPS | LTC2239 | Board(s) |
|

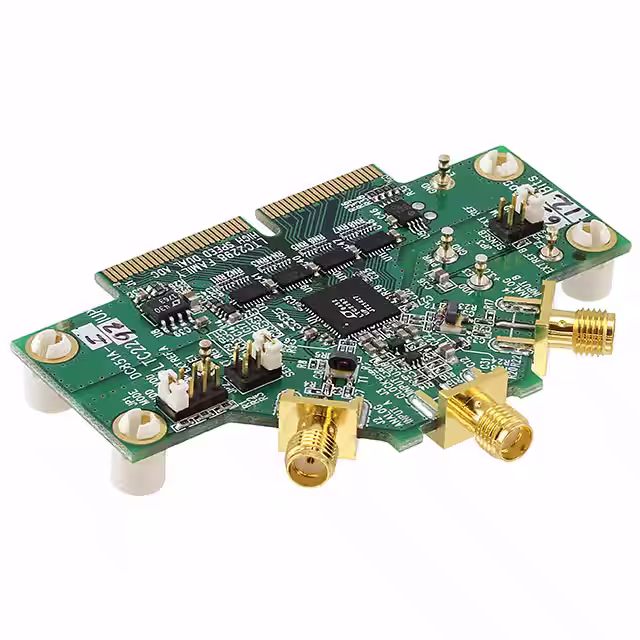

DC851A-IBOARD EVAL LTC2293IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2293 | Board(s) |
|

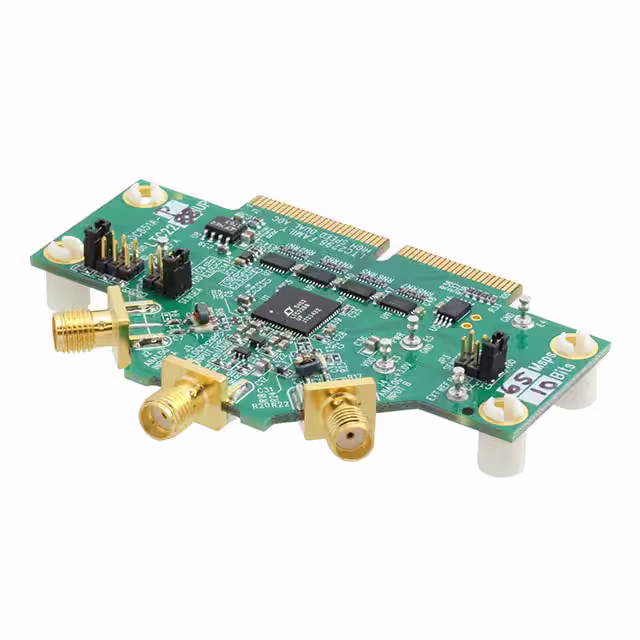

DC851A-PBOARD EVAL LTC2288IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 10 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2288 | Board(s) |
|

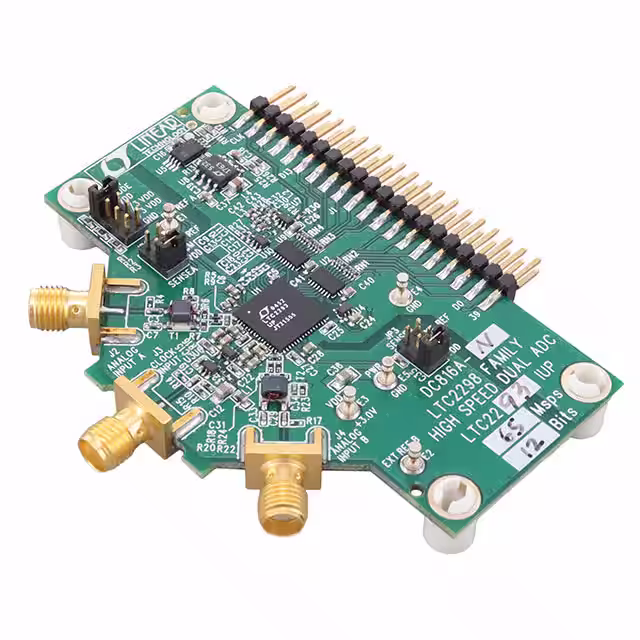

DC816A-NEVAL BOARD FOR LTC2293 |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2293 | Board(s) |
|

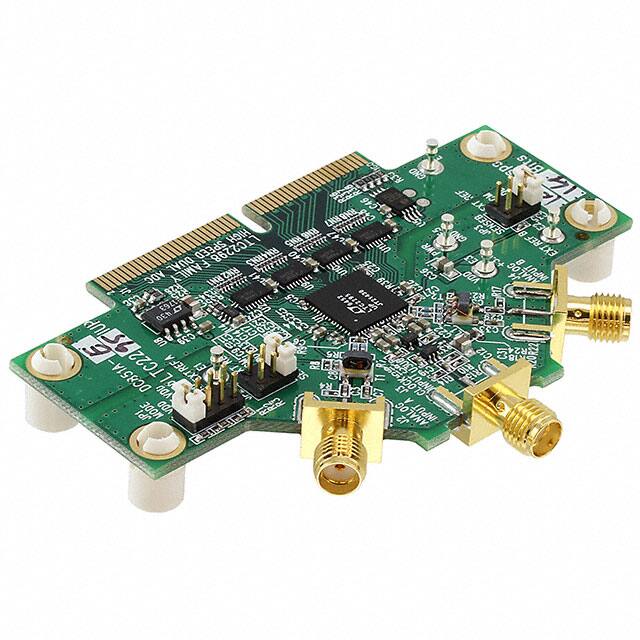

DC851A-EBOARD EVAL LTC2295IUP |
0 |
|
Datasheet | - | Box | Active | 2 | 14 | 10M | Parallel | 1 ~ 2Vpp | 120mW @ 10MSPS | LTC2295 | Board(s) |
|

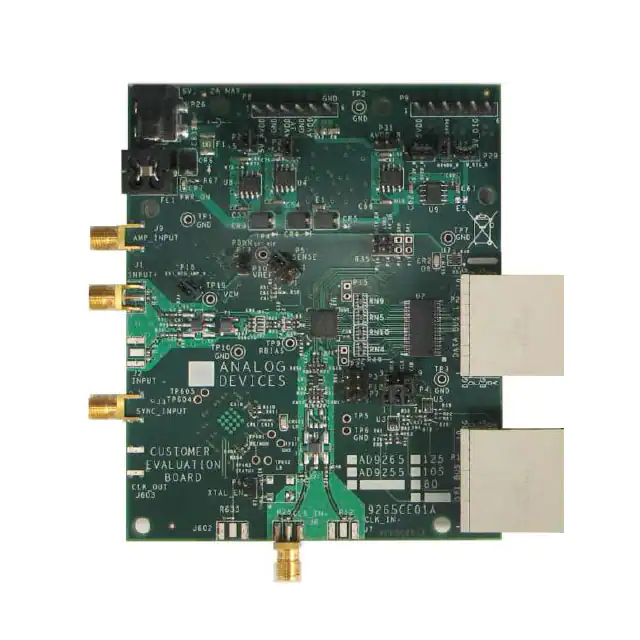

AD9255-125EBZBOARD EVALUATION 125MSPS AD9255 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 125M | SPI | 1 ~ 2Vpp | 321mW @ 105MSPS | AD9255 | Board(s) |
|

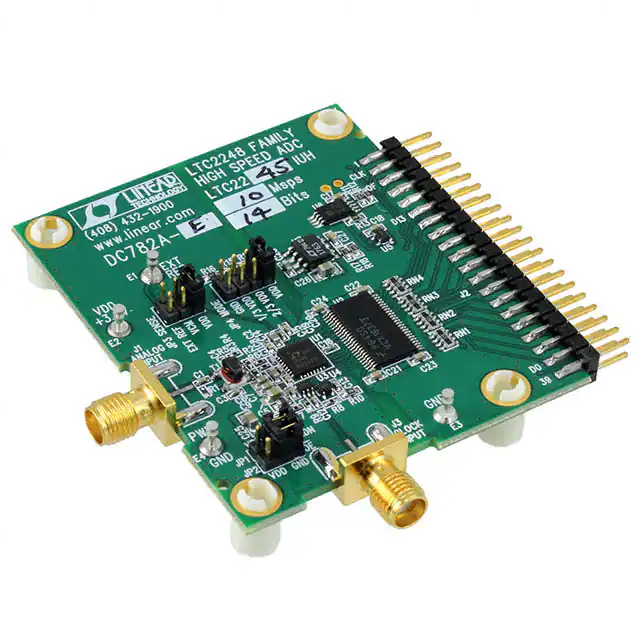

DC782A-EBOARD EVAL LTC2245IUH |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 10M | Parallel | 1 ~ 2Vpp | 60mW @ 10MSPS | LTC2245 | Board(s) |
|

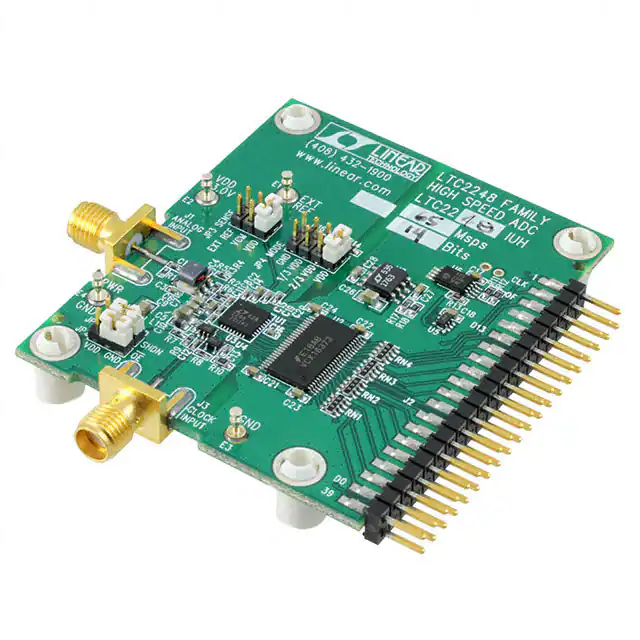

DC782A-RBOARD EVAL LTC2248IUH |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 65M | Parallel | 1 ~ 2Vpp | 205mW @ 65MSPS | LTC2248 | Board(s) |
|

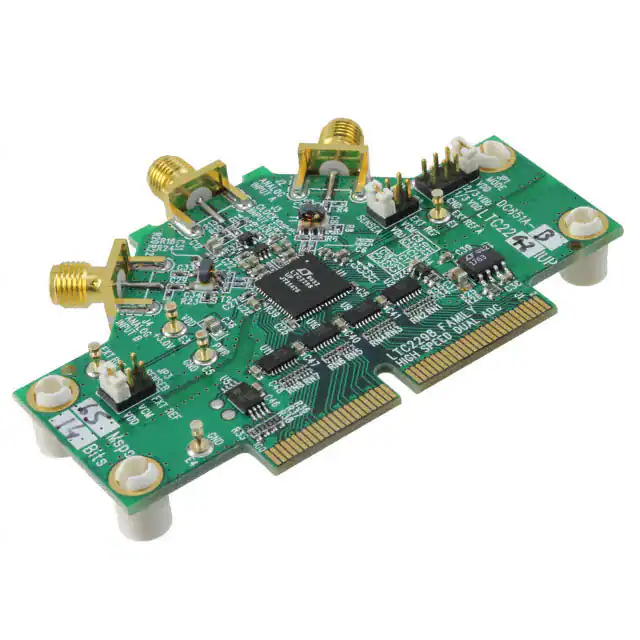

DC851A-BBOARD EVAL LTC2298IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2298 | Board(s) |
|

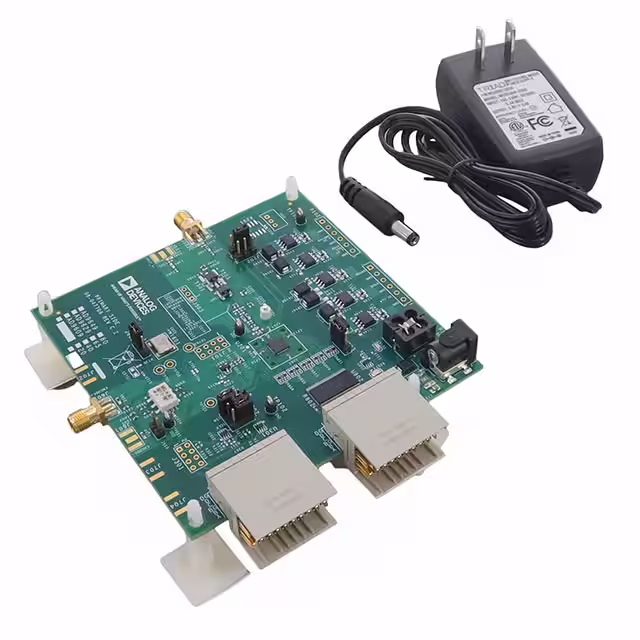

AD9609-80EBZBOARD EVALUATION AD9609 80MSPS |
1 |
|
Datasheet | - | Box | Active | 1 | 10 | 80M | SPI | 2Vpp | 83mW @ 80MSPS | AD9609 | Board(s) |
|

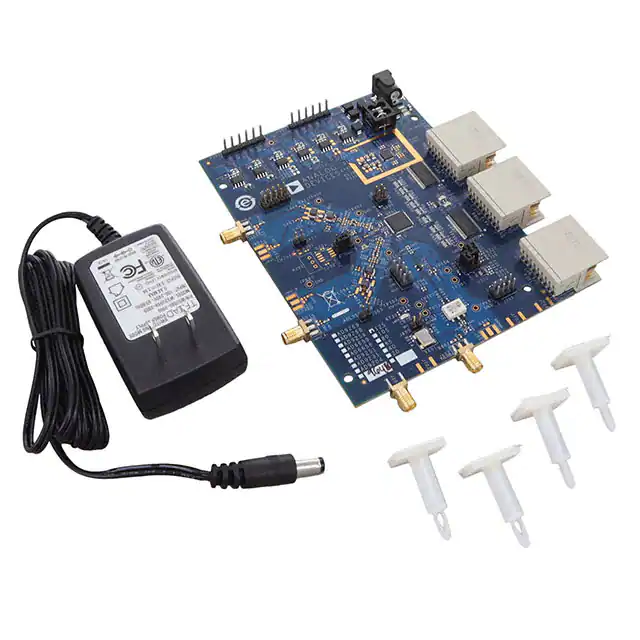

AD9648-125EBZEVAL BOARD AD9648-125 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 14 | - | Serial | 2Vpp | - | AD9648 | Board(s) |
|

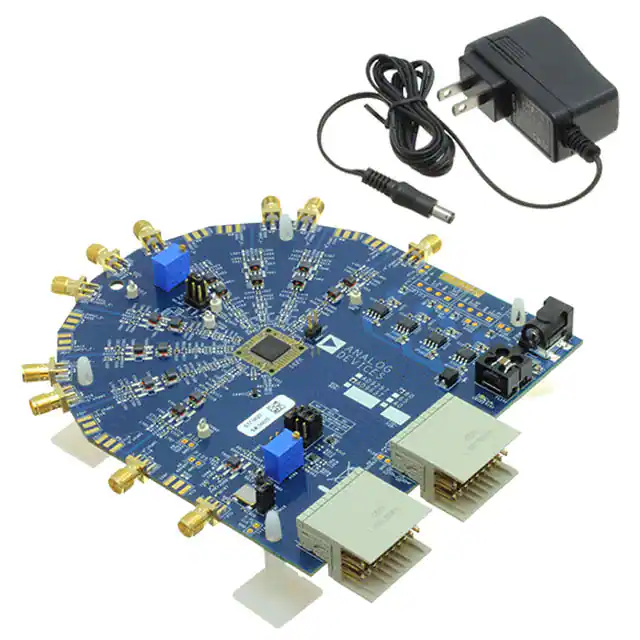

AD9637-80EBZBOARD EVAL FOR AD9637 |
0 |
|
Datasheet | - | Bulk | Active | 8 | 12 | 80M | LVDS, Serial, SPI | 2Vpp | - | AD9637 | Board(s) |
|

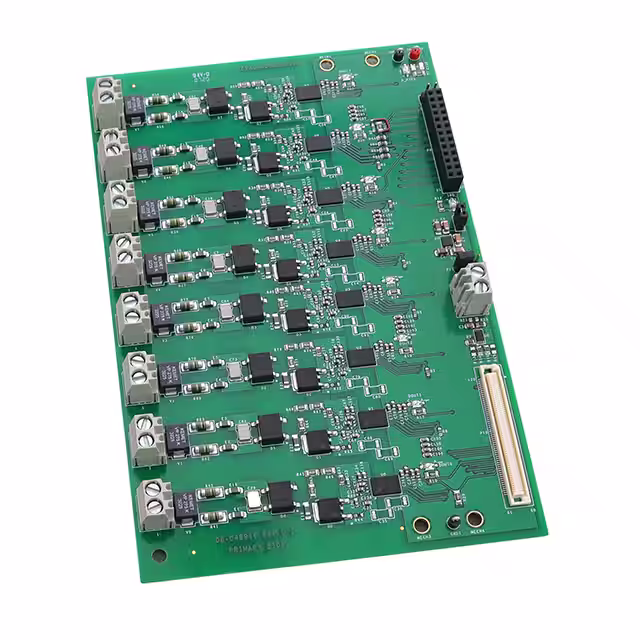

EVAL-ADE1201EBZADE1201 EVAL BOARD |
1 |
|
Datasheet | isoPower® | Box | Active | 1 | - | - | Serial, SPI | ±10V ~ ±300V | - | ADE1201 | Board(s) |
|

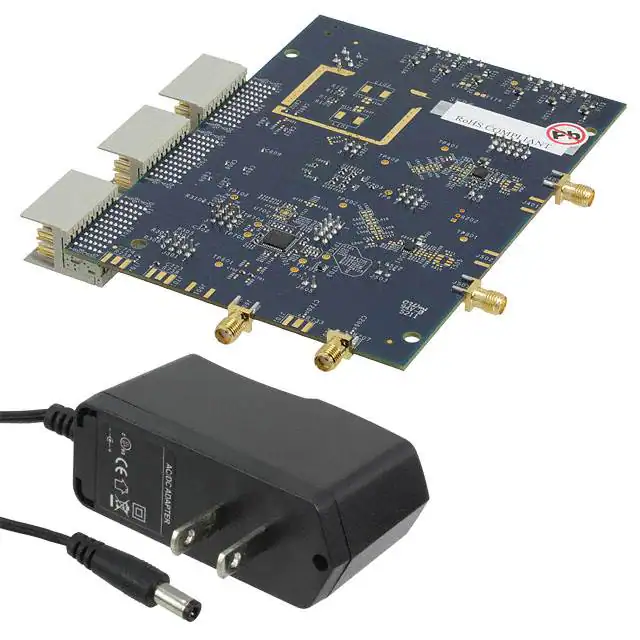

AD9628-125EBZBOARD EVAL AD9628-125 |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 125M | Serial | - | - | AD9628 | Board(s) |
|

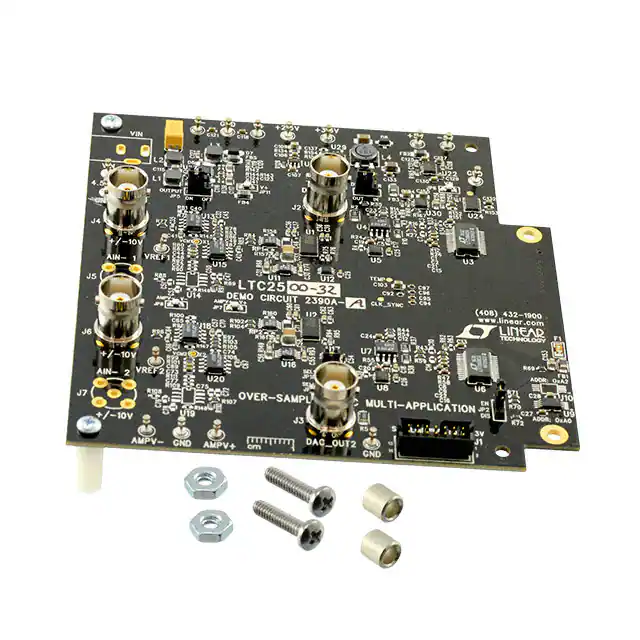

DC2390A-ADEMO BOARD FOR LTC2500-32 |
1 |
|
Datasheet | - | Box | Active | 1 | 32 | 1M | SPI | ±VREF | 24mW @ 1MSPS | LTC2500-32 | Board(s) |
|
AD9211-300EBZBOARD EVALUATION FOR AD9211-300 |
0 |
|
Datasheet | - | Box | Active | 1 | 10 | 300M | Serial | 0.98 ~ 1.5V | 437mW @ 1.8V | AD9211 | Board(s), Power Supply |
|
ADS58B18EVMEVAL MODULE FOR ADS58B18 |
3 |
|
Datasheet | - | Box | Active | 1 | 11 | 200M | CMOS, LVDS, Serial, Parallel | 1.5Vpp | - | ADS58B18 | Board(s) |
|
ADS58C28EVMEVAL MODULE FOR ADS58C28 |
3 |
|
Datasheet | - | Box | Active | 2 | 11 | 200M | CMOS, LVDS, Serial, Parallel | 2Vpp | - | ADS58C28 | Board(s) |
|
ADS5263EVMMODULE EVAL FOR ADS5263 |
2 |
|
Datasheet | - | Box | Active | 4 | 16 | 100M | Serial | 4Vpp | - | ADS5263 | Board(s) |
|
|
ADS58B19EVMEVAL MODULE FOR ADS58B19 |
2 |
|
Datasheet | - | Box | Active | 1 | 9 | 250M | CMOS, LVDS, Serial, Parallel | 1.5Vpp | - | ADS58B19 | Board(s) |
