Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

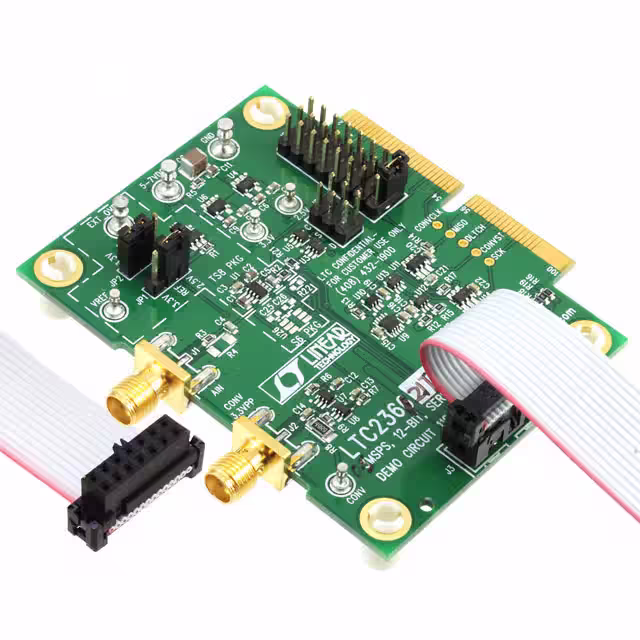

DC1190A-CBOARD SAR ADC LTC2362 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 500k | MICROWIRE™, Serial, SPI™ | - | - | LTC2362 | Board(s) |
|

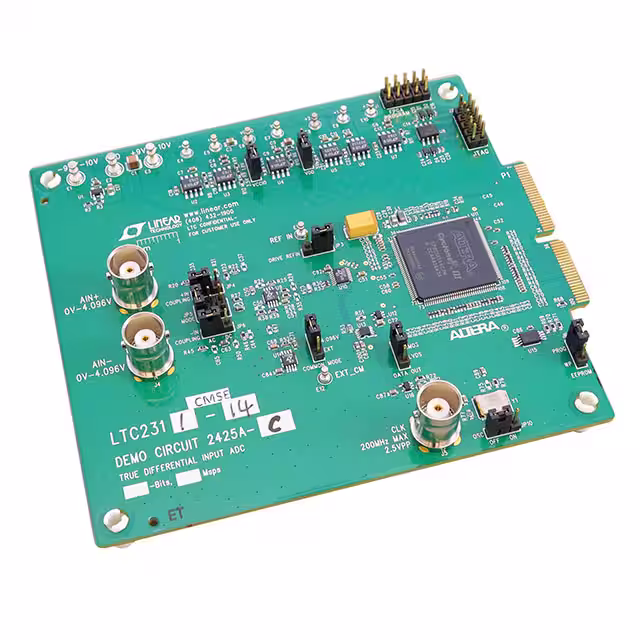

DC2425A-CDEMO BOARD FOR LTC2311-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 5M | CMOS, Serial | 8Vpp | 50mW @ 5MSPS | LTC2311-14 | Board(s) |
|

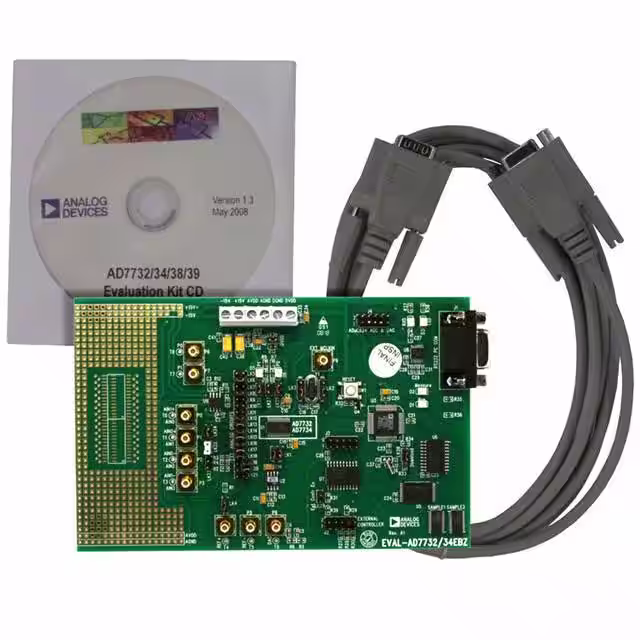

EVAL-AD7732EBZBOARD EVAL FOR AD7732 |
0 |
|
Datasheet | - | Box | Obsolete | 1 | 24 | 15.4k | Serial | ±10V | 85mW @ 3V | AD7732 | Board(s), Cable(s) |
|

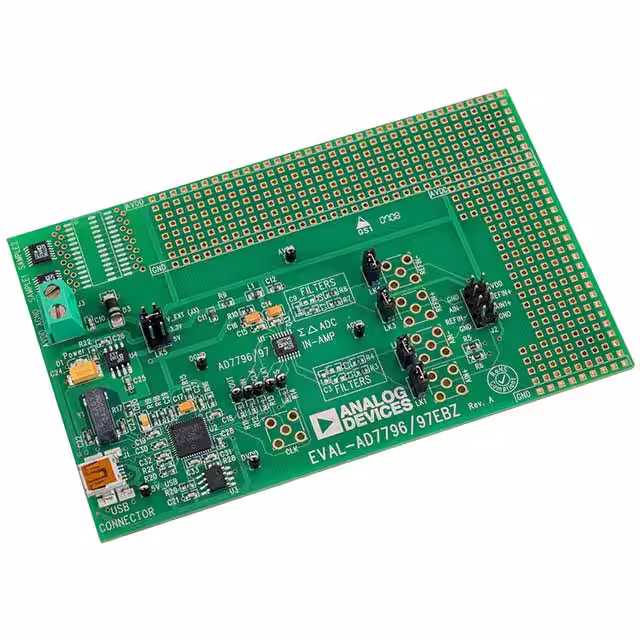

EVAL-AD7796EBZBOARD EVALUATION FOR AD7796 |
0 |
|
Datasheet | - | Box | Active | 1 | 16 | 123 | Serial | ±VREF/128 | 1.6mW @ 123SPS | AD7796 | Board(s) |
|
EVAL-AD7995EBZBOARD EVAL FOR AD7995 |
0 |
|
Datasheet | - | Box | Active | 1 | 10 | 1M | Serial | 0 ~ 5.5V | 4.4mW @ 5.5V, 3.4MHz | AD7995 | Board(s), Cable(s) |
|

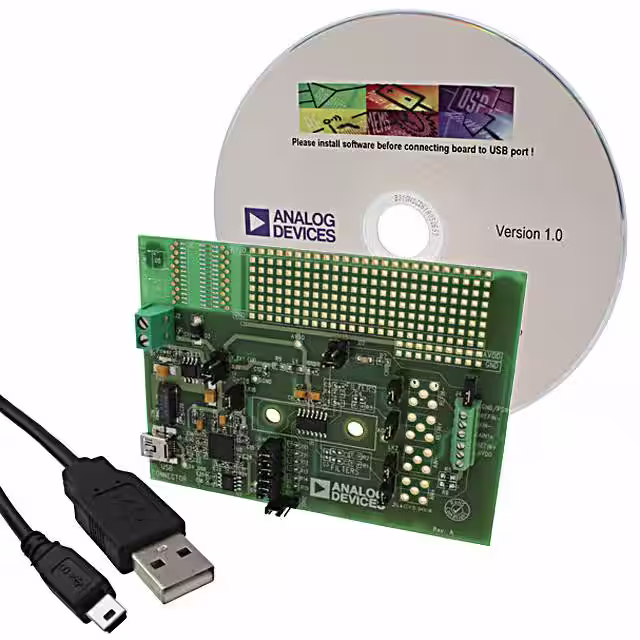

EVAL-AD7781EBZBOARD EVAL FOR AD7781 |
0 |
|
Datasheet | - | Box | Active | 1 | 20 | 470 | SPI | ±5V | - | AD7781 | Board(s) |
|

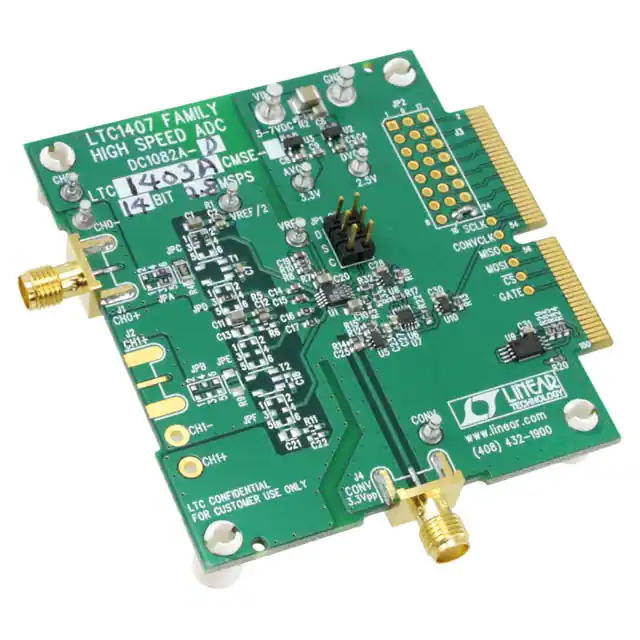

DC1082A-DBOARD SAR ADC LTC1403A |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 3M | SPI | 0 ~ 2.5V | - | LTC1403 | Board(s) |
|

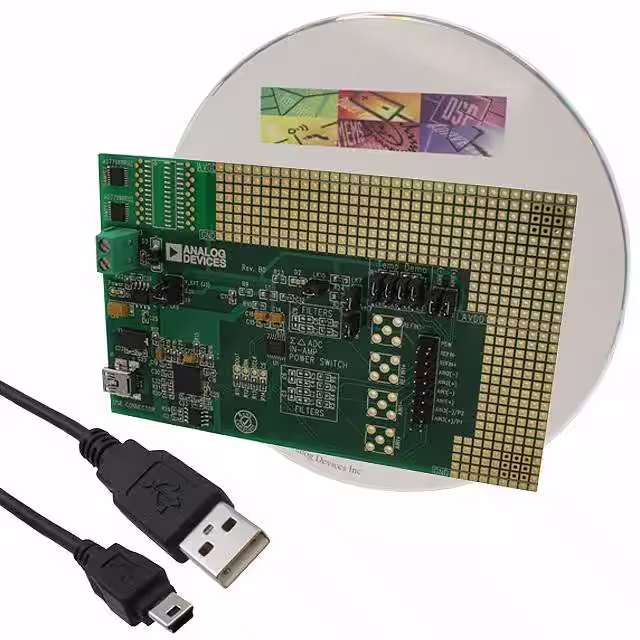

EVAL-AD7798EBZBOARD EVAL FOR AD7798 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 470 | Serial | ±VREF/gain | 2.5mW @ 470SPS | AD7798 | Board(s), Cable(s) |
|
|
EVAL-LTC2420-EBZEVALUATION BOARD |
2 |
|
Datasheet | - | Box | Active | 1 | 20 | 100 | Microwire, SPI | 2.7V ~ 5.5V | - | LTC2420 | Board(s) |
|

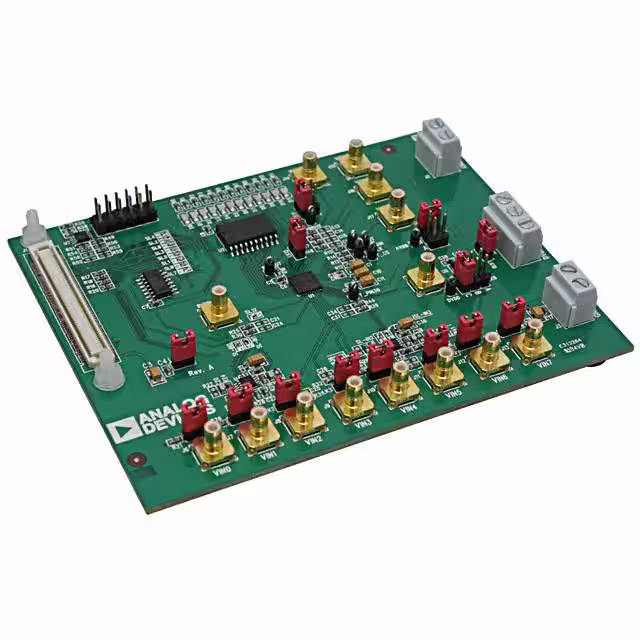

EVAL-AD7292SDZBOARD EVAL FOR AD7292 |
0 |
|
Datasheet | - | Box | Active | 1 | 10 | 625k | SPI | 0 ~ VREF | - | AD7292 | Board(s), Cable(s) |
|
EVAL-AD7401EDZBOARD EVALUATION FOR AD7401 |
0 |
|
Datasheet | iCoupler® | Box | Active | 1 | 16 | 20M | Serial | ±320mV | 100mW @ 20MSPS | AD7401 | Board(s) |
|

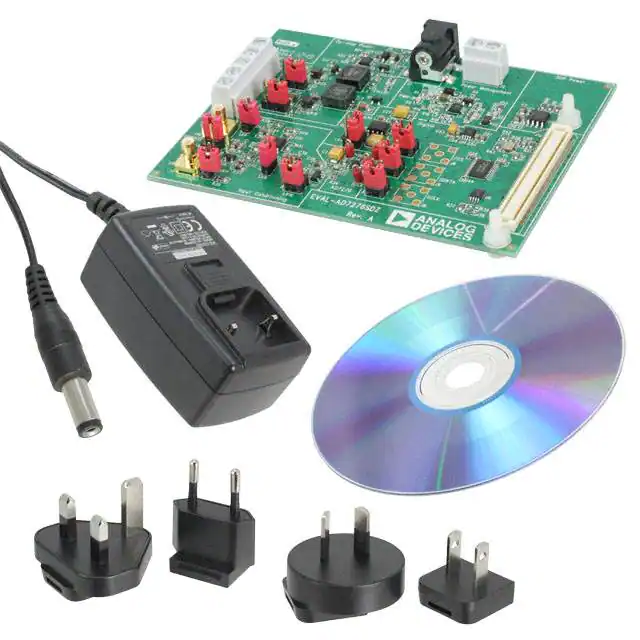

EVAL-AD7276SDZBOARD EVAL FOR AD7276 |
0 |
|
Datasheet | - | Box | Active | 1 | 12 | 3M | Serial | 0 ~ 3.6V | 19.8mW @ 3MSPS, 3.6V | AD7276 | Board(s) |
|

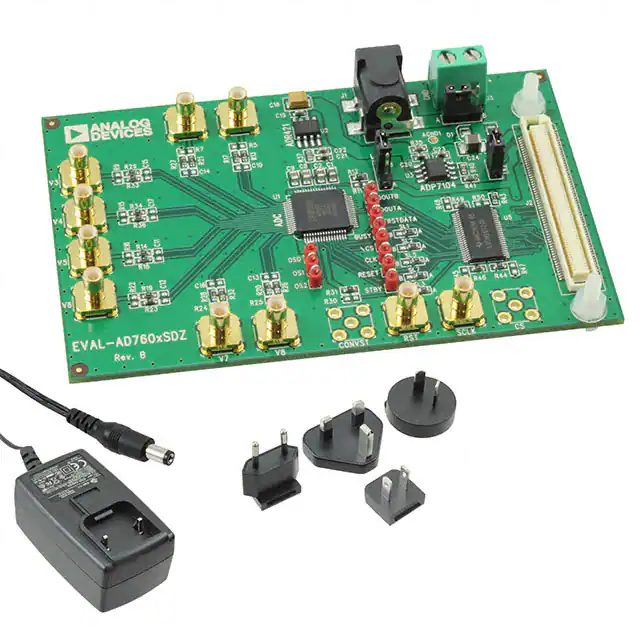

EVAL-AD7607SDZEVAL BOARD FOR AD7607 |
0 |
|
Datasheet | - | Box | Active | 1 | 14 | 200k | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ | ±10V | 100mW @ 200kSPS | AD7607 | Board(s), Power Supply |
|

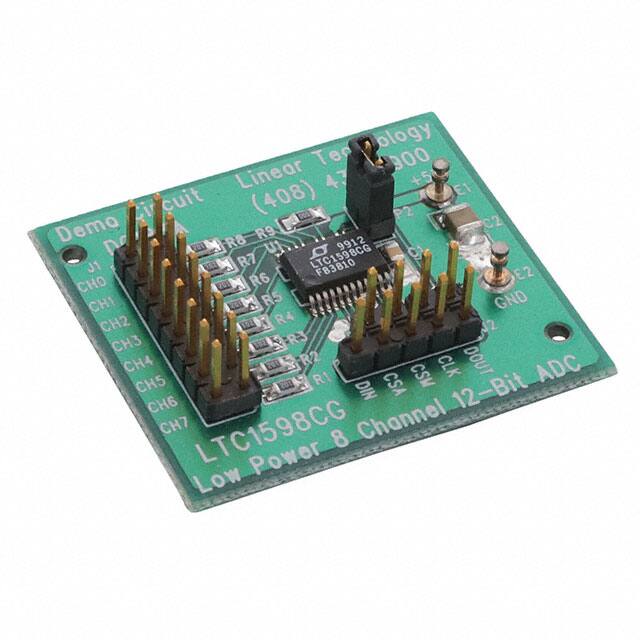

DC183ALTC1598CG - 12-BIT, LOW POWER, 8 |
1 |
|
Datasheet | microPOWER™ | Box | Active | 1 | 12 | 16.8k | Serial, SPI | - | - | LTC1598 | Board(s) |
|
EVAL-AD7402-8FMCZEVAL BOARD FOR AD7402 |
0 |
|
Datasheet | iCoupler® | Box | Active | 1 | 16 | 39K | Serial | ±250mV | 209mW @ 39kSPS | AD7402 | Board(s) |
|

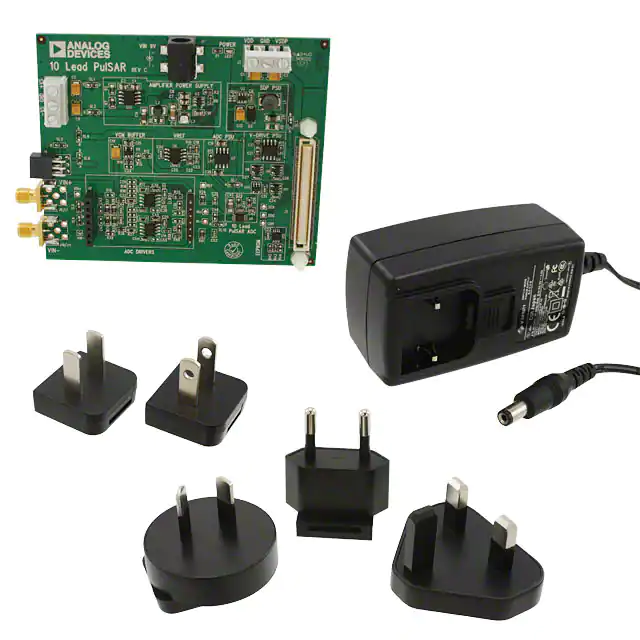

EVAL-AD7691SDZBOARD EVAL FOR AD7691 |
1 |
|
Datasheet | PulSAR® | Box | Active | 1 | 18 | 250k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | 10.6mW @ 250kSPS, 5V | AD7691 | Board(s), Power Supply |
|

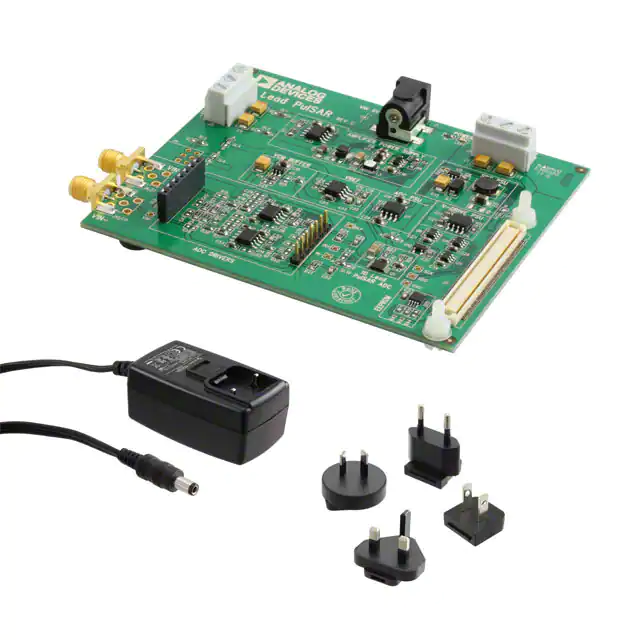

EVAL-AD7984SDZBOARD EVAL FOR AD7984 |
1 |
|
Datasheet | PulSAR® | Box | Active | 1 | 18 | 1.33M | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | 10.5mW @ 1.33MSPS | AD7984 | Board(s) |
|
EVAL-AD7687SDZBOARD EVAL FOR AD7687 |
1 |
|
Datasheet | PulSAR® | Box | Active | 1 | 16 | 250k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | 4mW @ 5V, 100kSPS | AD7687 | Board(s), Power Supply |
|

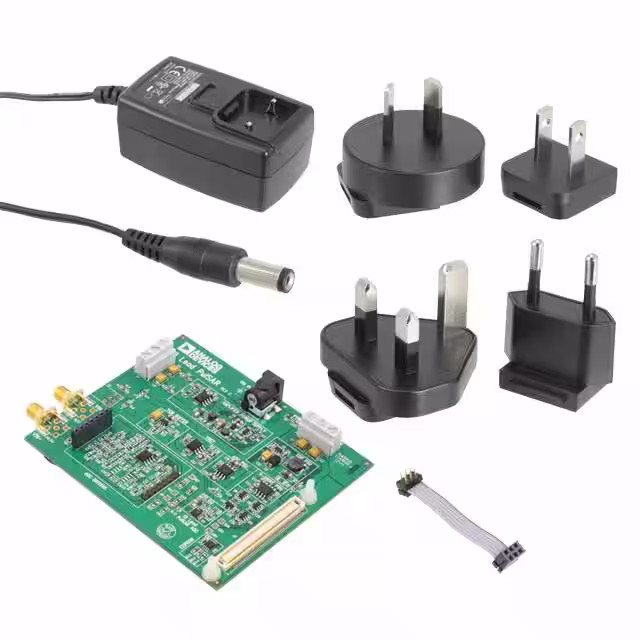

EVAL-AD7685SDZBOARD EVAL FOR AD7685 |
0 |
|
Datasheet | PulSAR® | Box | Active | 1 | 16 | 250k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | 10mW @ 250kSPS | AD7685 | Board(s), Power Supply |
|
ISLA110P50IR72EV1ZEVAL BOARD FOR ISLA110P50IR72 |
3 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 10 | 500M | SPI | 1.45Vpp | 535mW @ 500MSPS | ISLA110P50 | Board(s) |
