Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS4229EVMEVAL MODULE FOR ADS4229 |
2 |
|
Datasheet | - | Box | Active | 2 | 12 | 250M | USB | 2Vpp | - | ADS4229 | Board(s) |
|

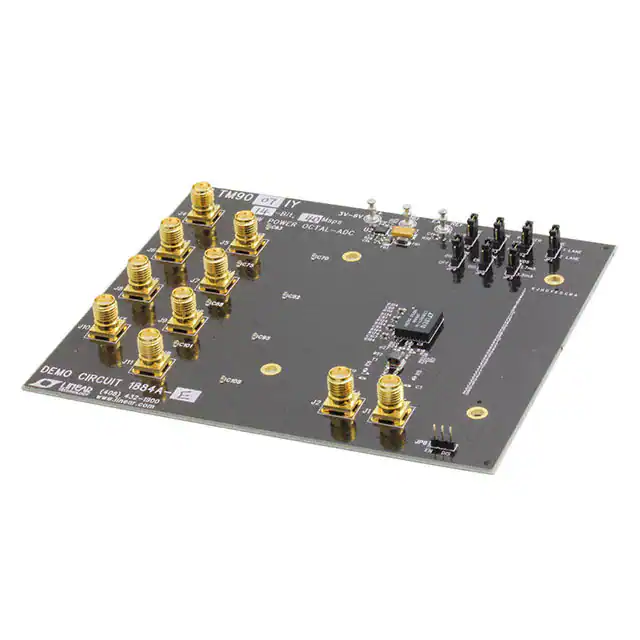

DC1884A-EBOARD EVAL LTM9007-14 |
3 |
|
Datasheet | - | Box | Active | 8 | 14 | 40M | Serial LVDS | 1 ~ 2Vpp | 583mW @ 40MSPS | LTM9007-14 | Board(s) |
|
ADS54T02EVMEVALUATION MODULE FOR ADS5402 |
3 |
|
Datasheet | - | Box | Active | 2 | 12 | 750M | DDR LVDS | 1Vpp | 2.1W @ 750MSPS | ADS54T02 | Board(s) |
|
LM97937EVMEVAL MODULE FOR LM97937 |
3 |
|
Datasheet | - | Box | Active | 2 | 14 | 370M | Serial JESD204B, SPI™ | 1.7Vpp | 1.871W @ 370MSPS | LM97937 | Board(s), Cable(s) |
|
EVAL-AD4630-16-KTZEVALUATION BOARD |
2 |
|
Datasheet | - | Box | Active | 2 | 16 | 2M | Serial, SPI | ±VREF | 30mW @ 2MSPS | AD4630-16 | Board(s) |
|
ADS58H43EVMMODULE EVAL FOR ADS58H43 |
2 |
|
Datasheet | - | Box | Active | 4 | 14 | 250M | DDR LVDS | 2Vpp | - | ADS58H43 | Board(s) |
|
ADC16DV160HFEB/NOPBEVAL BOARD FOR ADC16DV160 |
4 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 160M | SPI | 2.4Vpp | - | ADC16DV160 | Board(s) |
|

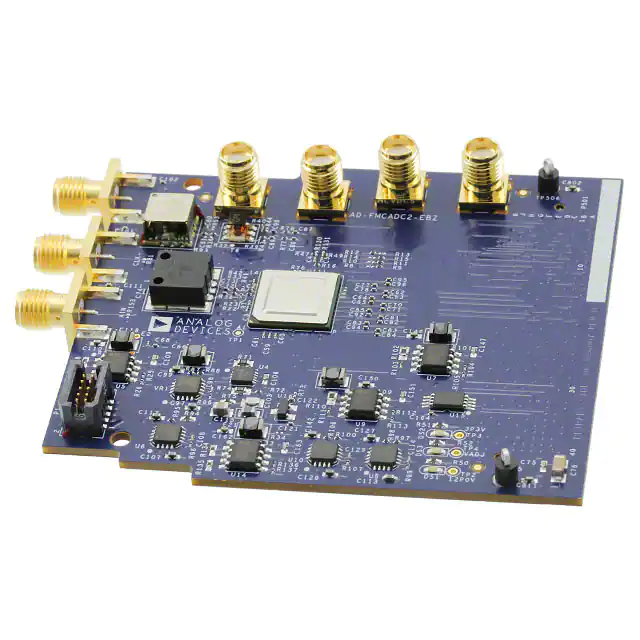

AD-FMCADC2-EBZEVAL BOARD FOR FMC MODULE |
0 |
|
Datasheet | - | Box | Not For New Designs | 1 | 12 | - | Serial JESD204B, SPI™ | 1.1Vpp | - | AD9625 | Board(s) |
|
ADC32RF80EVMEVAL BOARD FOR ADC32RF80 |
3 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 3G | JESD204B, Serial | 1.35Vpp | 6.54W @ 3GSPS | ADC32RF80 | Board(s) |
|
TSW12QJ1600EVMEVAL BOARD FOR TSW12QJ1600 |
2 |
|
Datasheet | - | Box | Active | 4 | 12 | 1.6G | JESD204C, Serial | 800mVpp | 3.22W @ 1.6GSPS | TSW12QJ1600 | Board(s), Cable(s) |
|

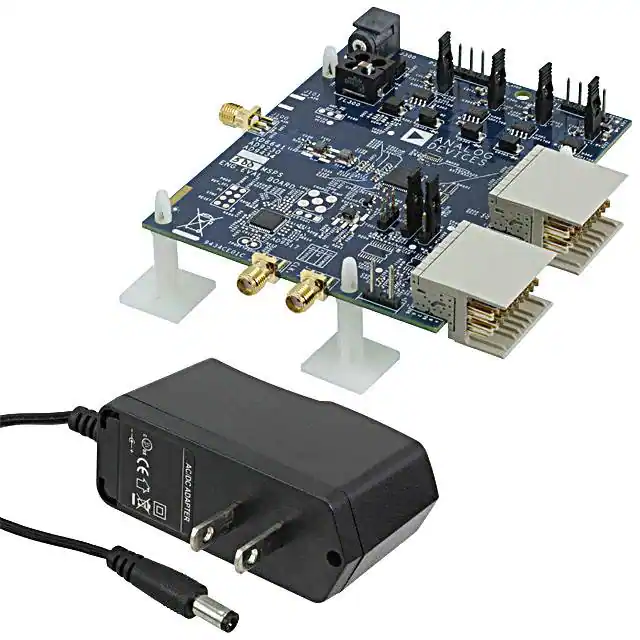

AD9434-500EBZBOARD EVAL AD9434 500MSPS ADC |
0 |
|
Datasheet | - | Box | Active | 1 | 12 | 500M | SPI | 1.5Vpp | 690mW @ 500MSPS | AD9434 | Board(s) |
|

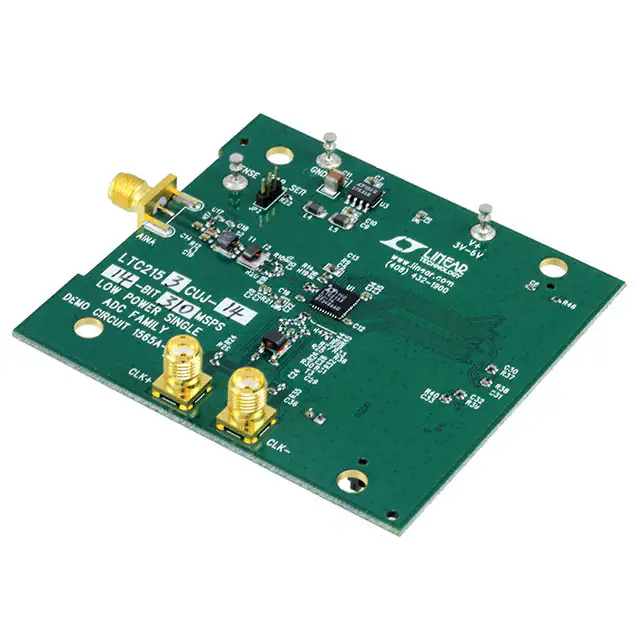

DC1565A-GBOARD DEMO 310MSPS LTC2153-14 |
0 |
|
Datasheet | - | Bulk | Active | 1 | 14 | 310M | Parallel, Serial, SPI | 1.32Vpp | 437mW @ 310MSPS | LTC2153-14 | Board(s) |
|

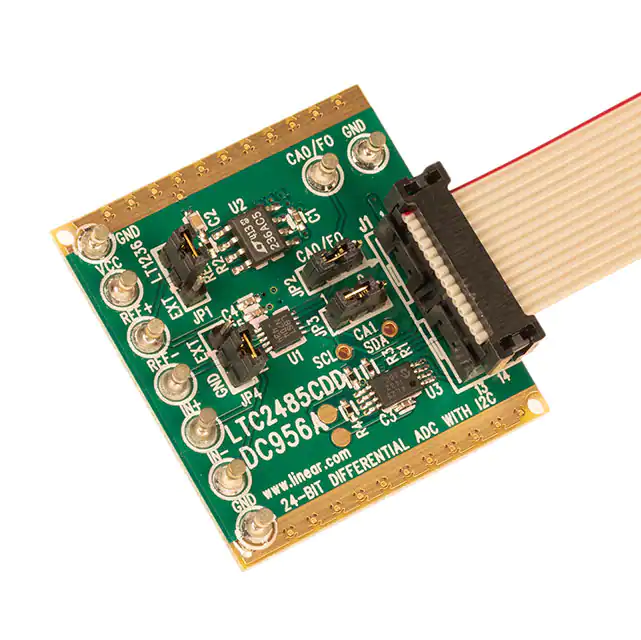

DC956ABOARD DELTA SIGMA ADC LTC2485 |
0 |
|
Datasheet | Easy Drive™ | Box | Obsolete | 1 | 24 | 6.8 | I2C, Serial | - | - | LTC2485 | Board(s) |
|
|
EVAL-AD7193ASDZEVALUATION BOARD I.C. |
7 |
|
- |
- | Box | Active | 1 | 24 | - | SPI, USB | ±VREF/gain | - | AD7193 | Board(s) |
|

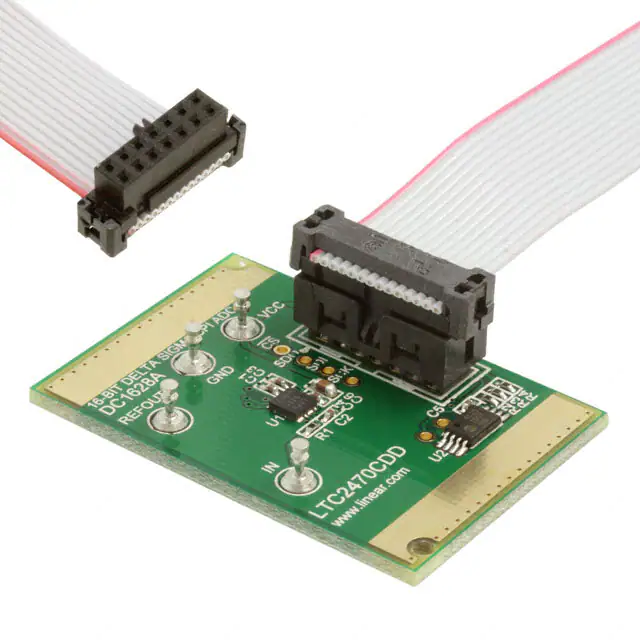

DC1628ABOARD DELTA SIGMA ADC LTC2470 |
5 |
|
Datasheet | - | Box | Active | 2 | 16 | 250, 1k | SPI | 0 ~ VREF | - | LTC2470 | Board(s) |
|

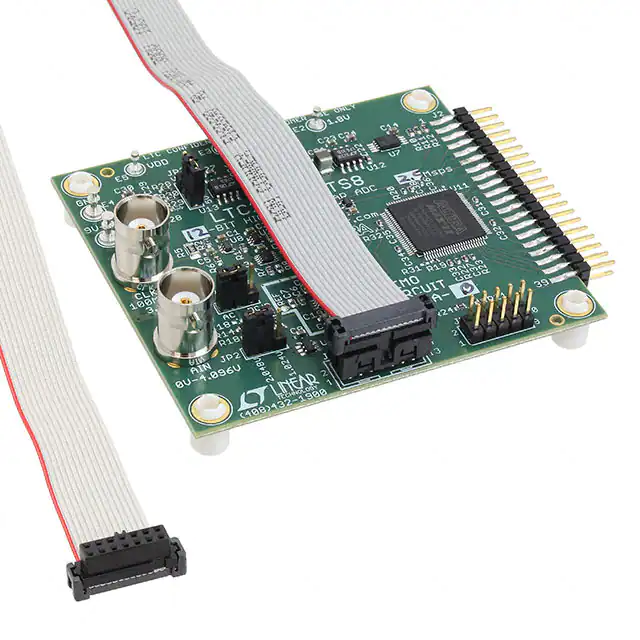

DC1563A-BEVAL BOARDS FOR LTC2313-12 |
5 |
|
Datasheet | - | Box | Active | 1 | 12 | 2.5M | SPI | 0 ~ VREF | 25mW @ 2.5MSPS | LTC2313-12 | Board(s) |
|
|
EVAL-AD4131-8WARDZEVALUATION BOARD |
7 |
|
- |
- | Box | Active | 4 | 16 | 1.17 ~ 2.4k | Serial, SPI | ±VREF | - | AD4131-4 | Board(s) |
|
|
EVAL-AD7195ASDZEVALUATION BOARD I.C. |
7 |
|
- |
- | Box | Active | 1 | 24 | - | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF/gain | - | AD7195 | Board(s) |
|
|
EVAL-AD7192ASDZEVALUATION BOARD |
5 |
|
- |
- | Box | Active | 1 | 24 | - | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF/gain | - | AD7192 | Board(s) |
|
|
EVAL-AD4129-8WARDZEVAL BOARD FOR AD4129-8 |
3 |
|
Datasheet | - | Box | Active | 1 | 16 | 2.4k | Serial, SPI | ±VREF | - | AD4129-8 | Board(s) |
