Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

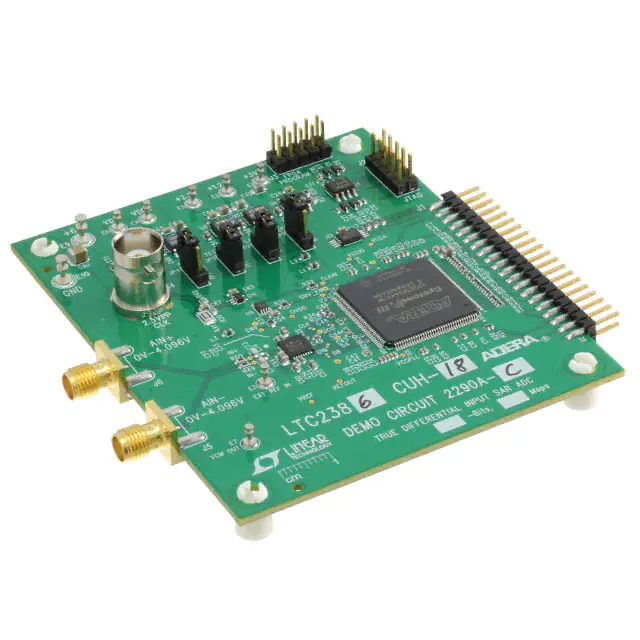

DC2290A-CEVAL BOARD FOR LTC2386-18 |
2 |
|
Datasheet | - | Box | Active | 1 | 18 | 10M | LVDS - Serial | - | 97mW @ 10MSPS | LTC2386-18 | Board(s) |
|

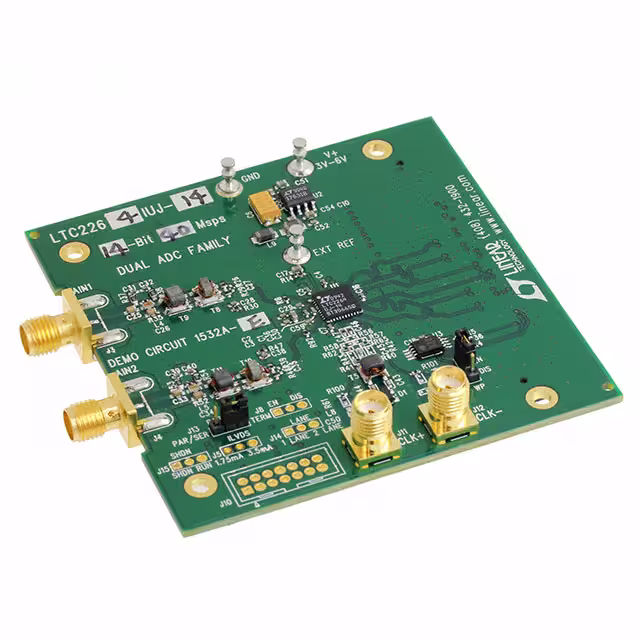

DC1532A-EBOARD DEMO 40MSPS LTC2264-14 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 40M | Serial LVDS | 1 ~ 2Vpp | 146mW @ 40MSPS | LTC2264-14 | Board(s) |
|

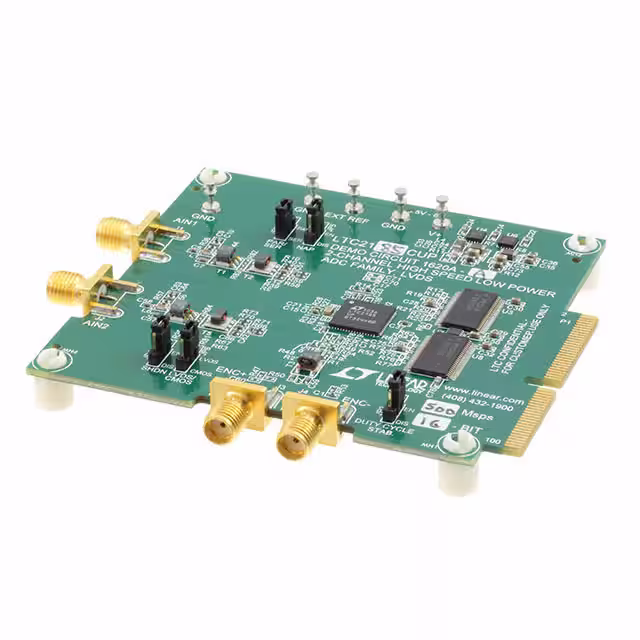

DC1620A-ABOARD DEMO 16BIT 125MSPS LTC2185 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 125M | Parallel | 1 ~ 2Vpp | 520mW @ 125MSPS | LTC2185 | Board(s) |
|

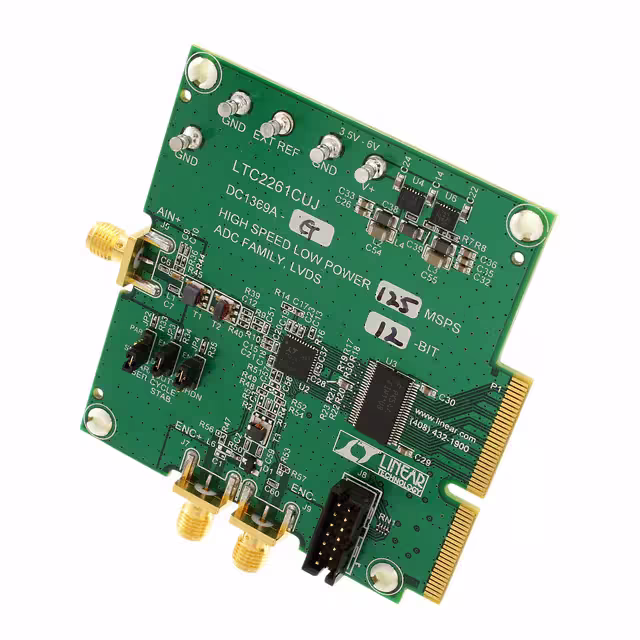

DC1369A-GBOARD DEMO 125MSPS LTC2261-12 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 12 | 125M | Parallel | 1 ~ 2Vpp | 199mW @ 125MSPS | LTC2261-12 | Board(s) |
|

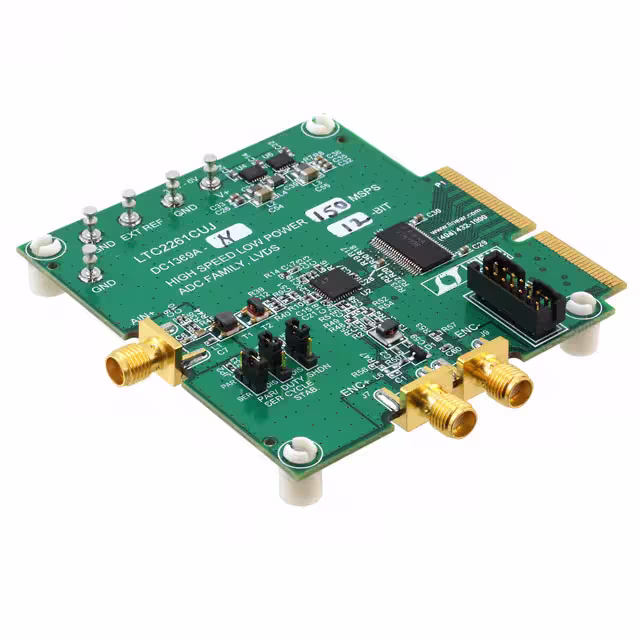

DC1369A-NBOARD DEMO 150MSPS LTC2262-12 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 12 | 150M | Parallel | 1 ~ 2Vpp | 221mW @ 150MSPS | LTC2262-12 | Board(s) |
|

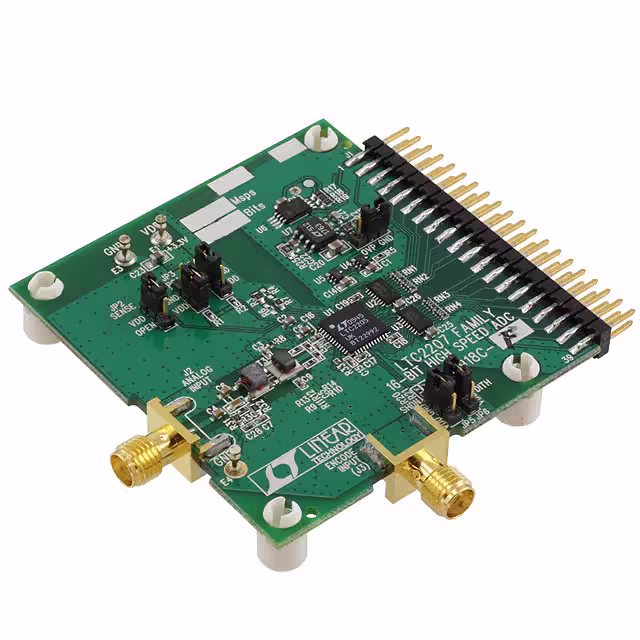

DC918C-FBOARD EVAL FOR LTC2205 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 65M | Parallel | 1.5 ~ 2.25Vpp | 610mW @ 65MSPS | LTC2205 | Board(s) |
|

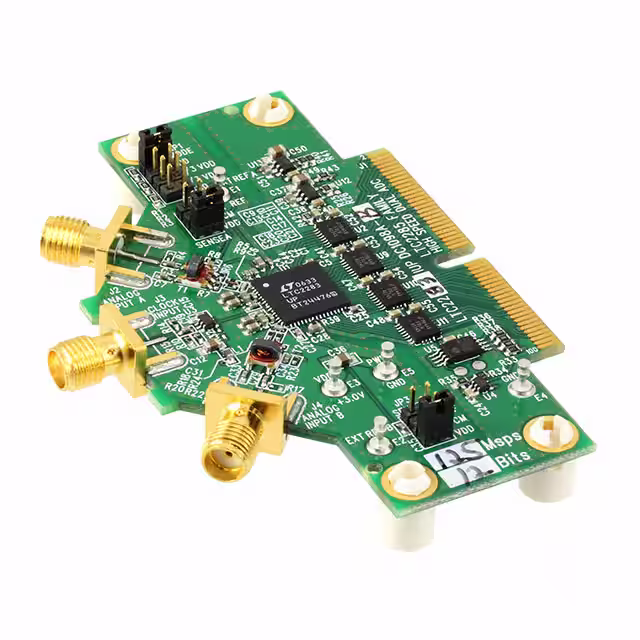

DC1098A-BBOARD EVAL LTC2283IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 125M | Parallel | 2Vpp | 790mW @ 125MSPS | LTC2283 | Board(s) |
|

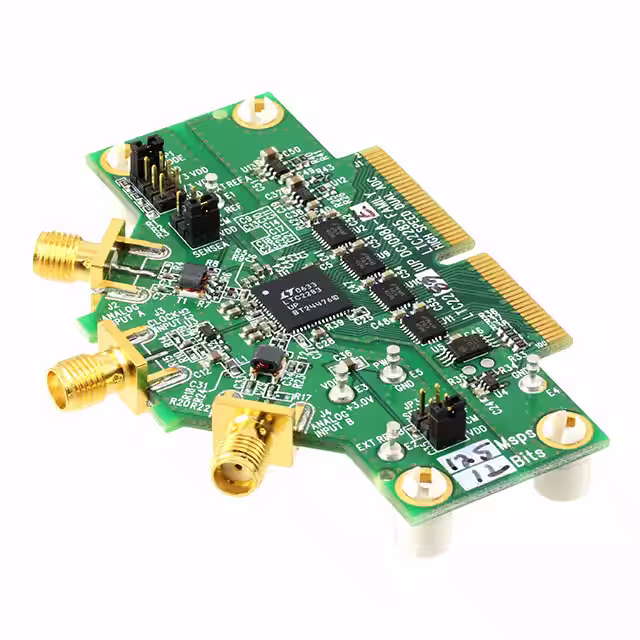

DC1098A-EBOARD EVAL LTC2283IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 125M | Parallel | 2Vpp | 790mW @ 125MSPS | LTC2283 | Board(s) |
|

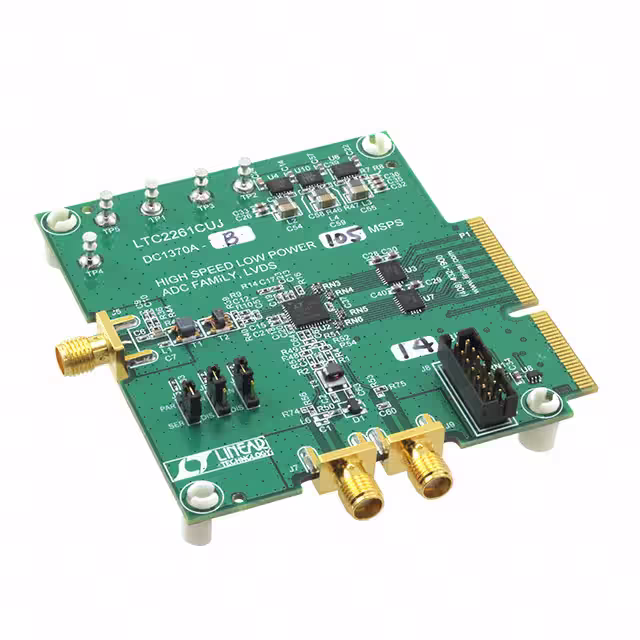

DC1370A-BBOARD EVAL LTC2260-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 105M | Parallel, Serial, SPI | 1 ~ 2Vpp | 187mW @ 105MSPS | LTC2260-14 | Board(s) |
|

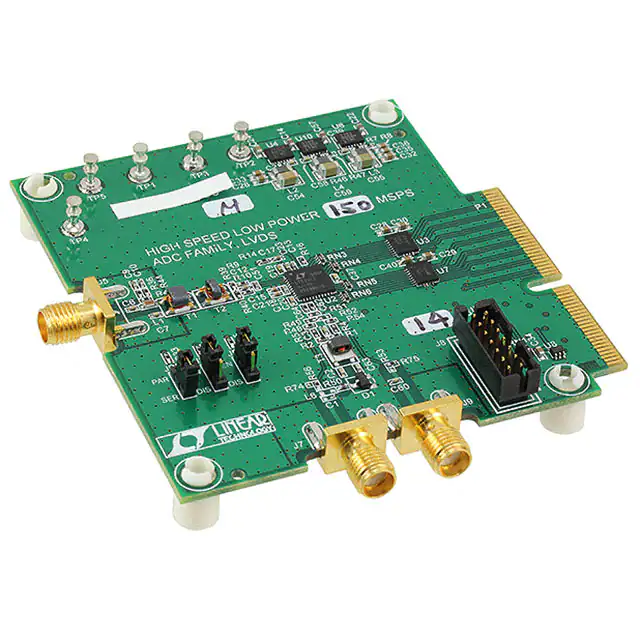

DC1370A-MBOARD EVAL LTC2262-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 150M | Parallel, Serial, SPI | 1 ~ 2Vpp | 231mW @ 150MSPS | LTC2262-14 | Board(s) |
|

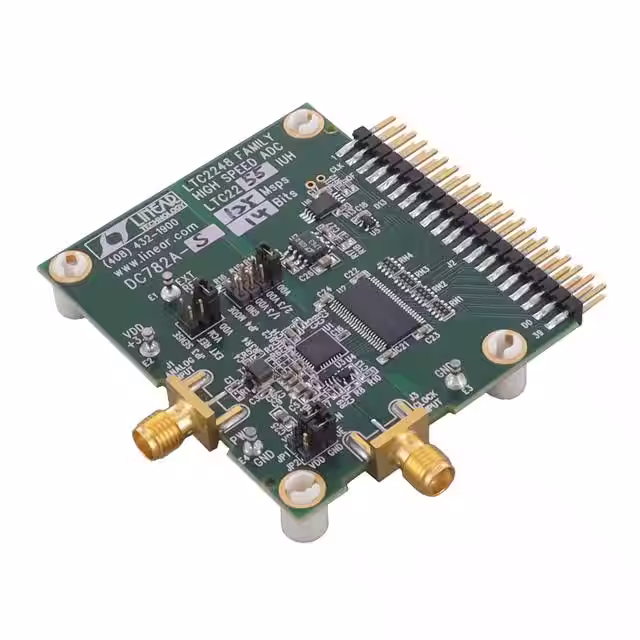

DC782A-SBOARD EVAL LTC2255IUH |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 125M | Parallel | 1 ~ 2Vpp | 395mW @ 125MSPS | LTC2255 | Board(s) |
|

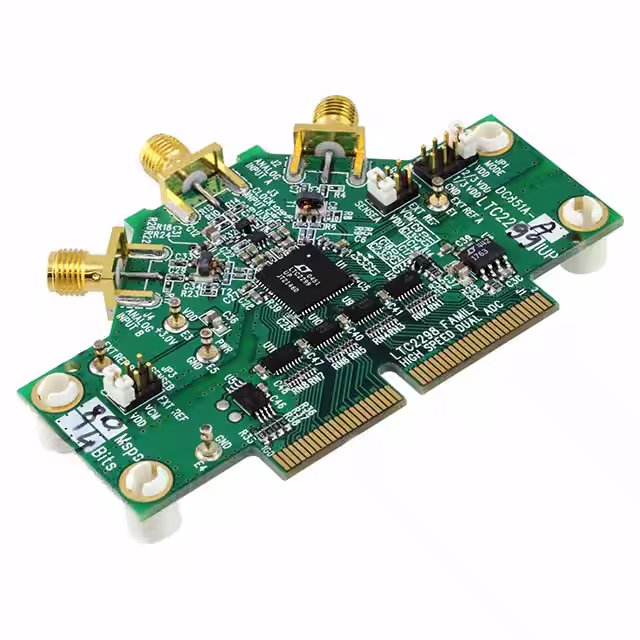

DC851A-ABOARD EVAL LTC2299IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 80M | Parallel | 1 ~ 2Vpp | 444mW @ 80MSPS | LTC2299 | Board(s) |
|

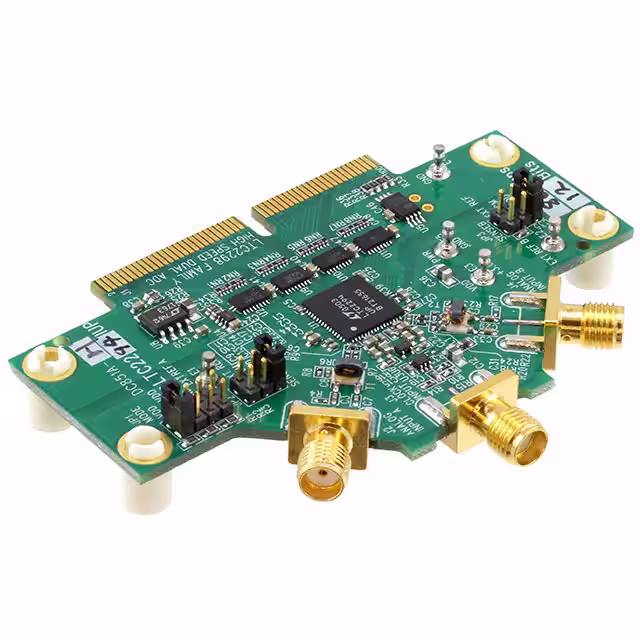

DC851A-HBOARD EVAL LTC2294IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 80M | Parallel | 1 ~ 2Vpp | 422mW @ 80MSPS | LTC2294 | Board(s) |
|

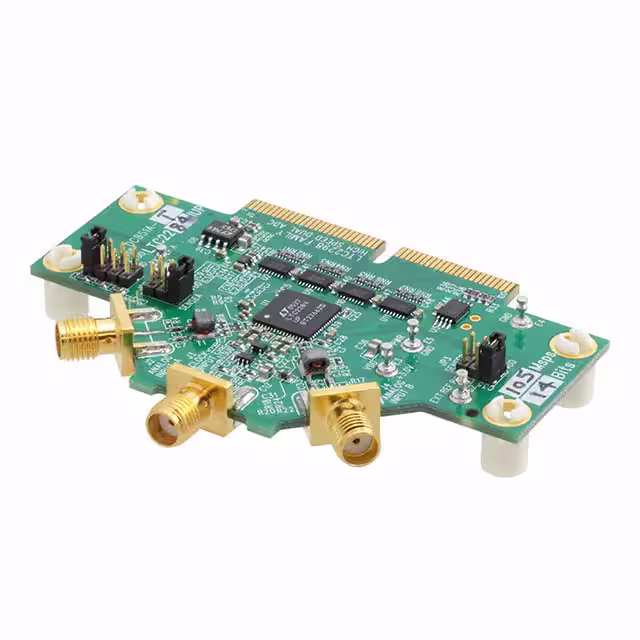

DC851A-TBOARD EVAL LTC2284IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 105M | Parallel | 1 ~ 2Vpp | 540mW @ 105MSPS | LTC2284 | Board(s) |
|

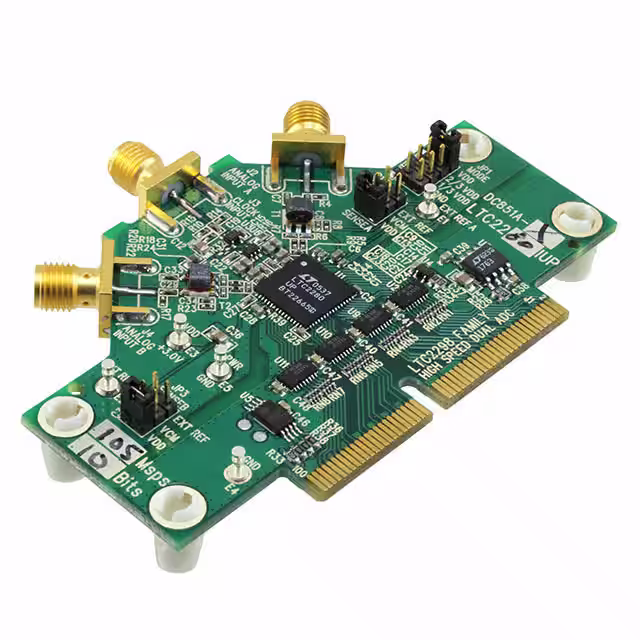

DC851A-XBOARD EVAL LTC2280IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 10 | 105M | Parallel | 1 ~ 2Vpp | 540mW @ 105MSPS | LTC2280 | Board(s) |
|

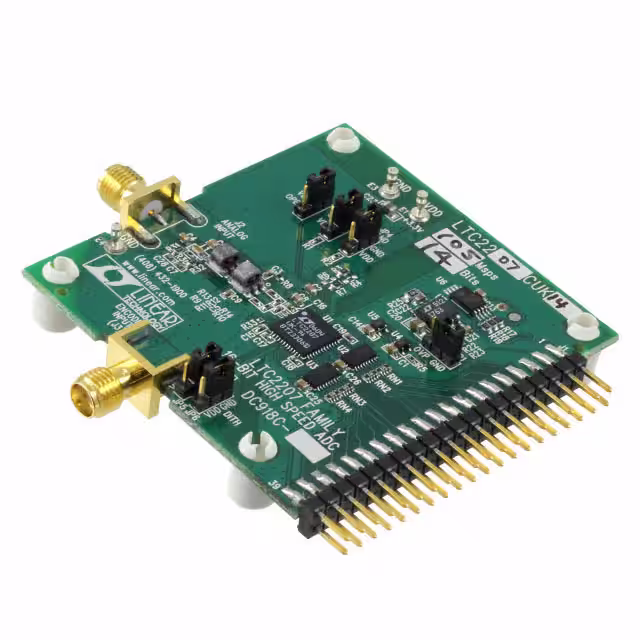

DC918C-HBOARD EVAL LTC2207-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 105M | Parallel | 1.5 ~ 2.25Vpp | 947mW @ 105MSPS | LTC2207-14 | Board(s) |
|

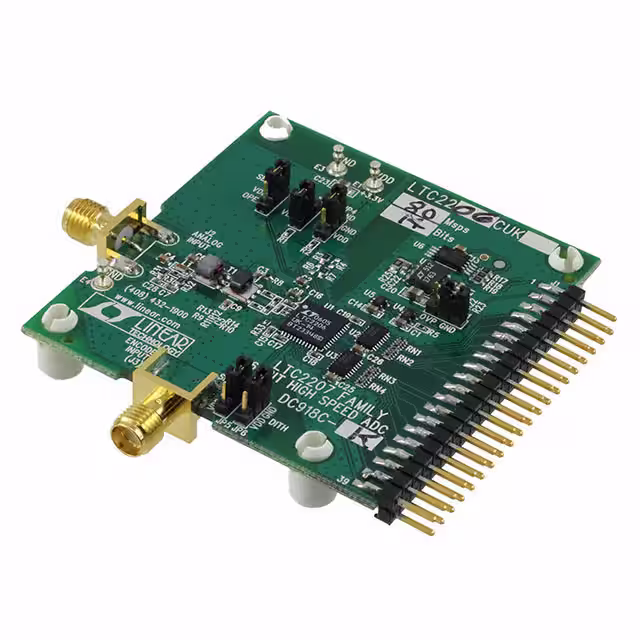

DC918C-KBOARD EVAL LTC2206-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 80M | Parallel | 1.5 ~ 2.25Vpp | 762mW @ 80MSPS | LTC2206-14 | Board(s) |
|

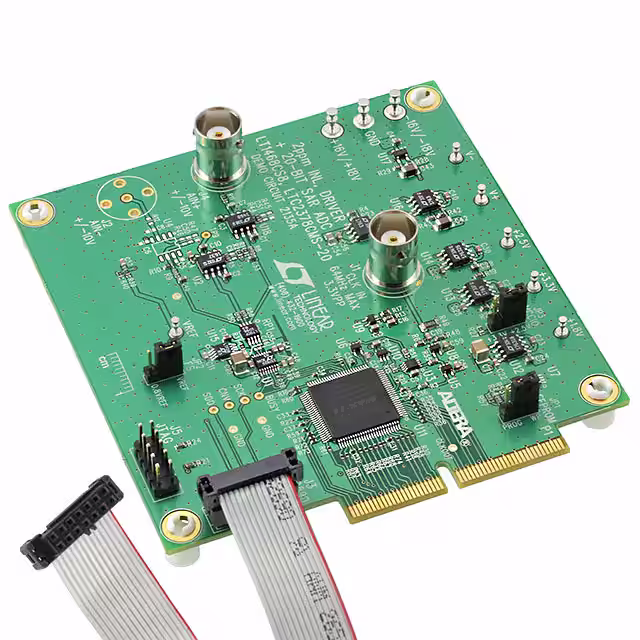

DC2135AEVAL BOARD FOR LTC2378 |
1 |
|
Datasheet | - | Box | Active | 1 | 20 | 1M | SPI | ±VREF | 21mW @ 1MSPS | LTC2378-20 | Board(s) |
|
DC1133A-CEVAL BOARD FOR LTC2240-12 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 170M | CMOS, LVDS, Parallel | 2Vpp | 570mW @ 170MSPS | LTC2240-12 | Board(s) |
|
DC854D-CEVAL BOARD FOR LTC2208-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208-14 | Board(s) |
