Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMC1304L25EVMEVAL BOARD FOR AMC1304L25 |
3 |
|
Datasheet | - | Box | Active | - | 16 | - | LVDS | ±250mV | - | AMC1304L25 | Board(s) |
|
AMC1305L25EVMEVAL BOARD FOR AMC1305L25 |
3 |
|
Datasheet | - | Box | Active | 1 | 16 | 78k | LVDS - Serial | ±250mV | 20.8mW @ 78kSPS | AMC1305L25 | Board(s) |
|
DC1996A-DBOARD EVAL FOR LTC2321-14 |
3 |
|
Datasheet | - | Box | Active | 2 | 14 | 2M | CMOS, LVDS, Serial | 0 ~ Vdd | 77mW @ 2MSPS | LTC2321-14 | Board(s) |
|

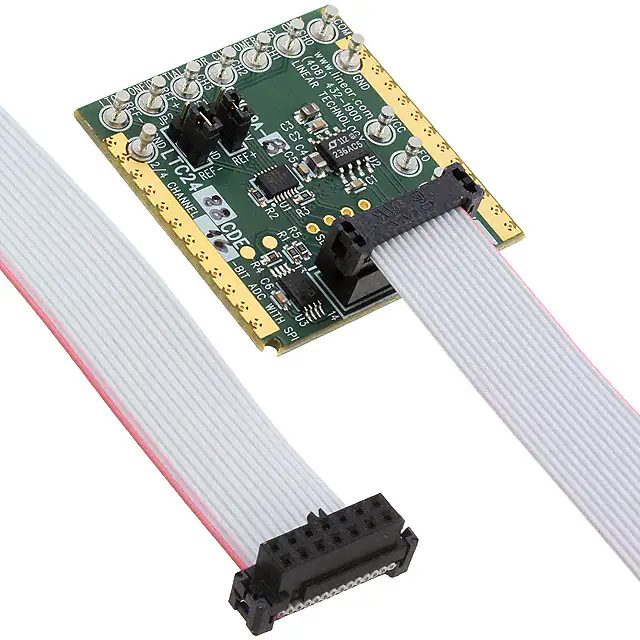

DC1009A-BBOARD DELTA SIGMA ADC LTC2488 |
2 |
|
Datasheet | Easy Drive™ | Box | Active | 1 | 16 | 6.9 | MICROWIRE™, Serial, SPI™ | - | - | LTC2488 | Board(s) |
|

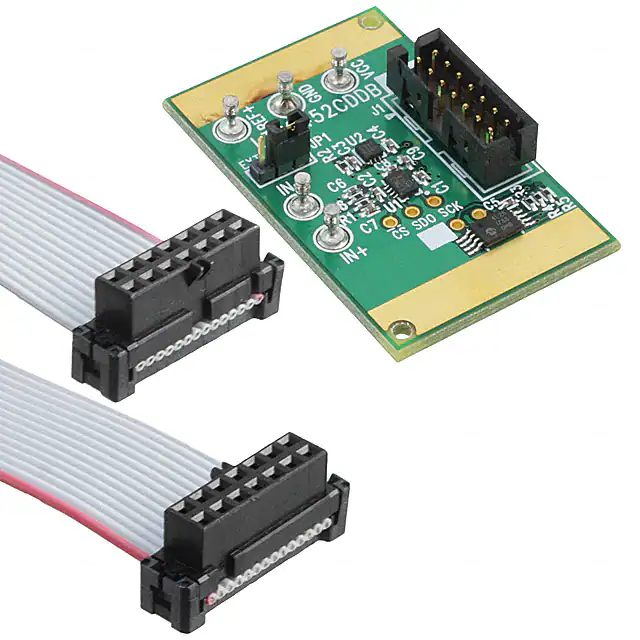

DC1384A-ABOARD DELTA SIGMA ADC LTC2452 |
1 |
|
Datasheet | - | Box | Active | 2 | 16 | 60 | SPI | ±VREF | - | LTC2452 | Board(s) |
|

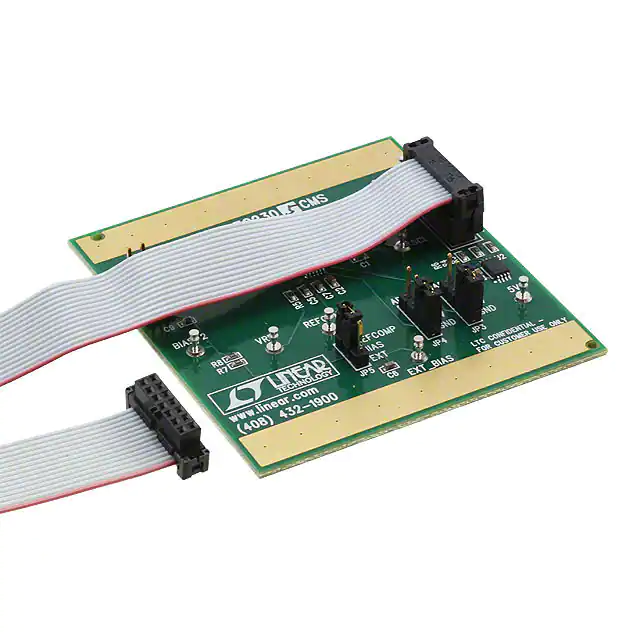

DC1444A-BBOARD SAR ADC LTC2305 |
1 |
|
Datasheet | - | Box | Active | 2 | 12 | 14k | I2C, Serial | - | 1.5mW @ 1kSPS | LTC2305 | Board(s) |
|

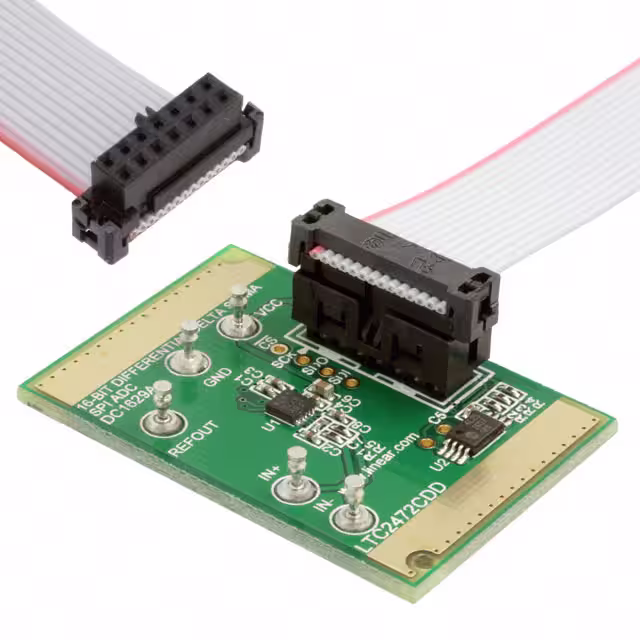

DC1629ABOARD DELTA SIGMA ADC LTC2472 |
1 |
|
Datasheet | - | Box | Active | 2 | 16 | 250, 1k | SPI | ±VREF | - | LTC2472 | Board(s) |
|

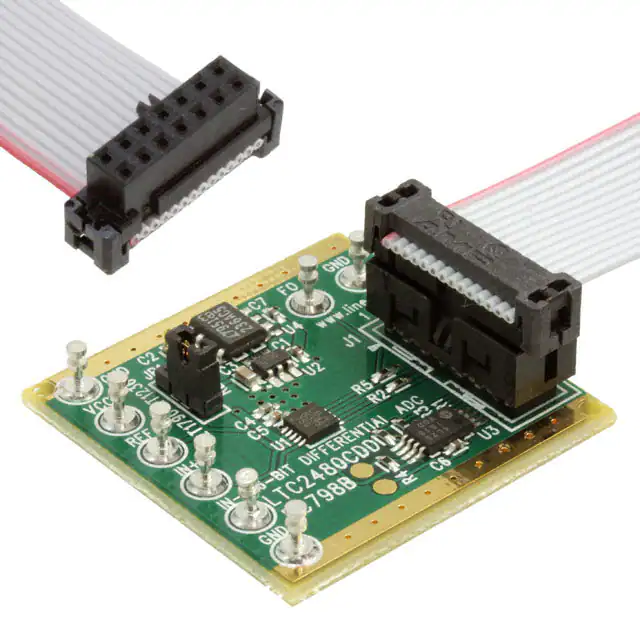

DC798BBOARD DELTA SIGMA ADC LTC2480 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 7.5 | MICROWIRE™, Serial, SPI™ | - | - | LTC2480 | Board(s) |
|

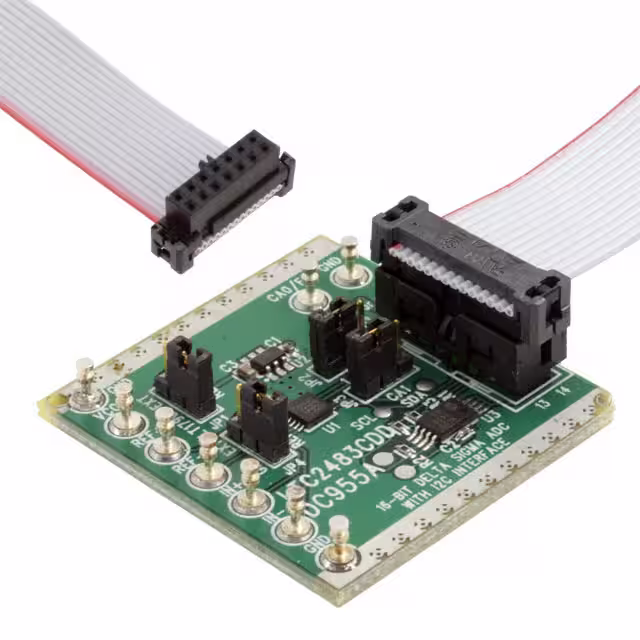

DC955ABOARD DELTA SIGMA ADC LTC2483 |
1 |
|
Datasheet | Easy Drive™ | Box | Active | 1 | 16 | 6.8 | I2C, Serial | - | - | LTC2483 | Board(s) |
|

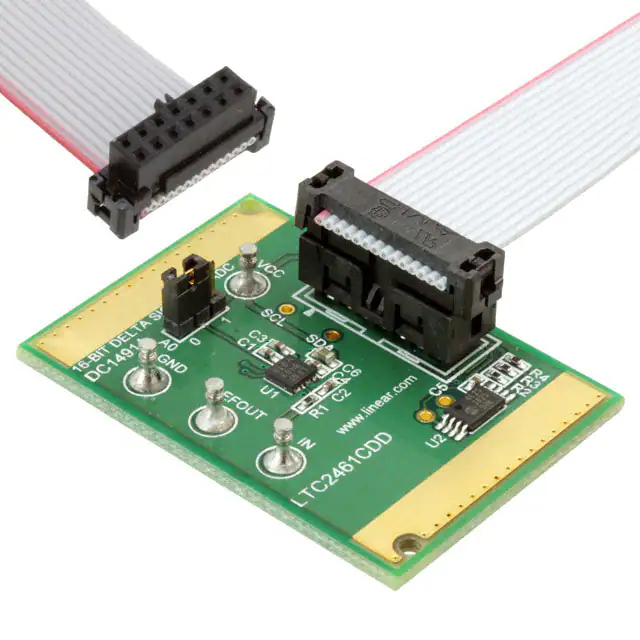

DC1491ABOARD DELTA SIGMA ADC LTC2461 |
0 |
|
Datasheet | - | Box | Active | 2 | 16 | 60 | I2C, Serial | 0 ~ 1.25V | - | LTC2461 | Board(s) |
|

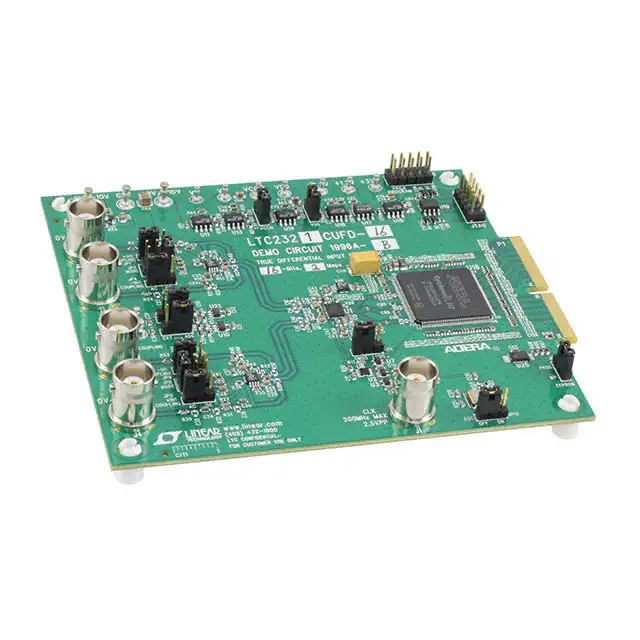

DC1996A-BBOARD EVAL FOR LTC2321-16 |
0 |
|
Datasheet | - | Box | Active | 2 | 16 | 2M | CMOS, LVDS, Serial | 0 ~ Vdd | 77mW @ 2MSPS | LTC2321-16 | Board(s) |
|

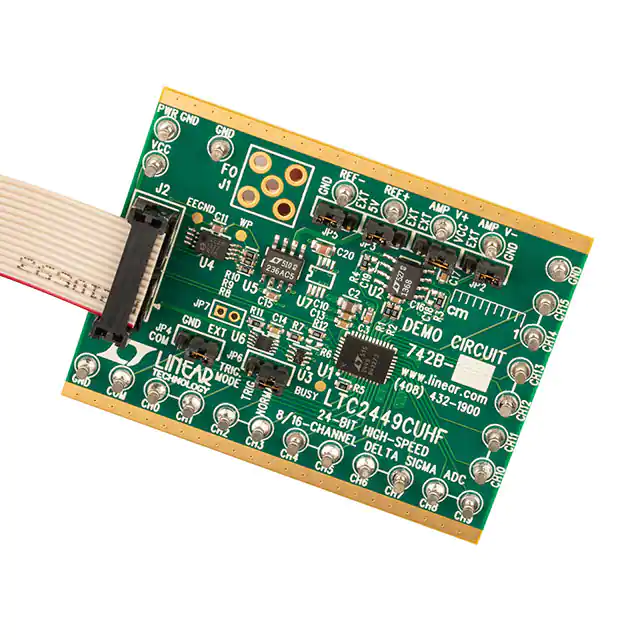

DC742BBOARD DELTA SIGMA ADC LTC2449 |
1 |
|
Datasheet | - | Box | Active | 1 | 24 | 8k | MICROWIRE™, Serial, SPI™ | - | - | LTC2449 | Board(s) |
|

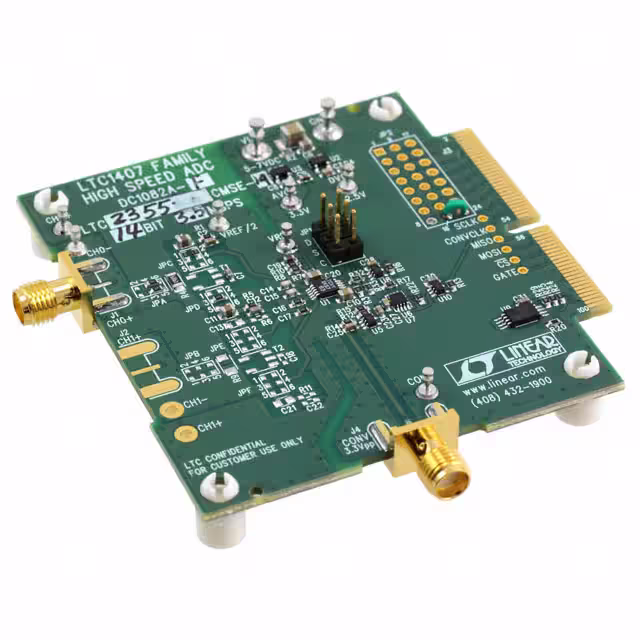

DC1082A-FBOARD SAR ADC LTC2355-14 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 3M | SPI | 0 ~ 2.5V | - | LTC2355-14 | Board(s) |
|

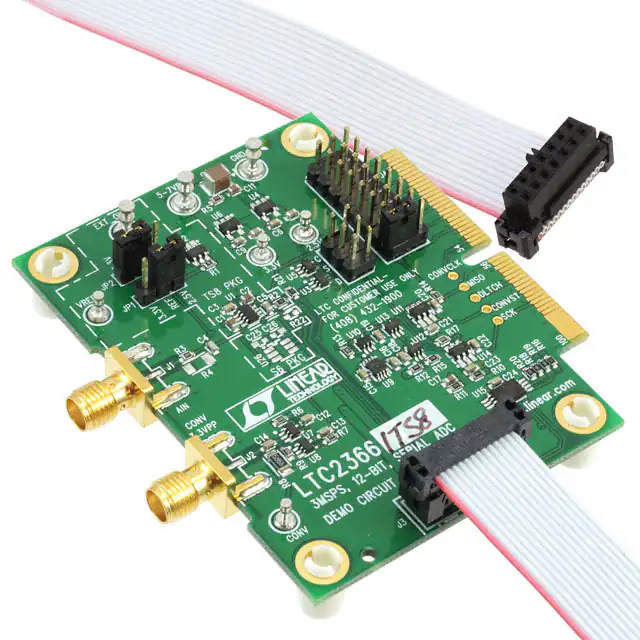

DC1190A-ABOARD SAR ADC LTC2366 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 3M | MICROWIRE™, Serial, SPI™ | - | - | LTC2366 | Board(s) |
|

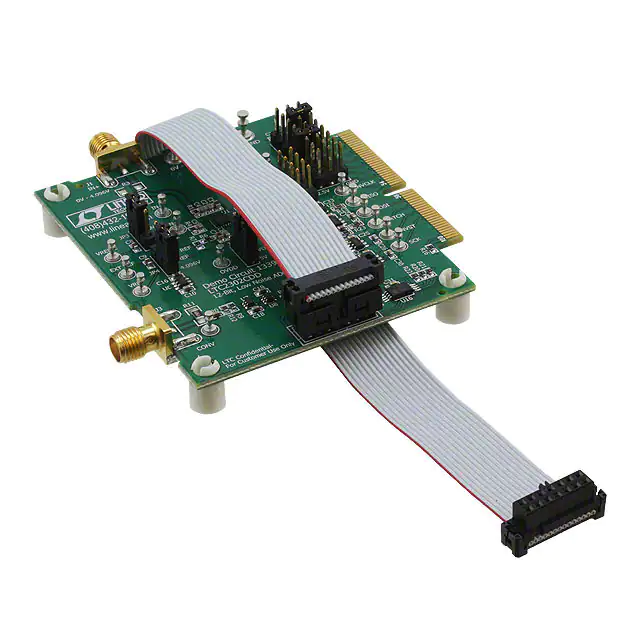

DC1339ABOARD SAR ADC LTC2302 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 500k | MICROWIRE™, Serial, SPI™ | ±VREF/2 | 14mW @ 500kSPS | LTC2302 | Board(s) |
|

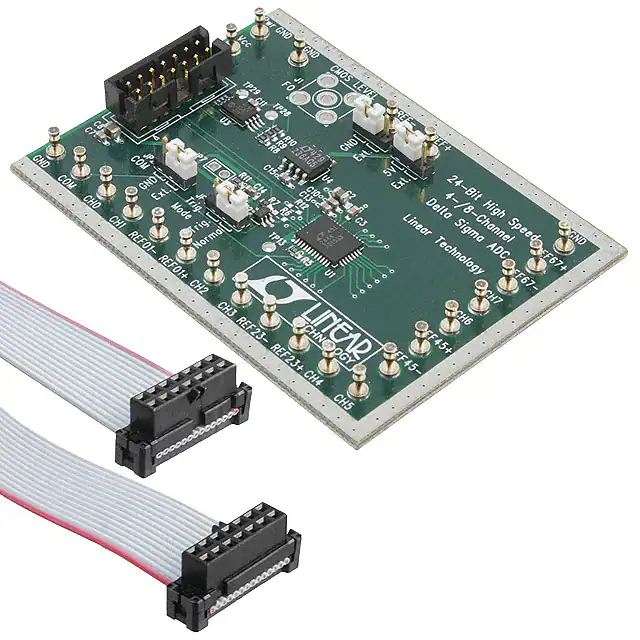

DC847ABOARD DELTA SIGMA ADC LTC2446 |
6 |
|
Datasheet | - | Box | Active | 1 | 24 | 8k | MICROWIRE™, Serial, SPI™ | - | - | LTC2446 | Board(s) |
|

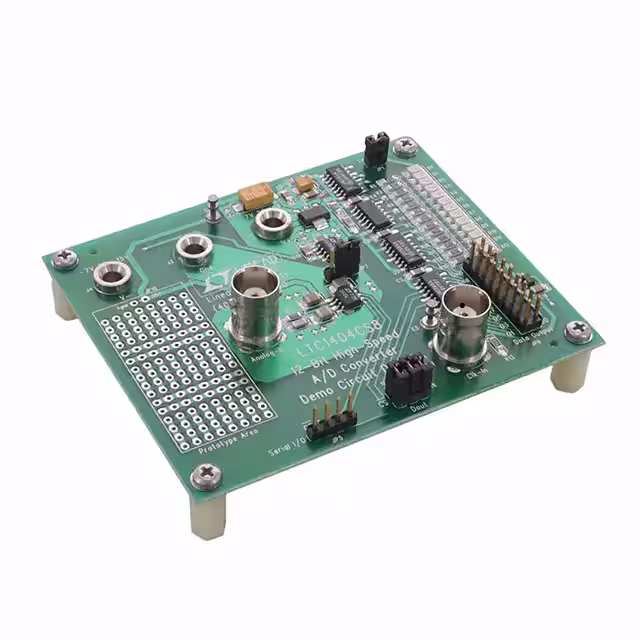

DC209ALTC1404CS8 - 12-BIT, HIGH SPEED |
2 |
|
Datasheet | - | Box | Active | 1 | 12 | 600k | Serial, SPI | ±2.048V | 75mW @ 600kSPS | LTC1404 | Board(s) |
|

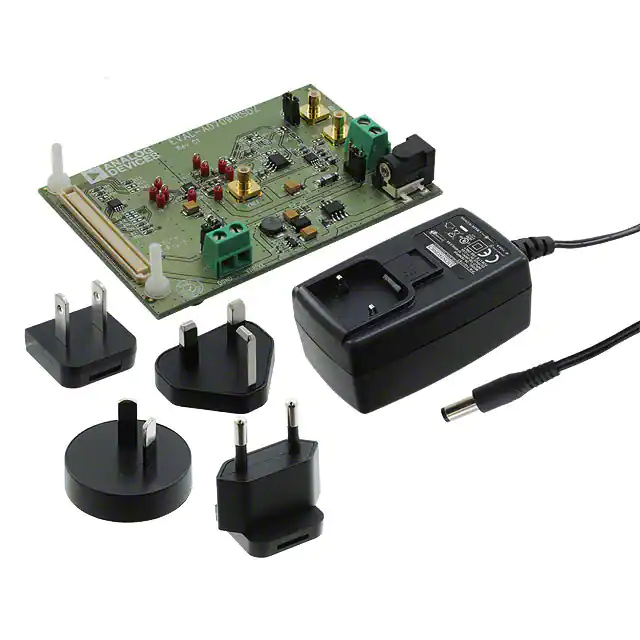

EVAL-AD7091RSDZBOARD EVAL FOR AD7091R |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 1M | Serial | 0 ~ VREF | 2.3mW @ 1MSPS | AD7091R | Board(s), Power Supply |
|

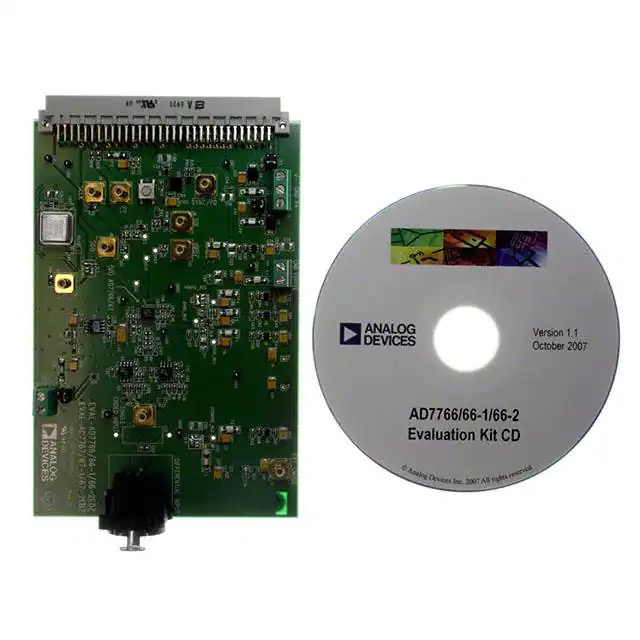

EVAL-AD7766-1EDZBOARD EVAL AD7766-1 64KSPS 111DB |
2 |
|
Datasheet | - | Box | Active | 1 | 24 | 64k | Serial | ±VREF | 10.5mW @ 64kSPS | AD7766-1 | Board(s) |
|

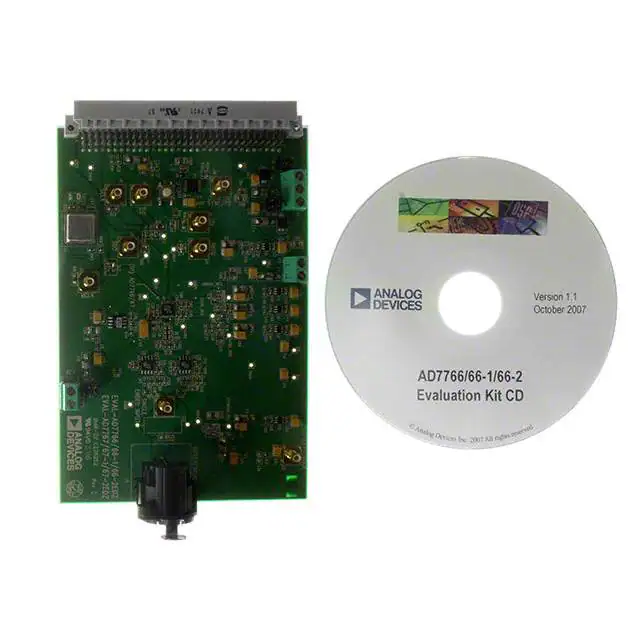

EVAL-AD7766EDZBOARD EVAL AD7766 128KSPS 108DB |
0 |
|
Datasheet | - | Box | Active | 1 | 24 | 128k | Serial | ±VREF | 15mW @ 128kSPS | AD7766 | Board(s) |
