Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

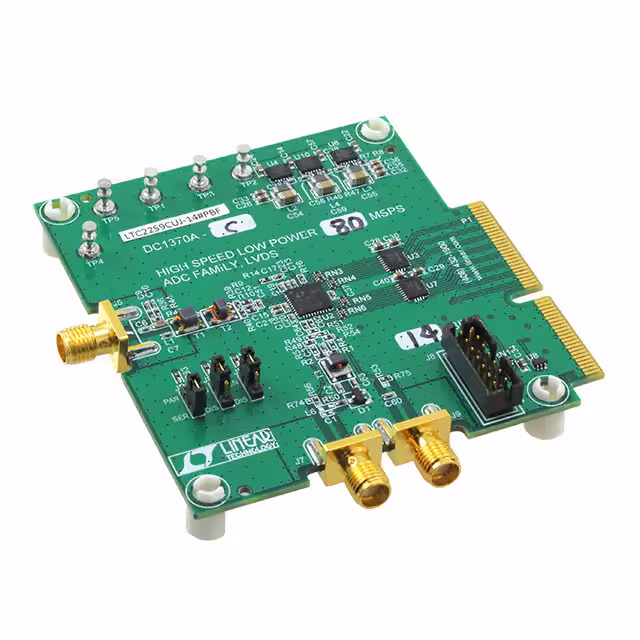

DC1370A-CBOARD EVAL LTC2259-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 80M | Parallel, Serial, SPI | 1 ~ 2Vpp | 170mW @ 80MSPS | LTC2259-14 | Board(s) |
|

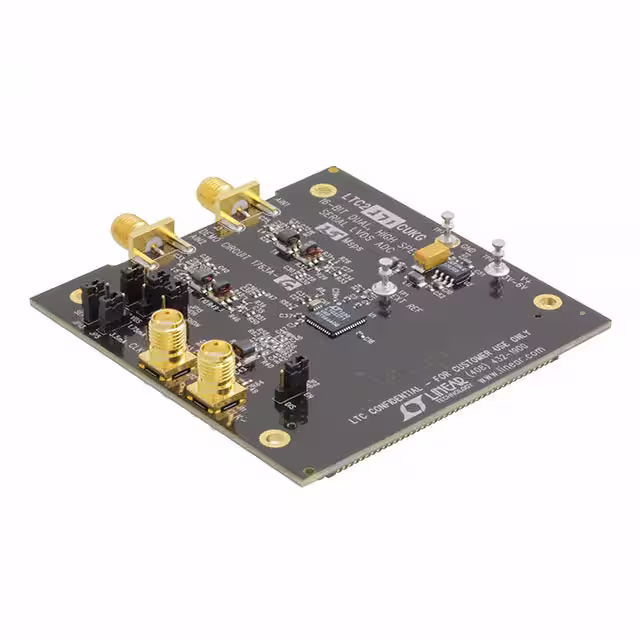

DC1763A-GBOARD EVAL LTC2271 |
1 |
|
Datasheet | - | Box | Active | 2 | 16 | 20M | Serial LVDS | 1 ~ 2Vpp | 244mW @ 20MSPS | LTC2271 | Board(s) |
|

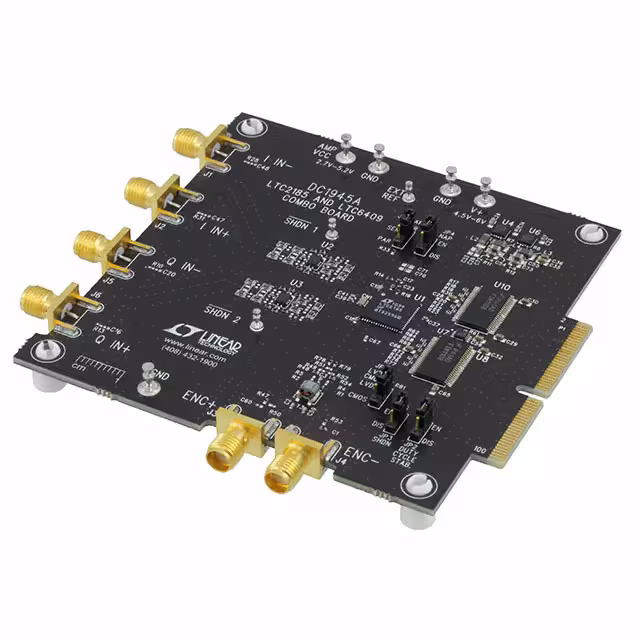

DC1945ABOARD EVAL LTC2185 |
1 |
|
Datasheet | - | Box | Active | 2 | 16 | 125M | Parallel | 1 ~ 2Vpp | 520mW @ 125MSPS | LTC2185 | Board(s) |
|

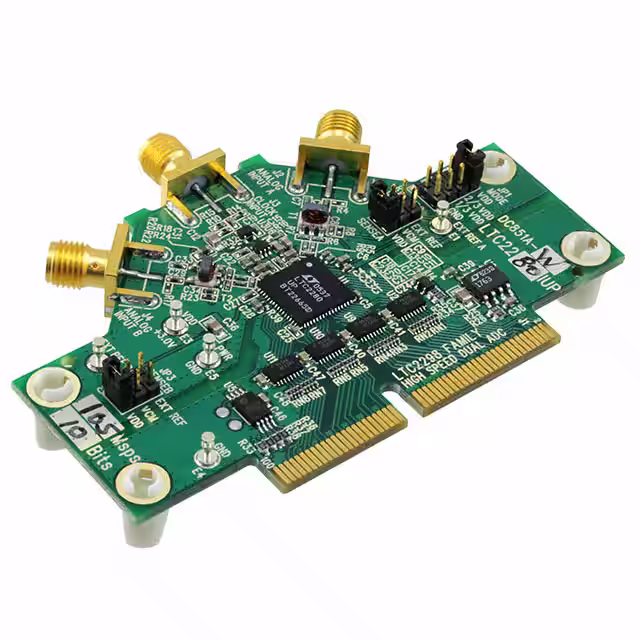

DC851A-WBOARD EVAL LTC2280IUP |
1 |
|
Datasheet | - | Box | Active | 2 | 10 | 105M | Parallel | 1 ~ 2Vpp | 540mW @ 105MSPS | LTC2280 | Board(s) |
|

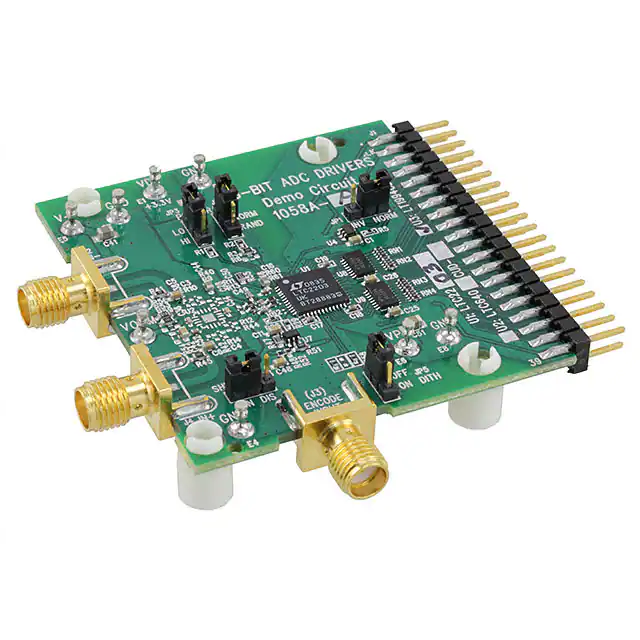

DC1058A-AEVAL BOARD FOR LTC2203 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 25M | Parallel | 2.5Vpp | 220mW @ 25MSPS | LT1994, LTC2203 | Board(s) |
|

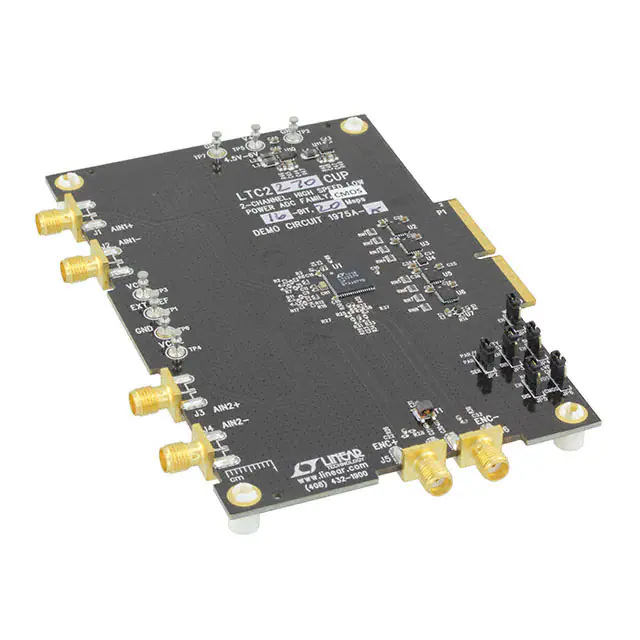

DC1975A-AEVAL BOARD FOR LTC2270 |
1 |
|
Datasheet | - | Box | Active | 2 | 16 | 20M | Parallel | 2.1Vpp | 299mW @ 20MSPS | LTC2270 | Board(s) |
.jpg)
|

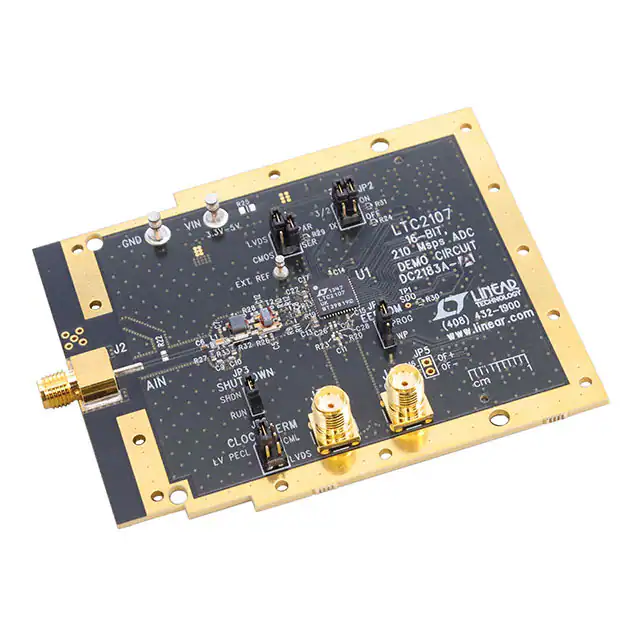

DC2183A-ABD DEMO FOR LTC2107 REQ. DC1371 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 210M | - | 2.4Vpp | 1.348W @ 210MSPS | LTC2107 | Board(s) |
|

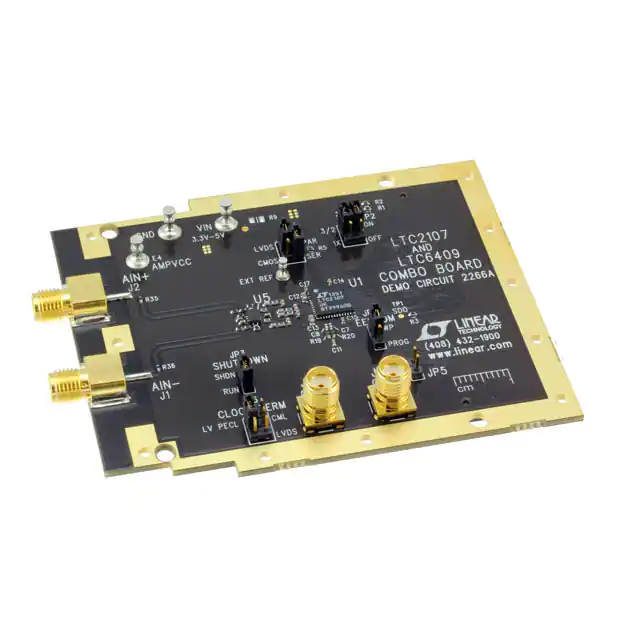

DC2266ADEMO BOARD FOR LTC2107/LTC6409 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 210M | SPI | 2.4Vpp | 1.348W @ 210MSPS | LTC2107, LTC6409 | Board(s) |
|
DC1133A-EEVAL BOARD FOR LTC2241-10 |
1 |
|
Datasheet | - | Box | Active | 1 | 10 | 210M | CMOS, LVDS, Parallel | 2Vpp | 710mW @ 210MSPS | LTC2241-10 | Board(s) |
|

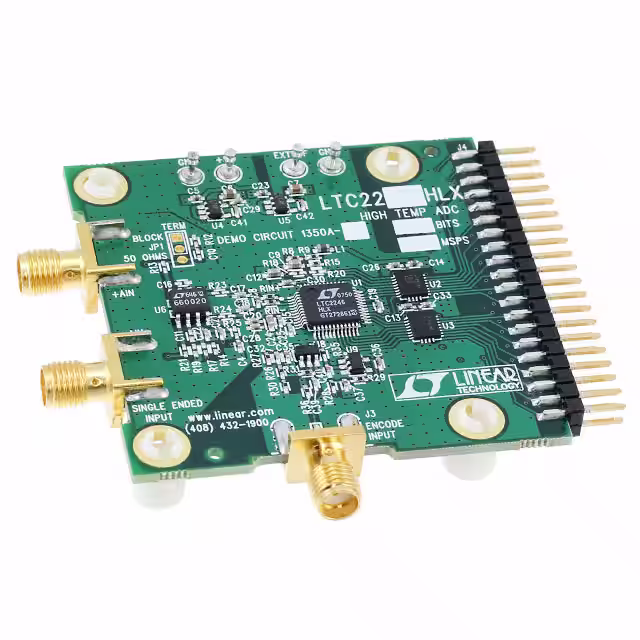

DC1350A-AEVAL BOARD FOR LTC2246H |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 25M | Parallel | 2Vpp | 75mW @ 25MSPS | LTC2246H | Board(s) |
|
|
DC1350A-BEVAL BOARD FOR LTC2226H |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 25M | Parallel | 2Vpp | 75mW @ 25MSPS | LTC2226H | Board(s) |
|

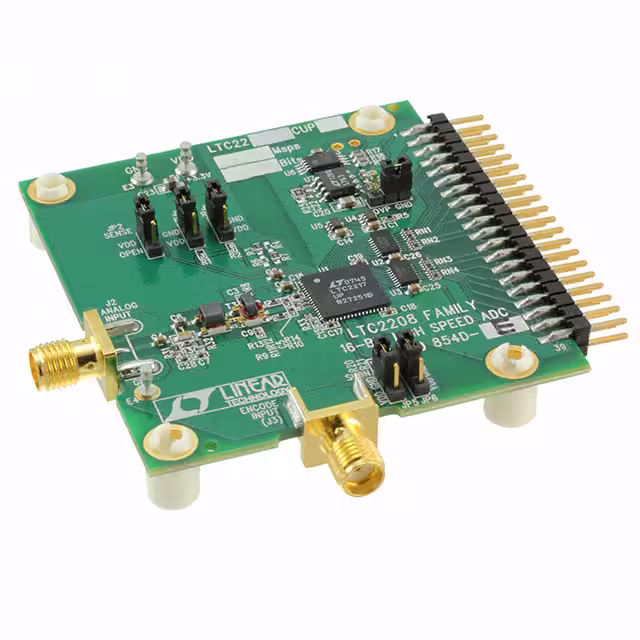

DC854D-EEVAL BOARD FOR LTC2217 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 105M | Parallel | 2.25Vpp | 1.45W @ 105MSPS | LTC2217 | Board(s) |
|

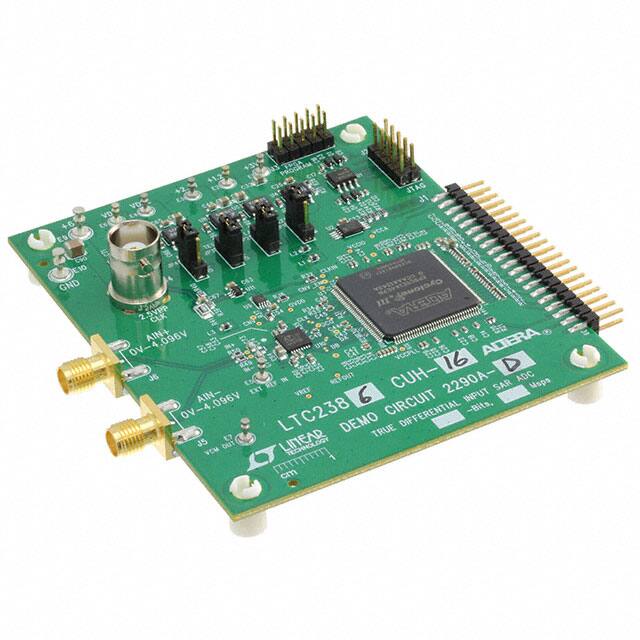

DC2290A-DEVAL BOARD FOR LTC2386-16 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 10M | LVDS - Serial | - | 97mW @ 10MSPS | LTC2386-16 | Board(s) |
|

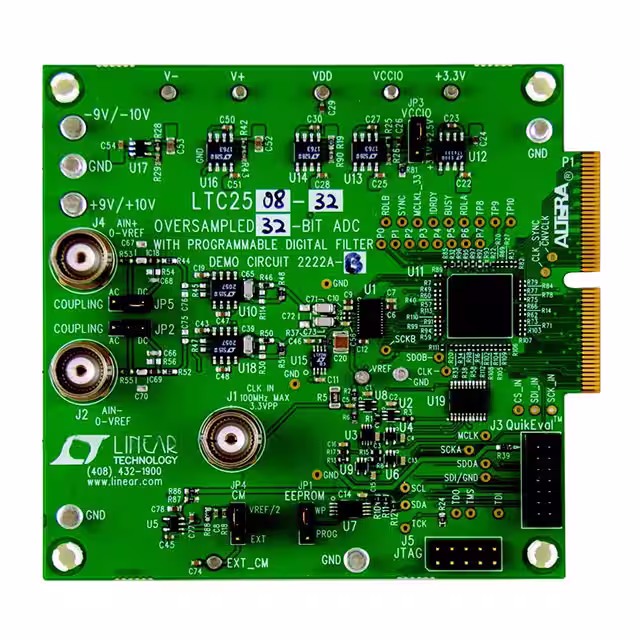

DC2222A-CDEMO BOARD FOR LTC2512-24 |
1 |
|
Datasheet | - | Box | Active | 1 | 24 | 1.6M | SPI | ±VREF | 30mW @ 1.6MSPS | LTC2512-24 | Board(s) |
|

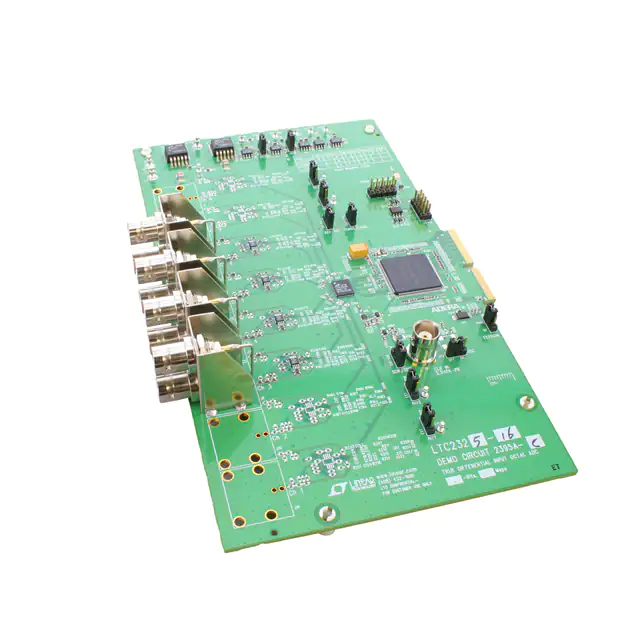

DC2395A-CDEMO BOARD FOR LTC2325-16 |
1 |
|
Datasheet | - | Bulk | Active | 4 and 8 | 12, 14, 16 | 5M, 2M, 1.5M | Serial | - | - | LTC2325, LTC2324, LTC2320 | Board(s) |
|

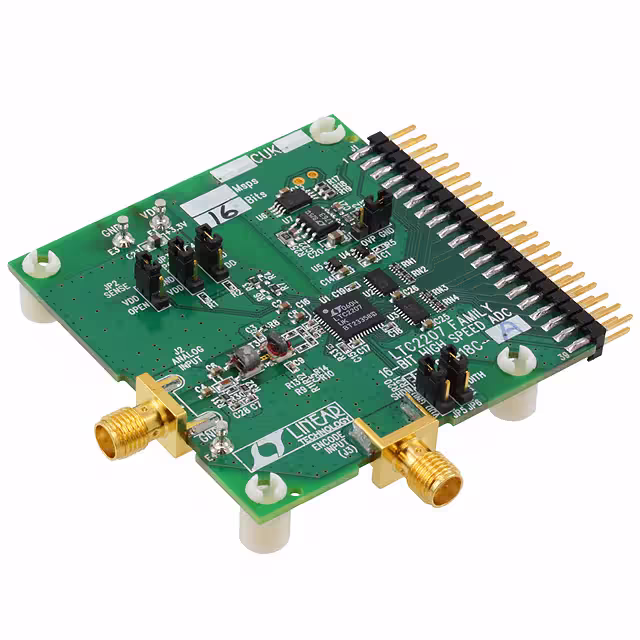

DC918C-ABOARD EVAL FOR LTC2207 |
0 |
|
Datasheet | - | Box | Active | 1 | 16 | 105M | Parallel | 1.5 ~ 2.25Vpp | 900mW @ 105MSPS | LTC2207 | Board(s) |
|

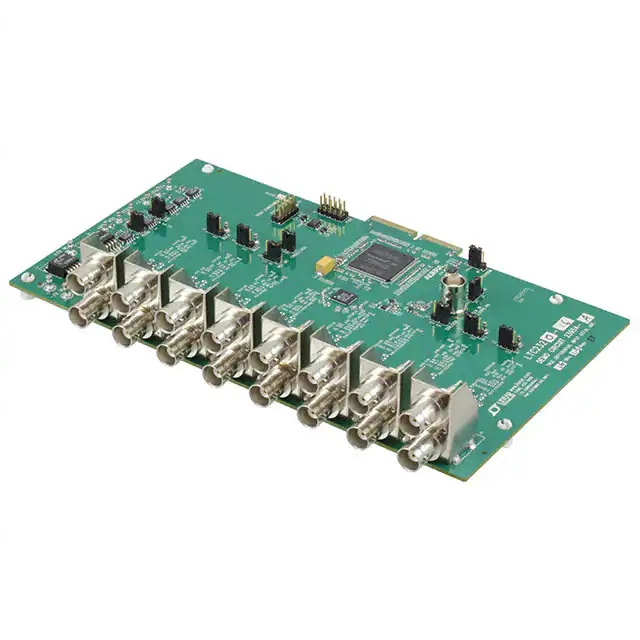

DC2395A-ADEMO BOARD FOR LTC2320-16 |
7 |
|
Datasheet | - | Box | Active | 4 | 16 | 1.5M | CMOS, LVDS, Serial, SPI | 8Vpp | 162mW @ 1.5MSPS | LTC2320-16 | Board(s) |
|

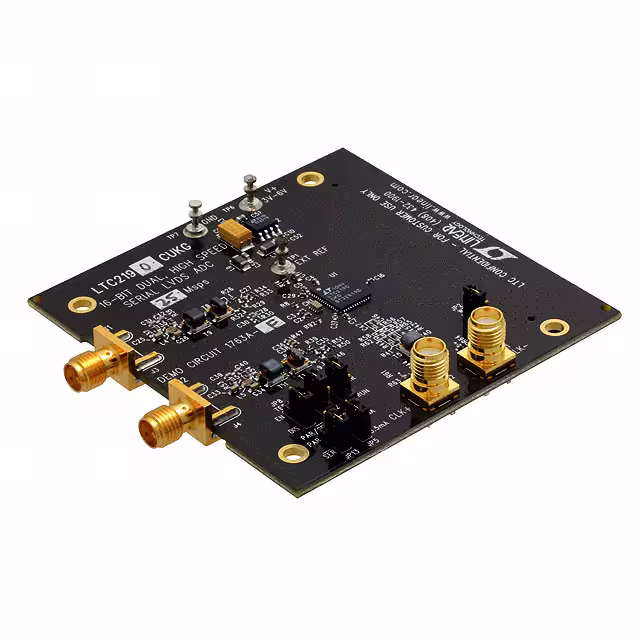

DC1763A-FBOARD DEMO 16BIT 25MSPS LTC2190 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 25M | Serial LVDS | 1 ~ 2Vpp | 158mW @ 25MSPS | LTC2190 | Board(s) |
|
ADC5140EVM-PDKEVAL BOARD |
7 |
|
Datasheet | - | Box | Active | 1 | 16, 20, 24, 32 | 768k | I2C, Serial, SPI | - | 9.2mW @ 768kSPS | TLV320ADC5140 | Board(s) |
|
PCM4222EVMEVAL MODULE FOR PCM4222 |
5 |
|
Datasheet | - | Box | Active | 2 | 24 | 216k | Left-Justified, I2S, TDM | 5.6Vpp | 340mw @ 192kHz | PCM4222 | Board(s) |
