Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS9120EVM-PDKEVAL BOARD FOR ADS9120 |
2 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 2.5M | SPI | ±VREF | 9mW @ 2.5MSPS | ADS9120 | Board(s), Cable(s) |
|
EV-AD4020-REF-DGNZEVALUATION BOARD |
2 |
|
Datasheet | PulSAR® | Box | Active | 1 | 20 | 1.8M | Serial, SPI | ±10V | - | AD4020 | Board(s), Cable(s), Power Supply |
|
EVAL-AD7730EBZBOARD EVAL FOR AD7730 |
1 |
|
Datasheet | - | Box | Active | 1 | 24 | 1.2k | Serial | ±80mV | 125mW @ 1.2kSPS | AD7730 | Board(s) |
|
DC854D-AEVAL BOARD FOR LTC2208 |
8 |
|
Datasheet | - | Box | Active | 1 | 16 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208 | Board(s) |
|
DC2290A-ADEMO BOARD LTC2387-18 |
5 |
|
Datasheet | - | Box | Active | 1 | 18 | 15M | LVDS - Serial | - | 125mW @ 15MSPS | LTC2387-18 | Board(s) |
|
DC2289A-AEVAL BOARD FOR LTC2380-24 |
5 |
|
Datasheet | - | Box | Active | 1 | 24 | 2M | Serial, SPI | ±VREF | 28mW @ 2MSPS | LTC2380-24 | Board(s), Cable(s) |
|
DC919A-ABOARD DEMO 16BIT MSPS LTC2207 |
3 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 105M | Parallel | 1.5 ~ 2.25Vpp | 900mW @ 105MSPS | LTC2207 | Board(s) |
|
DC2290A-EEVAL BOARD FOR LTC2385-18 |
3 |
|
Datasheet | - | Box | Active | 1 | 18 | 5M | LVDS - Serial | - | 78mW @ 5MSPS | LTC2385-18 | Board(s) |
|
DC782A-UBOARD EVAL LTC2253IUH |
2 |
|
Datasheet | - | Box | Active | 1 | 12 | 125M | Parallel | 1 ~ 2Vpp | 395mW @ 125MSPS | LTC2253 | Board(s) |
|
DC782A-XBOARD EVAL LTC2250IUH |
2 |
|
Datasheet | - | Box | Active | 1 | 10 | 105M | Parallel | 1 ~ 2Vpp | 320mW @ 105MSPS | LTC2250 | Board(s) |
|
DC851A-MBOARD EVAL LTC2294IUP |
2 |
|
Datasheet | - | Box | Active | 2 | 12 | 80M | Parallel | 1 ~ 2Vpp | 422mW @ 80MSPS | LTC2294 | Board(s) |
|
DC918C-IBOARD EVAL LTC2207-14 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 105M | Parallel | 1.5 ~ 2.25Vpp | 947mW @ 105MSPS | LTC2207-14 | Board(s) |
|
DC918C-JBOARD EVAL LTC2206-14 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 80M | Parallel | 1.5 ~ 2.25Vpp | 762mW @ 80MSPS | LTC2206-14 | Board(s) |
|
DC2395A-IDEMO BOARD FOR LTC2325-12 |
2 |
|
Datasheet | - | Bulk | Active | 4 and 8 | 12, 14, 16 | 5M, 2M, 1.5M | Serial | - | - | LTC2325, LTC2324, LTC2320 | Board(s) |
|
DC919A-DBOARD DEMO 16BIT MSPS LTC2204 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 40M | Parallel | 1.5 ~ 2.25Vpp | 480mW @ 40MSPS | LTC2204 | Board(s) |
|
DC919A-EBOARD DEMO 16BIT MSPS LTC2203 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 25M | Parallel | 1.5 ~ 2.25Vpp | 225mW @ 25MSPS | LTC2203 | Board(s) |
|
DC919A-FBOARD DEMO 16BIT MSPS LTC2202 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 10M | Parallel | 1.5 ~ 2.25Vpp | 140mW @ 10MSPS | LTC2202 | Board(s) |
|
DC1620A-GBOARD DEMO 125MSPS LTC2145-14 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 125M | Parallel | 1 ~ 2Vpp | 315mW @ 125MSPS | LTC2145-14 | Board(s) |
|
DC1763A-ABOARD DEMO 16BIT 125MSPS LTC2195 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 125M | Serial LVDS | 1 ~ 2Vpp | 479mW @ 125MSPS | LTC2195 | Board(s) |
|

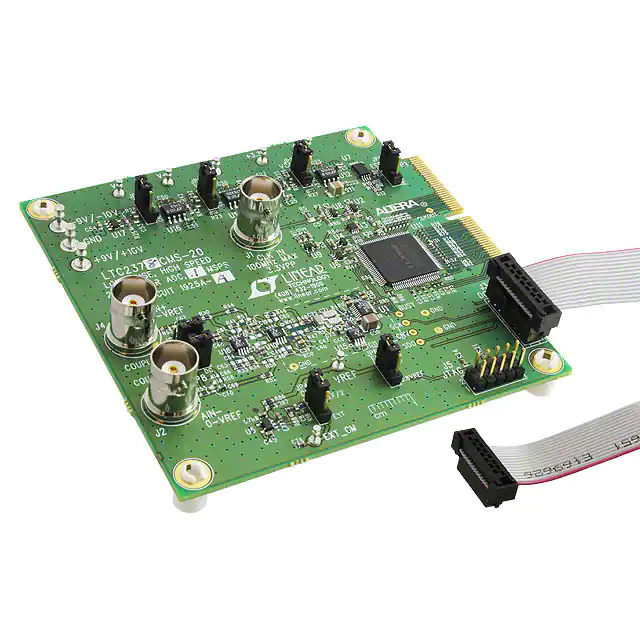

DC1925A-ABOARD DEMO LTC2378-20 |
1 |
|
Datasheet | - | Box | Active | 1 | 20 | 1M | SPI | ±VREF | 21mW @ 1MSPS | LTC2378-20 | Board(s) |
