Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC416ALTC1864CMS8 - 16-BIT, 250KSPS, 5 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 250k | Serial, SPI | - | 4.25mW @ 250kSPS | LTC1864 | Board(s) |
|
EVAL-ADAQ23875FMCZADAQ23875 EVALUATION BOARD |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 15M | Serial LVDS | ±2.048V | 143mW @ 15MSPS | ADAQ23875 | Board(s) |
|
EVAL-AD7761FMCZEVAL BOARD FOR AD7761 |
1 |
|
Datasheet | - | Box | Active | 8 | 16 | 256k | SPI | ±VREF | 631mW @ 256kSPS | AD7761 | Board(s) |
|
EVAL-AD7609EDZEVAL BOARD FOR AD7609 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 200k | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ | ±20V | 100mW @ 200kSPS | AD7609 | Board(s) |
|
DC1813A-CBOARD SAR ADC LTC2367-16 |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | 500k | SPI | 0 ~ VREF | 6.75mW @ 500kSPS | LTC2367-16 | Board(s) |
|
DC1813A-HBOARD SAR ADC LTC2364-18 |
2 |
|
Datasheet | - | Box | Active | 1 | 18 | 250k | SPI | 0 ~ VREF | 3.4mW @ 250kSPS | LTC2364-18 | Board(s) |
|

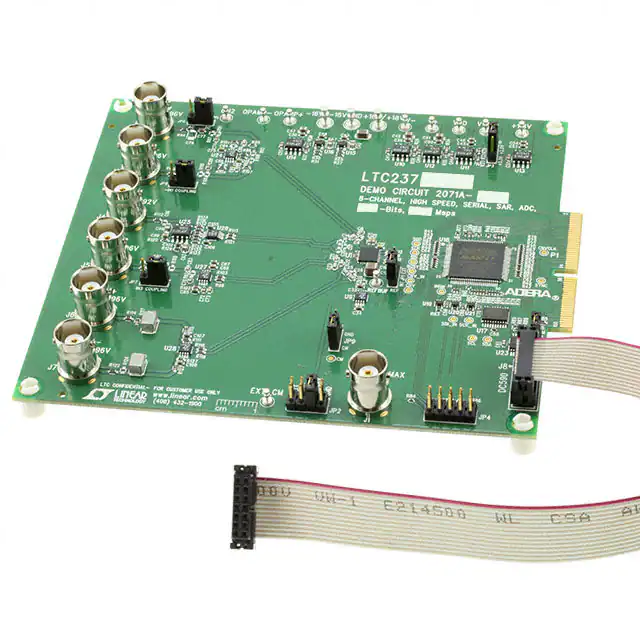

DC2071A-ADEMO BOARD LTC2373-18 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 1M | SPI | ±4.096V | 40mW @ 1MSPS | LTC2373-18 | Board(s) |
|

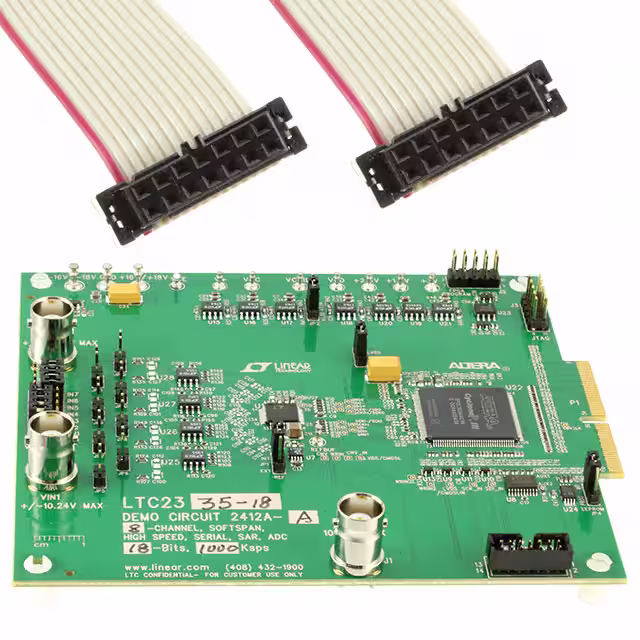

DC2412A-ADEMO BOARD FOR LTC2335-18 |
1 |
|
Datasheet | SoftSpan™ | Tray | Active | 1 | 18 | 1M | LVDS, Serial, SPI | ±10.24V | 204mW @ 1MSPS | LTC2335-18 | Board(s) |
|

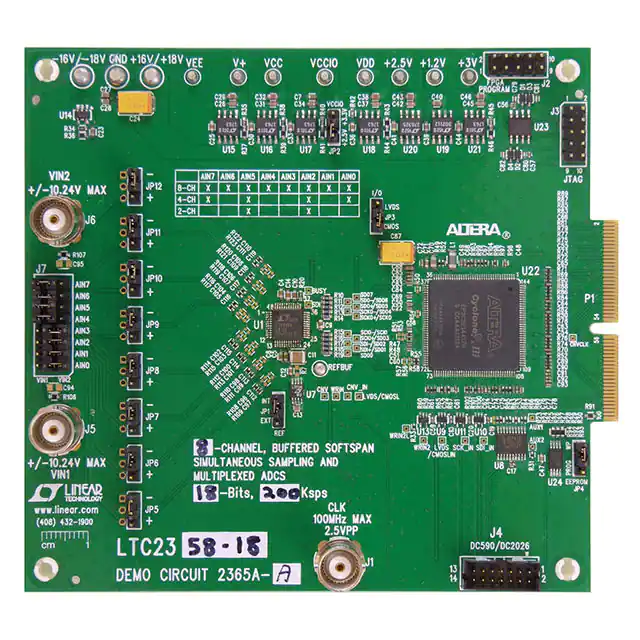

DC2365A-EDEMO BOARD FOR LTC2358-16 |
1 |
|
Datasheet | SoftSpan™ | Box | Active | 1 | 16 | 200k | LVDS, Serial, SPI | ±10.24V | 284mW @ 200kSPS | LTC2358-16 | Board(s) |
|

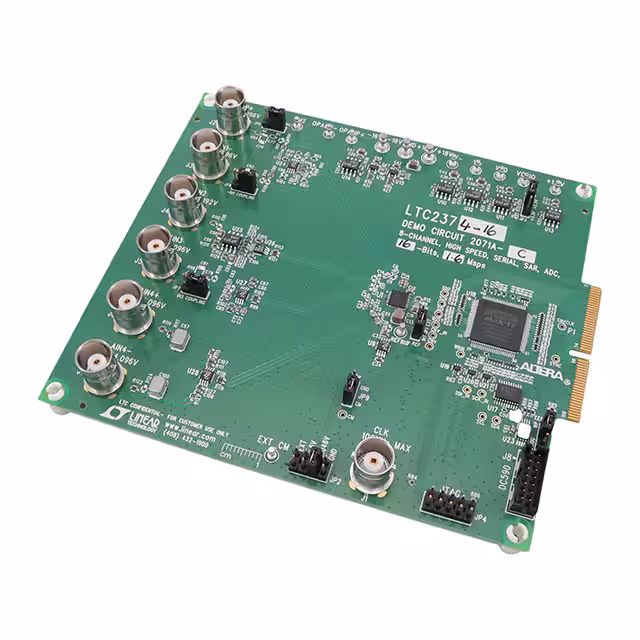

DC2071A-CLTC2374-16 DEMO BOARD 16-BIT, 2M |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 1.6M | Parallel | ±4.096V | - | LTC2374CUH-16 | Board(s) |
|

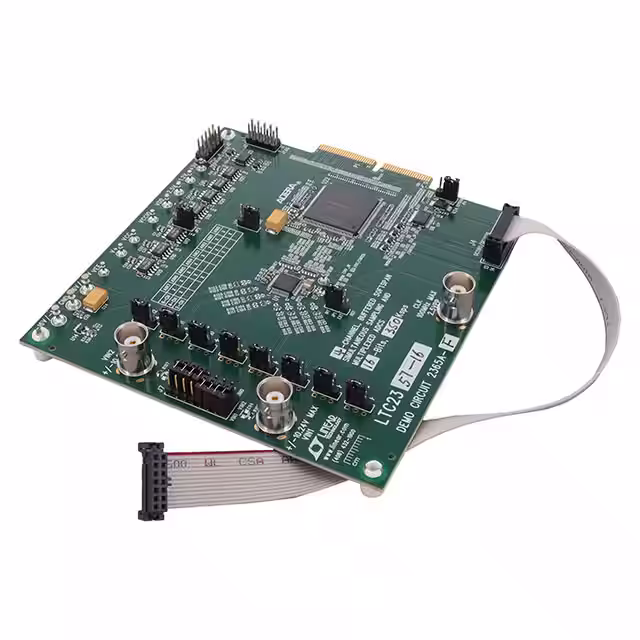

DC2365A-FLTC2357-16 DEMO BOARD BUFFERED Q |
1 |
|
Datasheet | - | Box | Active | 4 | 16 | 350k | Parallel | ±10.24V | - | LTC2357-16 | Board(s) |
|
DC2365A-CTC2353-18 DEMO BOARD BUFFERED DU |
1 |
|
Datasheet | - | Bulk | Active | 2 | 18 | 550k | - | ±10.24V | - | LTC2353-18 | Board(s) |
|

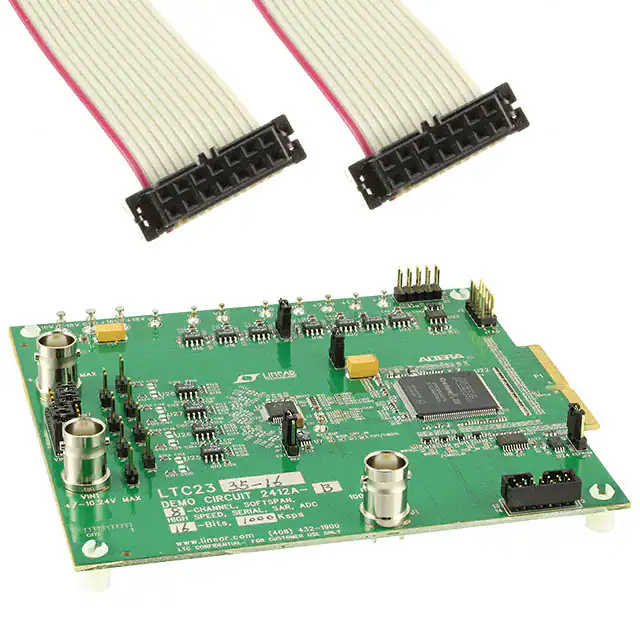

DC2412A-BDEMO BOARD FOR LTC2335-16 |
2 |
|
Datasheet | SoftSpan™ | Tray | Active | 1 | 16 | 1M | LVDS, Serial, SPI | ±10.24V | 204mW @ 1MSPS | LTC2335-16 | Board(s) |
|

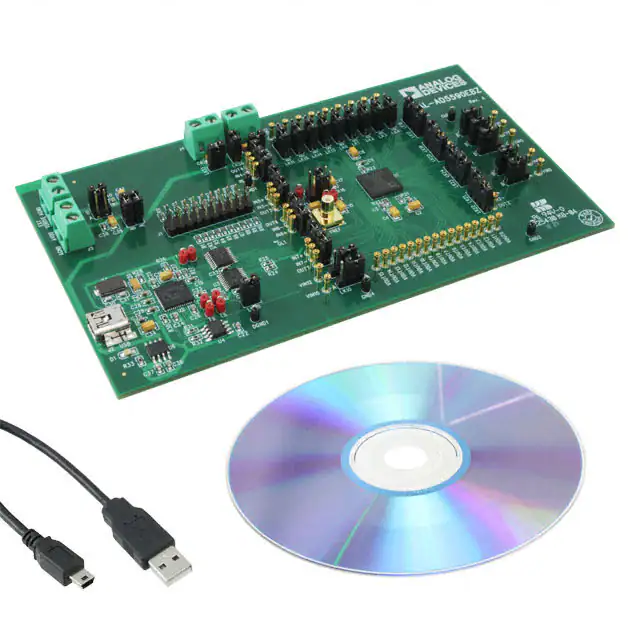

EVAL-AD5590EBZBOARD EVAL FOR AD5590 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 1M | Serial | 2Vpp | 12.5mW @ 1MSPS, 5V | AD5590 | Board(s), Cable(s) |
|
ADS1148V2EVM-PDKEVAL BOARD FOR ADS1148 |
4 |
|
Datasheet | - | Box | Active | 8 | 16 | 2k | Serial, SPI | ±VREF/gain | 2.3mW @ 20sps | ADS1148 | Board(s) |
|
ADS122U04EVMEVAL BOARD FOR ADS122U04 |
2 |
|
Datasheet | - | Bulk | Active | 1 | 24 | 2k | Serial | ±VREF/gain | - | ADS122U04 | Board(s) |
|

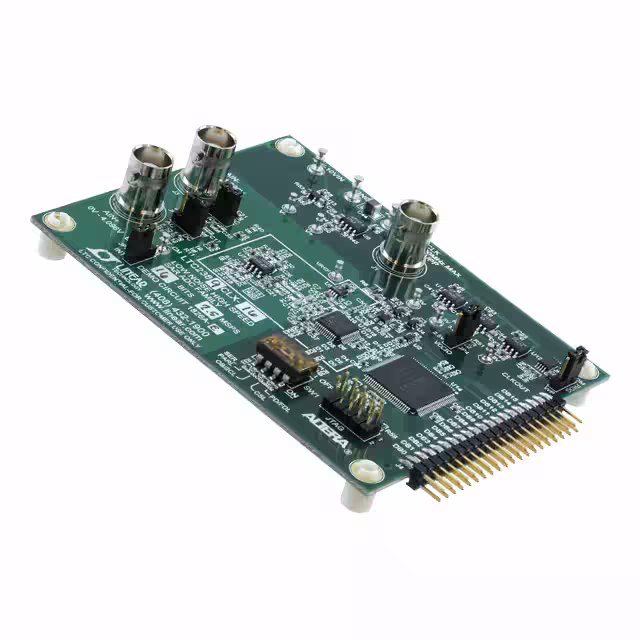

DC1826A-EBOARD SAR ADC LTC2389-16 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 2.5M | Serial, Parallel | ±4.096V | 162.5mW @ 2.5MSPS | LTC2389-16 | Board(s) |
|

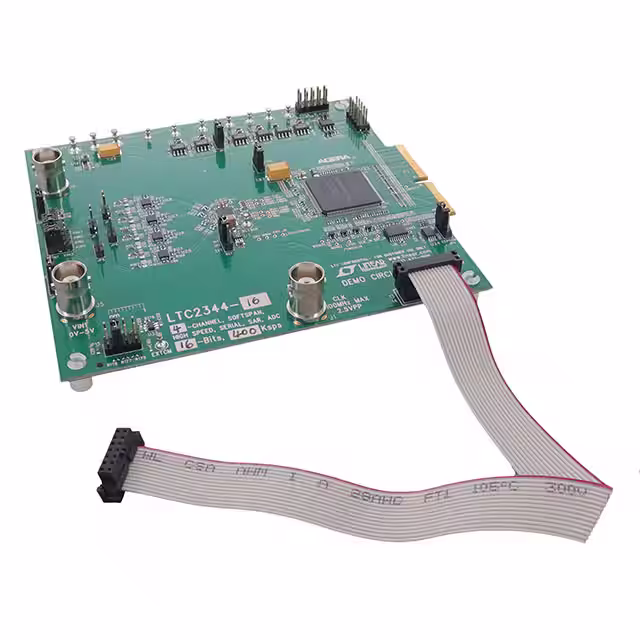

DC2520A-BDEMO BOARD FOR LTC2344-16 |
1 |
|
Datasheet | SoftSpan™ | Box | Active | 1 | 16 | 400k | CMOS, LVDS, Serial | ±4.096V | 106mW @ 400kSPS | LTC2344-16 | Board(s) |
|

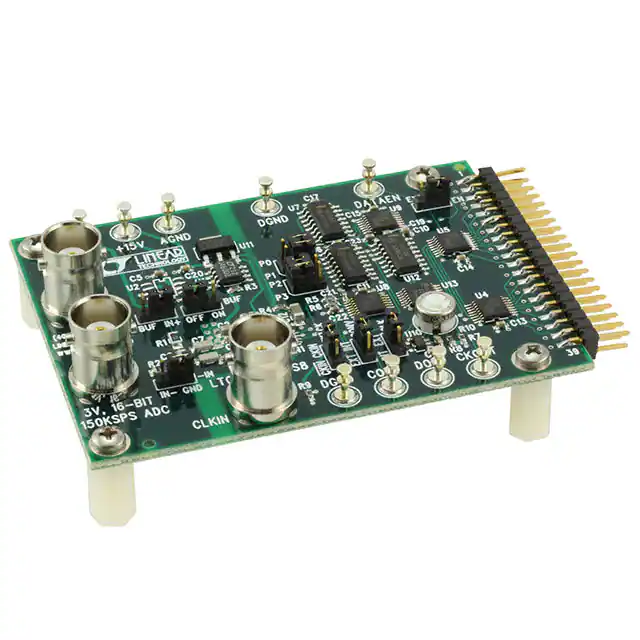

DC547AEVAL BOARD FOR LTC1864L |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 150k | SPI | 0 ~ VREF | 1.22mW @ 150kSPS | LTC1864L | Board(s) |
|

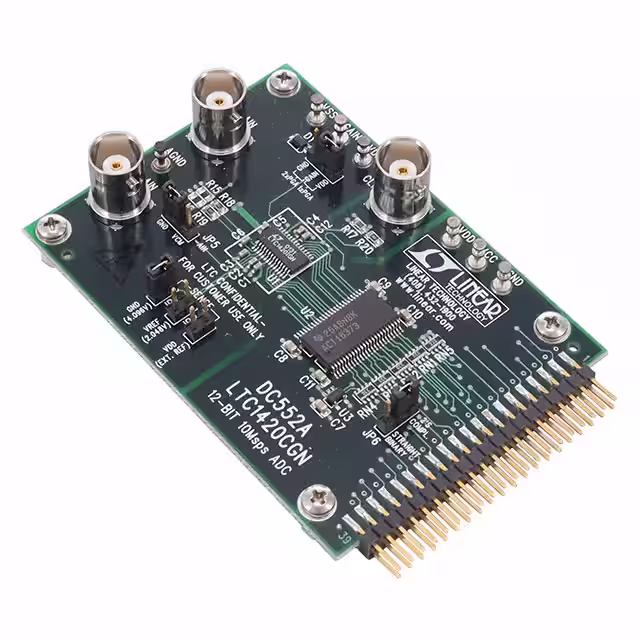

DC552ALTC1420CGN - 12-BIT 10MSPS ADC ( |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 10M | Parallel | ±2.048V | 250mW @ 10MSPS | LTC1420 | Board(s) |
