Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

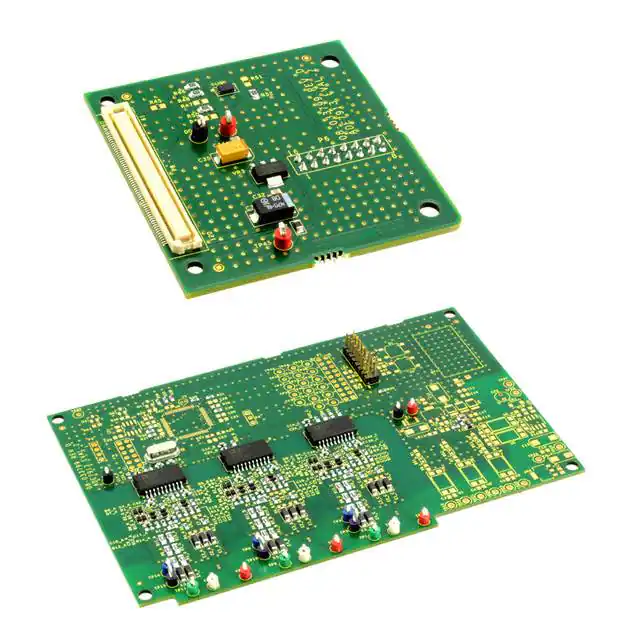

EVAL-ADE7913EBZEVAL BOARD 24BIT ADC ADE7913 |
1 |
|
Datasheet | IsoPower®, iCoupler® | Box | Active | 3 | 24 | - | SPI | ±31.25mV | - | ADE7913 | Board(s) |
|

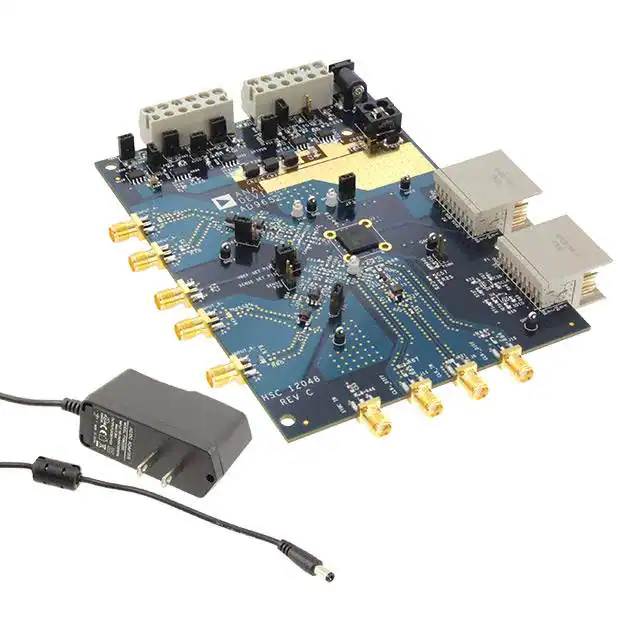

AD9652-310EBZEVAL BOARD FOR AD9652 |
4 |
|
Datasheet | - | Box | Active | 2 | 16 | 310M | SPI | - | - | AD9652 | Board(s) |
|

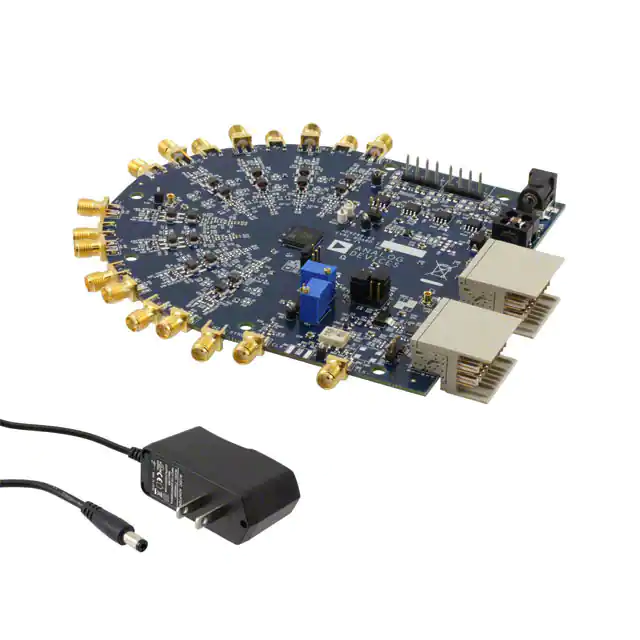

AD9249-65EBZEVAL BOARD 14BIT 65MSPS ADC |
2 |
|
Datasheet | - | Box | Active | 16 | 14 | 65M | LVDS - Serial | 2Vpp | 924mW @ 65MSPS | AD9249 | Board(s) |
|

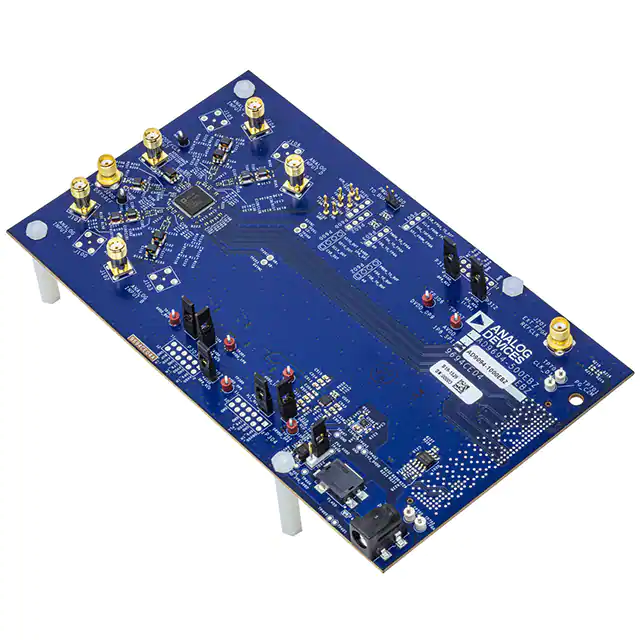

AD9094-1000EBZ8BIT QUAD 1GSPS ADC EVALUATION B |
2 |
|
Datasheet | - | Bulk | Active | 4 | 8 | 1G | JESD204B, Parallel, Serial, SPI | 1.8Vpp | 435mW @ 1GSPS | AD9094 | Board(s) |
|

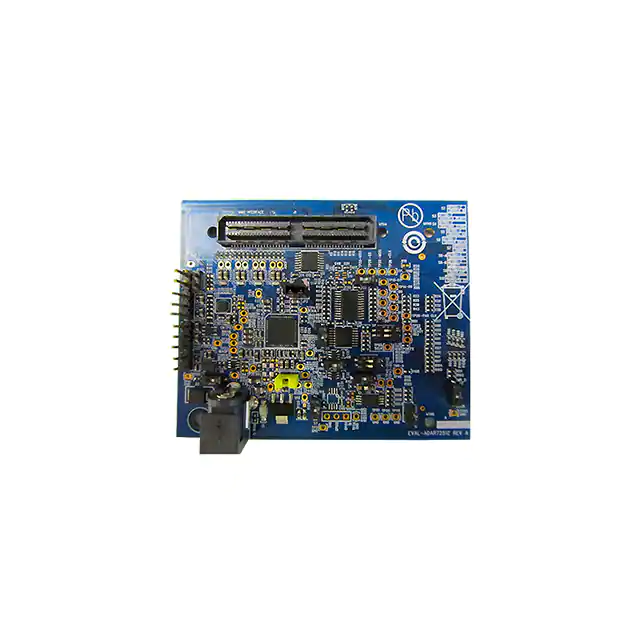

EVAL-ADAR7251ZADAR7251 EVALUATION BOARD |
1 |
|
Datasheet | - | Bulk | Active | 4 | 16 | 1.8M | SPI, Parallel | 5.6Vpp | - | ADAR7251 | Board(s) |
|
ADS5402EVMEVALUATION MODULE FOR ADS5402 |
2 |
|
Datasheet | - | Box | Active | 2 | 12 | 800M | DDR LVDS | 1Vpp | 2.18W @ 800MSPS | ADS5402 | Board(s) |
|

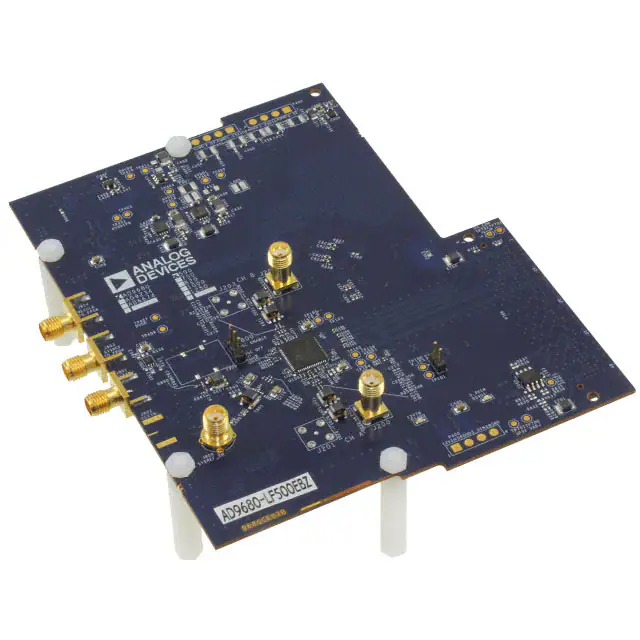

AD9680-LF500EBZEVAL BOARD FOR AD9680-500 |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 500M | JESD204B, Serial | 2.06Vpp | 2.2W @ 500MSPS | AD9680 | Board(s) |
|

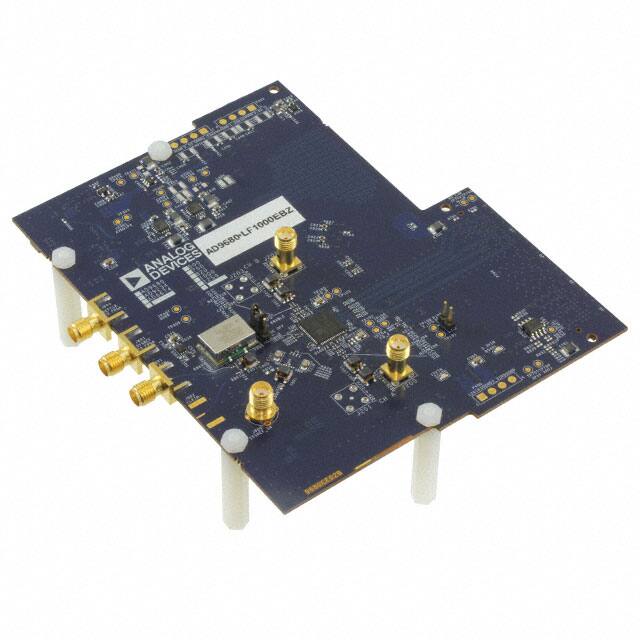

AD9680-LF1000EBZEVAL BOARD FOR AD9680-1000 |
2 |
|
Datasheet | - | Box | Active | 2 | 14 | 1G | JESD204B, Serial | 1.7Vpp | 3.3W @ 1GSPS | AD9680 | Board(s) |
|

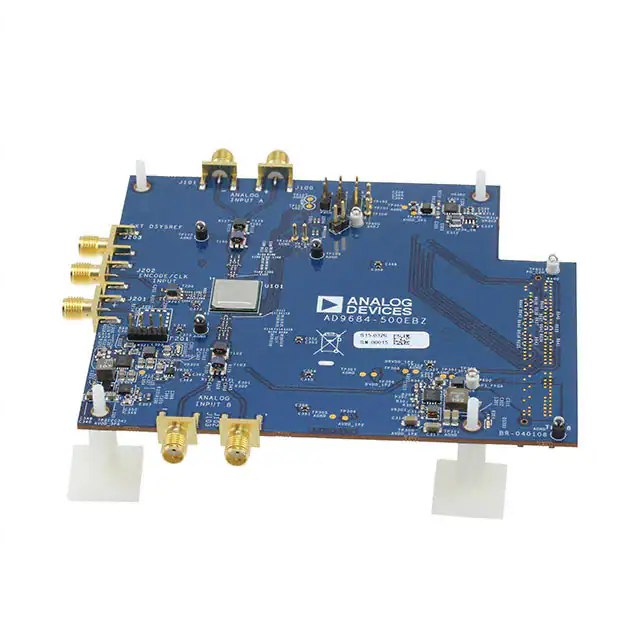

AD9684-500EBZEVAL BOARD AD9684 ADC |
3 |
|
Datasheet | - | Box | Active | 2 | 14 | 500M | LVDS - Parallel, SPI | 2.06Vpp | 2.2W @ 500MSPS | AD9684 | Board(s) |
|

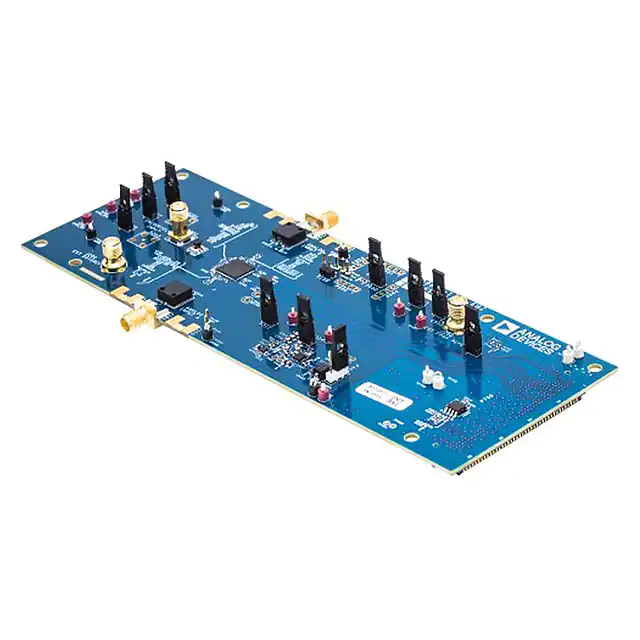

AD9695-625EBZEVAL BD FOR AD9695-625 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 625M | JESD204B, Serial | 1.36V ~ 2.04Vpp | 980mW @ 625MSPS | AD9695-625 | Board(s) |
|

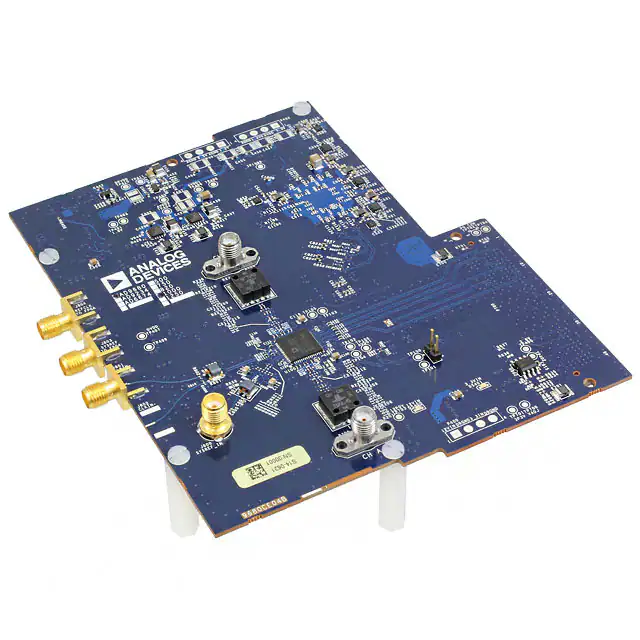

AD9680-1000EBZBOARD EVAL AD9680-1000 |
2 |
|
Datasheet | - | Box | Active | 2 | 14 | 1G | JESD204B, Serial | 1.7Vpp | 3.3W @ 1GSPS | AD9680 | Board(s) |
|

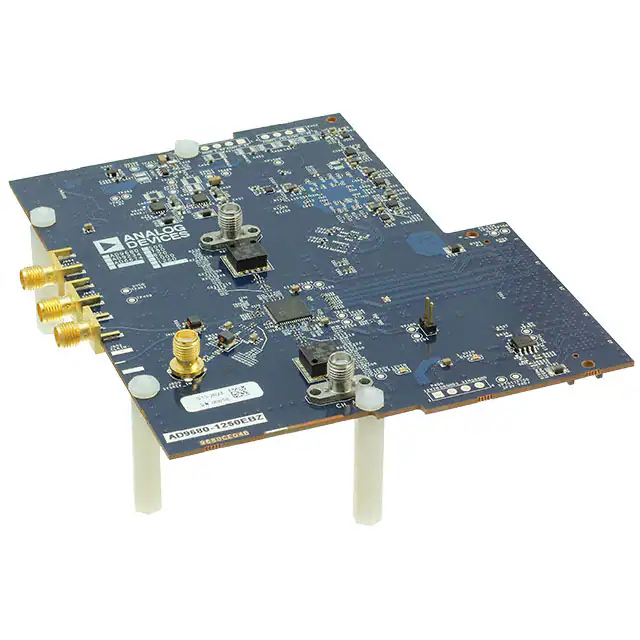

AD9680-1250EBZEVAL BOARD FOR AD9680-1250 |
1 |
|
Datasheet | - | Box | Active | 2 | 14 | 1.25G | JESD204B, Serial | 1.58Vpp | 3.7W @ 1.25GSPS | AD9680 | Board(s) |
|

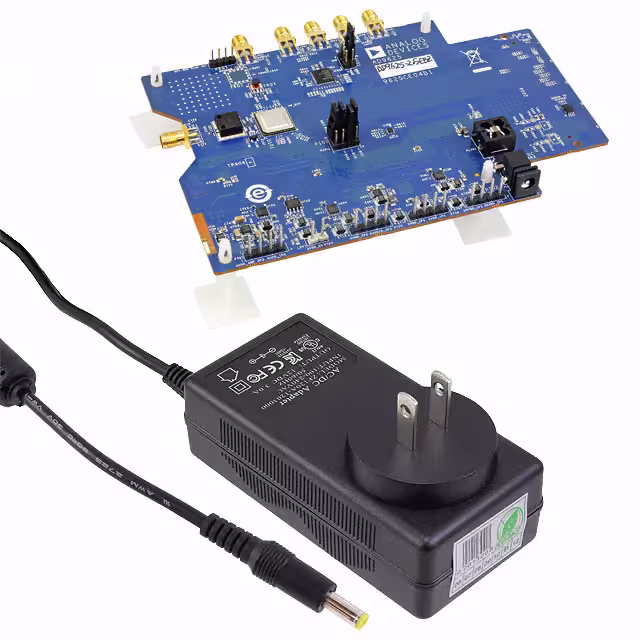

AD9625-2.5EBZEVAL BOARD FOR AD9625-2.5 |
0 |
|
Datasheet | - | Box | Active | 1 | 12 | 2.5G | Serial JESD204B, SPI™ | 1Vpp | - | AD9625 | Board(s) |
|
AD9689-2000EBZEVAL BD FOR AD9689-2000 |
0 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 2.6G | JESD204B | - | 1.55W @ 2.6GSPS | AD9689 | Board(s) |
|
ADC12D1600RB/NOPBBOARD EVALUATION ADC12D1600 |
2 |
|
Datasheet | - | Box | Active | 2 | 12 | 3.2G | LVDS, Serial, SPI | 800mVpp | 3.88W @ 3.2GSPS | ADC12D1600 | Board(s), Cable(s), Power Supply |
|

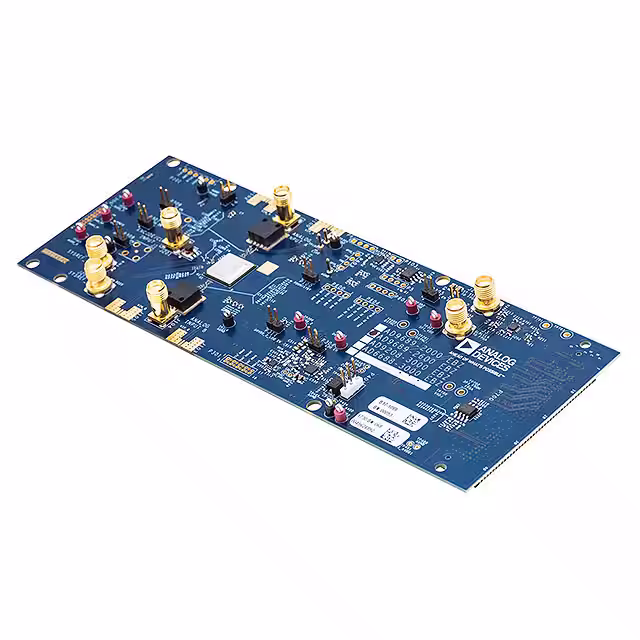

AD9689-2600EBZEVAL BOARD FOR AD9689-2600 |
2 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 2.6G | JESD204B, Serial | 1.1 ~ 2Vpp | 1.55W @ 2.6GSPS | AD9689 | Board(s) |
|

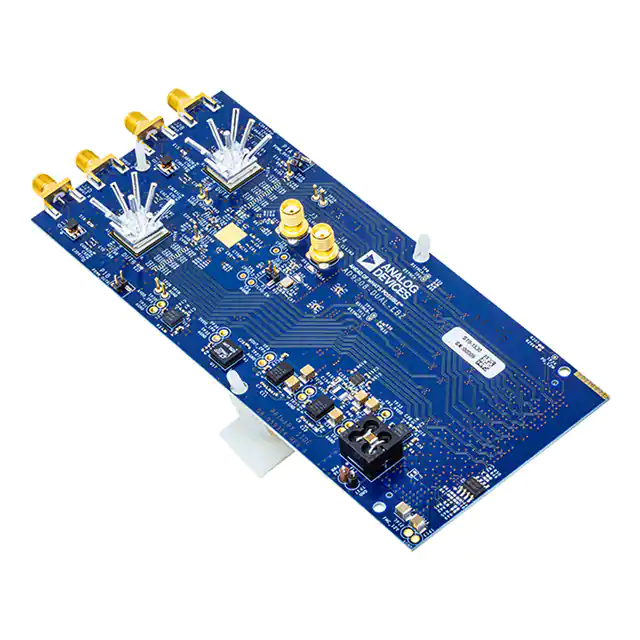

AD9208-DUAL-EBZDUAL AD9208 EVALUATION BOARD |
2 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 3G | JESD204B, Serial | 1.7Vpp | 1.65W @ 3GSPS | AD9208 | Board(s) |
|
AD9213-10GEBZ-BSINGLE 12-BIT 10.25GSPS ADC EVAL |
3 |
|
Datasheet | - | Bulk | Active | 1 | 12 | 10.25G | JESD204B, Serial | 1.4Vpp | 4.44W @ 10.25GSPS | AD9213-10G | Board(s) |
|
|
AD9217-6GEBZEVAL BOARD FOR AD9217-6 |
2 |
|
Datasheet | - | Bulk | Active | 1 | 12 | 6G | Parallel | 1.4Vpp | - | AD9217-6 | Board(s) |
|
AMC1304L05EVMEVAL BOARD FOR AMC1304L05 |
3 |
|
Datasheet | - | Box | Active | 1 | 16 | - | LVDS | ±50mV | - | AMC1304L05 | Board(s) |
