Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

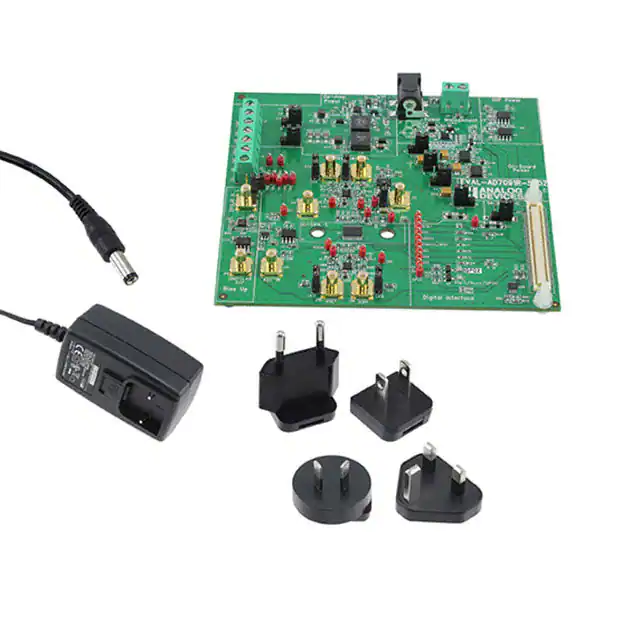

EVAL-AD7091R-5SDZEVAL BOARD 12BIT ADC AD7091R-5 |
0 |
|
Datasheet | - | Box | Active | 1 | 12 | 22.22k | I2C, Serial | 0 ~ VREF | 0.21mW @ 22.22kSPS | AD7091R-5 | Board(s), Power Supply |
|

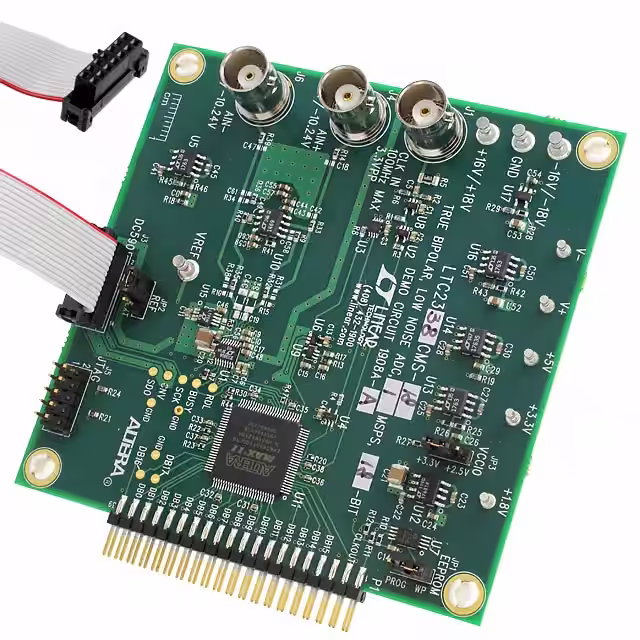

DC1908A-AEVAL BOARDS FOR LTC2338-18 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 1M | SPI | ±10.24V | 50mW @ 1MSPS | LTC2338-18 | Board(s) |
|

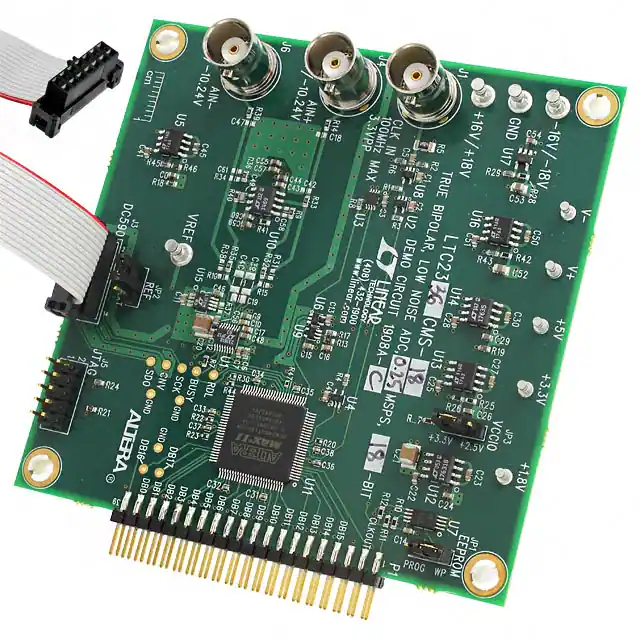

DC1908A-CEVAL BOARDS FOR LTC2336-18 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 250k | SPI | ±10.24V | 27.5mW @ 250kSPS | LTC2336-18 | Board(s) |
|
EVAL-AD7684SDZAD7684 EVALUATION KIT |
4 |
|
Datasheet | PulSAR® | Bulk | Active | 1 | 16 | 100k | Serial, SPI | ±VREF | 40mW @ 100kSPS | AD7684 | Board(s) |
|

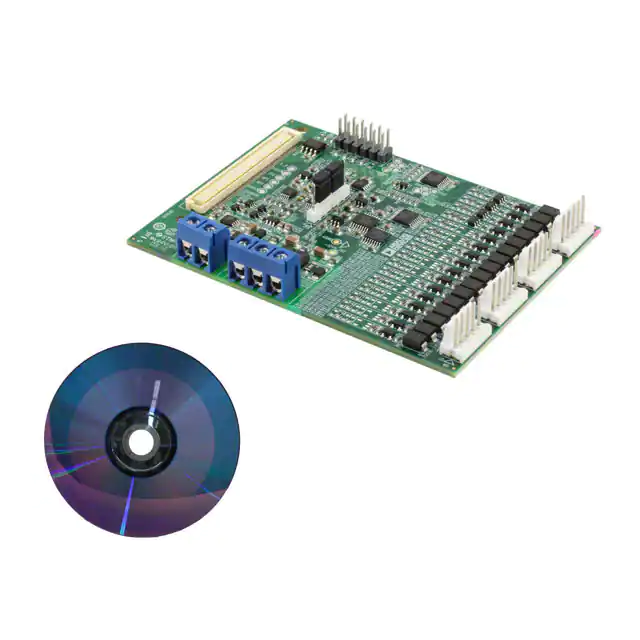

EVAL-CN0269-SDPZBOARD EVAL CN0269-SDPZ |
1 |
|
- |
Circuits from the Lab™ | Box | Active | 1 | 18 | 1.33M | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±10V | 10.5mW @ 1.33MSPS | AD7984, AD8065, AD8475, ADG5208, ADG5236, ADR444 | Board(s) |
|
|
EVAL-AD7658SDZEVAL BOARD FOR AD7658 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 12, 14, 16 | 250k | Serial | 7 ~ 9V | - | AD7656, AD7657, AD7658 | Board(s) |
|
ISLA214IR72EV1ZEVAL BOARD FOR ISLA214IR72 |
5 |
|
Datasheet | FemtoCharge™ | Bulk | Active | 1 | 14 | 250M | SPI | - | - | ISLA214IR72 | Board(s) |
|

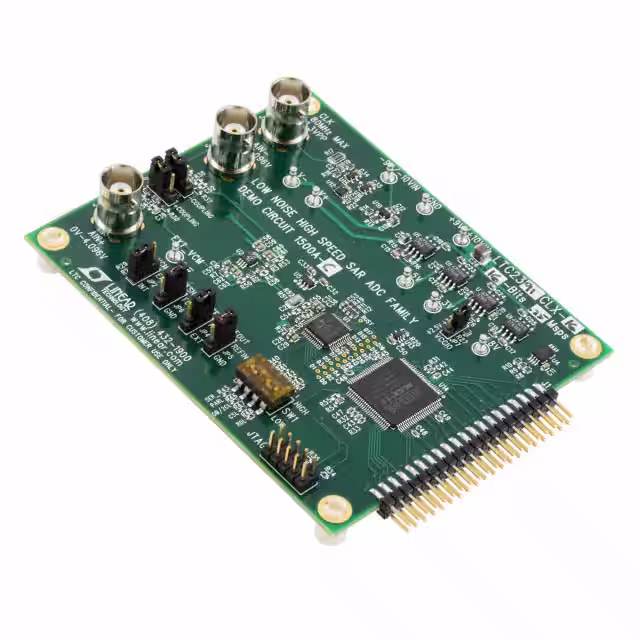

DC1500A-CBOARD SAR ADC LTC2391-16 |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | 250k | Serial, Parallel | ±4.096V | 95mW @ 250kSPS | LTC2391-16 | Board(s) |
|

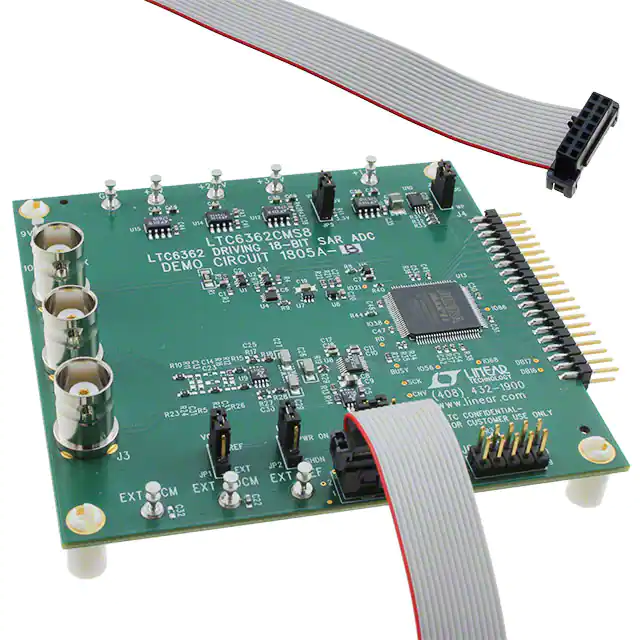

DC1805A-BDEMO BOARD SAR ADC 16BIT 1MSPS |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 1M | SPI | ±VREF | 13.5mW @ 1MSPS | LTC2378-16, LTC6362, LTC6655 | Board(s) |
|
DC2071A-DDEV BOARD FOR LTC2373-16 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 1M | SPI | ±4.096V | 40mW @ 1MSPS | LTC2373-16 | Board(s) |
|

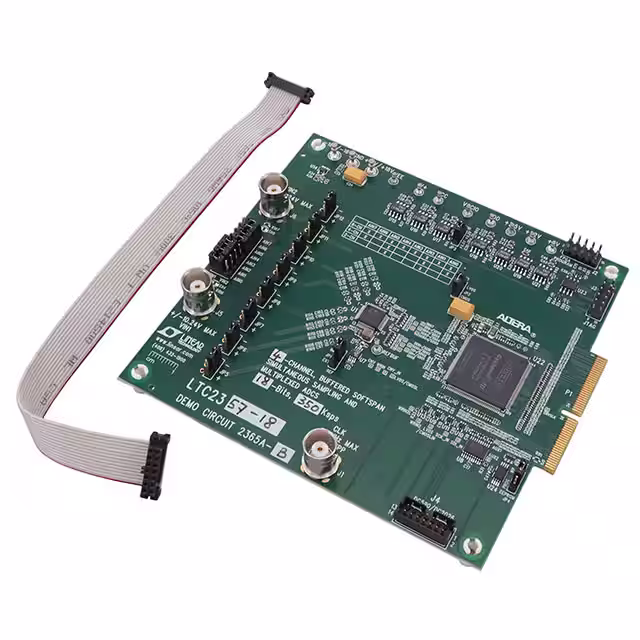

DC2365A-BLTC2357-18 DEMO BOARD BUFFERED Q |
0 |
|
Datasheet | - | Box | Active | 4 | 18 | 350k | Parallel | ±10.24V | - | LTC2357-18 | Board(s) |
|

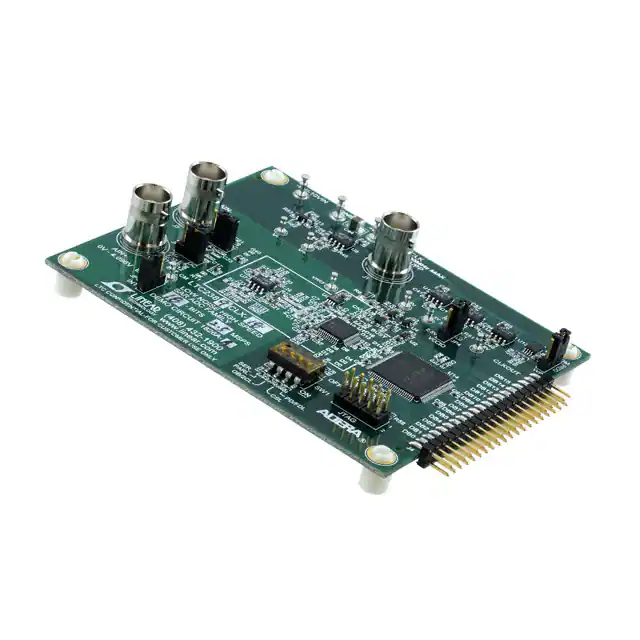

DC1826A-ABOARD SAR ADC LTC2389-18 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 2.5M | Serial, Parallel | ±4.096V | 162.5mW @ 2.5MSPS | LTC2389-18 | Board(s) |
|

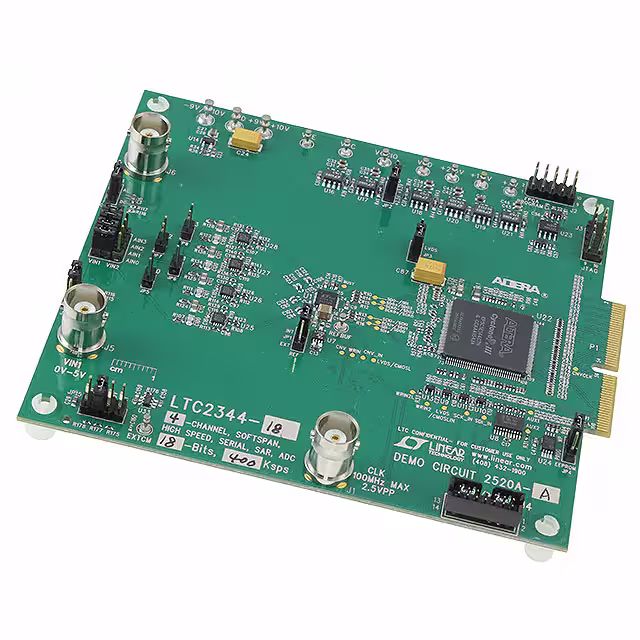

DC2520A-ADEMO BOARD FOR LTC2344-18 |
2 |
|
Datasheet | SoftSpan™ | Box | Active | 1 | 18 | 400k | CMOS, LVDS, Serial | ±4.096V | 106mW @ 400kSPS | LTC2344-18 | Board(s) |
|

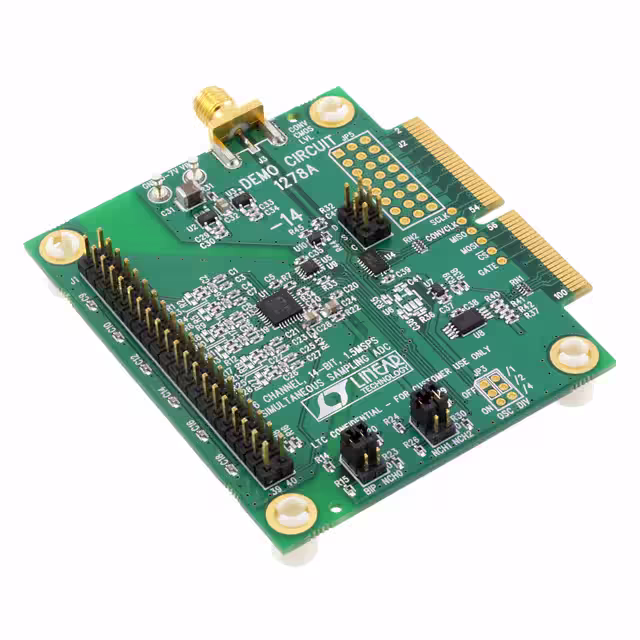

DC1278ABOARD SAR ADC LTC2351-14 |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 1.5M | SPI | 0 ~ 2.5V | 16.5mW @ 1.5MSPS | LTC2351-14 | Board(s) |
|
ADS7961EVM-PDKKIT PERFORMANCE DEMO FOR ADS7961 |
2 |
|
Datasheet | microPOWER™ | Box | Active | 1 | 8 | 1M | SPI | 0 ~ VREF | - | ADS7961 | Board(s) |
|

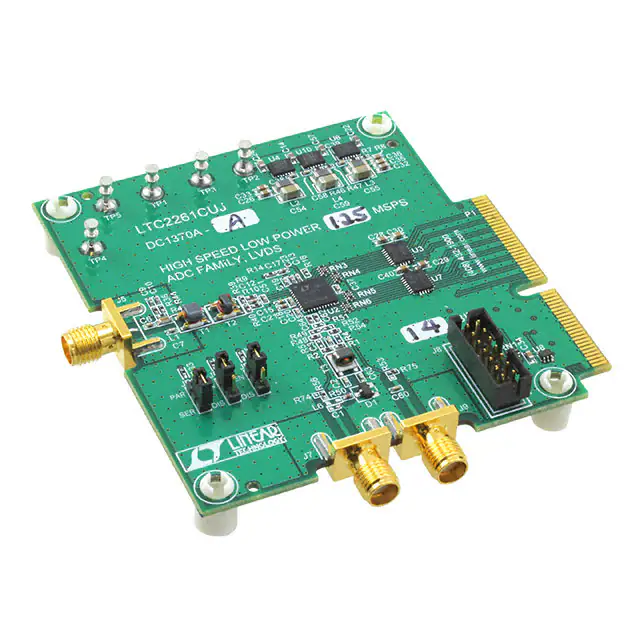

DC1370A-ABOARD EVAL LTC2261-14 |
5 |
|
Datasheet | - | Box | Active | 1 | 14 | 125M | Parallel, Serial, SPI | 1 ~ 2Vpp | 209mW @ 125MSPS | LTC2261-14 | Board(s) |
|

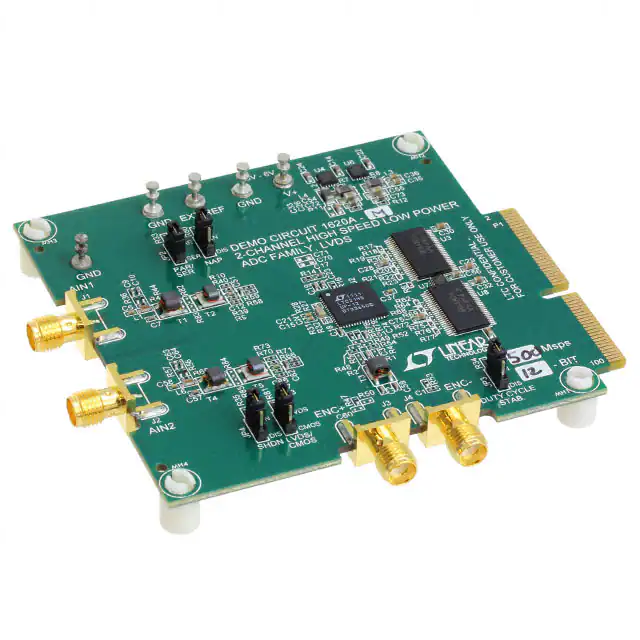

DC1620A-KBOARD DEMO 40MSPS LTC2141-14 |
2 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 40M | Parallel | 1 ~ 2Vpp | 190mW @ 40MSPS | LTC2141-14 | Board(s) |
|

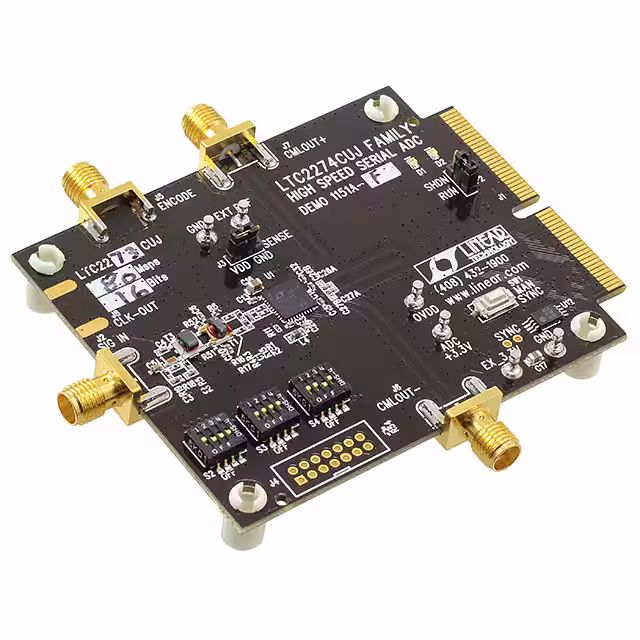

DC1151A-FBOARD EVAL LTC2273CUJ |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | 80M | Serial | 1.5 ~ 2.25Vpp | 1.1W @ 80MSPS | LTC2273 | Board(s) |
|

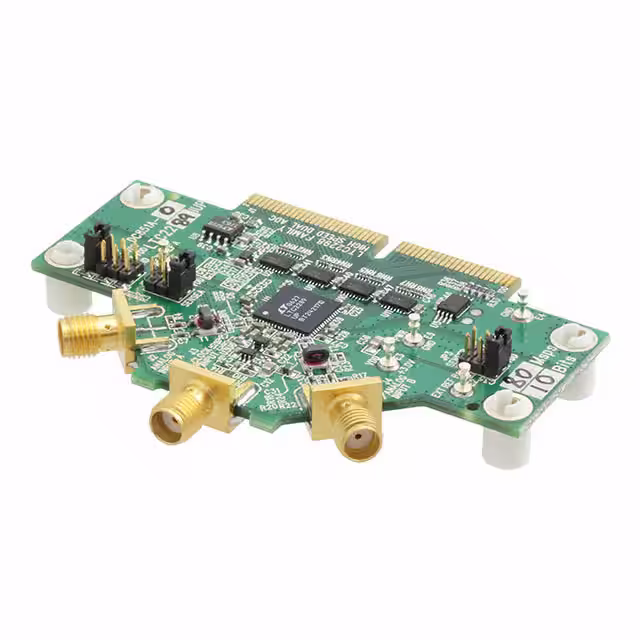

DC851A-OBOARD EVAL LTC2289IUP |
2 |
|
Datasheet | - | Box | Active | 2 | 10 | 80M | Parallel | 1 ~ 2Vpp | 422mW @ 80MSPS | LTC2289 | Board(s) |
|
DC854D-DEVAL BOARD FOR LTC2208-14 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208-14 | Board(s) |
