Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

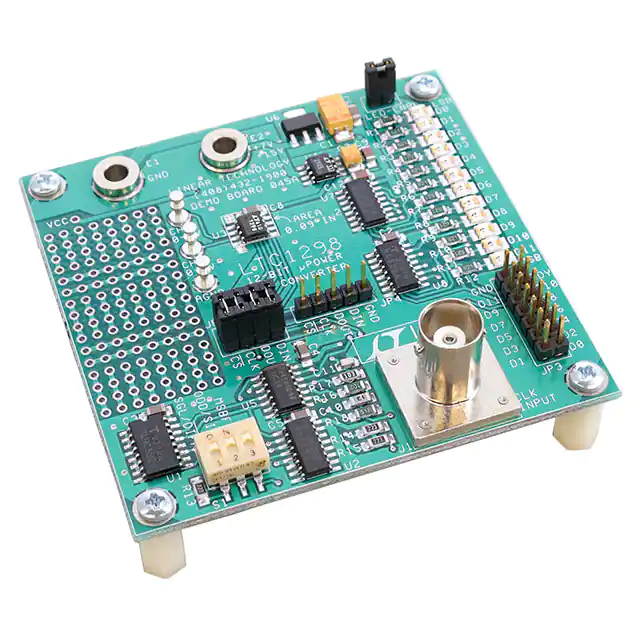

DC045ALTC1298CS8 - MICROPOWER 12-BIT 2 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 11.1k | Serial, SPI | 0 ~ 5V | 1.25mW @ 11.1kSPS | LTC1298 | Board(s) |
|

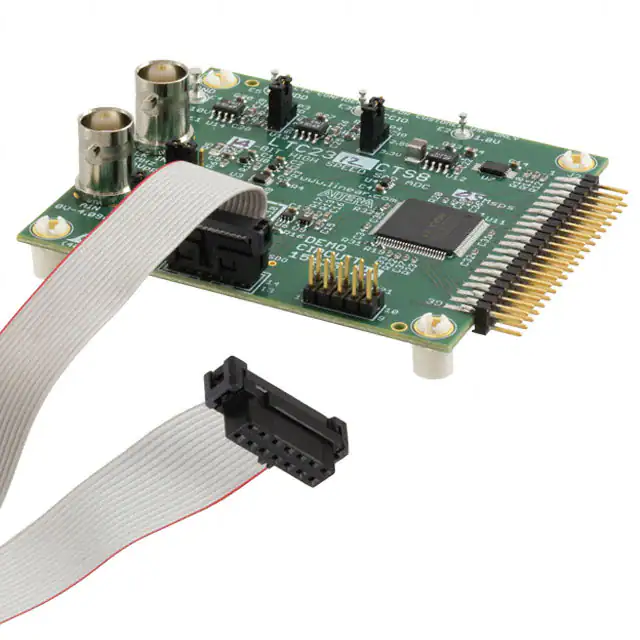

DC1563A-HEVAL BOARDS FOR LTC2312-14 |
2 |
|
Datasheet | - | Box | Active | 1 | 14 | 500k | SPI | 0 ~ VREF | 17mW @ 500kSPS | LTC2312-14 | Board(s) |
|

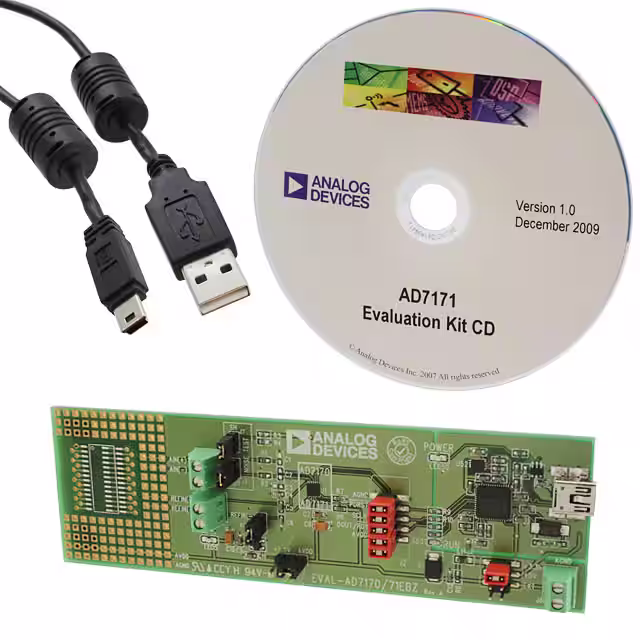

EVAL-AD7171EBZBOARD EVAL FOR AD7171 |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | 125 | Serial | ±VREF | - | AD7171 | Board(s) |
|

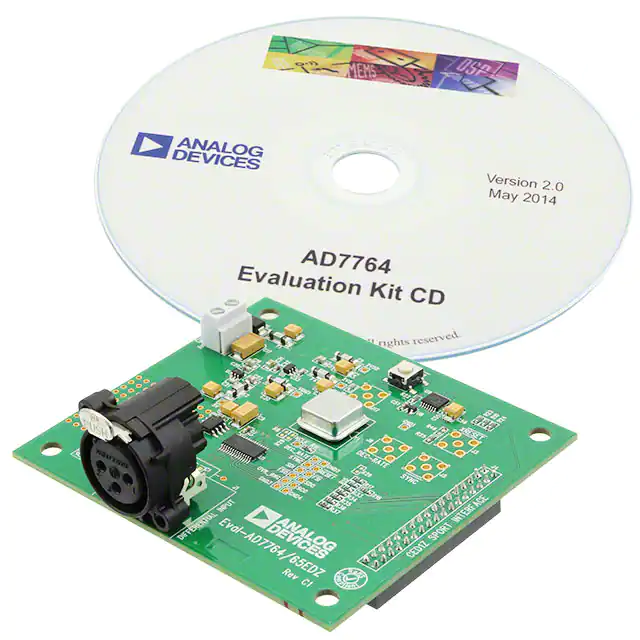

EVAL-AD7764EDZBOARD EVAL AD7764 |
1 |
|
Datasheet | - | Box | Active | 1 | 24 | 312k | Serial | ±3.2768V | 300mW @ 312kSPS | AD7764 | Board(s) |
|
EVAL-AD7795EBZBOARD EVAL FOR AD7795 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 470 | SPI, DSP | ±VREF/gain | 2.5mW @ 470SPS | AD7795 | Board(s) |
|

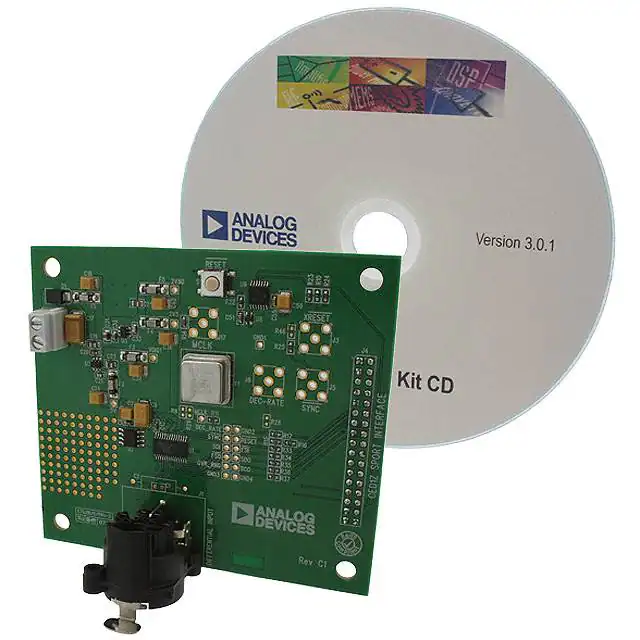

EVAL-AD7765EDZBOARD EVAL AD7765 |
0 |
|
Datasheet | - | Box | Active | 1 | 24 | 156k | SPI | ±3.2768V | 300mW @ 156kSPS | AD7765 | Board(s) |
|

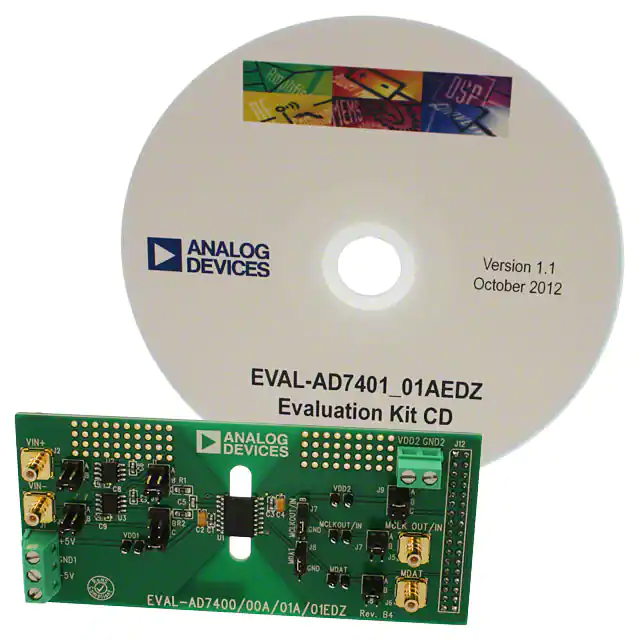

EVAL-AD7401AEDZBOARD EVAL FOR AD7401 |
2 |
|
Datasheet | iCoupler® | Box | Active | 1 | 16 | 20M | Serial | ±320mV | 105mW @ 20MSPS | AD7401A | Board(s) |
|

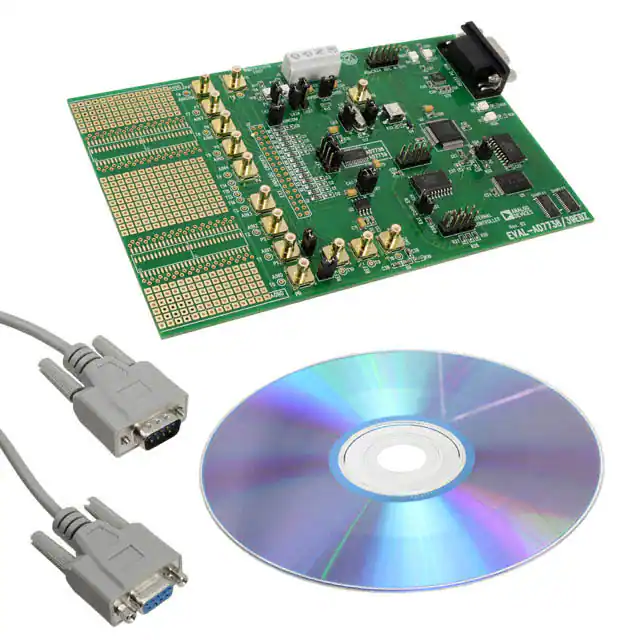

EVAL-AD7738EBZBOARD EVAL FOR AD7738 |
0 |
|
Datasheet | - | Box | Active | 1 | 24 | 15.4k | Serial | ±2.5V | 85mW @ 5V | AD7738 | Board(s) |
|

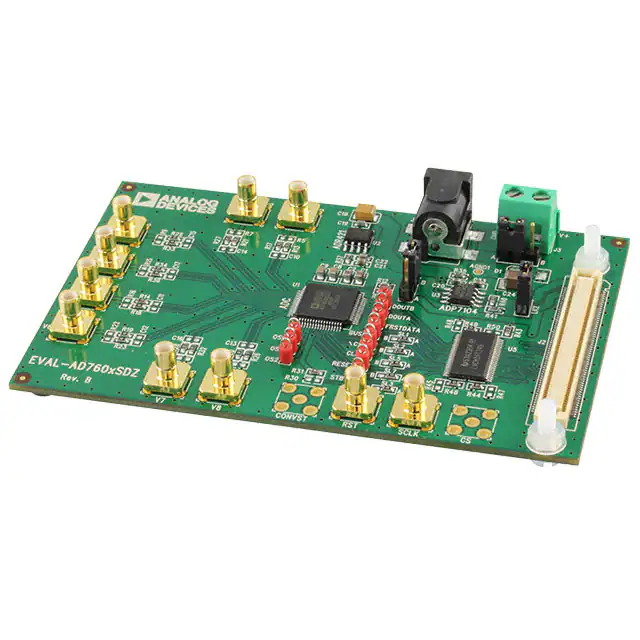

EVAL-AD7608SDZEVAL BOARD FOR AD7608 |
1 |
|
Datasheet | - | Box | Active | 1 | 18 | 200k | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ | ±10V | 100mW @ 200kSPS | AD7608 | Board(s), Power Supply |
|

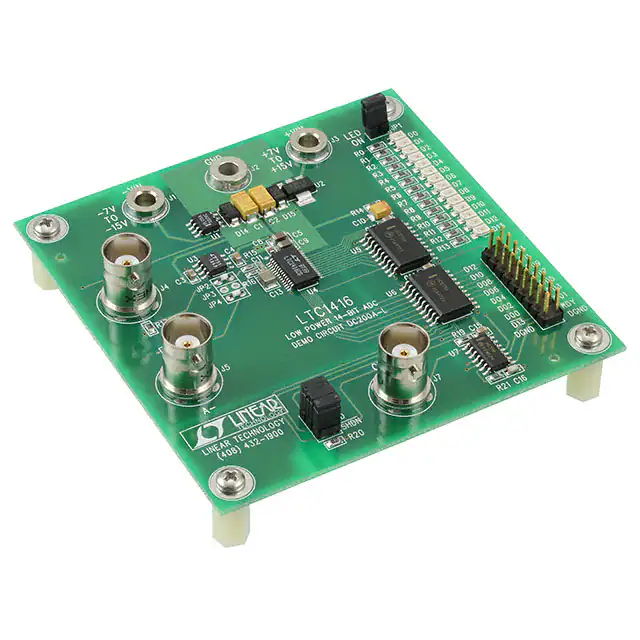

DC200A-LEVAL BOARD ADC 14BIT 800KSPS LP |
1 |
|
Datasheet | - | Box | Active | 1 | 14 | 400k | Parallel | ±2.5V | 70mW @ 400kSPS | LTC1416 | Board(s) |
|
AMC1204EVMEVAL MODULE FOR AMC1204 |
2 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 78k | Serial | ±250mV | 88mW @ 78kSPS | AMC1204 | Board(s) |
|

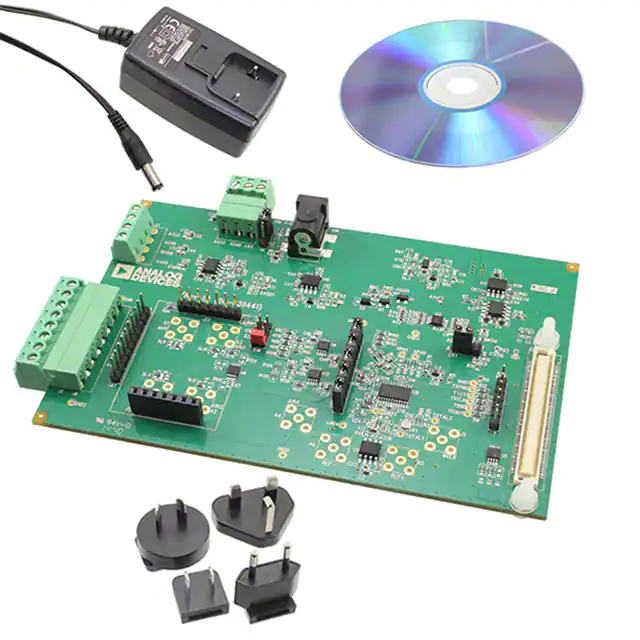

EVAL-AD7172-2SDZEVAL BOARD AD7172-2SDZ |
0 |
|
Datasheet | - | Box | Active | 1 | 24 | 31.25k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | - | 19.1mW @ 31.25kSPS | AD7172-2 | Board(s), Power Supply |
|
ADS7863EVMEVAL MODULE FOR ADS7863 |
3 |
|
Datasheet | - | Box | Active | 2 | 12 | 2M | Serial | ±VREF | - | ADS7863 | Board(s) |
|

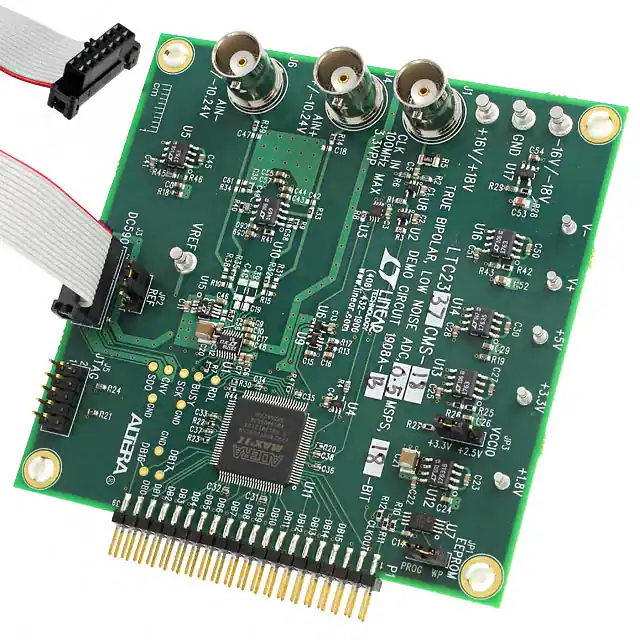

DC1908A-BEVAL BOARDS FOR LTC2337-18 |
2 |
|
Datasheet | - | Box | Active | 1 | 18 | 500k | SPI | ±10.24V | 35mW @ 500kSPS | LTC2337-18 | Board(s) |
|

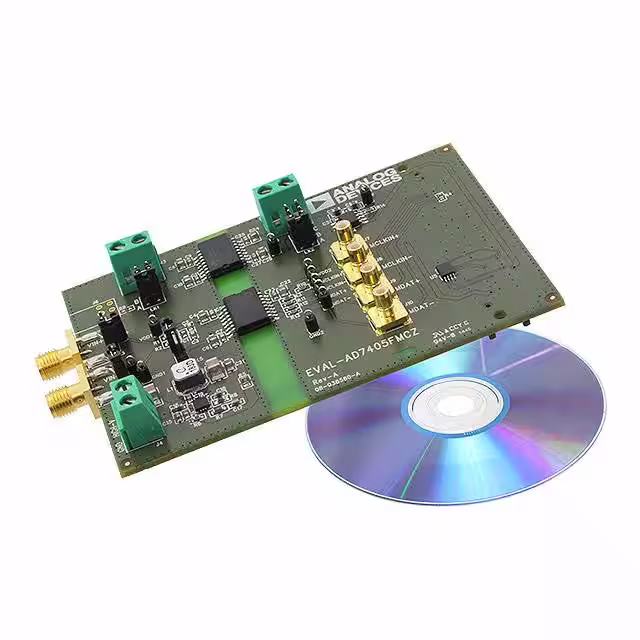

EVAL-AD7405FMCZEVAL BOARD SIGMA-DELTA MOD |
2 |
|
Datasheet | iCoupler® | Box | Active | 1 | 16 | - | LVDS | ±320mV | - | AD7405 | Board(s) |
|

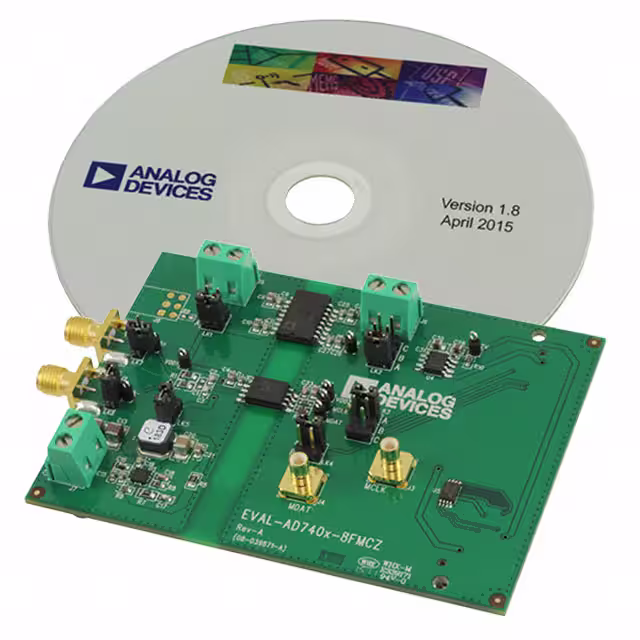

EVAL-AD7403-8FMCZEVAL BOARD FOR AD7403 |
2 |
|
Datasheet | iCoupler® | Box | Active | 1 | 16 | 78.1k | Serial | ±320mV | 237mW @ 78.1kSPS | AD7403-8 | Board(s) |
|
EVAL-ADAS3023EDZBOARD EVAL FOR ADAS3023 |
1 |
|
Datasheet | iCMOS® | Box | Active | 1 | 16 | 1M | SPI | ±0.3V | - | ADAS3023 | Board(s) |
|
EVAL-AD7986FMCZEVAL BOARD FOR AD7986 |
0 |
|
Datasheet | PulSAR® | Box | Active | 1 | 18 | 2M | Serial | ±VREF | 29mW @ 2MSPS | AD7986 | Board(s) |
|

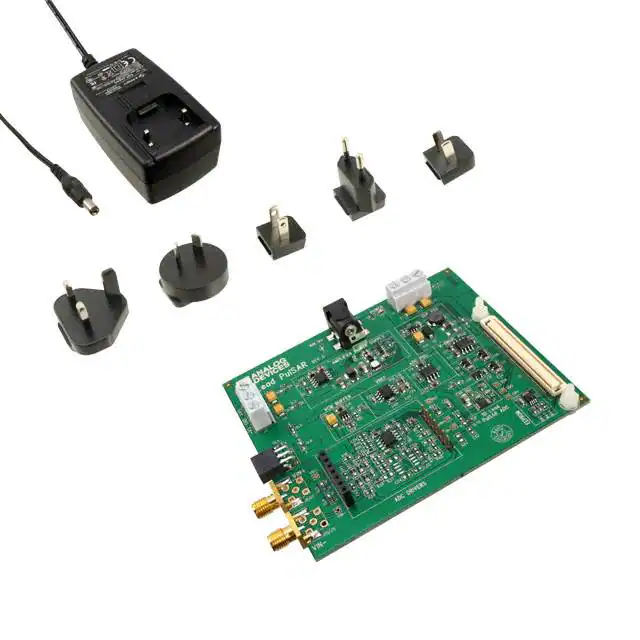

EVAL-AD7988-5SDZBOARD EVAL FOR AD7988-5 |
0 |
|
Datasheet | PulSAR® | Box | Active | 1 | 16 | 500k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 0 ~ VREF | 3.5mW @ 500kSPS | AD7988-5 | Board(s) |
|

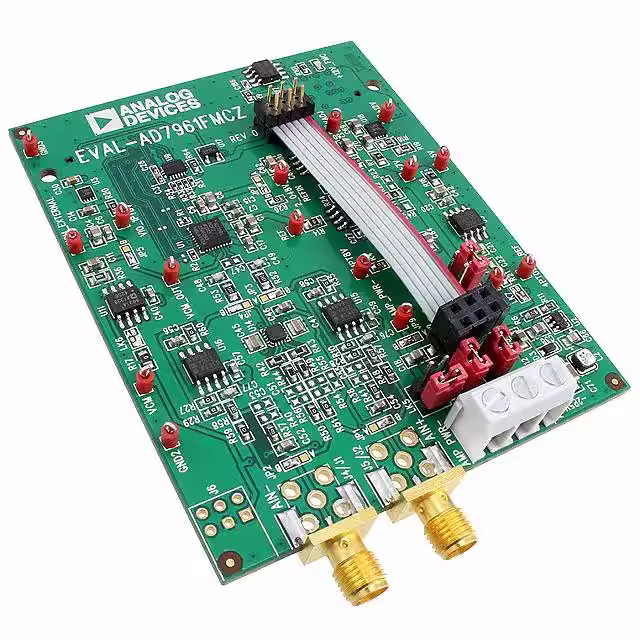

EVAL-AD7961FMCZEVAL BOARD FOR AD7961 |
0 |
|
Datasheet | PulSAR® | Box | Active | 1 | 16 | 5M | LVDS - Serial | ±VREF | 64.5mW @ 5MSPS | AD7961 | Board(s) |
