Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC816A-PEVAL BOARD FOR LTC2288 |
1 |
|
Datasheet | - | Box | Active | 2 | 10 | 65M | Parallel | 1 ~ 2Vpp | 400mW @ 65MSPS | LTC2288 | Board(s) |
|
KDC5514EVALZDAUGHTER CARD FOR KAD5514 |
3 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 14 | 250M | Parallel | 1.47Vpp | 429mW @ 250MSPS | KAD5514P-25, KMB001 Motherboard | Board(s) |
|

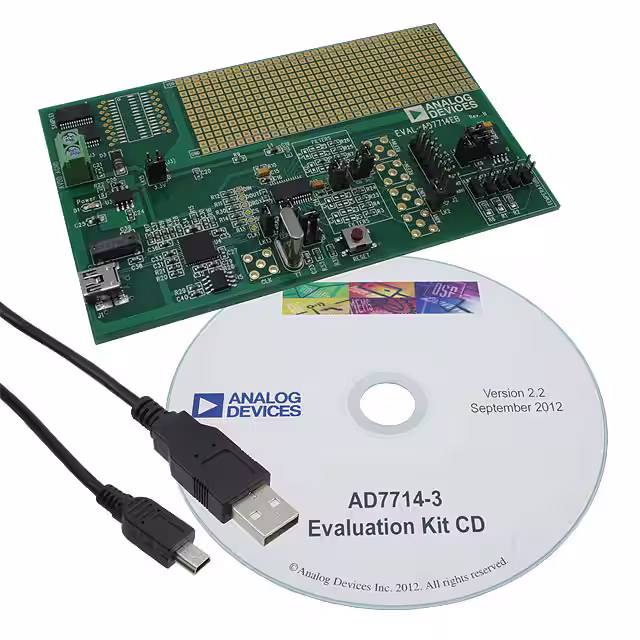

EVAL-AD7714-3EBZBOARD EVAL FOR AD7714 |
0 |
|
Datasheet | - | Box | Active | 1 | 24 | 1k | Serial | 0 ~ 3.3V | 3.65mW @ 3.3V | AD7714-3 | Board(s) |
|

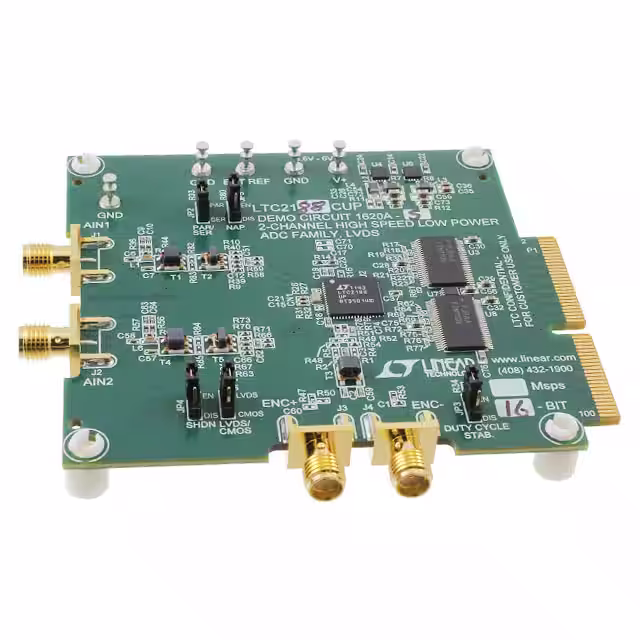

DC1620A-SBOARD DEMO LTC2188CUP |
2 |
|
Datasheet | - | Box | Active | 2 | 16 | 20M | Parallel | 1 ~ 2Vpp | 218mW @ 20MSPS | LTC2188 | Board(s) |
|

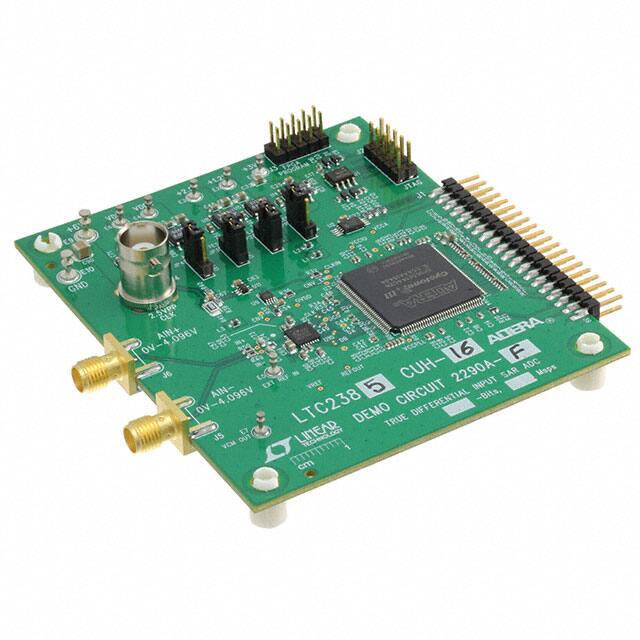

DC2290A-FEVAL BOARD FOR LTC2385-16 |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | 5M | LVDS - Serial | - | 78mW @ 5MSPS | LTC2385-16 | Board(s) |
|

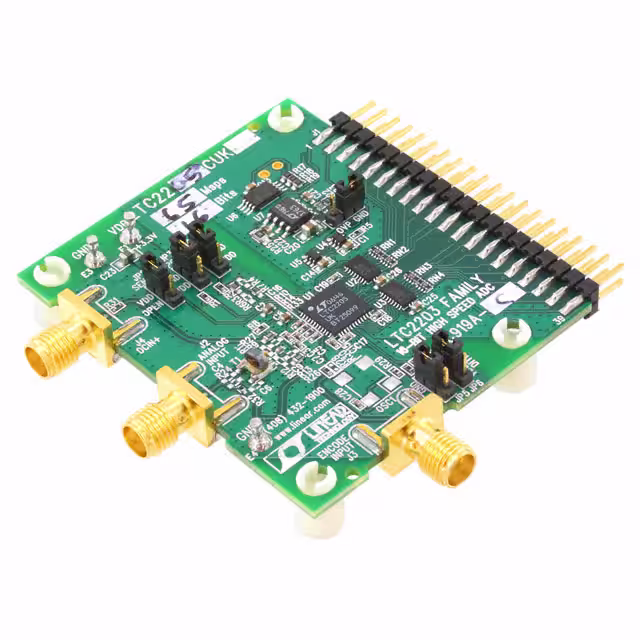

DC919A-CBOARD DEMO 16BIT MSPS LTC2205 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 65M | Parallel | 1.5 ~ 2.25Vpp | 610mW @ 65MSPS | LTC2205 | Board(s) |
|

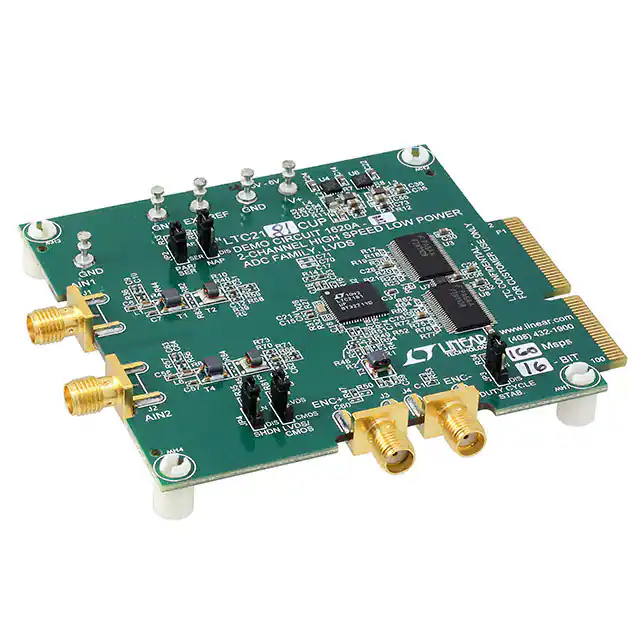

DC1620A-EBOARD DEMO 16BIT 40MSPS LTC2181 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 16 | 40M | Parallel | 1 ~ 2Vpp | 259mW @ 40MSPS | LTC2181 | Board(s) |
|

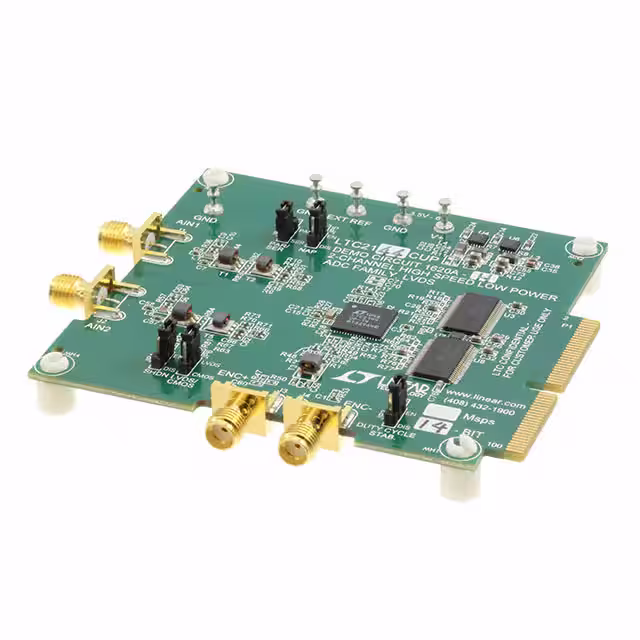

DC1620A-HBOARD DEMO 105MSPS LTC2144-14 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 105M | Parallel | 1 ~ 2Vpp | 274mW @ 105MSPS | LTC2144-14 | Board(s) |
|

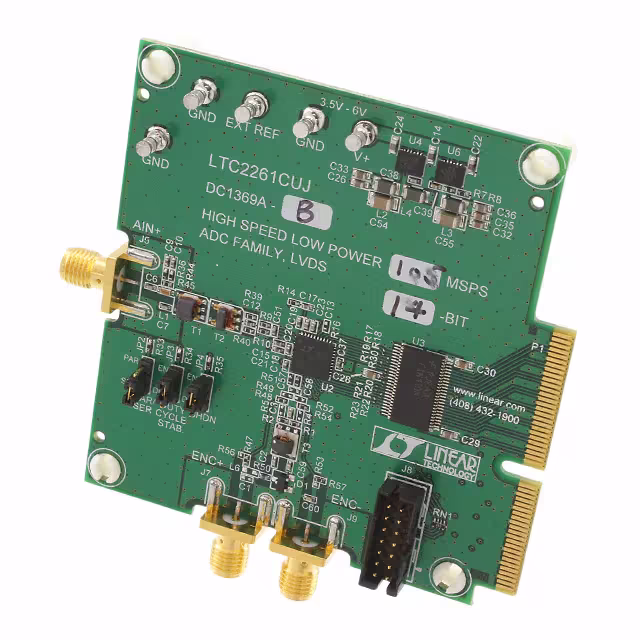

DC1369A-BBOARD DEMO 105MSPS LTC2260-14 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 14 | 105M | Parallel | 1 ~ 2Vpp | 187mW @ 105MSPS | LTC2260-14 | Board(s) |
|

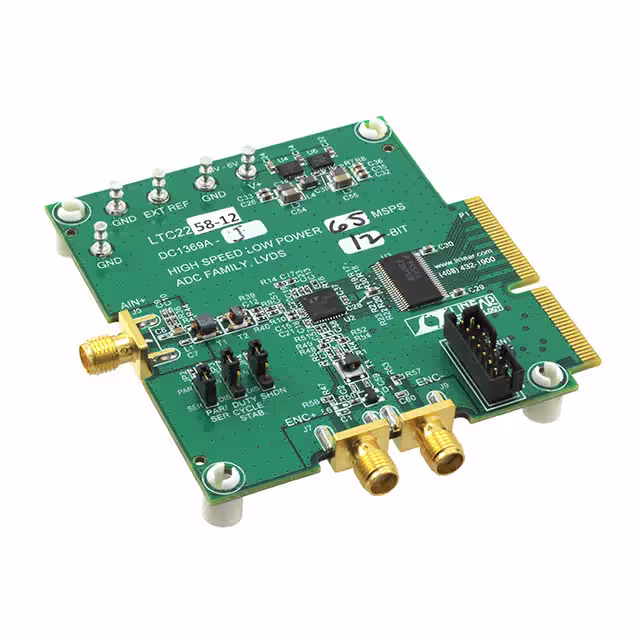

DC1369A-JBOARD EVAL LTC2258-12 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 65M | Parallel | 1 ~ 2Vpp | 82.3mW @ 65MSPS | LTC2258-12 | Board(s) |
|

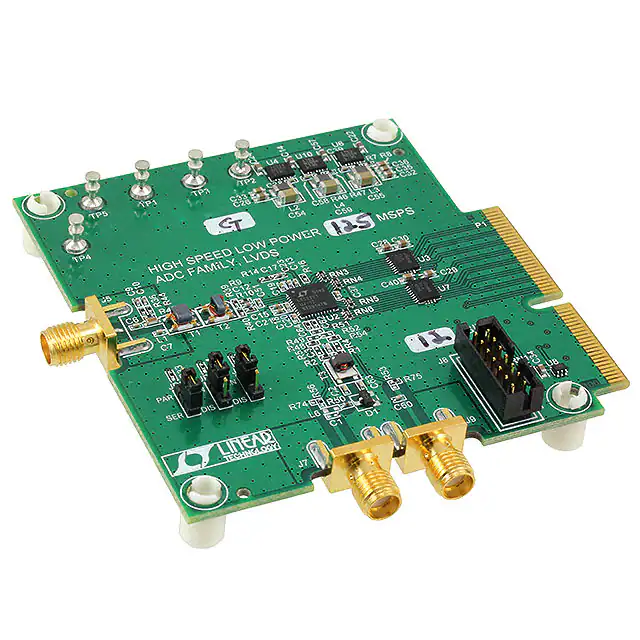

DC1370A-GBOARD EVAL LTC2261-12 |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 125M | Parallel, Serial, SPI | 1 ~ 2Vpp | 199mW @ 125MSPS | LTC2261-12 | Board(s) |
|

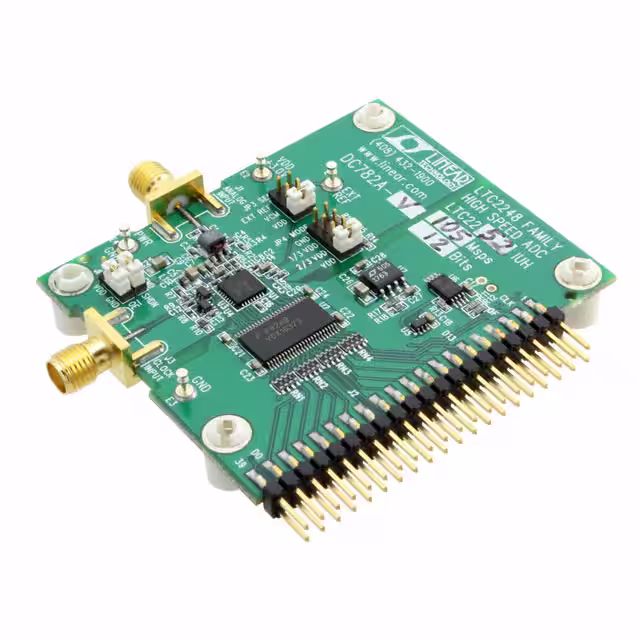

DC782A-VBOARD EVAL LTC2252IUH |
1 |
|
Datasheet | - | Box | Active | 1 | 12 | 105M | Parallel | 1 ~ 2Vpp | 320mW @ 105MSPS | LTC2252 | Board(s) |
|
|
DC2183A-BBRD DEMO FOR LTC2107 REQ. DC1371 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | 210M | - | 2.4Vpp | 1.348W @ 210MSPS | LTC2107 | Board(s) |
|
DC997B-EEVAL BOARD FOR LTC2241-10 |
1 |
|
Datasheet | - | Box | Active | 1 | 10 | 210M | CMOS, LVDS, Parallel | 2Vpp | 710mW @ 210MSPS | LTC2241-10 | Board(s) |
|

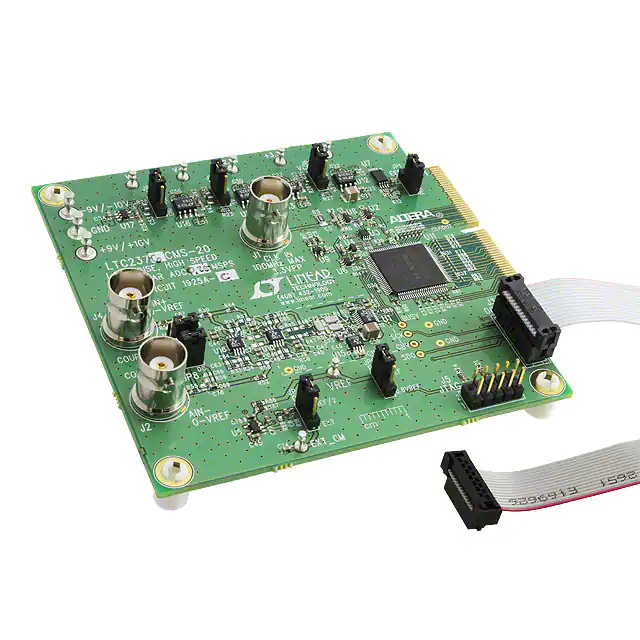

DC1925A-CEVAL BOARD FOR LTC2376-20 |
2 |
|
Datasheet | - | Box | Active | 1 | 20 | 250k | SPI | ±VREF | 5.25mW @ 250kSPS | LTC2376-20 | Board(s) |
|

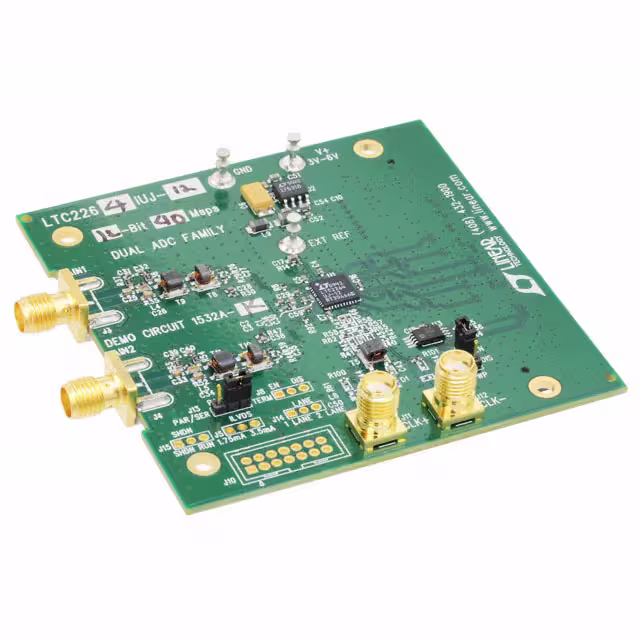

DC1532A-KBOARD DEMO 40MSPS LTC2264-12 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 12 | 40M | Serial LVDS | 1 ~ 2Vpp | 144mW @ 40MSPS | LTC2264-12 | Board(s) |
|

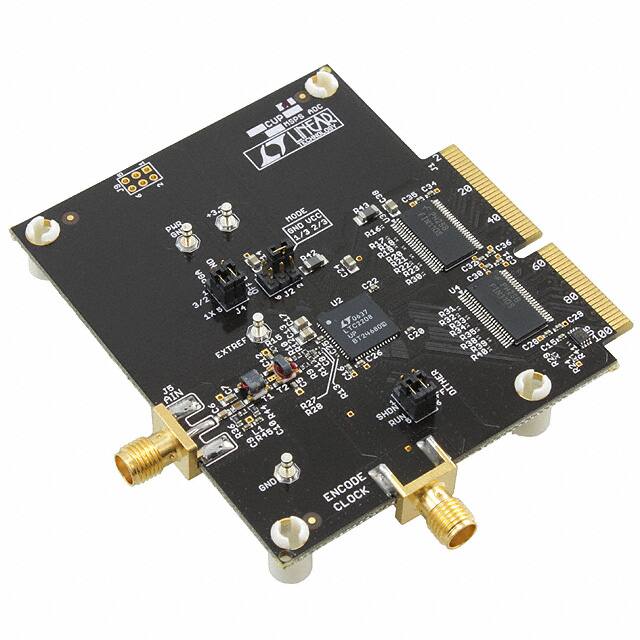

DC996B-ABOARD DEMO 16BIT 130MSPS LTC2208 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 130M | Parallel | 2.25Vpp | 1.498W @ 130MSPS | LTC2208 | Board(s) |
|

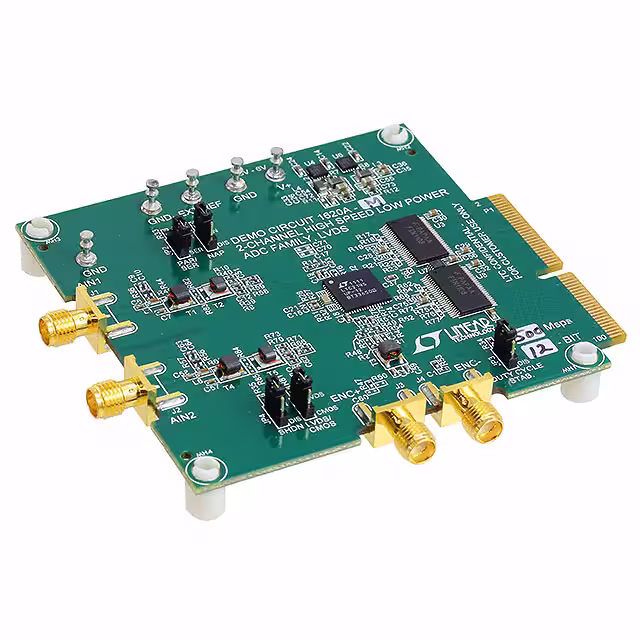

DC1620A-MBOARD DEMO 125MSPS LTC2145-12 |
1 |
|
Datasheet | - | Bulk | Active | 2 | 12 | 125M | Parallel | 1 ~ 2Vpp | 293mW @ 125MSPS | LTC2145-12 | Board(s) |
|

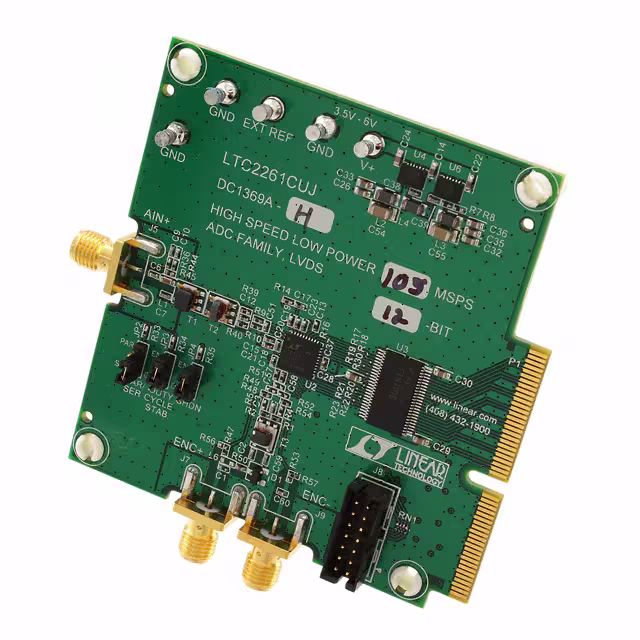

DC1369A-HBOARD DEMO 105MSPS LTC2260-12 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 12 | 105M | Parallel | 1 ~ 2Vpp | 177mW @ 105MSPS | LTC2260-12 | Board(s) |
|

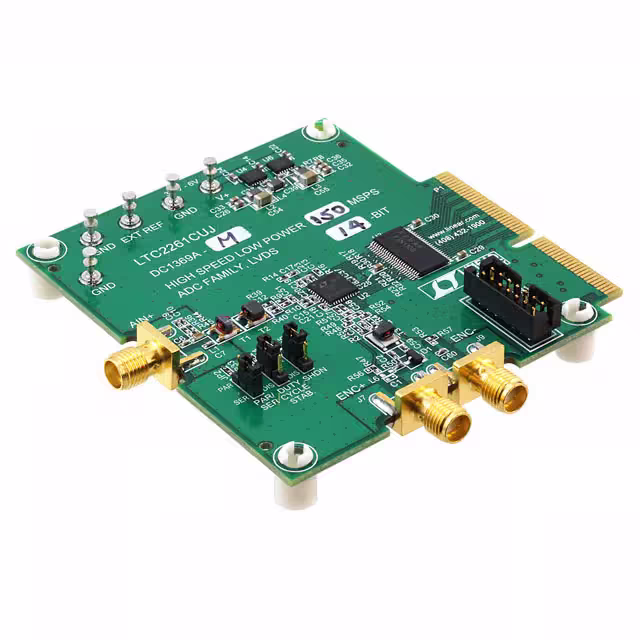

DC1369A-MBOARD DEMO 150MSPS LTC2262-14 |
1 |
|
Datasheet | - | Bulk | Active | 1 | 14 | 150M | Parallel | 1 ~ 2Vpp | 231mW @ 150MSPS | LTC2262-14 | Board(s) |
