Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR-070-1R0A030JCMC 3MH 7A 2LN TH |
240 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 7A | 23mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS30V-R350047CMC 4.7MH 3.5A 2LN TH |
146 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SS30V-R120380CMC 38MH 1.2A 2LN TH |
384 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 38 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-400CMC 64UH 5A 2LN TH |
304 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 64 µH @ 100 kHz | 5A | 32mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-03-05GSCMC 500UH 3A 2LN TH |
527 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 3A | 45mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-01-20GSCMC 2MH 1A 2LN TH |
505 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 1A | 180mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-06-10JSCMC 1MH 6A 2LN TH |
862 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-10-D020HCMC 20UH 10A 2LN TH |
352 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | 10A | 6.5mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-07-100CMC 650UH 7A 2LN TH |
235 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

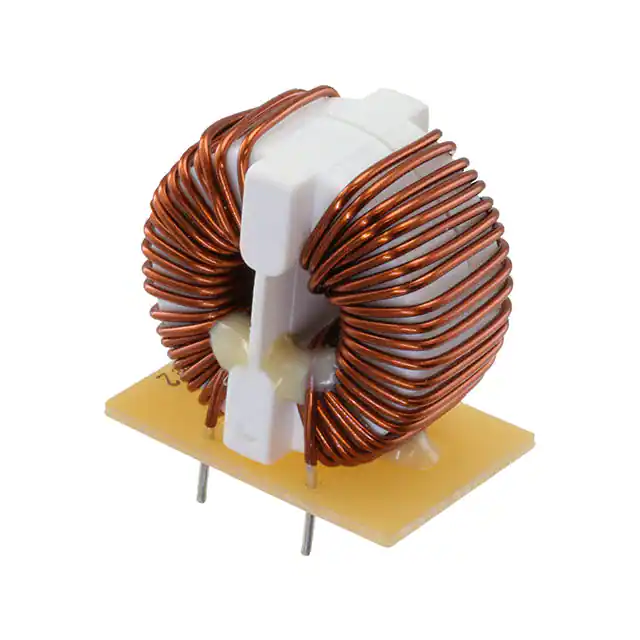

SC22-05-30JCMC 3MH 5A 2LN TH |
198 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-20-03JCMC 300UH 20A 2LN TH |
176 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 1 kHz | 20A | 4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-100JCMC 10MH 2A 2LN TH |
178 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 2A | 220mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-20GJCMC 2MH 2A 2LN TH |
895 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-1100CMC 11MH 5A 2LN TH |
105 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-200CMC 2MH 5A 2LN TH |
187 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-05J-PCMC 487.5UH 20A 2LN TH |
156 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 487.5 µH @ 100 kHz | 20A | 3.6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-104A4CMC 500MA 4LN 3K OHM TH |
236 |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 3 kOhms @ 500 kHz | - | 500mA | 360mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
PLT-01CMC 7.5UH 300MA 2LN TH |
929 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 264V | -25°C ~ 100°C | - | UL | - | - | - |
|
M-538CTCMC 100MA 3LN 800 OHM SMD |
2,272 |
|
Datasheet | Vertical, 6 Gull Wing | Signal Line | 3 | 800 Ohms @ 100 MHz | - | 100mA | 220mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|

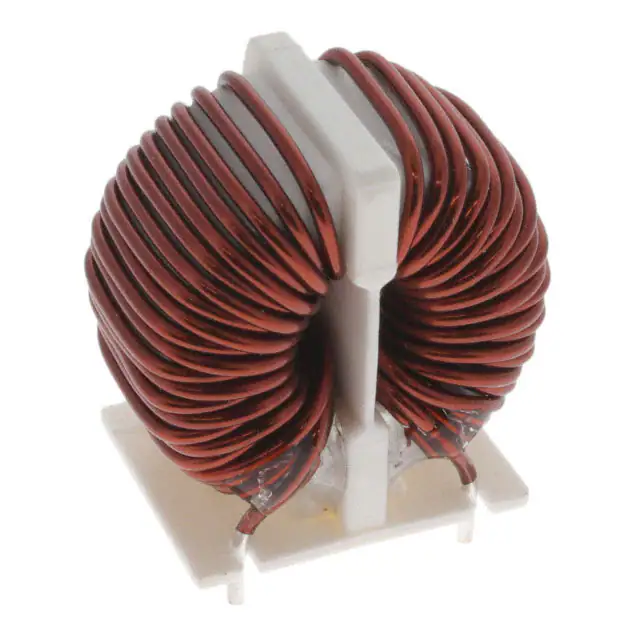

SC-08-44JCMC 4.4MH 8A 2LN TH |
174 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 100 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
