Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF25XV-220-1R9A007JHCMC 1.2MH 22A 2LN TH AEC-Q200 |
125 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 22A | 2.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-100-1R3A016JVCMC 6.3MH 10A 2LN TH AEC-Q200 |
103 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 100 kHz | 10A | 10.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-240-2R0A006JHCMC 900UH 24A 2LN TH AEC-Q200 |
120 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-250-2R2A008JHCMC 700UH 25A 2LN TH AEC-Q200 |
239 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-050-1R0A044JHCMC 21.2MH 5A 2LN TH AEC-Q200 |
223 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-300-2R4A005JHCMC 270UH 30A 2LN TH AEC-Q200 |
143 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | 30A | 0.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-050-1R0A044JVCMC 21.2MH 5A 2LN TH AEC-Q200 |
104 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-20-400CMC 4MH 20A 2LN TH |
132 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF27-15-700CMC 7MH 15A 2LN TH |
197 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 100 kHz | 15A | 5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF27-15-700HCMC 7MH 15A 2LN TH |
143 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 15A | 8.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
LCF060502B650TGCMC 130MA 2LN 65 OHM SMD |
16,502 |
|
Datasheet | 0202 (0605 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 130mA | 10Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF4-2459A6M10YCMC 100MA SMD ESD AEC-Q101 |
2,840 |
|
Datasheet | QFN-10L | - | - | - | - | 100mA | - | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF201204A101TGCMC 100MA 4LN 100 OHM SMD |
2,619 |
|
Datasheet | 0805 (2012 Metric), 8 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

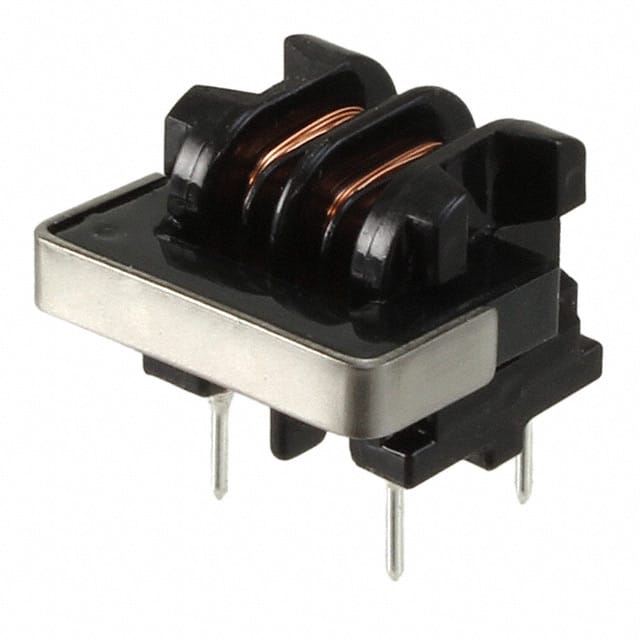

SU9HF-01250CMC 25MH 100MA 2LN TH |
270 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 100mA | 9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HF-07015CMC 1.5MH 700MA 2LN TH |
775 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 700mA | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HD-40008CMC 7.98UH 4A 2LN TH |
843 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.98 µH @ 1 kHz | 4A | 31.25mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SHO-102CMC 4A 2LN TH |
219 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 0.6 µH @ 100 kHz | 4A | 10mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
|
SU7VC-07006CMC 600UH 700MA 2LN TH |
1,066 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 1 kHz | 700mA | 360mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU7VC-08004CMC 350UH 800MA 2LN TH |
506 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 1 kHz | 800mA | 220mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-04910CMC 91MH 400MA 2LN TH |
315 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
