Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-08-100CMC 3MH 8A 2LN TH |
165 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR-150-1R4A006J-PCMC 600UH 15A 2LN TH |
238 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 15A | 5.3mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

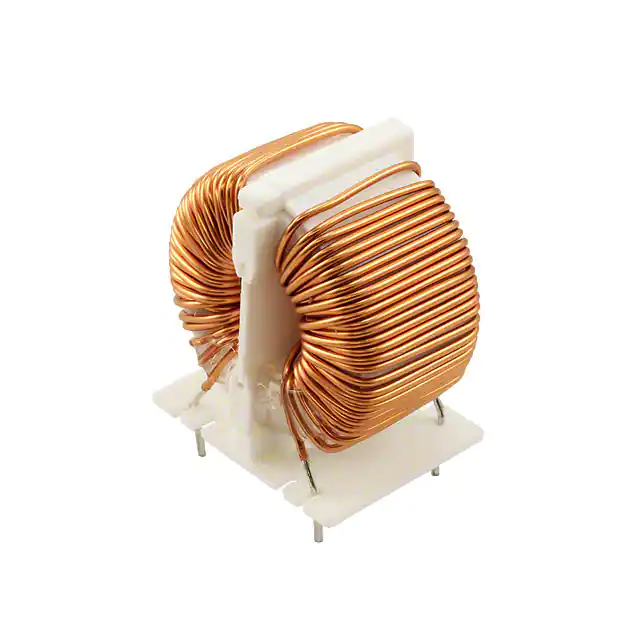

SC-05-30JCMC 3MH 5A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-14-12JCMC 1.2MH 14A 2LN TH |
145 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 14A | 12.2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-60JCMC 6MH 6A 2LN TH |
221 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 6A | 60mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-D050CMC 50UH 10A 2LN TH |
580 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 10A | 16mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-18-100CMC 700UH 18A 2LN TH |
123 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 18A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-D010CMC 10UH 20A 2LN TH |
726 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 20A | 8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC22-08-100CMC 1MH 8A 2LN TH |
248 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 8A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-10JCMC 1MH 5A 2LN TH |
642 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-04-E2000CMC 20.3MH 4A 2LN TH |
159 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 20.3 mH @ 10 kHz | 4A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

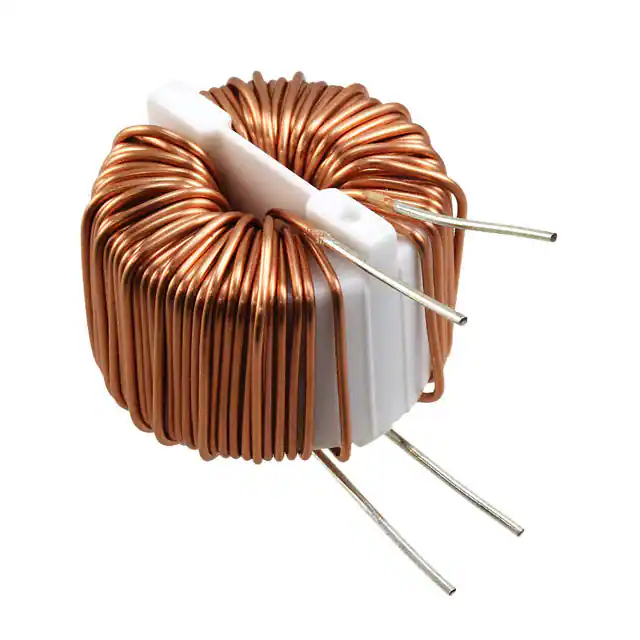

SC-05-800CMC 8MH 4A 2LN TH |
207 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 85mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF-01-5000CMC 50MH 1A 2LN TH |
1,317 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 mH @ 10 kHz | 1A | 390mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-02-130JVCMC 13MH 2A 2LN TH |
266 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-35-D010JHCMC 10UH 35A 2LN TH |
273 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 35A | 1.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-04-200JVCMC 29MH 5A 2LN TH |
1,725 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-10-20JCMC 2MH 10A 2LN TH |
814 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 10A | 22mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR19XV-300-1R9A003JHCMC 56UH 30A 2LN TH AEC-Q200 |
253 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-100-1R1A009JHCMC 500UH 10A 2LN TH AEC-Q200 |
198 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-100-1R1A009JHCMC 300UH 10A 2LN TH AEC-Q200 |
137 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
