Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB10H-R06400CMC 40MH 600MA 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 40 mH @ 10 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10HS-04265CMC 26.5MH 400MA 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 26.5 mH @ 10 kHz | 400mA | 2.45Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS21V-080136CMC 13.6MH 800MA 2LN TH |
600 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 13.6 mH @ 1 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NVS-M10345CMC 34.5MH 1A 2LN TH |
163 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1A | 510mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-04-200CMC 2MH 4A 2LN TH |
114 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 4A | 55mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSR21NV-M20125CMC 12.5MH 2A 2LN TH |
855 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 2A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-M30064CMC 6.4MH 3A 2LN TH |
833 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-06-E200JHCMC 2MH 6A 2LN TH |
574 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-090CMC 9.4MH 2A 2LN TH |
139 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9.4 mH @ 10 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SBT-0160WCMC 60UH 500MA 2LN TH |
1,841 |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 60 µH @ 1 kHz | 500mA | 45mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
SC-01-50GCMC 5MH 1A 2LN TH |
1,315 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 1A | 150mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SH-303CMC 15UH 2.1A 2LN TH |
522 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 15 µH @ 100 kHz | 2.1A | 10mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SU16VD-40010CMC 10UH 4A 2LN TH |
459 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 4A | 40mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

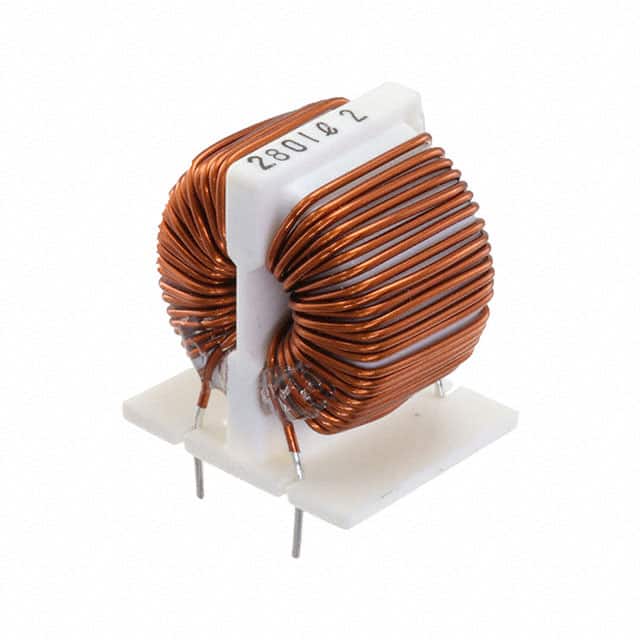

SC-03-06GCMC 600UH 3A 2LN TH |
527 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 3A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-03-10GCMC 1MH 3A 2LN TH |
1,389 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 3A | 35mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSRH24NVS-40059CMC 5.9MH 4A 2LN TH |
691 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 5.9 mH @ 10 kHz | 4A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-05-27JCMC 2.7MH 5A 2LN TH |
316 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 1 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-50041CMC 4.1MH 5A 2LN TH |
327 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 5A | 35mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NH-25205CMC 20.5MH 2.5A 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 20.5 mH @ 10 kHz | 2.5A | 145mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NH-40069CMC 6.9MH 4A 2LN TH |
249 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.9 mH @ 10 kHz | 4A | 57mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
