Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SU9V-R10008CMC 800UH 1A 2LN TH |
823 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 1A | 300mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSRH7HS-M06185CMC 18.5MH 600MA 2LN TH |
750 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18.5 mH @ 10 kHz | 600mA | 690mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M15043CMC 4.3MH 1.5A 2LN TH |
598 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.3 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R050540CMC 54MH 500MA 2LN TH |
1,001 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 54 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SHO-402CMC 800MA 2LN TH |
582 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 99 µH @ 100 kHz | 800mA | 120mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SN8S-500CMC 72UH 2A 2LN TH |
1,526 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 68mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SS11VL-13035CMC 3.5MH 1.3A 2LN TH |
3,895 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1.3A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R20010CMC 1MH 2A 2LN TH |
1,513 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R05140CMC 14MH 500MA 2LN TH |
511 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 500mA | 1.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-R300013CMC 1.3MH 3A 2LN TH |
507 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 1 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VD-20010CMC 10UH 2A 2LN TH |
1,840 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 2A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-04-D050CMC 50UH 4A 2LN TH |
237 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 4A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SS26V-300028CMC 2.8MH 3A 2LN TH |
415 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 1 kHz | 3A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

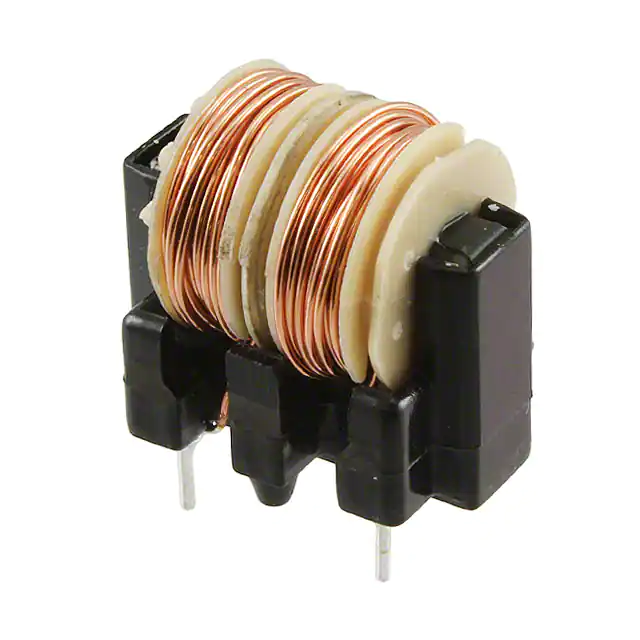

SSB11V-R17043CMC 4.3MH 1.7A 2LN TH |
1,598 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.3 mH @ 1 kHz | 1.7A | 180mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SSHB10HS-R30015CMC 1.5MH 3A 2LN TH |
223 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-R22034CMC 3.4MH 2.2A 2LN TH |
183 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

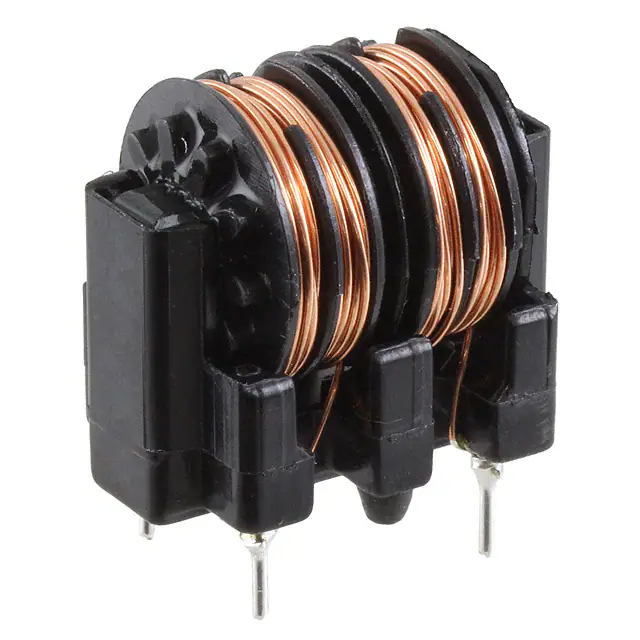

SS11V-R10093-CHCMC 9.3MH 1A 2LN TH |
605 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9.3 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

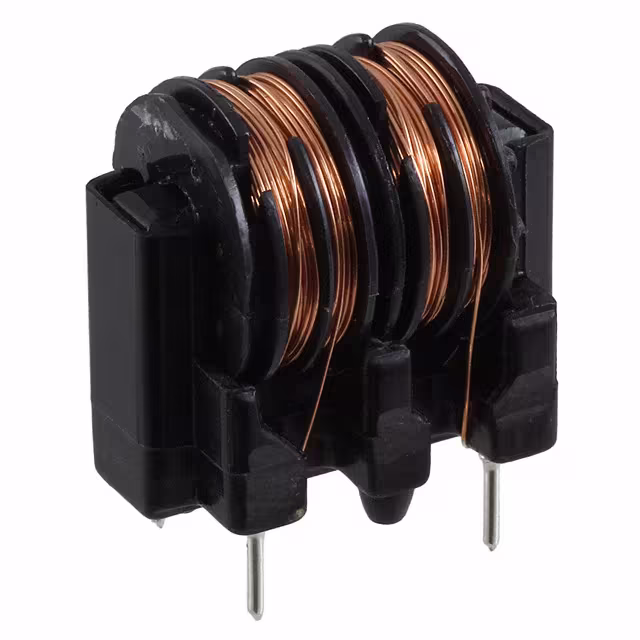

SS11V-R05350-CHCMC 35MH 500MA 2LN TH |
588 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 500mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS20H-08100CMC 10MH 800MA 2LN TH |
113 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 800mA | 660mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SBT-0140WCMC 40UH 500MA 2LN TH |
755 |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 40 µH @ 1 kHz | 500mA | 40mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
