Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF-02-1300CMC 13MH 2A 2LN TH |
2,261 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

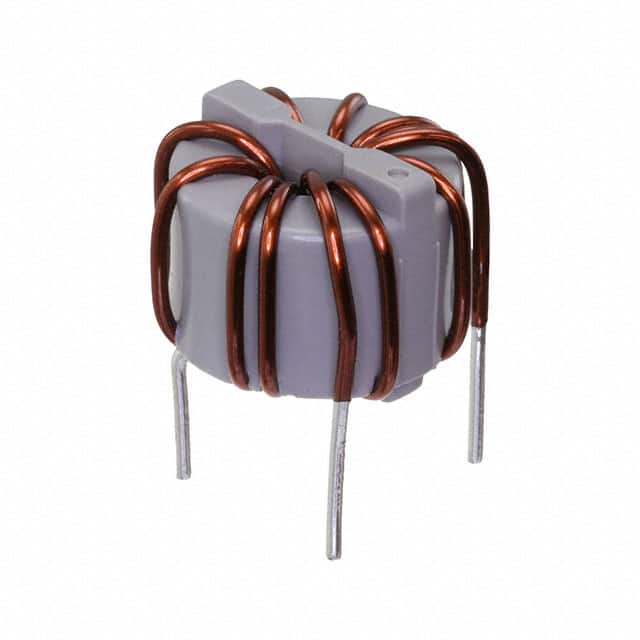

SCF-03-650CMC 6.5MH 3A 2LN TH |
1,986 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-650HCMC 6.5MH 3A 2LN TH |
1,020 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-100-1R1A009JVCMC 500UH 10A 2LN TH AEC-Q200 |
211 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-080-1R0A011JHCMC 1.5MH 8A 2LN TH AEC-Q200 |
127 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

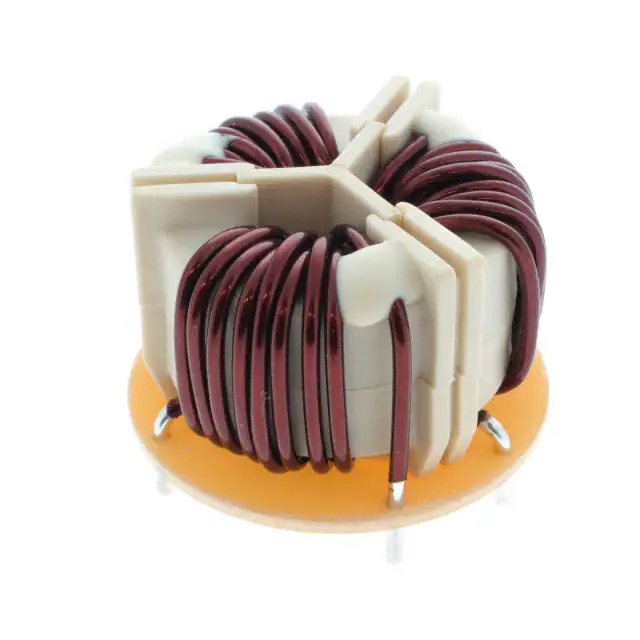

SCF31-150-S1R6A010JHCMC 1MH 15A 3LN TH |
113 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 100 kHz | 15A | 5.4mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF25-08-1300CMC 13MH 8A 2LN TH |
283 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 8A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
LCF080602A250TGCMC 100MA 2LN 25 OHM SMD |
16,829 |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF121002A350TGCMC 100MA 2LN 35 OHM SMD |
6,839 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002S750TGCMC 100MA 2LN 75 OHM SMD |
1,799 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF02-2BF3CMC 2LN SMD ESD |
8,735 |
|
Datasheet | - | Signal Line | 2 | - | - | - | 4Ohm | - | - | -30°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCF121002B900TGCMC 130MA 2LN 90 OHM SMD |
10,641 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 130mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

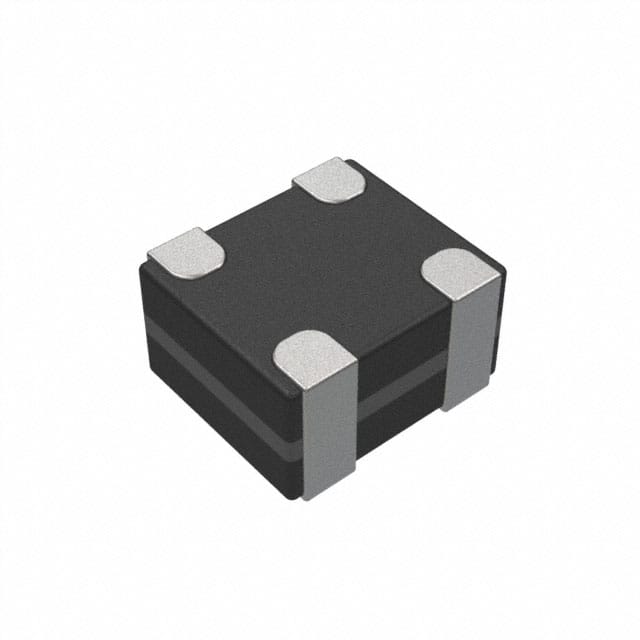

LCF060502A650TGCMC 50MA 2LN 65 OHM SMD |
3,873 |
|
Datasheet | 0202 (0605 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 50mA | 10Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF04-4HSM10YCMC 100MA 4LN SMD ESD |
2,500 |
|
Datasheet | 10-UFDFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

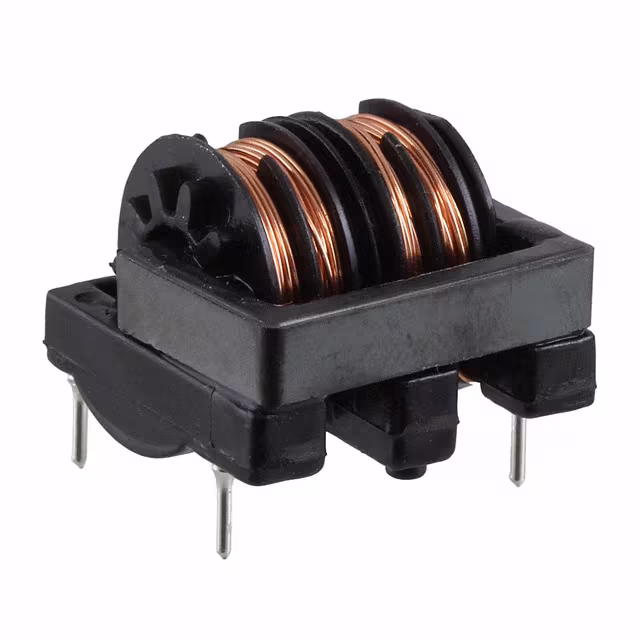

SS11H-07120-CHCMC 12MH 700MA 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HF-02100CMC 10MH 200MA 2LN TH |
841 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HD-25013CMC 13.02UH 2.5A 2LN TH |
933 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 13.02 µH @ 1 kHz | 2.5A | 42mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9HD-40006CMC 5.95UH 4A 2LN TH |
780 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.95 µH @ 1 kHz | 4A | 27.5mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8041MUTAGCMC 100MA 2LN SMD ESD |
5,614 |
|
Datasheet | 6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SU7VC-12002CMC 250UH 1.2A 2LN TH |
1,676 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 250 µH @ 1 kHz | 1.2A | 160mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
