Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SHO-301CMC 4A 2LN TH |
201 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 12 µH @ 100 kHz | 4A | 15.5mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
SU10VFC-R03370CMC 37MH 300MA 2LN TH |
603 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 37 mH @ 1 kHz | 300mA | 4.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-06-01GCMC 105UH 6A 2LN TH |
650 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 105 µH @ 1 kHz | 6A | 10mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSRH7H-M20016CMC 1.6MH 2A 2LN TH |
2,799 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.6 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M05324CMC 32.4MH 500MA 2LN TH |
950 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32.4 mH @ 10 kHz | 500mA | 1.21Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M05408CMC 40.8MH 500MA 2LN TH |
385 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 40.8 mH @ 10 kHz | 500mA | 1.36Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-01-10GCMC 1MH 1A 2LN TH |
1,229 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 1A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-06-10J-BCMC 1MH 6A 2LN TH |
2,193 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | 30mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R04250CMC 25MH 400MA 2LN TH |
2,008 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
M-524CTCMC 500MA 2LN 700 OHM SMD |
1,947 |
|
Datasheet | Vertical, 4 Gull Wing | Signal Line | 2 | 700 Ohms @ 10 MHz | - | 500mA | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SC-10-E035JCMC 350UH 10A 2LN TH |
990 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 10 kHz | 10A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SH-302CMC 3A 2LN TH |
1,297 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 3A | 26mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SC-02-20GCMC 2MH 2A 2LN TH |
444 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SH-432CMC 30UH 2.4A 2LN TH |
303 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 2.4A | 51mOhm | 50V | - | -25°C ~ 60°C | - | - | - | - | - |
|
M-532CTCMC 500MA 3LN SMD |
1,307 |
|
Datasheet | Vertical, 6 Gull Wing | Signal Line | 3 | - | - | 500mA | 90mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SN8D-500CMC 125UH 2A 2LN TH |
1,634 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 125 µH @ 100 kHz | 2A | 100mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-02-10GSCMC 1MH 2A 2LN TH |
1,512 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF-05-060CMC 600UH 5A 2LN TH |
861 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 5A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

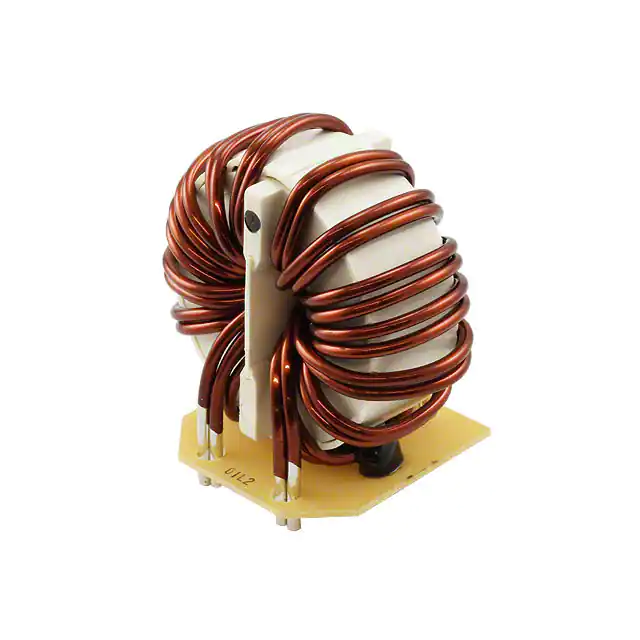

SCR-050-0R9A070JCMC 7MH 5A 2LN TH |
5,436 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

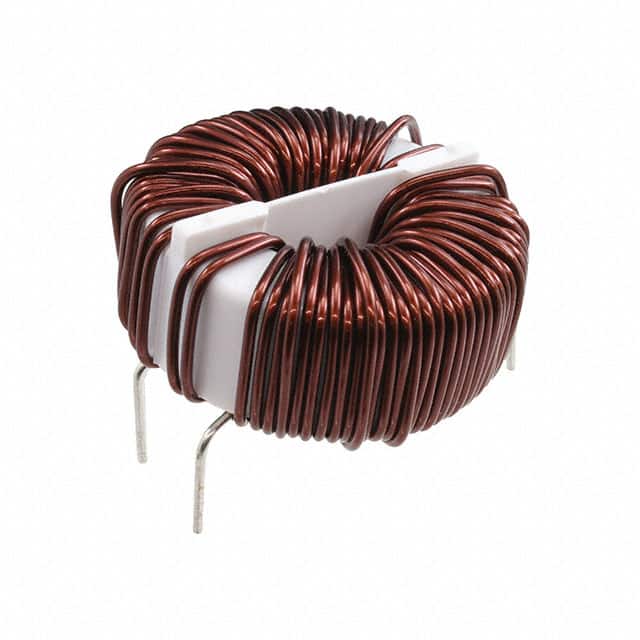

SC-10-100CMC 1MH 10A 2LN TH |
1,069 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
