Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR10V-21038CMC 3.8MH 2.1A 2LN TH |
431 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 2.1A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VD-10010CMC 10UH 1A 2LN TH |
787 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 1A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

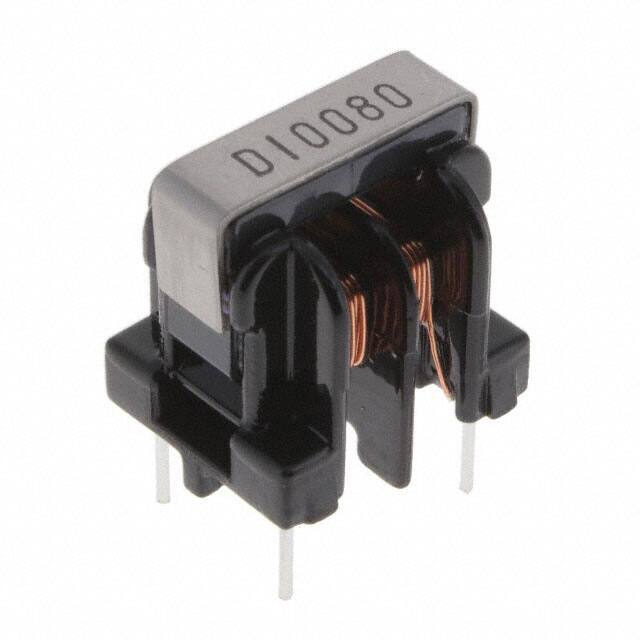

SU10VD-10080CMC 80UH 1A 2LN TH |
426 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 80 µH @ 1 kHz | 1A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE060502A650TGCMC 50MA 2LN 65 OHM SMD ESD |
9,358 |
|
Datasheet | 0202 (0605 Metric), 6 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 50mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR21NV-M031900CMC 190MH 300MA 2LN TH |
1,034 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 190 mH @ 10 kHz | 300mA | 2.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-060220CMC 22MH 600MA 2LN TH |
600 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

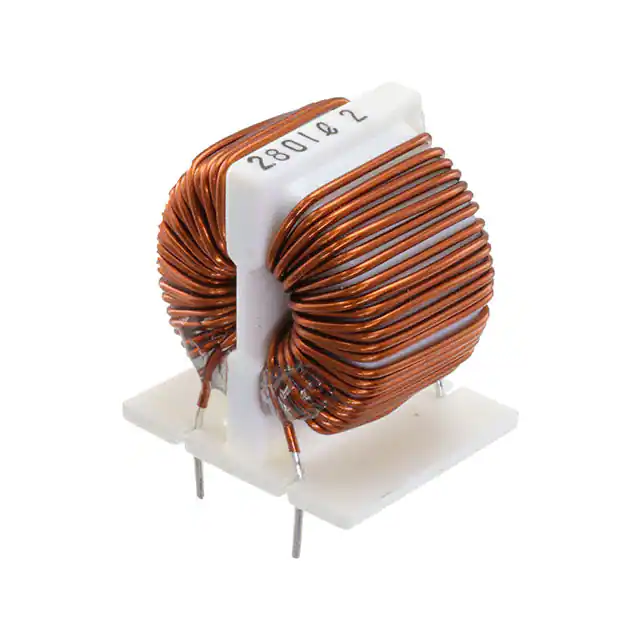

SC-05-06JCMC 600UH 5A 2LN TH |
104 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 5A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-100098CMC 9.8MH 1A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9.8 mH @ 1 kHz | 1A | 600mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSB11V-R15060CMC 6MH 1.5A 2LN TH |
500 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 1 kHz | 1.5A | 300mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SS26V-R200102CMC 10.2MH 2A 2LN TH |
194 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10.2 mH @ 1 kHz | 2A | 250mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH7H-M04596CMC 59.6MH 400MA 2LN TH |
3,676 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 59.6 mH @ 10 kHz | 400mA | 2.02Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M04467CMC 46.7MH 400MA 2LN TH |
1,323 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 46.7 mH @ 10 kHz | 400mA | 1.79Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M17029CMC 2.9MH 1.7A 2LN TH |
894 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.9 mH @ 10 kHz | 1.7A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M03925CMC 92.5MH 300MA 2LN TH |
638 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 92.5 mH @ 10 kHz | 300mA | 3.18Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M10084CMC 8.4MH 1A 2LN TH |
600 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.4 mH @ 10 kHz | 1A | 320mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M15036CMC 3.6MH 1.5A 2LN TH |
462 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.6 mH @ 10 kHz | 1.5A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M08169CMC 16.9MH 800MA 2LN TH |
297 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16.9 mH @ 10 kHz | 800mA | 560mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M20013CMC 1.3MH 2A 2LN TH |
211 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.3 mH @ 10 kHz | 2A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7HS-M17023CMC 2.3MH 1.7A 2LN TH |
175 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.3 mH @ 10 kHz | 1.7A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9V-R05034CMC 3.4MH 500MA 2LN TH |
1,736 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
