Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSRH24NV-16470CMC 47MH 1.6A 2LN TH |
182 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.6A | 327mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-01-30GCMC 3MH 1A 2LN TH |
488 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 1A | 120mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-100CMC 1MH 2A 2LN TH |
325 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

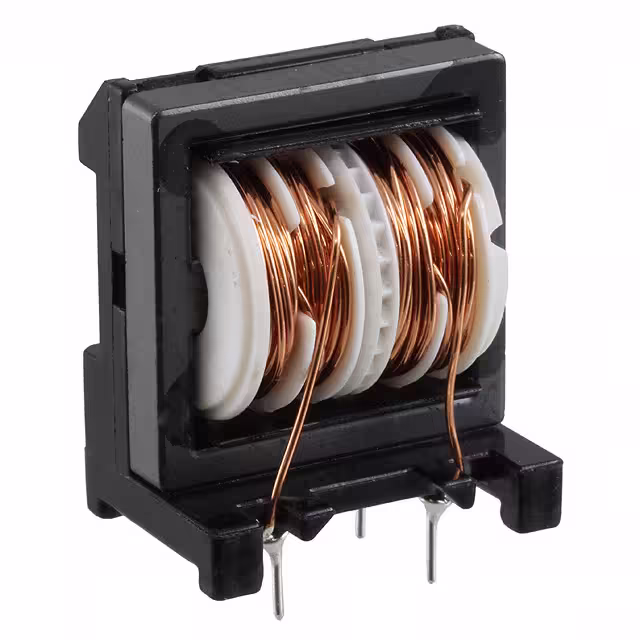

SS28V-K20115-CHCMC 11.5MH 2A 2LN TH |
295 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-D050CMC 50UH 3A 2LN TH |
346 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 3A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-30GCMC 3MH 2A 2LN TH |
1,051 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 85mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
M-522CTCMC 1A 2LN 200 OHM SMD |
2,309 |
|
Datasheet | Vertical, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 20 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SSHB21H-R25056CMC 5.6MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-12-E035JCMC 350UH 12A 2LN TH |
152 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 10 kHz | 12A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS26V-R100330CMC 33MH 1A 2LN TH |
221 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 1A | 700mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN10-500CMC 110UH 3A 2LN TH |
1,249 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 3A | 52mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-04-500CMC 5MH 4A 2LN TH |
321 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

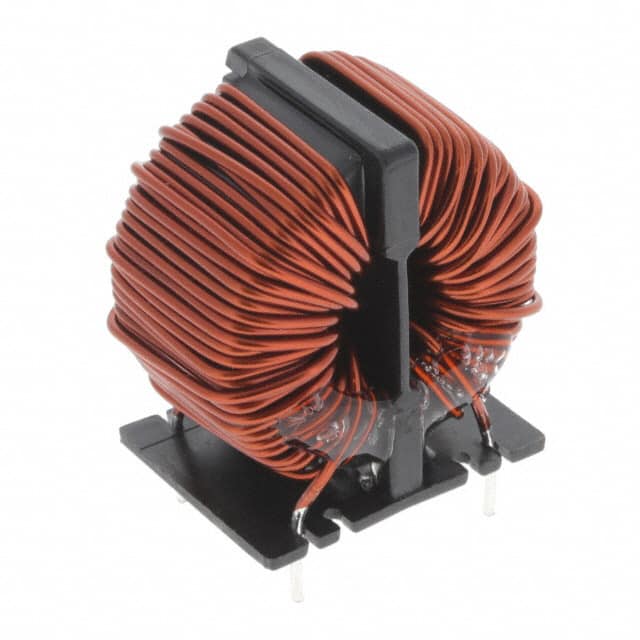

SC-05-100CMC 1MH 5A 2LN TH |
490 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SBS9080-509TCMC 900NH 5A 2LN SMD |
2,654 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 900 nH @ 100 kHz | 5A | 15mOhm | 50V | - | 25°C ~ 50°C | - | - | - | - | - |
|
SS30V-400021CMC 2.1MH 4A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 mH @ 1 kHz | 4A | 70mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-D100CMC 100UH 2A 2LN TH |
415 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 2A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
M-543CTCMC 1A 4LN 700 OHM SMD |
3,534 |
|
Datasheet | - | Signal Line | 4 | 700 Ohms @ 10 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|

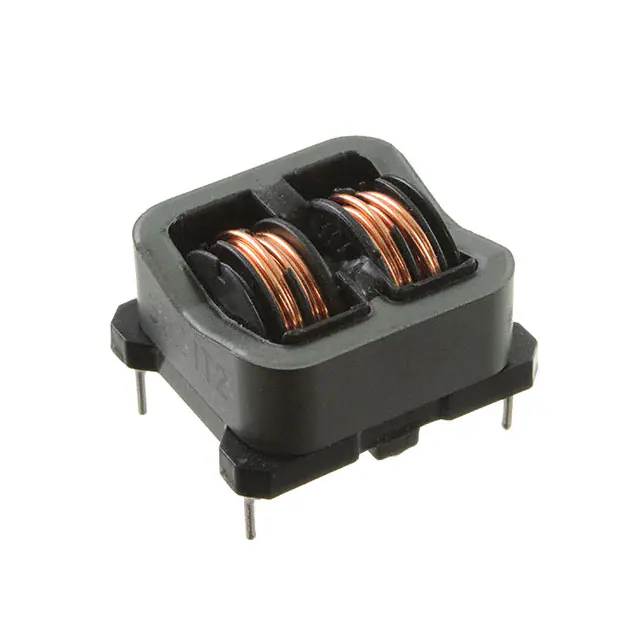

SSHB21HS-30013CMC 1.3MH 3A 2LN TH |
716 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.3 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SC-04-E50JCMC 5.18MH 4.3A 2LN TH |
144 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.18 mH @ 10 kHz | 4.3A | 56.4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-15JSCMC 1.5MH 2A 2LN TH |
269 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 2A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
