Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF25XV-220-1R9A007JVCMC 1.2MH 22A 2LN TH AEC-Q200 |
155 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 22A | 2.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-050-1R0A027JVCMC 17.8MH 5A 2LN TH AEC-Q200 |
108 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 100 kHz | 5A | 30.59mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-300-1R9A003JVCMC 33UH 30A 2LN TH AEC-Q200 |
392 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-300-1R9A003JHCMC 33UH 30A 2LN TH AEC-Q200 |
150 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF12-025-1100JCMC 11.9MH 2.5A 2LN TH |
1,080 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.9 mH @ 10 kHz | 2.5A | 82.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-150-1R3A006JHCMC 440UH 15A 2LN TH AEC-Q200 |
144 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JHCMC 200UH 22A 2LN TH AEC-Q200 |
119 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

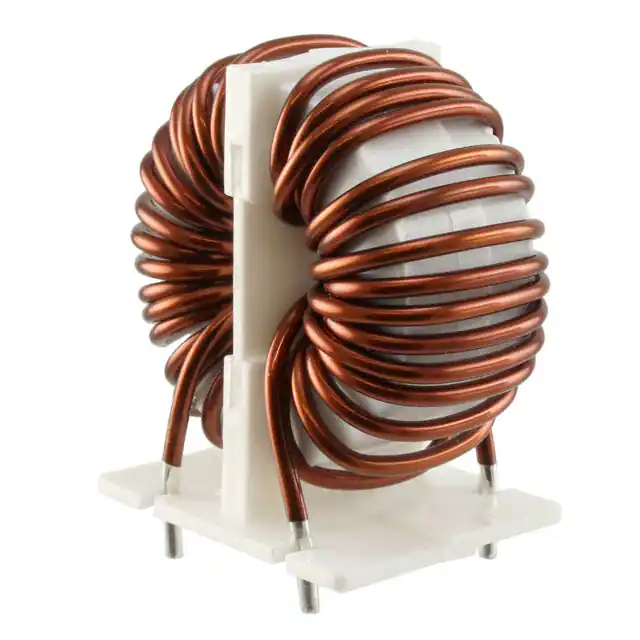

SC-15-10JCMC 1MH 15A 2LN TH |
394 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19XV-080-1R0A011JVCMC 1.5MH 8A 2LN TH AEC-Q200 |
609 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-150-1R3A006JVCMC 440UH 15A 2LN TH AEC-Q200 |
214 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

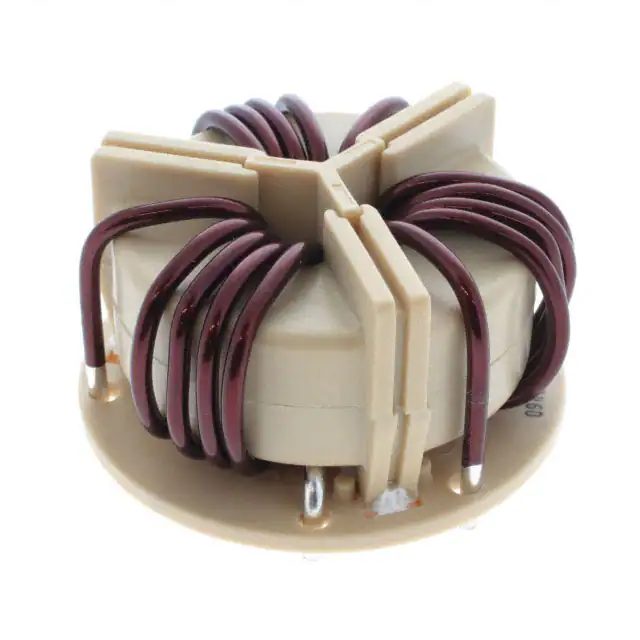

SC-07-S045JHCMC 441UH 7A 3LN TH |
211 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 441 µH @ 10 kHz | 7A | 13mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-20JHCMC 2MH 15A 2LN TH |
195 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR38-350-1R8B008JHCMC 850UH 35A 2LN TH |
457 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR25XV-170-1R7A009JHCMC 1MH 17A 2LN TH AEC-Q200 |
152 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 17A | 3.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-200-2R0A011JHCMC 740UH 20A 2LN TH AEC-Q200 |
230 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 740 µH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-050-1R0A044JVCMC 11.8MH 5A 2LN TH AEC-Q200 |
101 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-070-1R2A030JVCMC 5.5MH 7A 2LN TH AEC-Q200 |
115 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SC-30-100CMC 1MH 30A 2LN TH |
677 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 30A | 6mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCF25XV-310-2R3A004JVCMC 400UH 31A 2LN TH AEC-Q200 |
306 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 31A | 0.95mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-070-1R1A022JVCMC 11.8MH 7A 2LN TH AEC-Q200 |
130 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 7A | 20.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
