Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS11VL-06180CMC 18MH 600MA 2LN TH |
1,312 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-22013CMC 1.3MH 2.2A 2LN TH |
633 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 1 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R180044CMC 4.4MH 1.8A 2LN TH |
594 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 1 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-R150057CMC 5.7MH 1.5A 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.7 mH @ 1 kHz | 1.5A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9VD-07020CMC 20UH 700MA 2LN TH |
999 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 µH @ 1 kHz | 700mA | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9VD-07040CMC 40UH 700MA 2LN TH |
976 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 40 µH @ 1 kHz | 700mA | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602A120TGCMC 100MA 2LN 12 OHM SMD ESD |
2,200 |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SU9H-R07017CMC 1.7MH 700MA 2LN TH |
874 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 700mA | 600mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN5-300CMC 25UH 2A 2LN TH |
2,064 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 2A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
ST-110AHCMC 300MA 2LN 27K OHM TH |
914 |
|
Datasheet | Horizontal, 8 PC Pin | - | 2 | 27 kOhms @ 500 kHz | - | 300mA | 3Ohm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
SSR10VS-13075CMC 7.5MH 1.3A 2LN TH |
698 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 7.5 mH @ 10 kHz | 1.3A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-30016CMC 1.6MH 3A 2LN TH |
290 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.6 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10H-06475CMC 47.5MH 600MA 2LN TH |
288 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ST-110AVCMC 300MA 2LN 27K OHM TH |
740 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 27 kOhms @ 500 kHz | - | 300mA | 3Ohm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
ST-110BHCMC 150MA 2LN TH |
200 |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 2 | - | - | 150mA | 7.5Ohm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
ST-110BVCMC 150MA 2LN TH |
193 |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | - | 150mA | 7.5Ohm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
SSHB21HS-R12220CMC 22MH 1.2A 2LN TH |
360 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

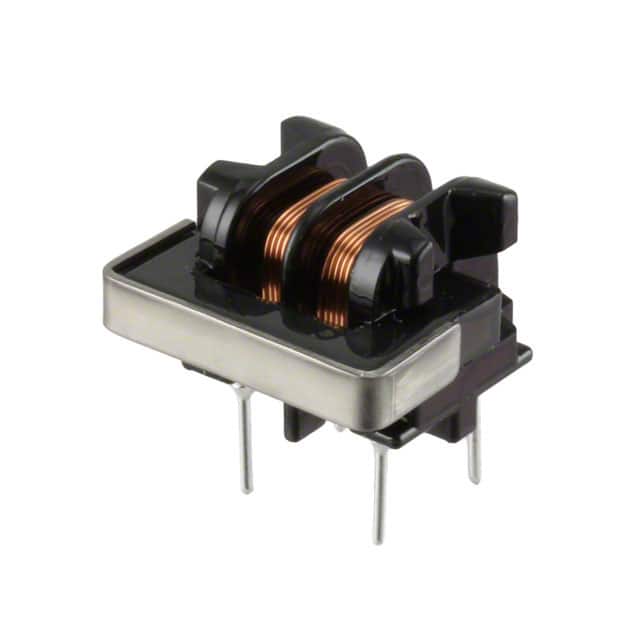

SU9H-10005CMC 500UH 1A 2LN TH |
586 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 1 kHz | 1A | 300mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSR21NV-07405CMC 40.5MH 700MA 2LN TH |
269 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 40.5 mH @ 10 kHz | 700mA | 610mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-25027CMC 2.7MH 2.5A 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 10 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
