Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

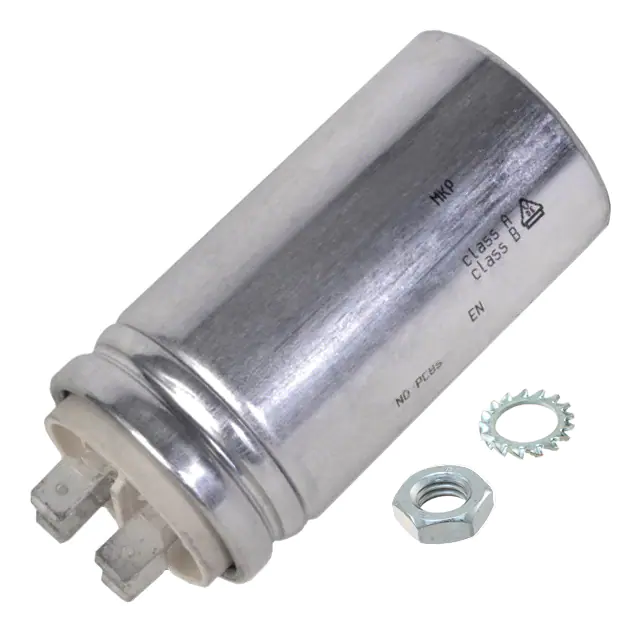

C878AF24250AA1JCAP FILM 2.5UF 5% 470VAC RADIAL |
158 |
|
Datasheet | Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
ECQ-E2106KFCAP FILM 10UF 10% 250VDC RADIAL |
1,366 |
|
Datasheet | Radial | 10 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.055" (26.80mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE450TD5470JD19R06L2CAP FILM 0.047UF 5% 2.5KVDC RAD |
476 |
|
Datasheet | Radial | 0.047 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
LDECD4100JA0N00CAP FILM 1UF 5% 50VDC 2220 |
6,681 |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R60DN51005030JCAP FILM 10UF 5% 63VDC RADIAL |
550 |
|
Datasheet | Radial | 10 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
PHE840MZ7100MF11R06L2CAP FILM 1UF 20% 760VDC RADIAL |
7,935 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4CAPUB3100AA0JCAP FILM 0.1UF 5% 1.2KVDC AXIAL |
3,142 |
|
Datasheet | Axial | 0.1 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13.4 mOhms | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.299" L (14.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C276CC24250AA0JCAP FILM 2.5UF 5% 470VAC RADIAL |
407 |
|
Datasheet | Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R49AR422000B1MCAP FILM 2.2UF 20% 800VDC RADIAL |
380 |
|
Datasheet | Radial | 2.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|

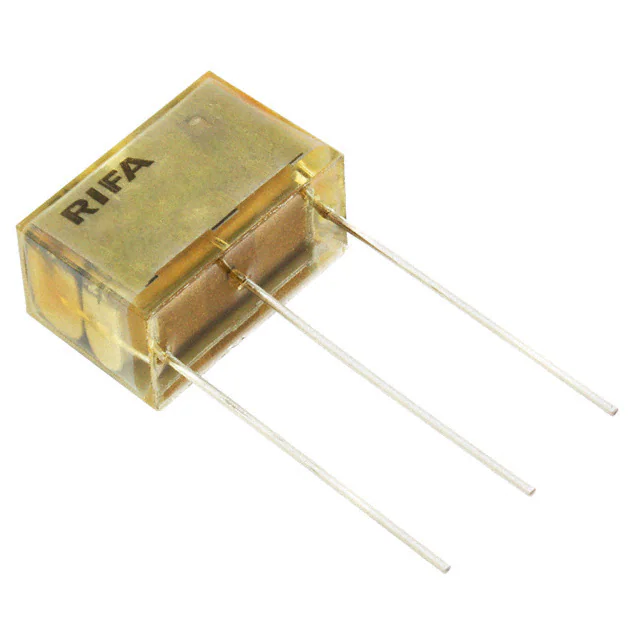

PZB300MC13R30CAP FILM 0.1UF 20% 275VAC RADIAL |
606 |
|
Datasheet | Radial - 3 Leads | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.492" W (24.00mm x 12.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | EMI, RFI Suppression | - | - |
|
R46KR447050M2KCAP FILM 4.7UF 10% 560VDC RADIAL |
3,018 |
|
Datasheet | Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

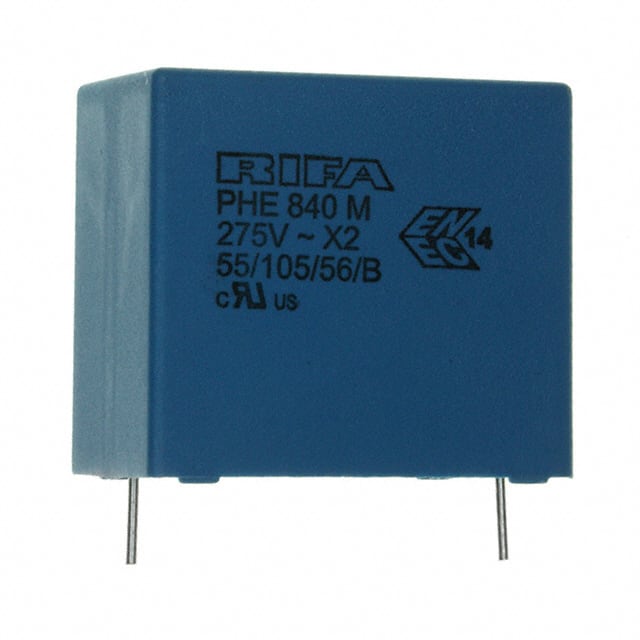

PHE840MZ7220MF14R06L2CAP FILM 2.2UF 20% 760VDC RADIAL |
1,126 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PMR209ME6220M470R30CAP FILM 0.22UF 20% 630VDC RAD |
136 |
|
Datasheet | Radial | 0.22 µF | ±20% | 250V | 630V | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
C4AQLBU5100A1XKCAP FILM 10UF 10% 500VDC RADIAL |
438 |
|
Datasheet | Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE450MD6330JR06L2CAP FILM 0.33UF 5% 630VDC RADIAL |
506 |
|
Datasheet | Radial | 0.33 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
SMC7.3224J50K37TR12CAP FILM 0.22UF 5% 50VDC 2824 |
513 |
|
Datasheet | 2824 (7260 Metric) | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.177" (4.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
R474R415050A1KV057CAP FILM 1.5UF 10% 1KVDC RADIAL |
835 |
|
Datasheet | Radial | 1.5 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-U2474KCVCAP FILM 0.47UF 10% 250VDC 3931 |
1,523 |
|
Datasheet | 3931 (9880 Metric) | 0.47 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.217" (5.50mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1106JFCAP FILM 10UF 5% 100VDC RADIAL |
438 |
|
Datasheet | Radial | 10 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KR447040P1MCAP FILM 4.7UF 20% 560VDC RAD |
871 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
