Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEEE3470KA5N00CAP FILM 0.47UF 10% 100VDC 2824 |
10,435 |
|
Datasheet | 2824 (7260 Metric) | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE840EY7100MD16R06L2CAP FILM 1UF 20% 760VDC RADIAL |
1,110 |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R4Y5I21005000KCAP FILM 500VAC Y1 0.01UF RADIAL |
544 |
|
Datasheet | Radial | 10000 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
|
R4Y5N21005000KCAP FILM 500VAC Y1 0.01UF RADIAL |
218 |
|
Datasheet | Radial | 10000 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
ECQ-E1825KFCAP FILM 8.2UF 10% 100VDC RADIAL |
450 |
|
Datasheet | Radial | 8.2 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F4105JLCAP FILM 1UF 5% 400VDC RADIAL |
893 |
|
Datasheet | Radial | 1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.512" W (23.00mm x 13.00mm) | 0.839" (21.30mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
R463R422000M1MCAP FILM 2.2UF 20% 630VDC RADIAL |
350 |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F4684JBCAP FILM 0.68UF 5% 400VDC RADIAL |
331 |
|
Datasheet | Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECH-U1104JC9CAP FILM 0.1UF 5% 100VDC 2820 |
2,142 |
|
Datasheet | 2820 (7150 Metric) | 0.1 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
F861DU225K310ZLH0JCAP FILM 2.2UF 10% 310VAC RADIAL |
273 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

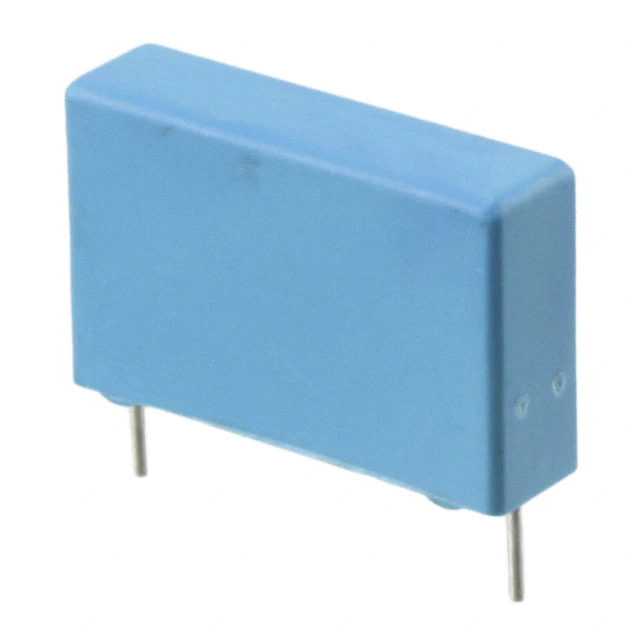

PHE450SD5330JR06L2CAP FILM 0.033UF 5% 2KVDC RADIAL |
125 |
|
Datasheet | Radial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
F161ST105K050VCAP FILM 1UF 10% 50VDC 2824 |
5,684 |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.185" (4.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|

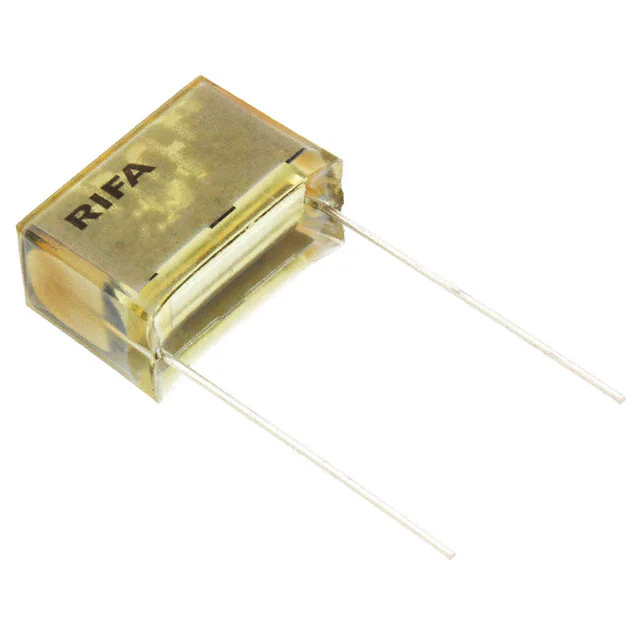

PME271M622KR30CAP FILM 0.22UF 10% 630VDC RAD |
342 |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
C4AQCBU4560A1XJCAP FILM 5.6UF 5% 650VDC RADIAL |
776 |
|
Datasheet | Radial | 5.6 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE426DJ5330FR17T0CAP FILM 0.033UF 1% 100VDC RAD |
5,045 |
|
Datasheet | Radial | 0.033 µF | ±1% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

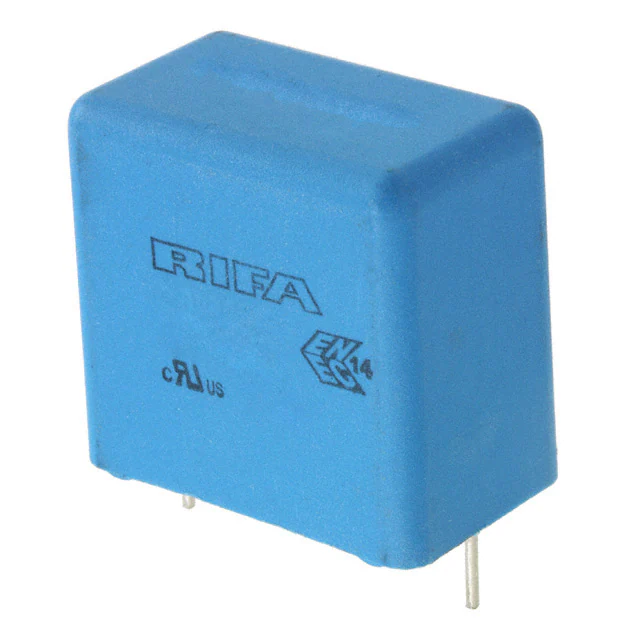

PHE844RD6470MR30L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
1,986 |
|
Datasheet | Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R463R422050M1KCAP FILM 2.2UF 10% 630VDC RADIAL |
1,423 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F861DU225M310LCAP FILM 2.2UF 20% 630VDC RADIAL |
2,719 |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

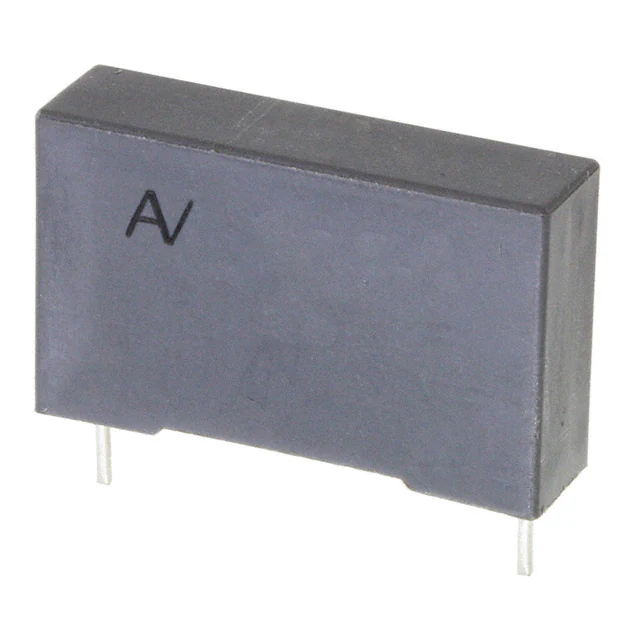

R75IN433050H4JCAP FILM 3.3UF 5% 250VDC RADIAL |
372 |
|
Datasheet | Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H12104JVCAP FILM 0.1UF 5% 1.25KVDC RAD |
909 |
|
Datasheet | Radial | 0.1 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 1.004" (25.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
