Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R82CC4470Z330KCAP FILM 4.7UF 10% 50VDC RADIAL |
1,479 |
|
Datasheet | Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

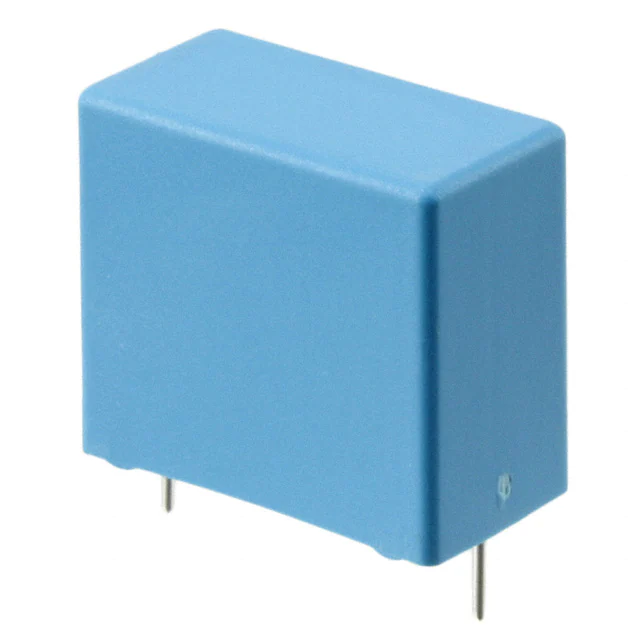

PHE450SD6100JR06L2CAP FILM 0.1UF 5% 2KVDC RADIAL |
401 |
|
Datasheet | Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PME271Y610MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,026 |
|
Datasheet | Radial | 0.1 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | Y2 | - |
|
|
PHE450RD6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
127 |
|
Datasheet | Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|

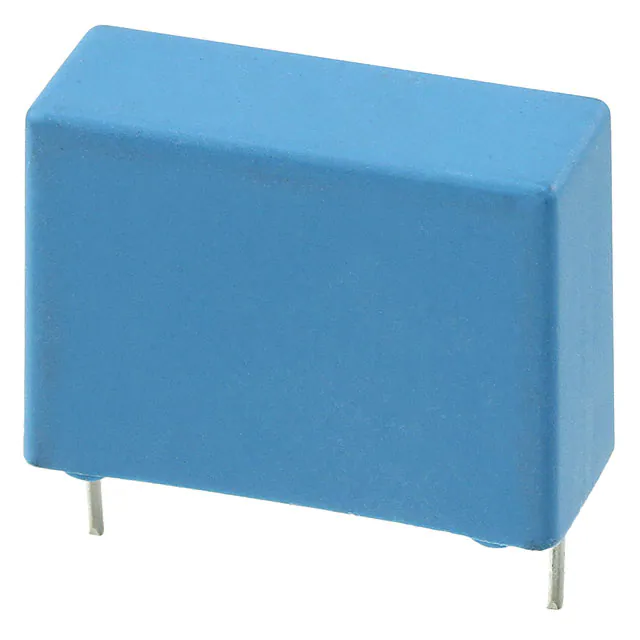

PHE450RD6100JR06L2CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
262 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
R82CC4470Z330JCAP FILM 4.7UF 5% 50VDC RADIAL |
4,933 |
|
Datasheet | Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R75TR32204040JCAP FILM 0.22UF 5% 1.6KVDC RAD |
476 |
|
Datasheet | Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

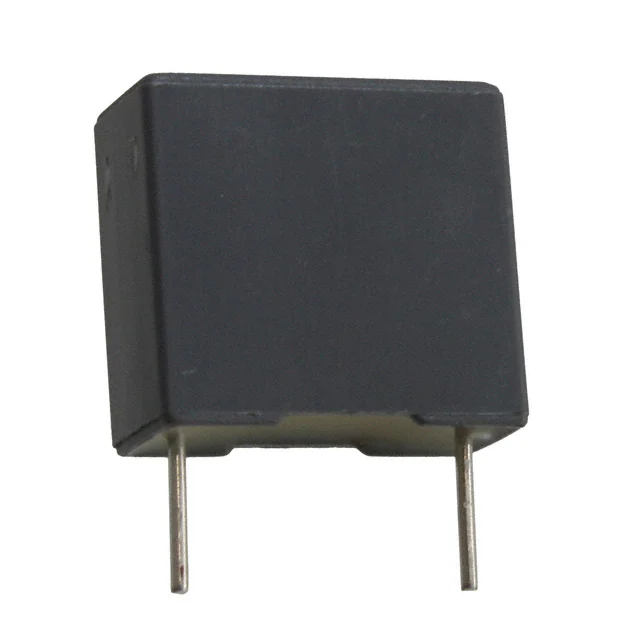

F43MN3500ZA01KCAP FILM 0.5UF 10% 400VDC RADIAL |
410 |
|
Datasheet | Radial | 0.5 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Snubber | - | - |
|

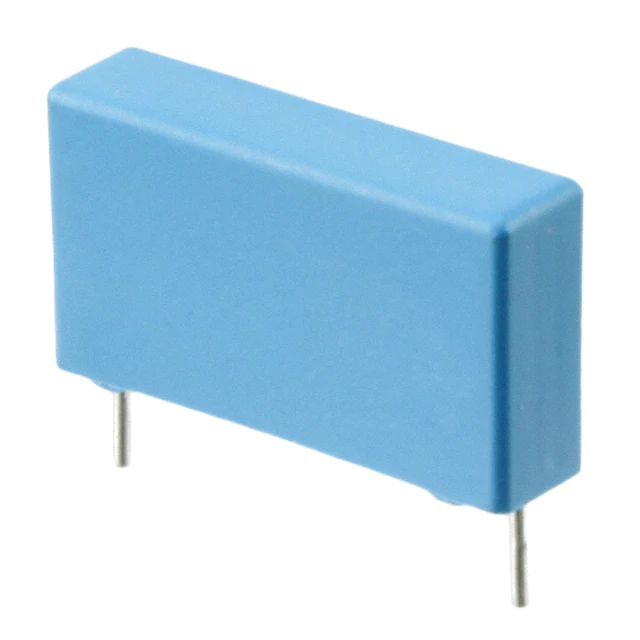

PHE450PD6100JR06L2CAP FILM 0.1UF 5% 1KVDC RADIAL |
247 |
|
Datasheet | Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECQ-E2825JFCAP FILM 8.2UF 5% 250VDC RADIAL |
741 |
|
Datasheet | Radial | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECQ-E6225KFCAP FILM 2.2UF 10% 630VDC RADIAL |
521 |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
R82CC4470AA30JCAP FILM 4.7UF 5% 50VDC RADIAL |
4,137 |
|
Datasheet | Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
 Series Straight 23x11.jpg)
|
ECW-F2395JACAP FILM 3.9UF 5% 250VDC RADIAL |
2,068 |
|
Datasheet | Radial | 3.9 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.531" W (23.80mm x 13.50mm) | 0.819" (20.80mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECQ-E1106KFBCAP FILM 10UF 10% 100VDC RADIAL |
1,598 |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" (26.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R60EN51004030KCAP FILM 10UF 10% 100VDC RADIAL |
311 |
|
Datasheet | Radial | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECH-U1224GCVCAP FILM 0.22UF 2% 100VDC 2825 |
2,824 |
|
Datasheet | 2825 (7163 Metric) | 0.22 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F4205HLCAP FILM 2UF 3% 400VDC RADIAL |
617 |
|
Datasheet | Radial | 2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.969" (24.60mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
R76IR415050H3JCAP FILM 1.5UF 5% 250VDC RAD |
495 |
|
Datasheet | Radial | 1.5 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F863FU335K310ZCAP FILM 3.3UF 10% 630VDC RADIAL |
385 |
|
Datasheet | Radial | 3.3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60DN51004030KCAP FILM 10UF 10% 63VDC RADIAL |
854 |
|
Datasheet | Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
