Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PME271M568MR30CAP FILM 0.068UF 20% 275VAC RAD |
193 |
|
Datasheet | Radial | 0.068 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.307" W (18.50mm x 7.80mm) | 0.532" (13.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
PME295RB3680MR30CAP FILM 680PF 20% 1.5KVDC RAD |
126 |
|
Datasheet | Radial | 680 pF | ±20% | 440V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U2473JC9CAP FILM 0.047UF 5% 250VDC 2416 |
4,807 |
|
Datasheet | 2416 (6041 Metric) | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|

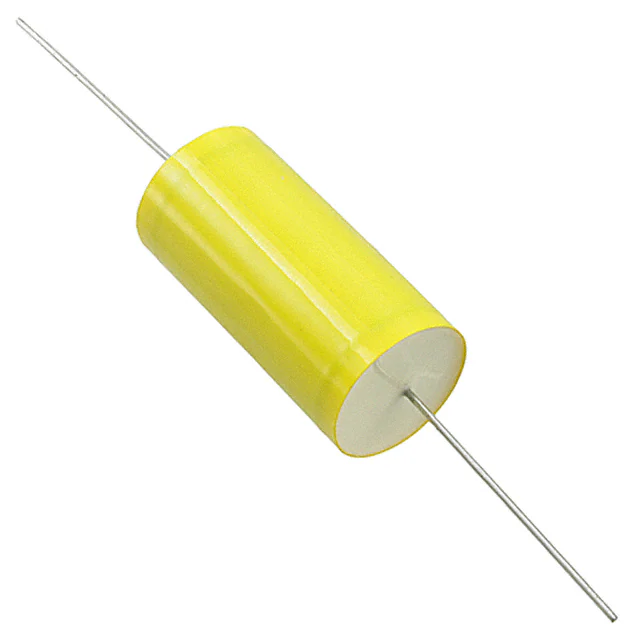

A50QH1470AA00KCAP FILM 4700PF 10% 1KVDC AXIAL |
844 |
|
Datasheet | Axial | 4700 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.295" Dia x 0.551" L (7.50mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
ECQ-UAAF225MCAP FILM 2.2UF 20% 275VAC RADIAL |
476 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
PME271M610MR30CAP FILM 0.1UF 20% 275VAC RADIAL |
8,892 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HD7100JR06L2CAP FILM 1UF 5% 250VDC RADIAL |
2,466 |
|
Datasheet | Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F862DU125K310ZLH0JCAP FILM 1.2UF 10% 630VDC RADIAL |
5,684 |
|
Datasheet | Radial | 1.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-U1C334JC9CAP FILM 0.33UF 5% 16VDC 2416 |
2,481 |
|
Datasheet | 2416 (6041 Metric) | 0.33 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
 Series Straight 26x16x21.jpg)
|
ECW-FA2J225JCAP FILM 2.2UF 5% 630VDC RADIAL |
3,431 |
|
Datasheet | Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.642" W (26.00mm x 16.30mm) | 0.843" (21.40mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECW-H12473JVCAP FILM 0.047UF 5% 1.25KVDC RAD |
2,674 |
|
Datasheet | Radial | 0.047 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.453" W (23.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECW-F4204JLCAP FILM 0.2UF 5% 400VDC RADIAL |
241 |
|
Datasheet | Radial | 0.2 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.583" (14.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
PME295RB4100MR30CAP FILM 1000PF 20% 480VAC RAD |
1,354 |
|
Datasheet | Radial | 1000 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U4154V17CAP FILM 0.15UF 5% 400VDC 3931 |
861 |
|
Datasheet | 3931 (9880 Metric) | 0.15 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.197" (5.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
PME271YB5220MR30CAP FILM 0.022UF 20% 1KVDC RAD |
1,026 |
|
Datasheet | Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
R75PR4100AA30KCAP FILM 1UF 10% 630VDC RADIAL |
11,168 |
|
Datasheet | Radial | 1 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75RN310050H3JCAP FILM 0.1UF 5% 1.25KVDC RAD |
903 |
|
Datasheet | Radial | 0.1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 11.1 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R53BN41005000KCAP FILM 1UF 10% 800VDC RADIAL |
633 |
|
Datasheet | Radial | 1 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AQNBU4170M1WJCAP FILM 1.7UF 5% 1KVDC RADIAL |
570 |
|
Datasheet | Radial | 1.7 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R71VN42204030KCAP FILM 2.2UF 10% 520VDC RADIAL |
660 |
|
Datasheet | Radial | 2.2 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
