Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEDB3100JA0N00CAP FILM 0.1UF 5% 63VDC 1210 |
19,231 |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PFR5472F63J11L4BULKCAP FILM 4700PF 1% 63VDC RADIAL |
3,185 |
|
Datasheet | Radial | 4700 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6433HLCAP FILM 0.043UF 3% 630VDC RAD |
6,546 |
|
Datasheet | Radial | 0.043 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.311" W (13.00mm x 7.90mm) | 0.480" (12.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|

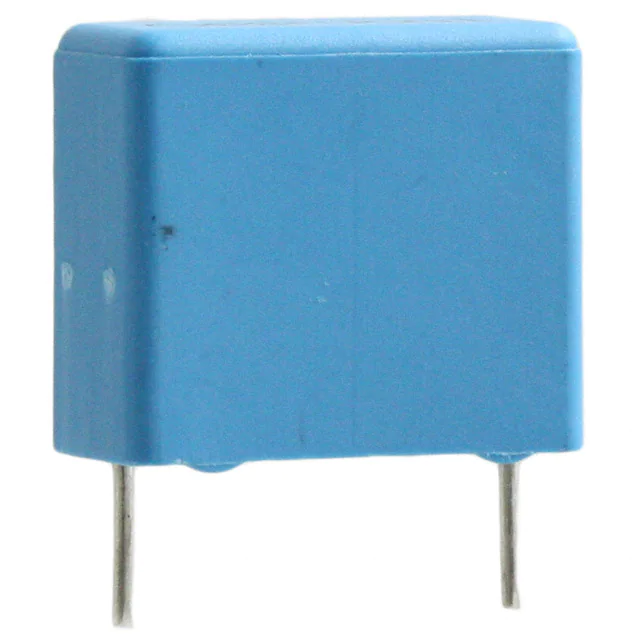

PHE450MB6100JR06CAP FILM 0.1UF 5% 630VDC RADIAL |
1,034 |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF155KCAP FILM 1.5UF 10% 275VAC RADIAL |
689 |
|
Datasheet | Radial | 1.5 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R71PI415050H6KFILM, RADIAL, PULSE, SINGLE META |
749 |
|
Datasheet | Radial | 1.5 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 27 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
PME271Y515MR30CAP FILM 0.015UF 20% 1KVDC RAD |
10,210 |
|
Datasheet | Radial | 0.015 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.433" (11.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
|
PME271Y510MR06CAP FILM 10000PF 20% 1KVDC RAD |
2,392 |
|
Datasheet | Radial | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
|
PME271M510MR30CAP FILM 10000PF 20% 275VAC RAD |
1,988 |
|
Datasheet | Radial | 10000 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 18x10.jpg)
|
ECW-F2W155JACAP FILM 1.5UF 5% 450VDC RADIAL |
60,915 |
|
Datasheet | Radial | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.421" W (18.80mm x 10.70mm) | 0.681" (17.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
PME271M547MR04CAP FILM 0.047UF 20% 630VDC RAD |
5,351 |
|
Datasheet | Radial | 0.047 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
PME264NB5100MR30CAP FILM 10000PF 20% 660VAC RAD |
1,517 |
|
Datasheet | Radial | 10000 pF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
P295BE471M500ACAP FILM 470PF 20% 500VAC RADIAL |
1,382 |
|
Datasheet | Radial | 470 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U1104KC9CAP FILM 0.1UF 10% 100VDC 2416 |
9,660 |
|
Datasheet | 2416 (6041 Metric) | 0.1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
|
R413N310000M1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
5,768 |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R413N310040M1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
292 |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

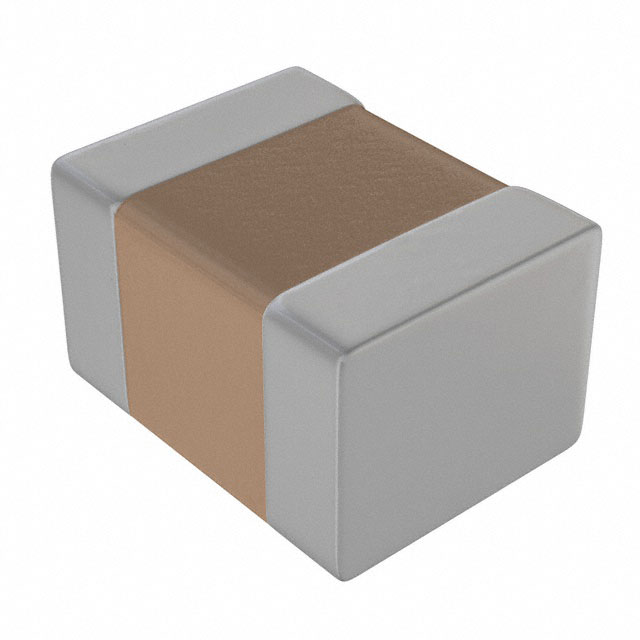

LDBAB3100GC5N0CAP FILM 0.1UF 2% 16VDC 1210 |
32,717 |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±2% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
|

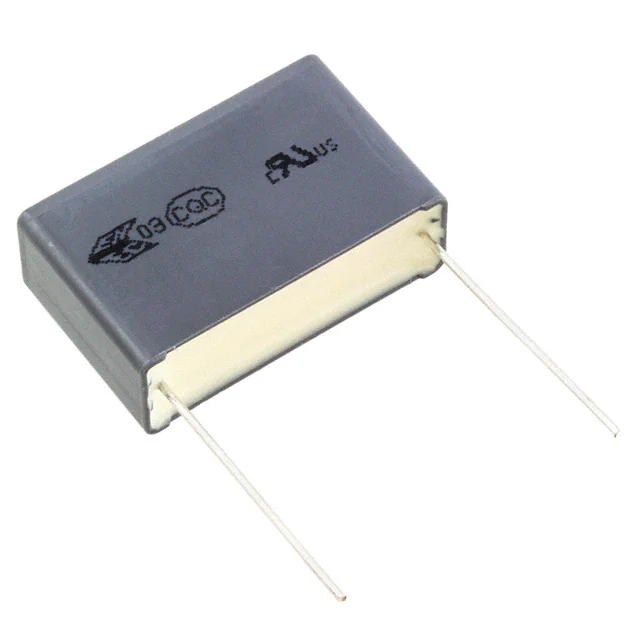

R46KR410050M1KCAP FILM 1UF 10% 560VDC RADIAL |
21,510 |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KR410050M1MCAP FILM 1UF 20% 560VDC RADIAL |
834 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E4105JFCAP FILM 1UF 5% 400VDC RADIAL |
403 |
|
Datasheet | Radial | 1 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
