Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U2103V16CAP FILM 10000PF 5% 250VDC 1913 |
3,117 |
|
Datasheet | 1913 (4833 Metric) | 10000 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECH-U1H683GX9CAP FILM 0.068UF 2% 50VDC 1913 |
6,371 |
|
Datasheet | 1913 (4833 Metric) | 0.068 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
PME271YA4220MR30CAP FILM 2200PF 20% 1KVDC RADIAL |
3,897 |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PFR5101J100J11L4BULKCAP FILM 100PF 5% 100VDC RADIAL |
2,469 |
|
Datasheet | Radial | 100 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

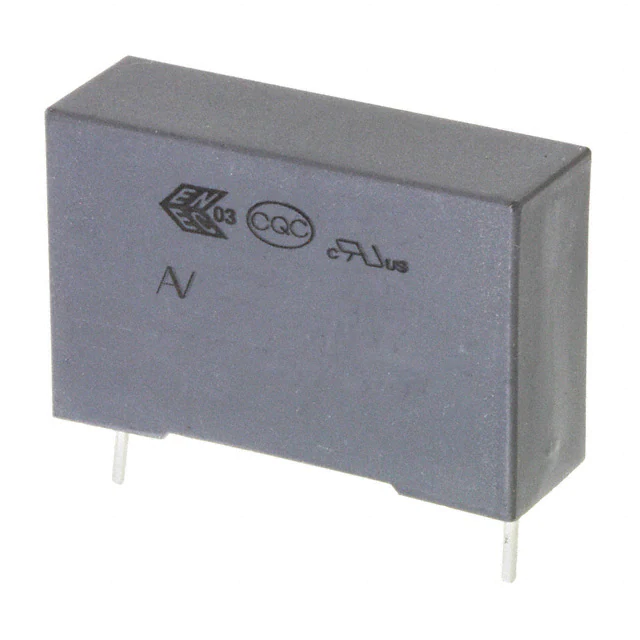

R46KN410000P1MCAP FILM 1UF 20% 560VDC RADIAL |
911 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6243JLCAP FILM 0.024UF 5% 630VDC RAD |
707 |
|
Datasheet | Radial | 0.024 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.421" (10.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R463N410040N1MCAP FILM 1UF 20% 630VDC RAD |
259 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1H683JX9CAP FILM 0.068UF 5% 50VDC 1913 |
6,000 |
|
Datasheet | 1913 (4833 Metric) | 0.068 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
PHE840MD6220MD13R06L2CAP FILM 0.22UF 20% 760VDC RAD |
2,017 |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2335KFCAP FILM 3.3UF 10% 250VDC RADIAL |
20,059 |
|
Datasheet | Radial | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
PFR5221J100J11L4BULKCAP FILM 220PF 5% 100VDC RADIAL |
4,605 |
|
Datasheet | Radial | 220 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PFR5221J63J11L4BULKCAP FILM 220PF 5% 63VDC RADIAL |
2,284 |
|
Datasheet | Radial | 220 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
RSBCC4220Z310KCAP FILM 2.2UF 10% 50VDC RADIAL |
9,986 |
|
Datasheet | Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
ECQ-E2225KBCAP FILM 2.2UF 10% 250VDC RADIAL |
4,368 |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.331" W (20.80mm x 8.40mm) | 0.654" (16.60mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
|
ECW-U1C184JC9CAP FILM 0.18UF 5% 16VDC 1913 |
4,935 |
|
Datasheet | 1913 (4833 Metric) | 0.18 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U2223KC9CAP FILM 0.022UF 10% 250VDC 1913 |
4,640 |
|
Datasheet | 1913 (4833 Metric) | 0.022 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
MMK5105K63J04L4BULKCAP FILM 1UF 10% 63VDC RADIAL |
2,899 |
|
Datasheet | Radial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
ECQ-E2335JFCAP FILM 3.3UF 5% 250VDC RADIAL |
831 |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F6104JLCAP FILM 0.1UF 5% 630VDC RADIAL |
14,378 |
|
Datasheet | Radial | 0.1 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.303" W (18.00mm x 7.70mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

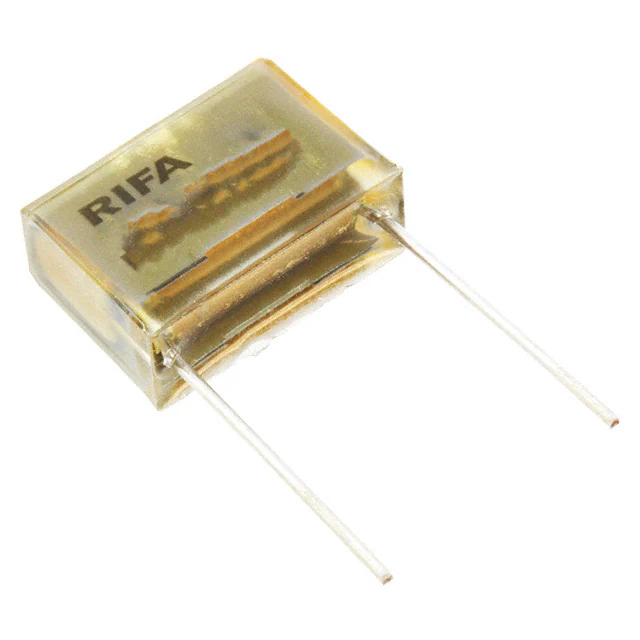

PME271Y522MR30CAP FILM 0.022UF 20% 1KVDC RAD |
8,772 |
|
Datasheet | Radial | 0.022 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
