Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E1475KFCAP FILM 4.7UF 10% 100VDC RADIAL |
924 |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KN410000N1MCAP FILM 1UF 20% 560VDC RAD |
720 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2225JFCAP FILM 2.2UF 5% 250VDC RADIAL |
2,626 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R76QN31505050JFILM, RADIAL, PULSE, DOUBLE META |
1,544 |
|
Datasheet | Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME271Y447MR05CAP FILM 4700PF 20% 1KVDC RADIAL |
1,008 |
|
Datasheet | Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PHE448SB4100JR06CAP FILM 1000PF 5% 2KVDC RADIAL |
7,597 |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
PHE840MX6330MB11R17CAP FILM 0.33UF 20% 760VDC RAD |
3,644 |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

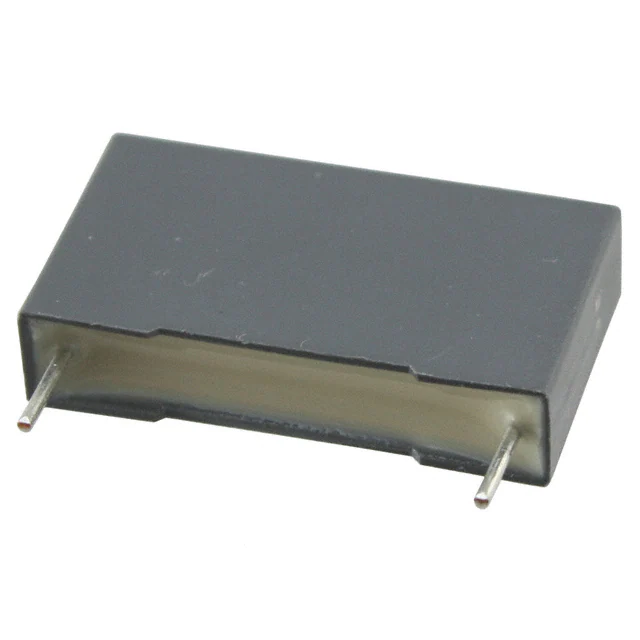

R60IN4100AA30KCAP FILM 1UF 10% 250VDC RADIAL |
917 |
|
Datasheet | Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECW-FD2W335KCAP FILM 3.3UF 10% 450VDC RADIAL |
628 |
|
Datasheet | Radial | 3.3 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996" L x 0.386" W (25.30mm x 9.80mm) | 0.575" (14.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76TN2330SE40JCAP FILM 0.033UF 5% 1.6KVDC RAD |
195 |
|
Datasheet | Radial | 0.033 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEDC3100KA5N00CAP FILM 0.1UF 10% 63VDC 1812 |
9,899 |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|
ECH-U1H473GX9CAP FILM 0.047UF 2% 50VDC 1913 |
5,339 |
|
Datasheet | 1913 (4833 Metric) | 0.047 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2472KC9CAP FILM 4700PF 10% 250VDC 1913 |
3,611 |
|
Datasheet | 1913 (4833 Metric) | 4700 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
LDEEA1100JA0N00CAP FILM 1000PF 5% 100VDC 1206 |
963 |
|
Datasheet | 1206 (3216 Metric) | 1000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MMK15105K100B04L4BULKCAP FILM 1UF 10% 100VDC RADIAL |
157 |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
LDEDC3220KA5N00CAP FILM 0.22UF 10% 63VDC 1812 |
10,841 |
|
Datasheet | 1812 (4532 Metric) | 0.22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDBCA1470GC5N0CAP FILM 4700PF 2% 50VDC 1206 |
2,917 |
|
Datasheet | 1206 (3216 Metric) | 4700 pF | ±2% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-FD2W225JBCAP FILM 2.2UF 5% 450VDC RADIAL |
539 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.760" (19.30mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE850EB5470MB14R17CAP FILM 0.047UF 1.25KVDC RAD |
11,309 |
|
Datasheet | Radial | 0.047 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
ECW-U2222V16CAP FILM 2200PF 5% 250VDC 1913 |
7,475 |
|
Datasheet | 1913 (4833 Metric) | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
