Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E1335JFCAP FILM 3.3UF 5% 100VDC RADIAL |
255 |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
MMK5474K50J01L4BULKCAP FILM 0.47UF 10% 50VDC RADIAL |
7,487 |
|
Datasheet | Radial | 0.47 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
P295BE102M500ACAP FILM 1000PF 20% 500VAC RAD |
2,018 |
|
Datasheet | Radial | 1000 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
PHE448SB3270JR06CAP FILM 270PF 5% 2KVDC RADIAL |
1,344 |
|
Datasheet | Radial | 270 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6103JLCAP FILM 10000PF 5% 630VDC RAD |
1,323 |
|
Datasheet | Radial | 10000 pF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.205" W (12.50mm x 5.20mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F103JDCAP FILM 10000PF 5% 3KVDC RADIAL |
1,230 |
|
Datasheet | Radial | 10000 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.323" W (25.80mm x 8.20mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

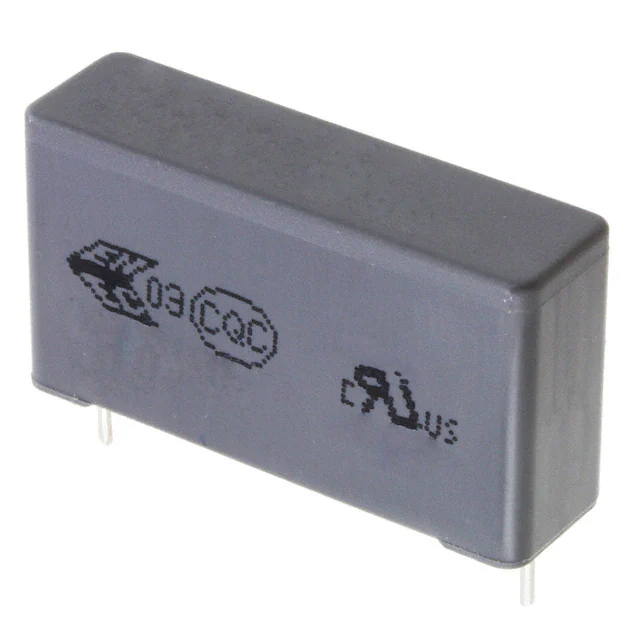

R46KR34700001MCAP FILM 0.47UF 20% 560VDC RAD |
2,271 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R533N368050P0KCAP FILM 0.68UF 10% 630VDC RAD |
1,574 |
|
Datasheet | Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
LDECB3100JA0N00CAP FILM 0.1UF 5% 50VDC 1210 |
14,115 |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
A50MH3100AA60KCAP FILM 0.1UF 10% 400VDC AXIAL |
4,937 |
|
Datasheet | Axial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
PFR5561F63J11L4BULKCAP FILM 560PF 1% 63VDC RADIAL |
3,553 |
|
Datasheet | Radial | 560 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

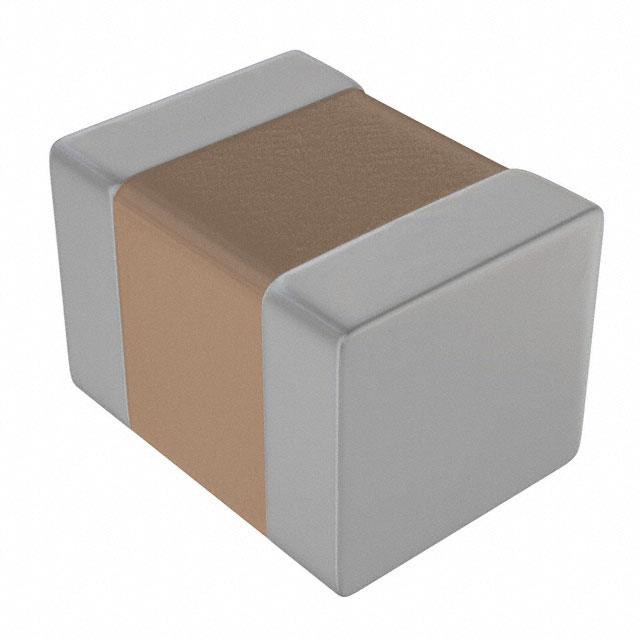

LDBCB2470JC5N0CAP FILM 0.047UF 5% 50VDC 1210 |
2,491 |
|
Datasheet | 1210 (3225 Metric) | 0.047 µF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F6304JLCAP FILM 0.3UF 5% 630VDC RADIAL |
993 |
|
Datasheet | Radial | 0.3 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.429" W (20.50mm x 10.90mm) | 0.736" (18.70mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|

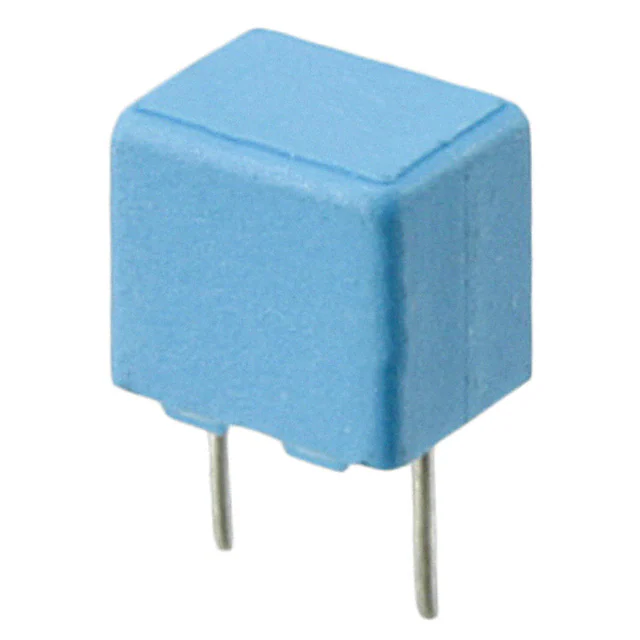

PFR5103J63J12L4BULKCAP FILM 10000PF 5% 63VDC RADIAL |
7,825 |
|
Datasheet | Radial | 10000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R82CC4220DQ70KCAP FILM 2.2UF 10% 50VDC RADIAL |
4,096 |
|
Datasheet | Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-E6474JFCAP FILM 0.47UF 5% 630VDC RADIAL |
1,000 |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.366" W (26.00mm x 9.30mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R76TN24704040JCAP FILM 0.047UF 5% 1.6KVDC RAD |
10,920 |
|
Datasheet | Radial | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
ECW-F6203JLCAP FILM 0.02UF 5% 630VDC RADIAL |
963 |
|
Datasheet | Radial | 0.02 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|

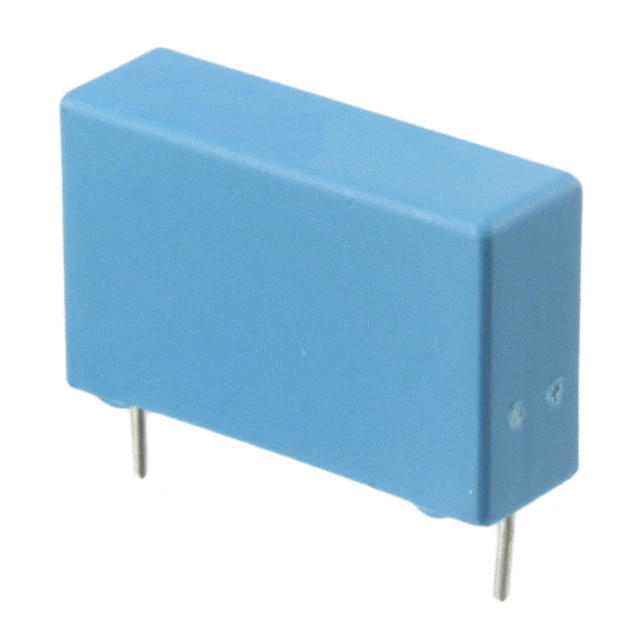

PHE840MY6470MD14R06L2CAP FILM 0.47UF 20% 760VDC RAD |
641 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-H6104HCCAP FILM 0.1UF 3% 630VDC RADIAL |
123 |
|
Datasheet | Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.591" (15.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
