Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R46KN422040P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
1,547 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME271Y547MR30CAP FILM 0.047UF 20% 1KVDC RAD |
894 |
|
Datasheet | Radial | 0.047 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
ECQ-E2475JBCAP FILM 4.7UF 5% 250VDC RADIAL |
675 |
|
Datasheet | Radial | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.469" W (20.80mm x 11.90mm) | 0.866" (22.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
PME271M610KR30CAP FILM 0.1UF 10% 630VDC RADIAL |
815 |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
R46KN4220JHP0MCAP FILM 2.2UF 20% 560VDC RADIAL |
203 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6154JLCAP FILM 0.15UF 5% 630VDC RADIAL |
601 |
|
Datasheet | Radial | 0.15 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.358" W (18.00mm x 9.10mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF225KCAP FILM 2.2UF 10% 275VAC RADIAL |
5,870 |
|
Datasheet | Radial | 2.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1104GC9CAP FILM 0.1UF 2% 100VDC 2820 |
2,614 |
|
Datasheet | 2820 (7150 Metric) | 0.1 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|

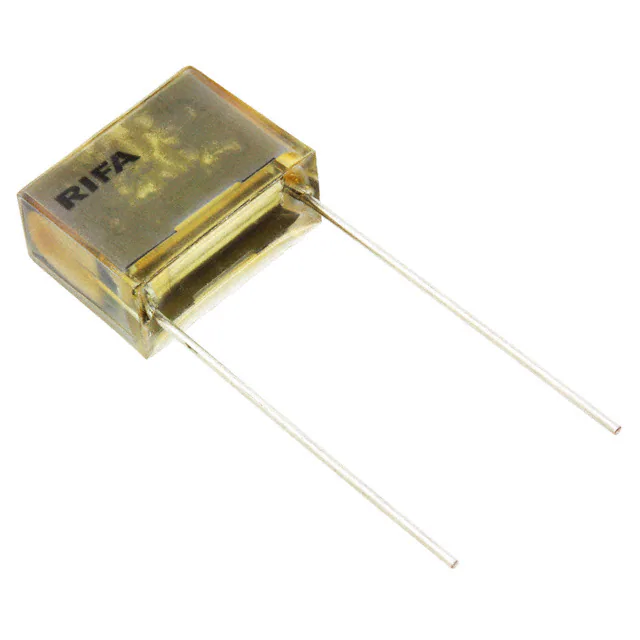

PME271MB6100KR30CAP FILM 0.1UF 10% 275VAC RADIAL |
951 |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R60DN44705030JCAP FILM 4.7UF 5% 63VDC RADIAL |
533 |
|
Datasheet | Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|

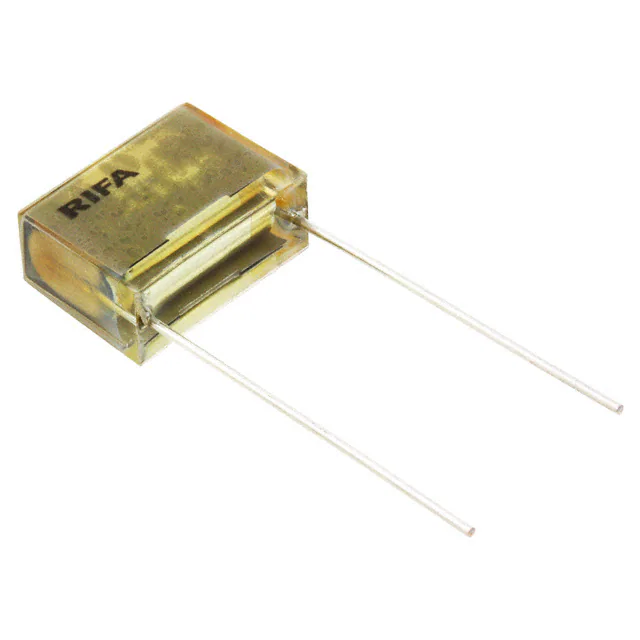

PME271M610MR19T0CAP FILM 0.1UF 20% 630VDC RAD |
203 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
R76QN33305050JFILM, RADIAL, PULSE, DOUBLE META |
246 |
|
Datasheet | Radial | 0.33 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FE2W475P5CAP FILM 4.7UF 5% 450VDC RADIAL |
221 |
|
Datasheet | Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.610" W (31.00mm x 15.50mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
P295BQ472M500ACAP FILM 4700PF 20% 500VAC RAD |
104 |
|
Datasheet | Radial | 4700 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
R76TN31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
675 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-U1394KCVCAP FILM 0.39UF 10% 100VDC 3022 |
1,173 |
|
Datasheet | 3022 (7755 Metric) | 0.39 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.303" L x 0.217" W (7.70mm x 5.50mm) | 0.142" (3.60mm) | Solder Pads | - | General Purpose | - | - |
|
LDEIE3100KA5N00CAP FILM 0.1UF 10% 250VDC 2824 |
6,981 |
|
Datasheet | 2824 (7260 Metric) | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.114" (2.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
LDEQE2100KA5N00CAP FILM 10000PF 10% 1KVDC 2824 |
6,174 |
|
Datasheet | 2824 (7260 Metric) | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.134" (3.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-E6155KFCAP FILM 1.5UF 10% 630VDC RADIAL |
2,095 |
|
Datasheet | Radial | 1.5 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.602" W (31.00mm x 15.30mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-F4224HLCAP FILM 0.22UF 3% 400VDC RADIAL |
143 |
|
Datasheet | Radial | 0.22 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.594" (15.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
