Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

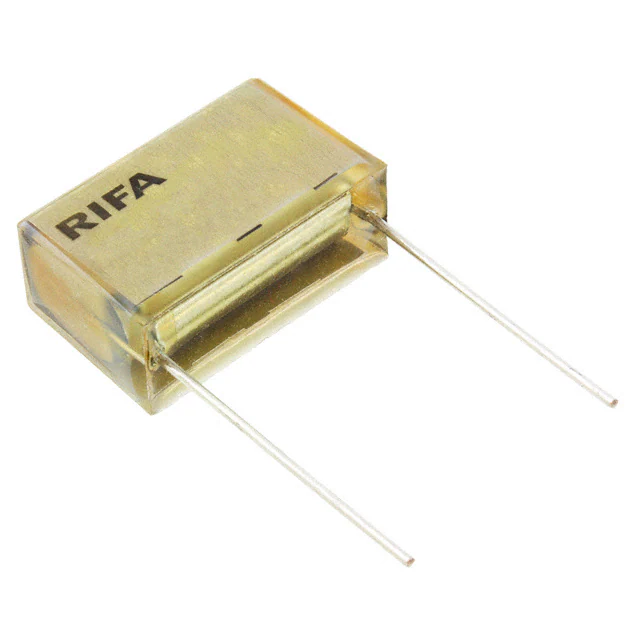

PME271MD6100MR30CAP FILM 0.1UF 20% 630VDC RADIAL |
147 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME261JC6100KR30CAP FILM 0.1UF 10% 1KVDC RADIAL |
234 |
|
Datasheet | Radial | 0.1 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
C4AQSBU4100A1WJCAP FILM 1UF 5% 1.5KVDC RADIAL |
912 |
|
Datasheet | Radial | 1 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
PME271YD6100MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
450 |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
 Series Straight 18x12.jpg)
|
ECW-F2W225JACAP FILM 2.2UF 5% 450VDC RADIAL |
1,984 |
|
Datasheet | Radial | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.504" W (18.80mm x 12.80mm) | 0.764" (19.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R523R422050P0KCAP FILM 2.2UF 10% 630VDC RADIAL |
584 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200, X2 | - |
|
LDECD3470JA5N00CAP FILM 0.47UF 5% 50VDC 2220 |
5,846 |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R76QR3150SE30JCAP FILM 0.15UF 5% 1KVDC RAD |
3,336 |
|
Datasheet | Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE840MY7100MD16R06L2CAP FILM 1UF 20% 760VDC RADIAL |
1,640 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
C4AQQBU4100P1WJCAP FILM 1UF 5% 1.1KVDC RADIAL |
336 |
|
Datasheet | Radial | 1 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 36.4 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
F861DY275K310ZLH0JCAP FILM 2.7UF 10% 310VAC RADIAL |
4,572 |
|
Datasheet | Radial | 2.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R60MR42205040JCAP FILM 2.2UF 5% 400VDC RADIAL |
2,237 |
|
Datasheet | Radial | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PME261JB5330KR30CAP FILM 0.033UF 10% 1KVDC RAD |
591 |
|
Datasheet | Radial | 0.033 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.307" W (18.50mm x 7.80mm) | 0.532" (13.50mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
PME271M615KR30CAP FILM 0.15UF 10% 275VAC RAD |
355 |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
|
R76TR3100SE30JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
806 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6204HLCAP FILM 0.2UF 3% 630VDC RADIAL |
1,837 |
|
Datasheet | Radial | 0.2 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.638" (16.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECH-U1224JCVCAP FILM 0.22UF 5% 100VDC 2825 |
820 |
|
Datasheet | 2825 (7163 Metric) | 0.22 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
PME261JC6100KR19T0CAP FILM 0.1UF 10% 1KVDC RADIAL |
753 |
|
Datasheet | Radial | 0.1 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
R46KR422000M2KCAP FILM 2.2UF 10% 560VDC RADIAL |
1,653 |
|
Datasheet | Radial | 2.2 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R463R422000M2MCAP FILM 2.2UF 20% 630VDC RADIAL |
158 |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
