Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

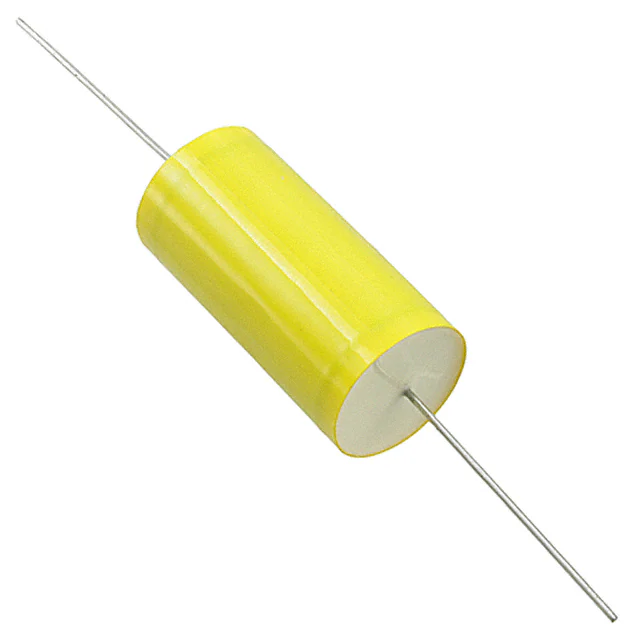

C4GAFUB4100AA0JCAP FILM 1UF 5% 400VDC AXIAL |
404 |
|
Datasheet | Axial | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 8.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.299" L (12.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
R46KR447050P1MCAP FILM 4.7UF 20% 560VDC RAD |
277 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

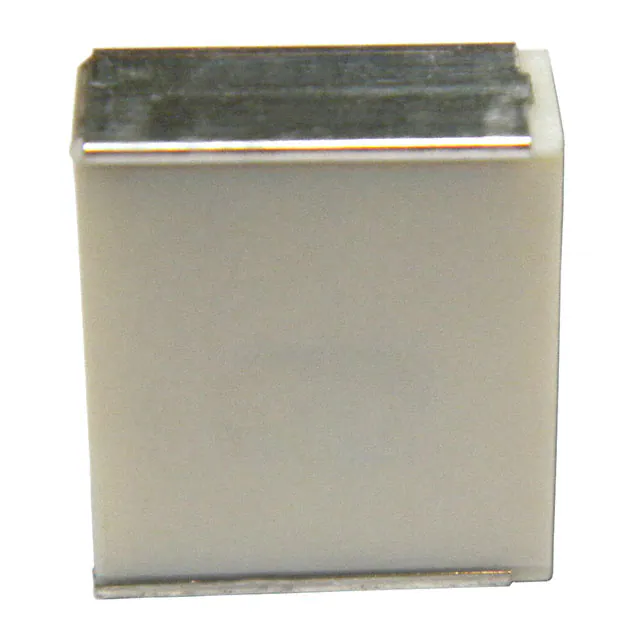

F161YR334K250VCAP FILM 0.33UF 10% 250VDC SMD |
1,535 |
|
Datasheet | Nonstandard | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
PHE426KF7220JR06L2CAP FILM 2.2UF 5% 400VDC RADIAL |
153 |
|
Datasheet | Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E2106JFCAP FILM 10UF 5% 250VDC RADIAL |
964 |
|
Datasheet | Radial | 10 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.075" (27.30mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R75QR41004000JCAP FILM 1UF 5% 1KVDC RAD |
384 |
|
Datasheet | Radial | 1 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R474R410050A1KCAP FILM 1UF 10% 1KVDC RADIAL |
147 |
|
Datasheet | Radial | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
PHE450PF6220JR06L2CAP FILM 0.22UF 5% 1KVDC RADIAL |
749 |
|
Datasheet | Radial | 0.22 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
PHE450KF7100JR06L2CAP FILM 1UF 5% 400VDC RADIAL |
1,124 |
|
Datasheet | Radial | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
|
PHE450RF6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
488 |
|
Datasheet | Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R413W41004000MCAP FILM 1UF 20% 1KVDC RADIAL |
157 |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
LDEEF4220KA0N00CAP FILM 2.2UF 10% 100VDC 4030 |
491 |
|
Datasheet | 4030 (10276 Metric) | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.220" (5.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE844RF6470MR06L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
124 |
|
Datasheet | Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
C4AQQBU4800A12JCAP FILM 8UF 5% 1.1KVDC RADIAL |
1,776 |
|
Datasheet | Radial | 8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
.jpg)
|
LDEIH4100KA5N00CAP FILM 1UF 10% 250VDC 6054 |
1,058 |
|
Datasheet | 6054 (153137 Metric) | 1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.181" (4.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
C4GAFUC4220AA0JCAP FILM 2.2UF 5% 400VDC AXIAL |
265 |
|
Datasheet | Axial | 2.2 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 0.689" Dia x 1.299" L (17.50mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
 Series Straight 23x16.jpg)
|
ECW-F2565JACAP FILM 5.6UF 5% 250VDC RADIAL |
925 |
|
Datasheet | Radial | 5.6 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.638" W (23.80mm x 16.20mm) | 0.921" (23.40mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
R60ER5100AA40KCAP FILM 10UF 10% 100VDC RADIAL |
287 |
|
Datasheet | Radial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
PME271M660KR30CAP FILM 0.6UF 10% 275VAC RADIAL |
270 |
|
Datasheet | Radial | 0.6 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
|
PHE426HF7330JR06L2CAP FILM 3.3UF 5% 250VDC RAD |
414 |
|
Datasheet | Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
