Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450RR6220JR06L2CAP FILM 0.22UF 5% 1.6KVDC RAD |
394 |
|
Datasheet | Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
C274AC35100SA0JCAP FILM 10UF 5% 470VAC RADIAL |
182 |
|
Datasheet | Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C276CAA4630AE0JCAP FILM 6.3UF 5% 470VAC RADIAL |
760 |
|
Datasheet | Radial, Can | 6.3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
R76UR32204030JCAP FILM 0.22UF 5% 2KVDC RADIAL |
223 |
|
Datasheet | Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R60GR5330AA00KCAP FILM 33UF 10% 160VDC RADIAL |
2,503 |
|
Datasheet | Radial | 33 µF | ±10% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
C4GAFUD5100AA1JCAP FILM 10UF 5% 400VDC AXIAL |
179 |
|
Datasheet | Axial | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Through Hole | 1.181" Dia x 1.732" L (30.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C276CC35160AA0JCAP FILM 16UF 5% 470VAC RADIAL |
140 |
|
Datasheet | Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R75MW51004030JCAP FILM 10UF 5% 400VDC RADIAL |
400 |
|
Datasheet | Radial | 10 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

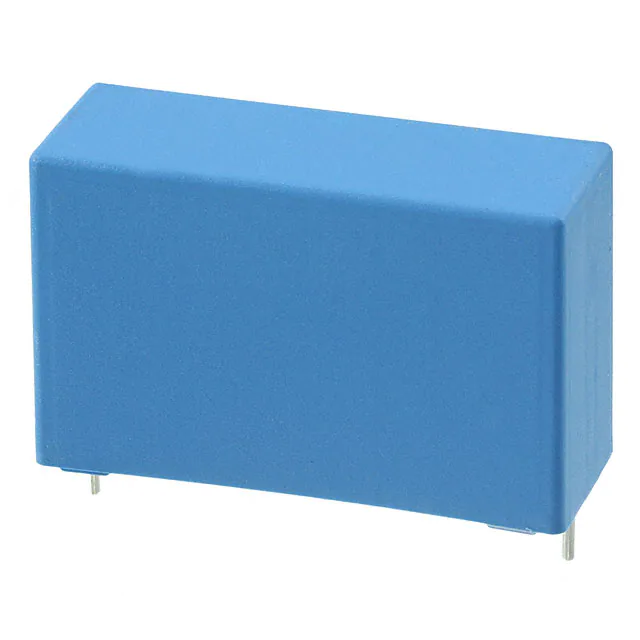

PHE844RR7100MR06L2CAP FILM 1UF 20% 1KVDC RADIAL |
1,136 |
|
Datasheet | Radial | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.610" W (41.00mm x 15.50mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4CAPUC3470AA1JCAP FILM 0.47UF 5% 1.2KVDC AXIAL |
176 |
|
Datasheet | Axial | 0.47 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4CAWUD3330AA1JCAP FILM 0.33UF 5% 2KVDC AXIAL |
257 |
|
Datasheet | Axial | 0.33 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 85°C | Through Hole | 1.122" Dia x 1.732" L (28.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R75GR51004000JCAP FILM 10UF 5% 160VDC RAD |
334 |
|
Datasheet | Radial | 10 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQSBW4800A3JJCAP FILM 8UF 5% 1.5KVDC RADIAL |
108 |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C274AA24600AA0JCAP FILM 6UF 5% 470VAC RADIAL |
501 |
|
Datasheet | Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R75RW412050H4JCAP FILM 1.2UF 5% 1.25KVDC RAD |
124 |
|
Datasheet | Radial | 1.2 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R586R410050T0MCAP FILM 600VAC(X1) 1 UF 20% |
242 |
|
Datasheet | Radial | 1 µF | ±20% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.311" (33.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
R474W42205001KCAP FILM 2.2UF 10% 1KVDC RADIAL |
2,050 |
|
Datasheet | Radial | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60DR52205040JCAP FILM 22UF 5% 63VDC RADIAL |
1,798 |
|
Datasheet | Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
LDEDG4470KA0N00CAP FILM 4.7UF 10% 63VDC 5040 |
1,650 |
|
Datasheet | 5040 (127102 Metric) | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
R474W422000A1MCAP FILM 2.2UF 20% 1KVDC RADIAL |
1,008 |
|
Datasheet | Radial | 2.2 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
