Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQBW5400A3NJCAP FILM 40UF 5% 1.1KVDC RADIAL |
319 |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C878BF35200SA0JCAP FILM 20UF 5% 470VAC RADIAL |
190 |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4BSTBX3470ZAFJCAP FILM 0.47UF 5% 1.6KVDC SCREW |
131 |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | DC Link, DC Filtering; Snubber | - | - |
|
SMC10.2684J50A31TR16CAP FILM 0.68UF 5% 50VDC SMD |
1,296 |
|
Datasheet | Nonstandard | 0.68 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
F873RU185M760ZCAP FILM POLYPROP RAD X1 |
250 |
|
Datasheet | Radial | 1.8 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4BSPBX4100ZAJJCAP FILM 1UF 5% 1.2KVDC SCREW |
363 |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQIBW5600A3NJCAP FILM 60UF 5% 800VDC RADIAL |
168 |
|
Datasheet | Radial - 4 Leads | 60 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
F161ZS106K050VCAP FILM 10UF 10% 50V |
843 |
|
Datasheet | Nonstandard SMD | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
C4AQNEW5550M3AJCAP FILM 55UF 5% 1KVDC RADIAL |
152 |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C276CCF5500LH2JCAP FILM 50UF 5% 470VAC RADIAL |
218 |
|
Datasheet | Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 3.819" (97.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
C878BG35500SA0JCAP FILM 50UF 5% 470VAC RADIAL |
241 |
|
Datasheet | Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C870CG36100AA0JCAP FILM 100UF 5% 470VAC RADIAL |
446 |
|
Datasheet | Radial, Can | 100 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.165" Dia (55.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4AQLEW6210A3BKCAP FILM 210UF 10% 500VDC RADIAL |
157 |
|
Datasheet | Radial - 4 Leads | 210 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C44BXFP4100ZB0JCAP FILM 1UF 5% 2.4KVDC RADIAL |
98 |
|
Datasheet | Radial, Can | 1 µF | ±5% | 1000V (1kV) | 2400V (2.4kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.016" (102.00mm) | Threaded, Male | 0.878" (22.30mm) | Snubber | - | - |
|

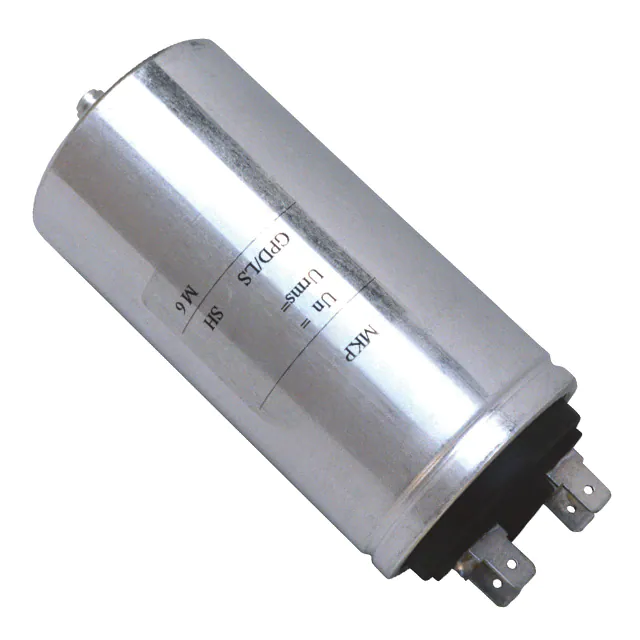

C44AFGP6130ZA0JCAP FILM 130UF 5% 400VDC RADIAL |
70 |
|
Datasheet | Radial, Can | 130 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44AFGP6200ZE0JCAP FILM 200UF 5% 400VDC RADIAL |
102 |
|
Datasheet | Radial, Can | 200 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44ASGP5100ZA0JCAP FILM 10UF 5% 1.5KVDC RADIAL |
64 |
|
Datasheet | Radial, Can | 10 µF | ±5% | 630V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.756" Dia (70.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44UVGT5900M81KCAP FILM 90UF 10% 1.8KVDC RADIAL |
100 |
|
Datasheet | Radial, Can | 90 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.055" (103.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UUGT6320M86KCAP FILM 320UF 10% 1.3KVDC RAD |
40 |
|
Datasheet | Radial, Can | 320 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C4DENPQ5680A8TKCAP FILM 68UF 10% 1KVDC RADIAL |
31 |
|
Datasheet | Radial, Can | 68 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
