LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ILL056V1EVAL BOARD FOR LED5000 |
1 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 5.5V ~ 48V | Board(s) | LED5000 |
|
REFICL8800LED43WTOBO1EVAL BOARD FOR ICL8800 |
3 |
|
Datasheet | - | Bulk | Active | - | 1 Isolated Output | 52V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL8800 |
|
STEVAL-ILL059V1EVAL BOARD FOR A5974D |
1 |
|
Datasheet | - | Box | Active | - | 32 Non-Isolated Outputs | - | - | - | Board(s) | A5974D, STAP16DPS05, STM8A |
|
STEVAL-ILL061V1EVAL BOARD FOR LED1642GW |
1 |
|
Datasheet | - | Box | Active | - | 16 Non-Isolated Outputs | 19V | Dimmable | 6V ~ 28V | Board(s) | LED1642GW |
|
TLC5929EVM-118EVAL BOARD FOR TLC5929 |
1 |
|
Datasheet | - | Box | Active | 50mA | 16 Non-Isolated Outputs | - | - | 3V ~ 5.5V | Board(s) | TLC5929 |
|

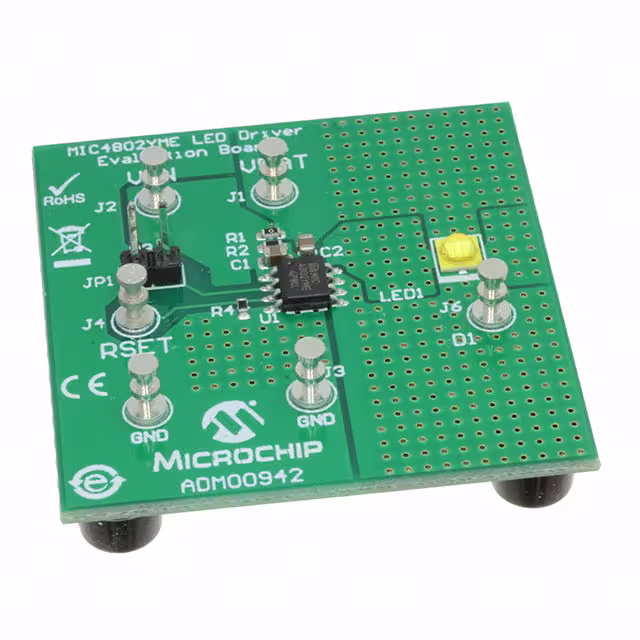

ADM00942EVAL BOARD FOR MIC4802 |
1 |
|
Datasheet | - | Bulk | Active | 800mA | 1 Non-Isolated Output | - | - | 3V ~ 5.5V | Board(s) | MIC4802 |
|
PAM2863EV1EVAL BOARD FOR PAM2863 |
1 |
|
Datasheet | - | Box | Active | 2A | 1 Non-Isolated Output | - | - | 4.5V ~ 40V | Board(s) | PAM2863 |
|
AL1794EV1EVAL BOARD FOR AL1794 |
0 |
|
Datasheet | - | Box | Active | - | 4 Non-Isolated Outputs | - | Dimmable | 6.5V ~ 24V | Board(s) | AL1794 |
|
AL9910AEV2EVAL BOARD FOR AL9910A |
0 |
|
Datasheet | - | Box | Active | 2.5A | 1 Non-Isolated Output | 25V | - | 40V ~ 80V | Board(s) | AL9910A |
|
TPS61040EVM-002EVAL BOARD FOR TPS61040 |
1 |
|
Datasheet | - | Bulk | Active | 20mA | 1 Non-Isolated Output | - | Dimmable | 3V ~ 4.2V | Board(s) | TPS61040 |
|
TPS61042EVM-226EVAL BOARD FOR TPS61042 |
1 |
|
Datasheet | - | Bulk | Active | 20mA | 1 Non-Isolated Output | - | Dimmable | 1.8V ~ 6V | Board(s) | TPS61042 |
|
LM3404MREVALEVAL BOARD FOR LM3404 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 37V | Dimmable | 6V ~ 42V | Board(s) | LM3404 |
|
TPS61161EVM-243EVAL BOARD FOR TPS61160-61 |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 38V | - | 9V ~ 18V | Board(s) | TPS61160-61 |
|
TPS61181EVM-259EVAL BOARD FOR TPS61181 |
1 |
|
Datasheet | - | Box | Active | 120mA | 6 Non-Isolated Outputs | 39V | Dimmable | 5V ~ 24V | Board(s) | TPS61181 |
|
LM3405AXMYEVALEVAL BOARD FOR LM3405A |
1 |
|
Datasheet | - | Box | Active | 750mA | 1 Non-Isolated Output | - | Dimmable | 5V ~ 18V | Board(s) | LM3405A |
|
TPS40211EVM-352EVAL BOARD FOR TPS40211 |
1 |
|
Datasheet | - | Box | Active | 700mA | 1 Non-Isolated Output | 20V ~ 35V | - | 8V ~ 18V | Board(s) | TPS40211 |
|
TPS61500EVM-369EVAL BOARD FOR TPS61500 |
1 |
|
Datasheet | - | Box | Active | 500mA | 1 Non-Isolated Output | 12.5V, 15.5V | - | 2.9V ~ 15V | Board(s) | TPS61500 |
|
TPS75105DSKEVM-529EVAL BOARD FOR TPS75105 |
1 |
|
Datasheet | - | Box | Active | - | 4 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | TPS75105 |
|
LM3401EVAL/NOPBEVAL BOARD FOR LM3401 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 35V | Board(s) | LM3401 |
|
LM3405AEVAL/NOPBEVAL BOARD FOR LM3405A |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 15V | Board(s) | LM3405A |
