LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM3463EVMEVAL BOARD FOR LM3463 |
0 |
|
Datasheet | - | Box | Active | 200mA | 6 Non-Isolated Outputs | 42V | Dimmable | 12V ~ 95V | Board(s) | LM3463 |
|
AL1666+AL8116+AL5822EV1EVAL BOARD FOR AL1666 AL5822 |
1 |
|
Datasheet | - | Box | Active | 1.2A | 1 Non-Isolated Output | 25V ~ 50V | Dimmable | 90 ~ 305 VAC | Board(s) | AL1666, AL5822, AL8116 |
|
DC1268B-BEVAL BOARD FOR LT3755 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 56V | Dimmable | 8V ~ 40V | Board(s) | LT3755 |
|
EVAL-LT8391D-AZEVAL BOARD FOR LT8391D |
1 |
|
Datasheet | - | Box | Active | 1.5A | 1 Non-Isolated Output | 6V ~ 50V | Dimmable | 4V ~ 60V | Board(s) | LT8391D |
|
ZXLD1370/1EV4EVAL BOARD FOR ZXLD1370 ZXLD1371 |
1 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | 27V | - | 10V ~ 30V | Board(s) | ZXLD1370, ZXLD1371 |
|
LP8556TM-EVM/NOPBEVAL BOARD FOR LP8556 |
1 |
|
Datasheet | - | Box | Active | 50mA | 6 Non-Isolated Outputs | 43V | Dimmable | 2.7V ~ 36V | Board(s) | LP8556 |
|
LP8556SQ-EVM/NOPBEVAL BOARD FOR LP8556 |
1 |
|
Datasheet | - | Box | Active | 50mA | 6 Non-Isolated Outputs | 43V | Dimmable | 2.7V ~ 20V | Board(s) | LP8556 |
|
TLC6C5716EVMEVAL BOARD FOR TLC6C5716-Q1 |
1 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | 5V, USB | Board(s), Cable(s) | TLC6C5716-Q1 |
|
|
AL3644EV1EVAL BOARD FOR AL3644 |
1 |
|
Datasheet | - | Box | Active | 1.5A | 2 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 5V | Board(s) | AL3644 |
|
TPS92830EVMEVAL BOARD FOR TPS92830-Q1 |
1 |
|
Datasheet | - | Box | Active | 300mA | 3 Non-Isolated Outputs | - | Dimmable | 9V ~ 16V | Board(s) | TPS92830-Q1 |
|
LED171596AEVMEVAL BOARD FOR LED171596A |
1 |
|
Datasheet | - | Bulk | Active | - | 24 Non-Isolated Outputs | - | - | - | Board(s) | LED171596A |
|
|
BCR402W12VLEDBOARDTOBO1EVAL BOARD FOR BCR402W |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | - | - | 12V | Board(s) | BCR402W |
|
|
BCR402W24VLEDBOARDTOBO1EVAL BOARD FOR BCR402W |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | - | - | 24V | Board(s) | BCR402W |
|
LM3444MR16BBRB/NOPBEVAL BOARD FOR LM3444 |
1 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | LM3444 |
|
LM3485LED EVALEVAL BOARD FOR LM3485 |
1 |
|
Datasheet | - | Box | Active | 1.4A | 1 Non-Isolated Output | 30V | Dimmable | 5V ~ 30V | Board(s) | LM3485 |
|
STEVAL-ILL054V1EVAL BOARD FOR LED2001 |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2001 |
|
STEVAL-ILL079V1EVAL BOARD FOR LED6000 |
1 |
|
Datasheet | - | Bulk | Active | 500mA | 1 Non-Isolated Output | - | Dimmable | 15V ~ 30V | Board(s) | LED6000 |
|
STEVAL-ILL046V1EVAL BOARD FOR ST1CC40 |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 3V ~ 18V | Board(s) | ST1CC40 |
|

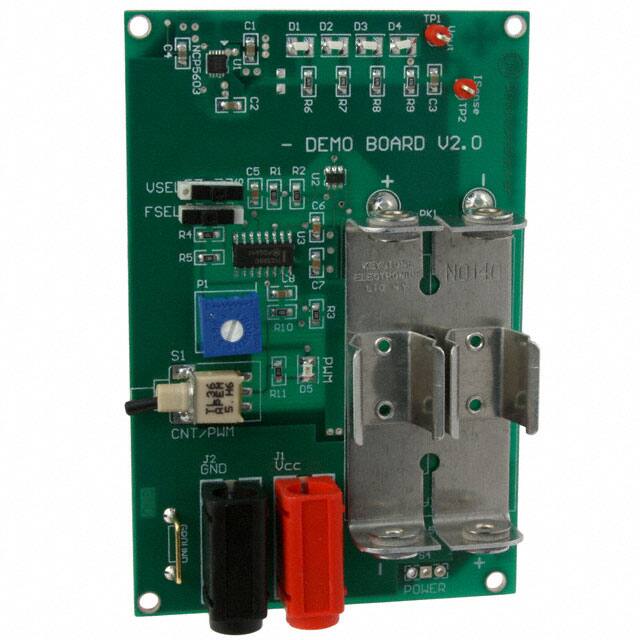

NCP5603GEVBEVAL BOARD FOR NCP5603 |
0 |
|
Datasheet | - | Bulk | Active | 160mA | 1 Non-Isolated Output | 4.5V ~ 5V | Dimmable | 3V ~ 3.6V | Board(s) | NCP5603 |
|
AL5802EV1EVAL BOARD FOR AL5802 |
0 |
|
Datasheet | - | Box | Active | 120mA | 1 Non-Isolated Output | - | - | 4.5V ~ 30V | Board(s) | AL5802 |
