LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC871A-AEVAL BOARD FOR LTC3215 |
1 |
|
Datasheet | - | Box | Active | 125mA | 1 Non-Isolated Output | - | - | 2.9V ~ 4.4V | Board(s) | LTC3215 |
|
EVLHVLED007W35FEVAL BOARD FOR HVLED007 |
1 |
|
Datasheet | - | Bulk | Active | 730mA | 1 Isolated Output | 48V | - | 90 ~ 265 VAC | Board(s) | HVLED007 |
|
EVALHVLED815W15EVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Box | Active | - | 1 Isolated Output | - | - | 11.5V ~ 23V | Board(s) | HVLED815PF |
|
DC1187AEVAL BOARD FOR LTC3212 |
1 |
|
Datasheet | - | Box | Active | 25mA | 3 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LTC3212 |
|
LM3447-A19-120VEVMEVAL BOARD FOR LM3447 |
1 |
|
Datasheet | - | Box | Active | 275mA | 1 Isolated Output | 30V | Dimmable | 90 ~ 135 VAC | Board(s) | LM3447 |
|
DC381AEVAL BOARD FOR LTC3201 |
1 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 4.22V | - | 3.3V | Board(s) | LTC3201 |
|

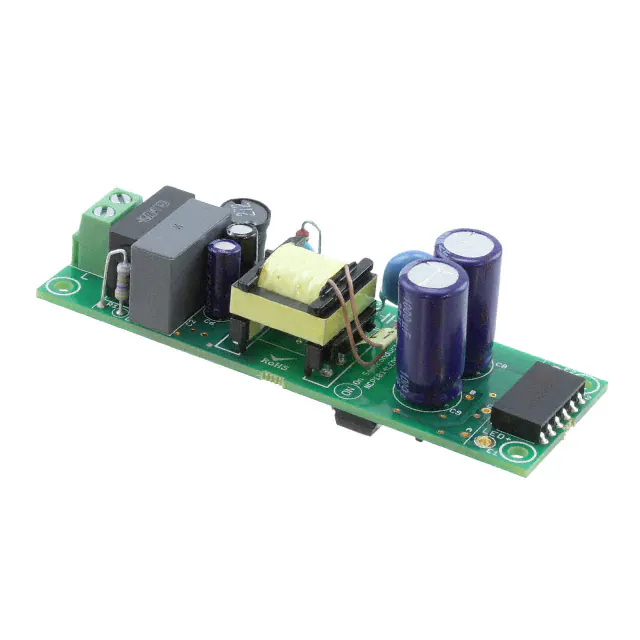

NCP1014LEDGTGEVBEVAL BOARD FOR NCP1014 |
0 |
|
Datasheet | GreenPoint™ | Bulk | Active | 630mA | 1 Isolated Output | 20V | - | 90 ~ 305 VAC | Board(s) | NCP1014 |
|
AL1665+AL5822EV1EVAL BOARD FOR AL1665 AL5822 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 20V ~ 42V | Dimmable | 90 ~ 305 VAC | Board(s) | AL1665, AL5822 |
|
DC1482AEVAL BOARD FOR LT3519 |
1 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 30V | Board(s) | LT3519 |
|
DC1612A-BEVAL BOARD FOR LT3519-2 |
1 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | Dimmable | 7V ~ 24V | Board(s) | LT3519-2 |
|
DC1309AEVAL BOARD FOR LT3474-1 |
0 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 4V ~ 36V | Board(s) | LT3474-1 |
|
DC915AEVAL BOARD FOR LT3466-1 |
1 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | - | - | 3V ~ 14V | Board(s) | LT3466-1 |
|

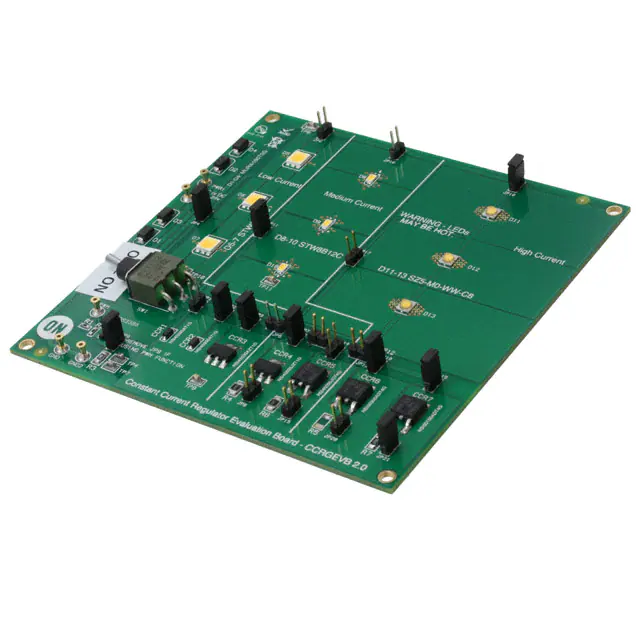

CCRGEVBEVAL BOARD FOR NSI450 |
1 |
|
- |
- | Bulk | Active | - | 1 Non-Isolated Output | - | - | - | Board(s) | NSI45020, NSI45030, NSI45035, NSI45060, NSI45090 |
|
DC850AEVAL BOARD FOR LTC3783 |
1 |
|
Datasheet | - | Box | Active | 360mA | 1 Non-Isolated Output | - | Dimmable | 3V ~ 14.4V | Board(s) | LTC3783 |
|
DC2424AEVAL BOARD FOR LT3964 |
1 |
|
Datasheet | - | Box | Active | 1A | 2 Non-Isolated Outputs | 4.2V | - | 5V ~ 36V | Board(s) | LT3964 |
|
DC1406AEVAL BOARD FOR LT3746 |
1 |
|
Datasheet | - | Box | Active | 20mA | 32 Non-Isolated Outputs | - | Dimmable | 9V ~ 40V | Board(s) | LT3746 |
|
TPS92638EVMEVAL BOARD FOR TPS92638-Q1 |
1 |
|
Datasheet | - | Bulk | Active | - | 8 Non-Isolated Outputs | - | - | 5V ~ 40V | Board(s) | TPS92638-Q1 |
|
DC1947AEVAL BOARD FOR LT3799-1 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Isolated Output | 30V ~ 50V | - | 90 ~ 277 VAC | Board(s) | LT3799-1 |
|
NCV7691RCLV1GEVBEVAL BOARD FOR NCV7691 |
0 |
|
Datasheet | - | Box | Active | - | 8 Non-Isolated Outputs | - | Dimmable | 12V | Board(s) | NCV7691 |
|
|
NCL31010GEVKEVAL BOARD FOR NCL31010 |
0 |
|
Datasheet | - | Bulk | Active | 1.4A | 1 Non-Isolated Output | 16V ~ 38V | Dimmable | 3.3V | Board(s) | NCL31010 |
