LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL8853EV1EVAL BOARD FOR AL8853 |
1 |
|
Datasheet | - | Box | Active | 800mA | 1 Non-Isolated Output | 60V | Dimmable | 20V ~ 36V | Board(s) | AL8853 |
|
|
40WLEDBULBGEVBEVAL BOARD FOR NSIC2020JBT3G |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 100 ~ 140 VAC | Board(s) | NSIC2020JBT3G, NSIC2030JBT3G |
|

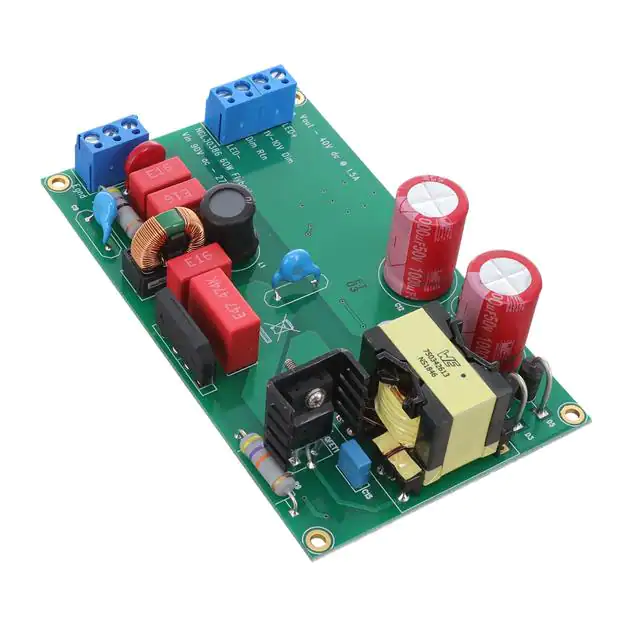

NCL30386LED1GEVBEVAL BOARD FOR NCL30386 |
0 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | 40V | Dimmable | 100 ~ 265 VAC | Board(s) | NCL30386 |
|
|
LOWVOLTAGEP2SGEVBEVAL BOARD FOR NSI50010Y |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 7V ~ 16V | Board(s) | NSI50010Y |
|

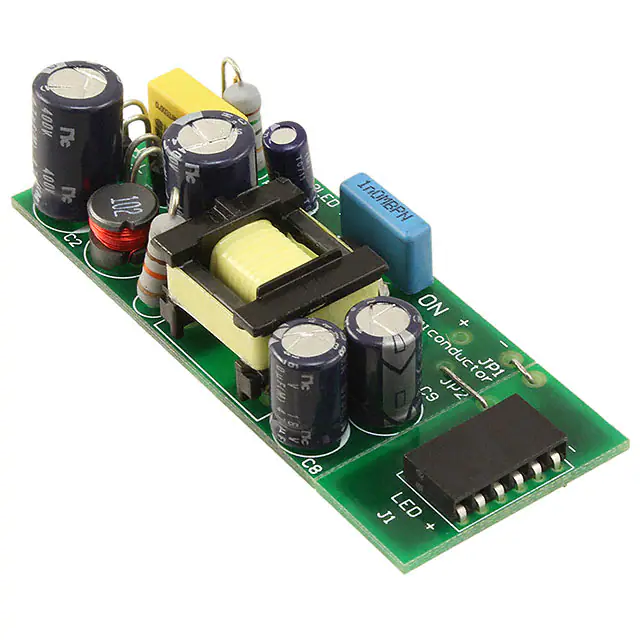

NCP1013LEDGEVBEVAL BOARD FOR NCP1013 |
0 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Isolated Output | 8.6V | - | 85 ~ 265 VAC | Board(s) | NCP1013 |
|

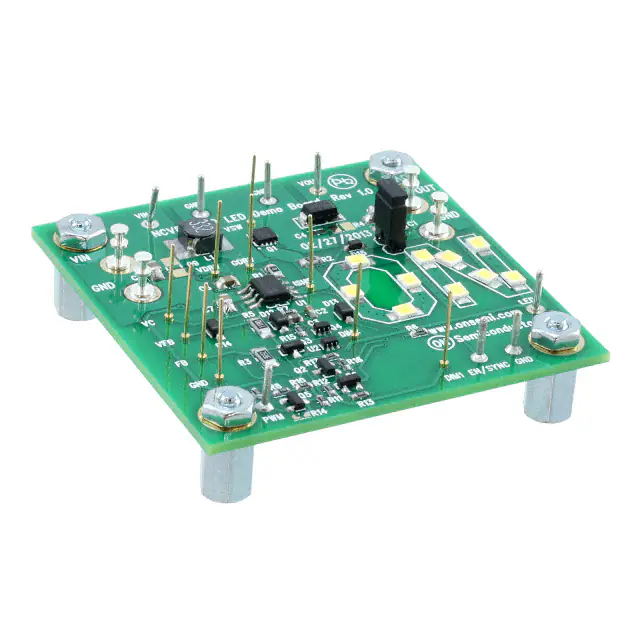

NCV8873LEDBSTGEVBEVAL BOARD FOR NCV8873 |
0 |
|
Datasheet | - | Bulk | Active | 60mA | 1 Non-Isolated Output | 2V ~ 5V | Dimmable | 6V ~ 40V | Board(s) | NCV8873 |
|
|
CAT4238AGEVBEVAL BOARD FOR CAT4238 |
0 |
|
Datasheet | - | Box | Active | 40mA | 1 Non-Isolated Output | - | Dimmable | 2.8V ~ 5.5V | Board(s) | CAT4238 |
|
|
NCL30288LED1GEVBEVAL BOARD FOR NCL30288 |
0 |
|
Datasheet | - | Box | Active | 114mA | 1 Non-Isolated Output | 90V ~ 160V | - | 100 ~ 277 VAC | Board(s) | NCL30288 |
|
DC688AEVAL BOARD FOR LT1942 |
0 |
|
Datasheet | - | Box | Active | 20mA | 2 Non-Isolated Outputs | - | - | 3V ~ 4.2V | Board(s) | LT1942 |
|
CCR120PS3AGEVBEVAL BOARD FOR NSIC2030B |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 100 ~ 130 VAC | Board(s) | NSIC2030B, NSIC2050B |
|
|
60WLEDBULBGEVBEVAL BOARD FOR NSIC2030JBT3G |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 100 ~ 140 VAC | Board(s) | NSIC2030JBT3G, NSIC2050JBT3G |
|
|
NCV7681AGEVBEVAL BOARD FOR NCV7681 |
0 |
|
Datasheet | - | Box | Active | 100mA | 8 Non-Isolated Outputs | - | - | 28V | Board(s) | NCV7681 |
|
|
NCV7681LGEVBEVAL BOARD FOR NCV7681 |
0 |
|
Datasheet | - | Box | Active | 100mA | 8 Non-Isolated Outputs | - | - | 28V | Board(s) | NCV7681 |
|

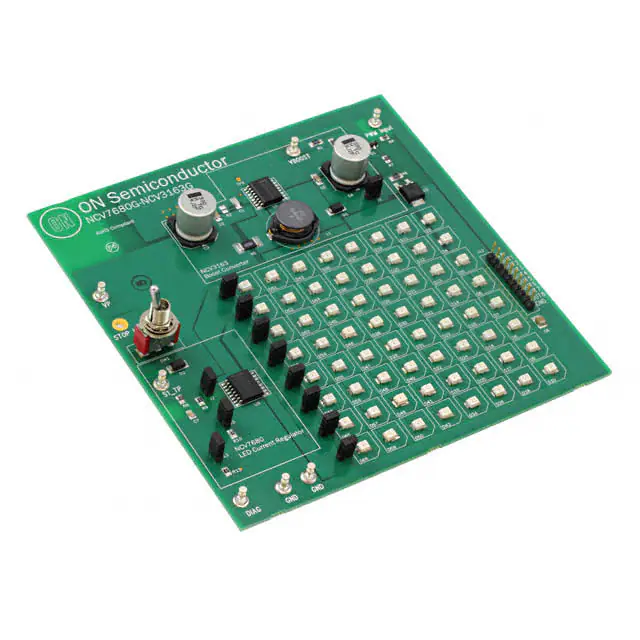

NCV7680PWR2GEVBEVAL BOARD FOR NCV7680 |
1 |
|
Datasheet | - | Box | Active | - | 8 Non-Isolated Outputs | - | Dimmable | - | Board(s) | NCV7680 |
|
DC986AEVAL BOARD FOR LT3496 |
1 |
|
Datasheet | - | Box | Active | 500mA | 3 Non-Isolated Outputs | 31V | Dimmable | 45V | Board(s) | LT3496 |
|
CCR120PS3GEVKEVAL BOARD FOR NSIC2030B |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 100 ~ 130 VAC | Board(s) | NSIC2030B, NSIC2050B |
|
CCR230PS3AGEVBEVAL BOARD FOR NSIC2030B |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 200 ~ 240 VAC | Board(s) | NSIC2030B, NSIC2050B |
|

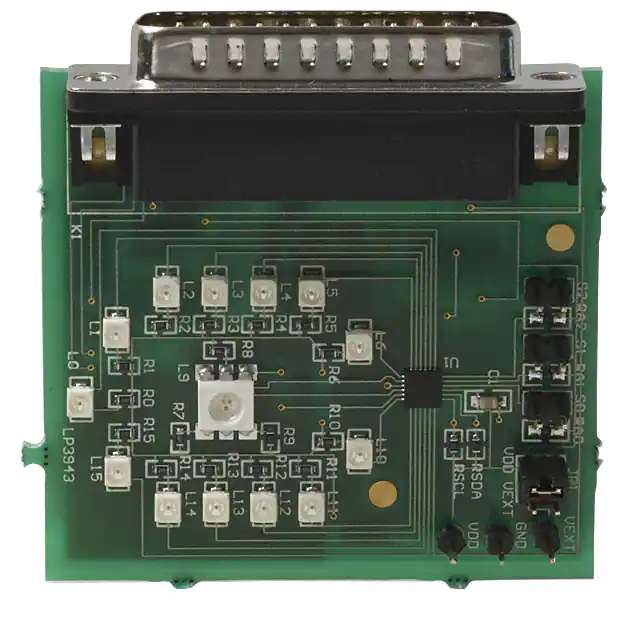

LP3943ISQEVEVAL BOARD FOR LP3943 |
1 |
|
Datasheet | - | Bulk | Active | 25mA | 16 Non-Isolated Outputs | 4V | Dimmable | 2.3V ~ 5.5V | Board(s) | LP3943 |
|

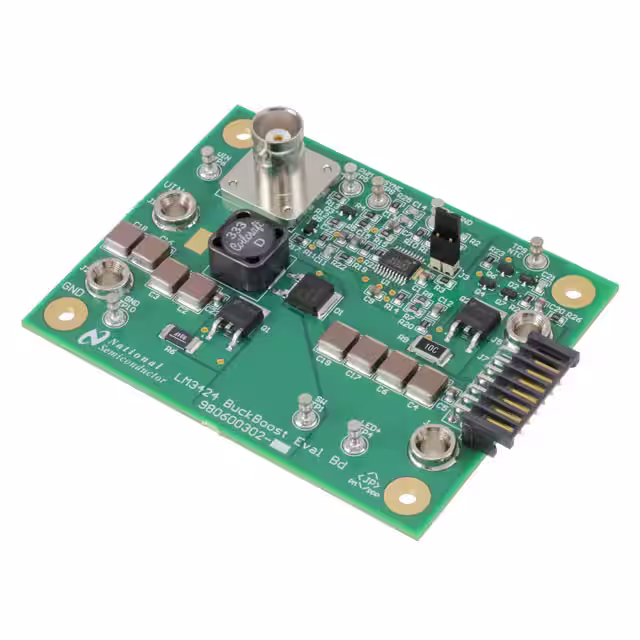

LM3424BKBSTEVAL/NOPBEVAL BOARD FOR LM3424 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 10V ~ 70V | Board(s) | LM3424 |
|

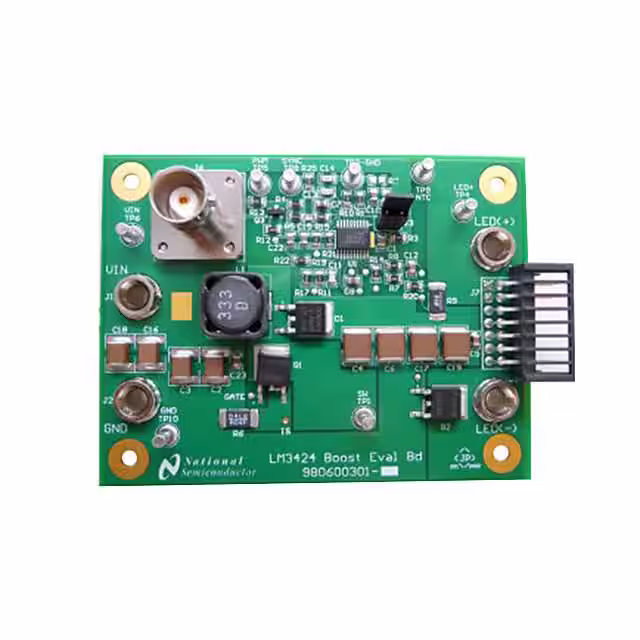

LM3424BSTEVAL/NOPBEVAL BOARD FOR LM3424 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 10V ~ 26V | Board(s) | LM3424 |
