LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR163WBOARDTOBO1EVAL BOARD FOR ILD4035 |
2 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 350mA | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | ILD4035 |
|
MR16 10W BOARDEVAL BOARD FOR ILD4001 |
1 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 1.02A | 1 Non-Isolated Output | 6.6V | - | 12VAC | Board(s) | ILD4001 |
|
ILD4120 BOARDEVAL BOARD FOR ILD4120 |
0 |
|
Datasheet | - | Box | Obsolete | 600mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 30V | Board(s) | ILD4120 |
|
KITLEDXMC1202AS01TOBO1EVAL BOARD FOR XMC1202 |
1 |
|
Datasheet | - | Box | Discontinued at Digi-Key | - | 3 Non-Isolated Outputs | - | - | 12V ~ 48V | Board(s) | XMC1202 |
|
TPS92551EVM/NOPBEVAL BOARD FOR TPS92551 |
0 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | TPS92551 |
|
LM3444MR16BSTRB/NOPBEVAL BOARD FOR LM3444 |
1 |
|
Datasheet | - | Box | Obsolete | - | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | LM3444 |
|
VIPER12-LED-EVEVAL BOARD FOR VIPER12A |
0 |
|
Datasheet | VIPER™ | Box | Obsolete | 1.05A, 700mA or 350mA | 1 Isolated Output | 14V | - | 90 ~ 264 VAC | Board(s) | VIPer12A |
|
STEVAL-ILL084V1EVAL BOARD FOR LED6000 |
1 |
|
Datasheet | - | Bulk | Active | 500mA | 1 Non-Isolated Output | - | Dimmable | 18V ~ 36V | Board(s) | LED6000 |
|
|
STCS1DEMO1EVAL BOARD FOR STCS1 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1.5A | 1 Non-Isolated Output | 4V | Dimmable | 4.5V ~ 40V | Board(s) | STCS1 |
|
|
PROMOTORCHKA2EEVAL BOARD FOR 908QY4 |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | Board(s), Cable(s) | 908QY4 |
|
EVALHVLED805EVAL BOARD FOR HVLED805 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Isolated Output | 12V | - | 185 ~ 265 VAC | Board(s) | HVLED805 |
|
|
EV-L99LDLH32RELEVAL BOARD FOR L99LDLH32 |
0 |
|
- |
- | Bulk | Active | 15mA | 32 Non-Isolated Outputs | 35V | Dimmable | 5.5V ~ 40V | Board(s) | L99LDLH32 |
|

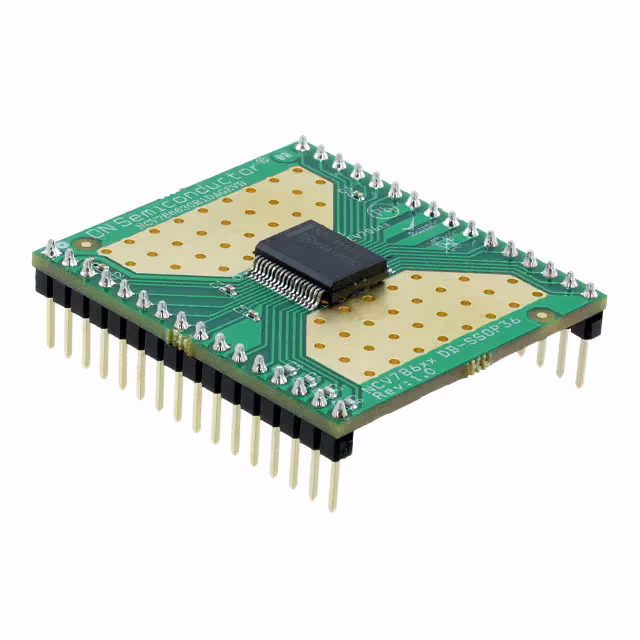

NV786630R1DAGEVBEVAL BOARD FOR NCV78663 |
2 |
|
Datasheet | - | Bulk | Active | - | 2 Non-Isolated Outputs | - | Dimmable | 5V ~ 40V | Board(s) | NCV78663 |
|
STEVAL-ILL051V1EVAL BOARD FOR LED2000 |
0 |
|
Datasheet | - | Bulk | Active | 3A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2000 |
|
STEVAL-ILL088V1EVAL BOARD FOR LED6000 |
0 |
|
- |
- | Bulk | Obsolete | 550mA | 1 Non-Isolated Output | - | Dimmable | 24V ~ 60V | Board(s) | LED6000 |
|
ZXSC310EVEVAL BOARD FOR ZXSC310 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | - | 0.8V ~ 8V | Board(s) | ZXSC310 |
|
STEVAL-ILL003V1EVAL BOARD FOR STP16CP596 |
0 |
|
Datasheet | - | Bulk | Obsolete | 50mA | 32 Non-Isolated Outputs | 4V | Dimmable | 5V ~ 35V | Board(s) | STP16CP596 |
|
STEVAL-TLL001V1EVAL BOARD FOR STLD40D |
0 |
|
Datasheet | - | Box | Obsolete | 20mA | 1 Non-Isolated Output | 37V | - | 3V ~ 5.5V | Board(s) | STLD40D |
|
STEVAL-ILL010V1EVAL BOARD FOR L6902 |
0 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | 20V | Dimmable | 8V ~ 30V | Board(s) | L6902 |
|
STEVAL-ILL046V2EVAL BOARD FOR ST1CC40 |
0 |
|
Datasheet | - | Box | Active | 3A | 1 Non-Isolated Output | - | - | 3V ~ 18V | Board(s) | ST1CC40 |
