LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSLB9082DGAEVAL BOARD FOR MSL3162 |
0 |
|
Datasheet | - | Tube | Obsolete | - | 8 Non-Isolated Outputs | - | Dimmable | 10V ~ 16V | Board(s) | MSL3162 |
|

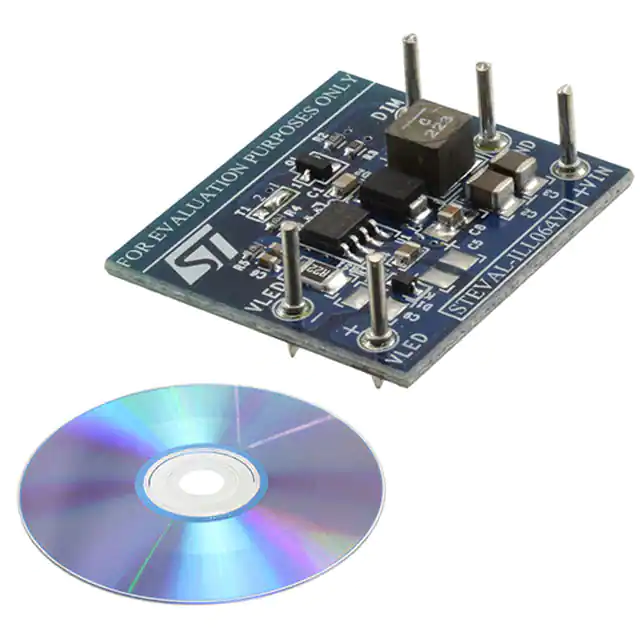

STEVAL-ILL064V1EVAL BOARD FOR LED5000 |
0 |
|
Datasheet | - | Box | Active | 3A | 1 Non-Isolated Output | - | Dimmable | 5.5V ~ 48V | Board(s) | LED5000 |
|

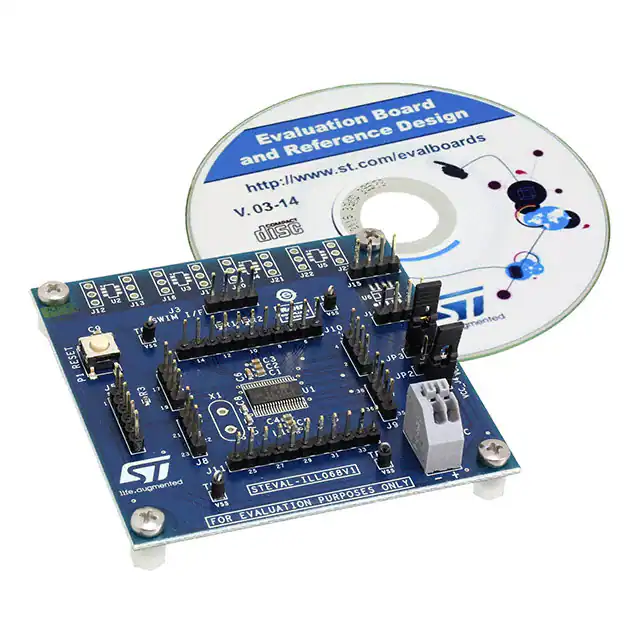

STEVAL-ILL068V1EVAL BOARD FOR STLUX385A |
2 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | Board(s) | STLUX385A |
|
|
AL8805EV1EVAL BOARD FOR AL8805 |
0 |
|
- |
- | Box | Not For New Designs | 680mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 30V | Board(s) | AL8805 |
|
|
AL8805EV2EVAL BOARD FOR AL8805 |
0 |
|
- |
- | Box | Not For New Designs | 680mA | 1 Non-Isolated Output | - | - | 12VAC, 12V ~ 20V | Board(s) | AL8805 |
|

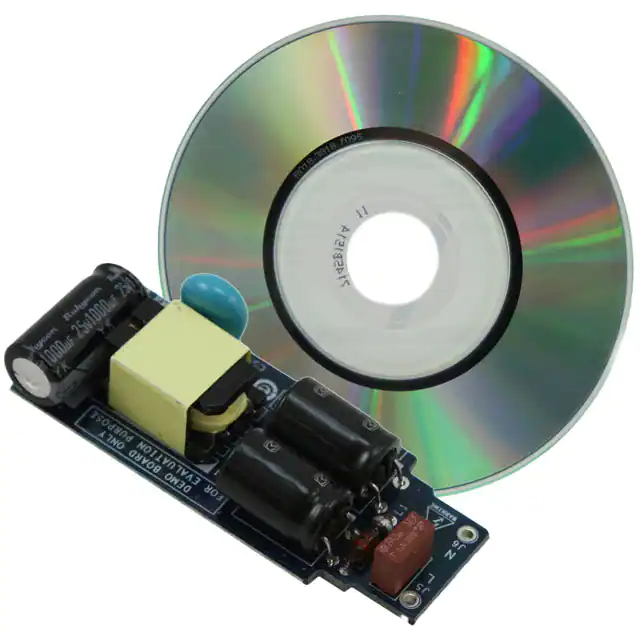

STEVAL-ILL037V1EVAL BOARD FOR HVLED805 |
0 |
|
Datasheet | - | Box | Active | 200mA | 1 Isolated Output | 16V | - | 90 ~ 265 VAC | Board(s) | HVLED805 |
|
AL5809EV1-150EVAL BOARD FOR AL5809 |
0 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809 |
|

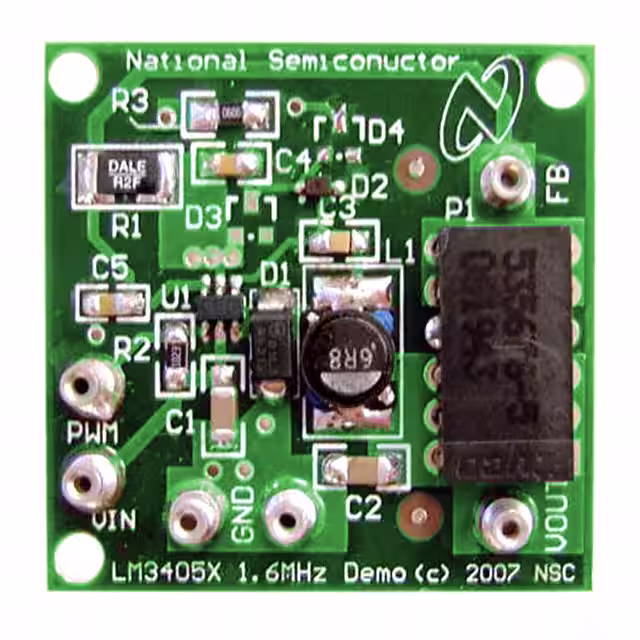

LM3405XEVALEVAL BOARD FOR LM3405 |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 15V | Board(s) | LM3405 |
|

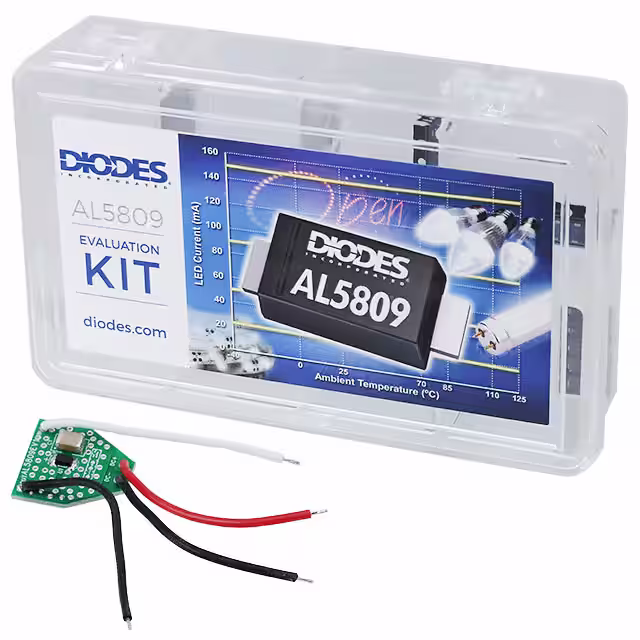

AL5809EV1-60EVAL BOARD FOR AL5809 |
5 |
|
Datasheet | - | Box | Active | 60mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809 |
|
|
AL8806EV6EVAL BOARD FOR AL8806 |
0 |
|
- |
- | Box | Not For New Designs | 1.1A | 1 Non-Isolated Output | - | - | 9V ~ 30V | Board(s) | AL8806 |
|
DEMOBOARDTLE4242GTOBO1EVAL BOARD FOR TLE4242G |
3 |
|
Datasheet | LITIX™ | Box | Not For New Designs | 370mA | 1 Non-Isolated Output | 6V ~ 8V | - | 8V ~ 16V | Board(s) | TLE4242G |
|

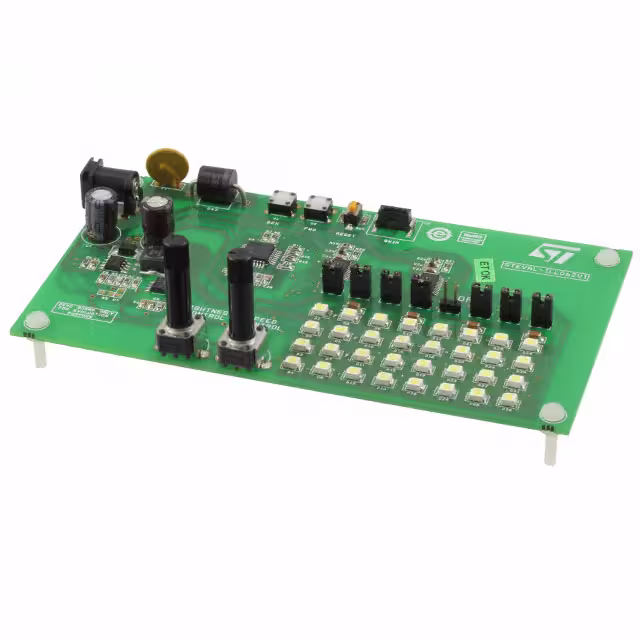

STEVAL-ILL062V1EVAL BOARD FOR L7981D STP16CPC26 |
3 |
|
Datasheet | - | Box | Active | - | 32 Non-Isolated Outputs | - | - | 6V ~ 24V | Board(s) | L7981D, STP16CPC26, STM8S |
|

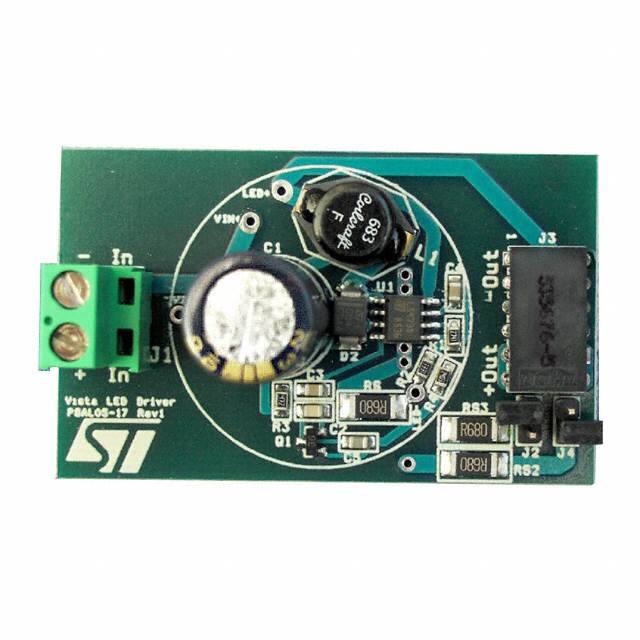

STEVAL-ILL007V1EVAL BOARD FOR L5973 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1.05A, 700mA or 350mA | 1 Non-Isolated Output | 35V | - | 12VAC, 6 V ~ 24 V | Board(s) | L5973 |
|

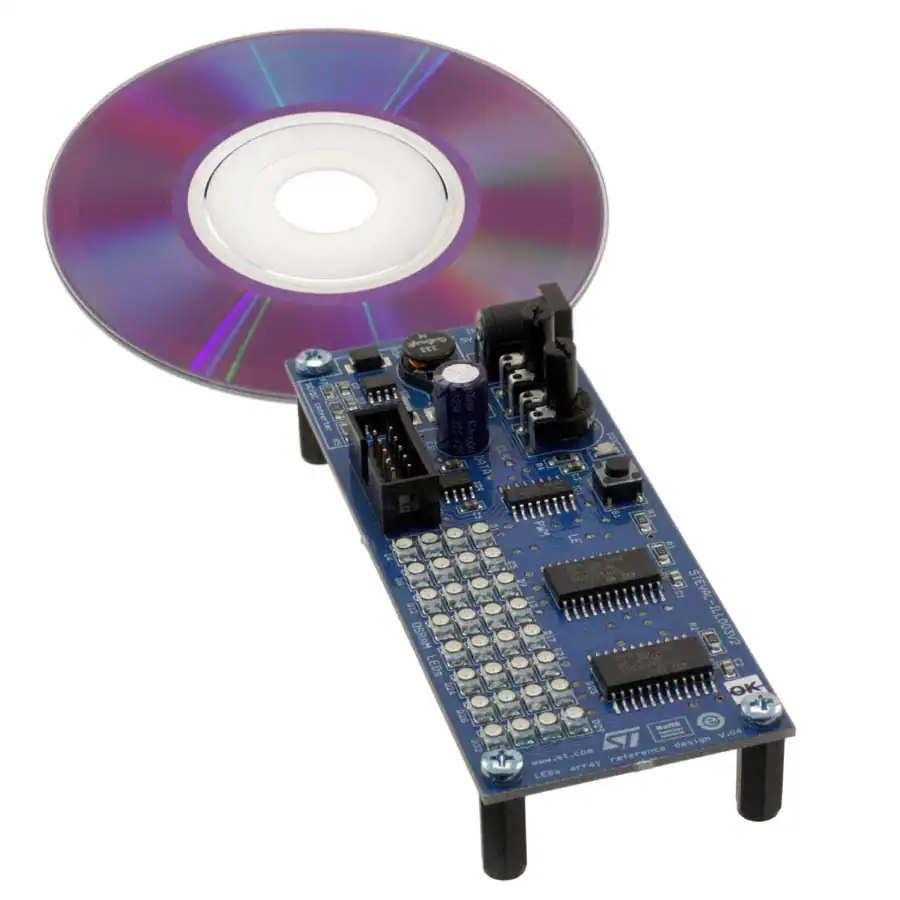

STEVAL-ILL003V2EVAL BOARD FOR STP16CP05 |
0 |
|
Datasheet | - | Bulk | Active | 100mA | 32 Non-Isolated Outputs | 4V | Dimmable | 5V ~ 35V | Board(s) | STP16CP05 |
|

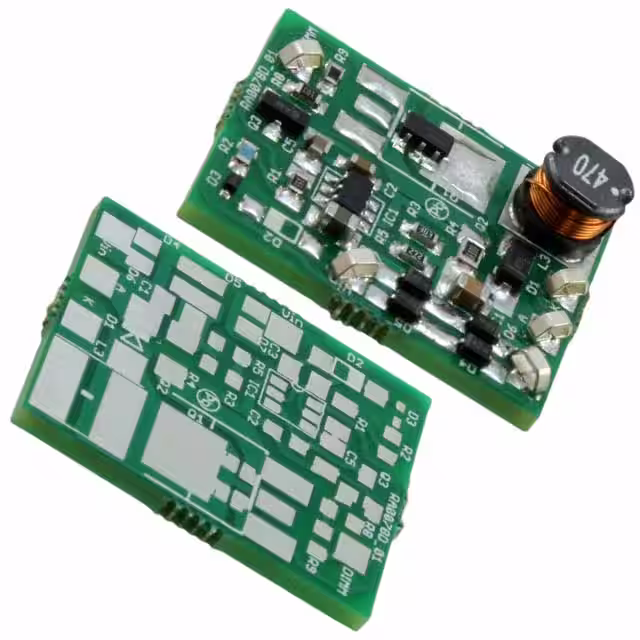

NCL30100ASLDGEVBEVAL BOARD FOR NCL30100 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | Dimmable | 12V | Board(s) | NCL30100 |
|
|
AL8806EV1EVAL BOARD FOR AL8806 |
0 |
|
- |
- | Box | Not For New Designs | 1.5A | 1 Non-Isolated Output | - | Dimmable | 9V ~ 30V | Board(s) | AL8806 |
|
|
AL8806EV4EVAL BOARD FOR AL8806 |
0 |
|
- |
- | Box | Not For New Designs | 1.5A | 1 Non-Isolated Output | - | Dimmable | 9V ~ 30V | Board(s) | AL8806 |
|
STEVAL-ILL009V1EVAL BOARD FOR STP04CM05 |
0 |
|
- |
- | Box | Obsolete | 700mA | 7 Non-Isolated Outputs | - | - | 8V ~ 30V | Board(s) | STP04CM05 |
|

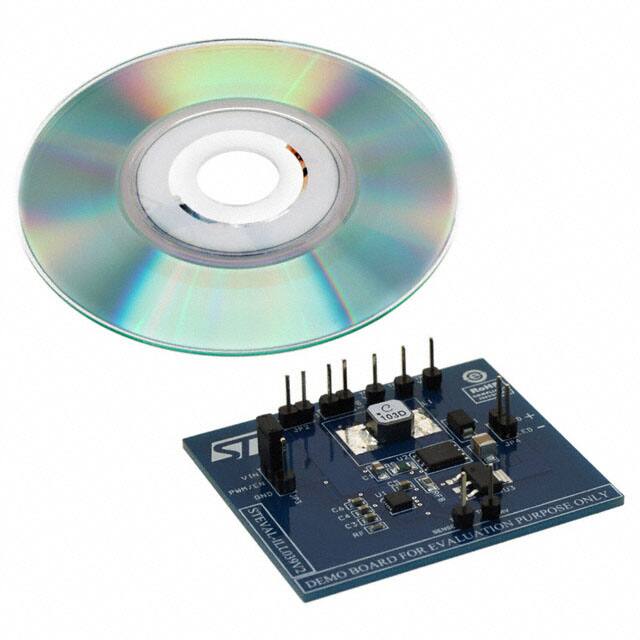

STEVAL-ILL039V2EVAL BOARD FOR STLDC08 |
0 |
|
Datasheet | - | Bulk | Active | 400mA | 1 Non-Isolated Output | - | Dimmable | 0.8V ~ 3.6V | Board(s) | STLDC08 |
|
|
OM13528ULEVAL BOARD FOR PCA9532 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9532 |
